True MFG Co.

True Manufacturing TCGG-36-S-HC-LD 36" Curved Glass Refrigerated Deli Display Case

$5,056.99 ~~Precio rebajado$14,225.00ahorra $9,168.01~~

Key Features:

Curved "Low-E" Double-Pane Thermal Glass Front: Dual sliding rear doors feature insulated Low-E glass inserts with mitered plastic channel frames, maximizing product visibility while reducing thermal transfer and energy loss.
Hydrocarbon R290 Refrigerant: Utilizes environmentally responsible R290 refrigerant with a Global Warming Potential (GWP) of just 3, compared to legacy refrigerants R404a (GWP 3922) and R134a (GWP 1430), significantly reducing the unit's carbon footprint.
Gravity Coil Refrigeration System: Maintains 55% relative humidity at a 75°F ambient environment, preserving the freshness and appearance of deli, produce, and prepared foods.
Three-Source LED Interior Lighting: Three LED light sources (two shelf-mounted, one cabinet-mounted) deliver brilliant product illumination while consuming less energy and generating less heat than conventional lighting.
Cantilevered, Adjustable PVC-Coated Wire Shelving: Two heavy-duty white PVC-coated wire shelves (30 7/8" L x 22 5/32" D) are internally manufactured with larger-diameter steel and 1/2" top bar spacing. The cantilevered design allows angle adjustment for optimal product presentation, and PVC bonding resists chipping and peeling.
All-Stainless Steel Construction: Interior and exterior surfaces, including the floor with coved corners, are finished in stainless steel for durability, corrosion resistance, and ease of cleaning.
Self-Closing Sliding Rear Doors: Doors ride on stainless steel V-channel tracks with stainless steel bearings for smooth, even, positive closure. Each door is fitted with a 12" (305 mm) black aluminum handle for ergonomic, high-traffic access.
CFC-Free High-Density Polyurethane Insulation: Foamed-in-place insulation delivers superior structural rigidity and thermal performance with zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Energy-Efficient Components: Electrically commutated motors (ECM) and high-efficiency compressors exceed energy standards without sacrificing refrigeration capacity.
Industry-Leading Warranty: Backed by 3 years parts and labor coverage, plus a 7-year compressor warranty on HC (R290) models, providing long-term peace of mind for commercial operators.
Made in the USA: Manufactured domestically using an industry-leading combination of high-quality metals and components, with cULus listing and UL EPH classification.
Standard Electrical Requirements: Operates on 115V/60/1-ph power with a 5-15P plug and 9-ft cord, enabling straightforward installation into standard commercial circuits.

True Manufacturing TCGG-36-S-HC-LD 36" Curved Glass Refrigerated Deli Display Case

$5,056.99~~$14,225.00~~

Detailed Description

The True Manufacturing TCGG-36-S-HC-LD is a 36-inch full-service curved glass refrigerated deli display case built for delis, convenience stores, and food service operations that demand attractive merchandising and reliable cold-chain performance. Its stainless steel interior and exterior, including a coved floor, combine durability with easy cleanability, while the signature curved Low-E double-pane thermal glass front maximizes product visibility and minimizes energy loss. Three LED light sources - two shelf-mounted and one cabinet-mounted - deliver a brilliant, heat-reducing display that keeps product looking its best. The gravity coil refrigeration system runs on the eco-friendly hydrocarbon refrigerant R290 (GWP of 3), reflecting True's commitment to sustainability, and is backed by an industry-leading 3-year parts and labor warranty plus a 7-year compressor warranty.

Product Details

Precise Climate Control

Gravity coil refrigeration maintains 55% relative humidity at 75°F ambient for optimal food preservation.

Eco-Friendly & Energy Efficient

R290 hydrocarbon refrigerant with a GWP of just 3 and LED lighting throughout for reduced energy use.

All-Stainless Construction

Stainless steel interior and exterior, including coved corners, for lasting durability and effortless cleaning.

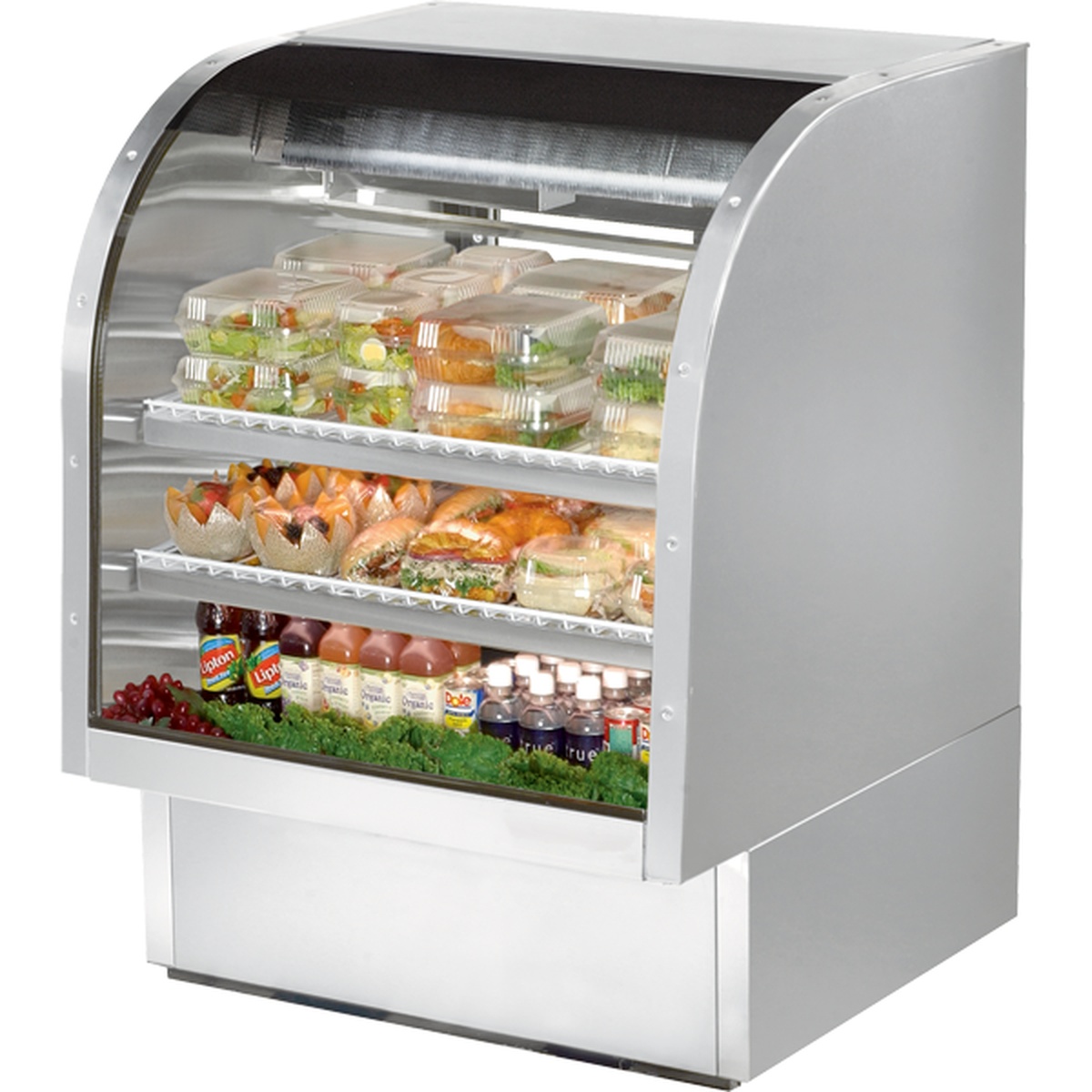

True TCGG-36-S-HC-LD curved glass refrigerated deli display case stocked with food items on white shelves

Curved Glass Front for Maximum Visibility

The TCGG-36-S-HC-LD features a sweeping curved glass front with Low-E, double-pane thermal glass inserts that showcase your products from every angle while minimizing energy loss. Black aluminum handles and self-closing sliding rear doors with stainless steel V-channel bearings deliver smooth, consistent access every time.

Low-E double-pane thermal glass with mitered plastic channel frames
12" black aluminum handle per door for easy rear access
Self-closing sliding doors on stainless steel V-channel with steel bearings

Key Specifications

Cabinet Dimensions36-1/4" W x 35-1/4" D x 47-3/4" H

Shelves2 adjustable PVC-coated wire shelves, 30-7/8" L x 22-5/32" D

LED Lighting3 sources: 2 shelf-mounted + 1 cabinet-mounted

Electrical115V / 60Hz / 1-Phase, 3.3A, NEMA 5-15P, 9 ft. cord

Warranty (HC Models)3 years parts & labor / 7 years on compressor

CertificationscULus listed, UL EPH classified, Made in USA

Built for Performance and Sustainability

GWP 3

R290 Hydrocarbon Refrigerant

3 + 7 yr

Parts/Labor + Compressor Warranty

55% RH

Humidity Control at 75°F Ambient

Ideal For

Delis and butcher counters Convenience stores Cafeterias and food courts Specialty grocery retailers Full-service restaurants

From the Cresco Resco Team

Why You'll Love It

The True TCGG-36-S-HC-LD is a full-featured curved glass deli merchandiser engineered to keep food fresh, look great on your sales floor, and operate sustainably for years to come.

Perfect for delis, convenience stores, and cafeterias that demand reliable refrigerated display in a compact 36-1/4" footprint.
The R290 hydrocarbon refrigerant system and LED lighting deliver industry-leading efficiency without compromising performance.
Backed by True's industry-leading HC warranty, 3 years parts and labor and 7 years on the compressor, giving you confidence in your investment.

Specifications

Model	TCGG-36-S-HC-LD
Brand	True Manufacturing
Type	Refrigerated Deli Display Case
Glass Style	Curved
Service Type	Full Service
Installation Type	Free Standing
Exterior Finish	Stainless Steel
Interior Finish	Stainless Steel
Cabinet Dimensions (W x D x H)	36-1/4" x 35-1/4" x 47-3/4"
Number of Doors	2
Number of Shelves	2
Shelf Dimensions	30-7/8" L x 22-5/32" D (785 mm x 563 mm)
Refrigeration Type	Self-Contained, Gravity Coil
Refrigerant	R290 (Hydrocarbon)
Compressor Location	Bottom Mounted
Horsepower	1/3 HP
Operating Humidity	55% RH at 75°F Ambient
Voltage	115V / 60 Hz / 1-Phase
Amperage	3.3 A
Plug Type	NEMA 5-15P
Cord Length	9 ft
Lighting	LED (3 total: 2 shelf-mounted, 1 cabinet-mounted)
Weight	400 lbs (182 kg)
Crated Weight	460 lbs
Insulation	CFC-Free Foamed-In-Place Polyurethane, High-Density
Door Glass	Low-E Double Pane Thermal Glass with Mitered Plastic Channel Frames
Door Handle	12" (305 mm) Black Aluminum
Door Operation	Self-Closing Sliding Doors on Stainless Steel V-Channel with Stainless Steel Bearings
Made in USA	Yes
Certifications	cULus, UL EPH Classified
Warranty	3 Years Parts & Labor; 7 Years Compressor (HC/R290 Models)
