Imperial

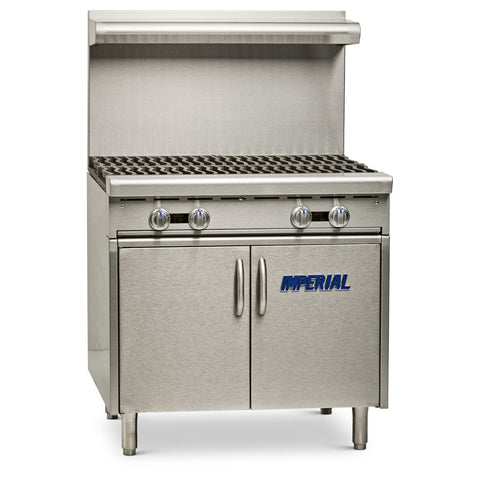

Imperial IHR-4-24-XB 24 in Gas Heavy Duty Add-A-Unit Range with (4) Open Burners and Open Cabinet Base

$5,035.00 ~~Precio rebajado$11,188.00ahorra $6,153.00~~

Key Features:

24 inch heavy duty Spec Series Add-A-Unit gas range with (4) open burners totaling 140,000 BTU/hr.
35,000 BTU/hr burners with 7,000 BTU/hr low simmer; anti-clogging burner design for improved efficiency.
Durable burner system: one-piece venturi base (no gaskets), sloped venturi for efficient heating, cast-iron burners that remove and separate for easier cleaning.
Long-life gas train components including all stainless steel pilot tubing and solid brass top burner valves.
Cast-iron grates (wavy or "S" style noted by sources) designed for strong heat transfer and pilot protection from grease and debris.
Open cabinet base with bottom shelf plus removable crumb tray for easier cleanup.
Stainless steel exterior components including front and sides (also listed: landing ledge, backguard, and kick plate).
24 inch W x 38 inch D x 42 inch H footprint; freestanding floor model with 6 inch legs and adjustable feet.

Detailed Description

The Imperial IHR-4-24-XB is a 24-inch heavy duty gas add-a-unit range built for high-output line cooking in a modular footprint. Four open burners deliver up to 140,000 total BTU, with each burner offering a high-heat output plus a low simmer setting for better control. An open cabinet base provides convenient storage, while stainless steel front and sides support durability and fast cleanup. It is a solid choice for kitchens that need a compact, high-performance burner battery in a Spec Series platform.

Product Details

140,000 BTU Total Output

High-heat performance across four open burners for fast recovery during rush periods.

Heavy-Duty Build

Stainless steel front and sides with commercial-grade components designed for long service life.

Cabinet Base Storage

Integrated base space helps keep pans and tools close to the cook line.

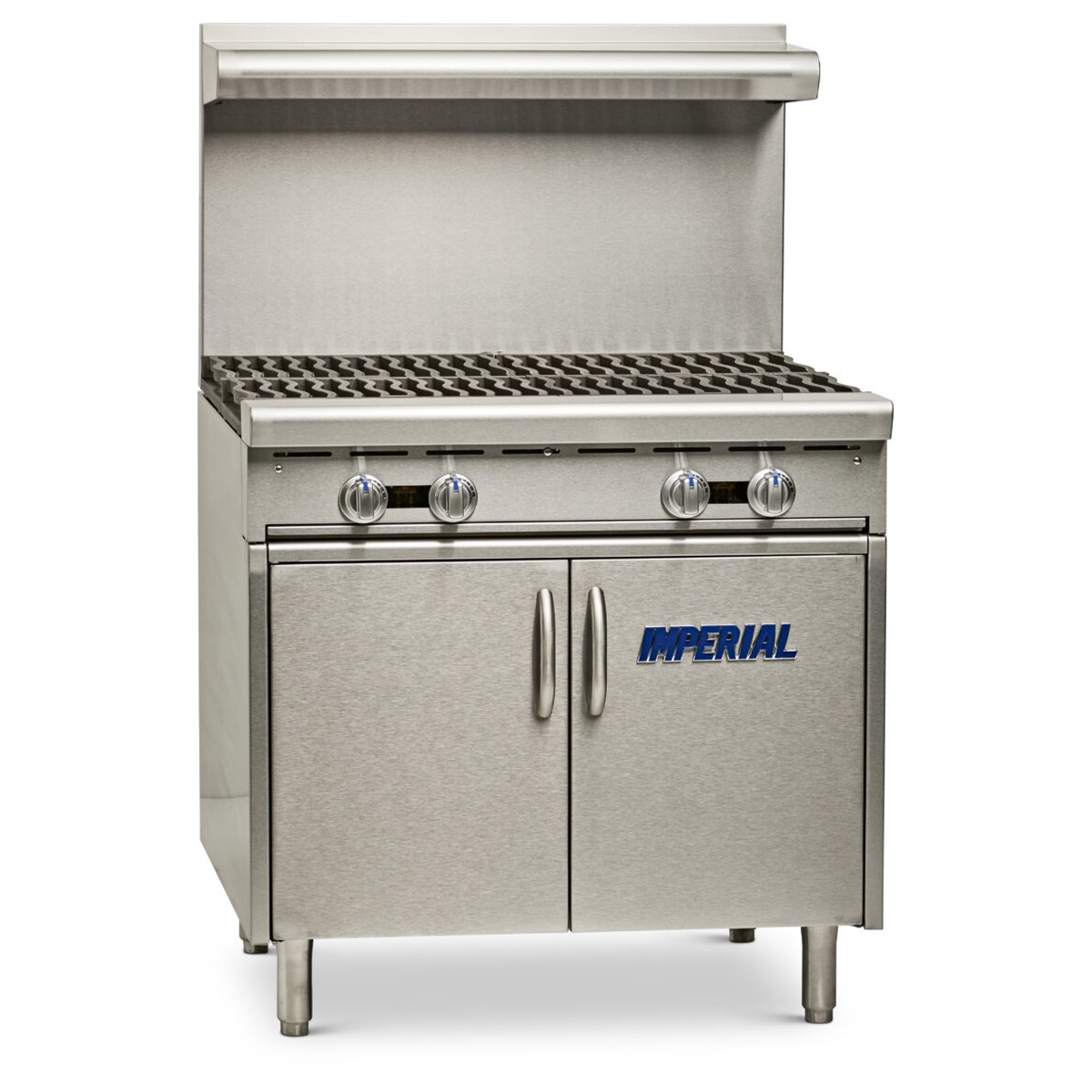

Imperial IHR-4-24-XB 24 inch gas range with four burner controls and cabinet base

Compact 24 Inch Add-A-Unit Range

The Imperial IHR-4-24-XB delivers high-output cooking power in a space-saving footprint, built for commercial kitchens that need reliable, everyday performance.

(4) open burners for flexible pan configurations
Designed as an add-a-unit to expand your cook line
Cabinet base provides convenient under-range storage

Key Specifications

Total BTU

140,000

Burners

4 open burners

Overall Size (W x D x H)

24 in x 38 in x 42 in

Fuel Type

Gas (natural gas)

Construction

Stainless steel front and sides

Base

Cabinet base

Specifications shown are for model IHR-4-24-XB.

Ideal For

Restaurant cook lines High-volume prep and sauté Expanding an existing range lineup Tight kitchen footprints

From the Cresco Resco Team

Why You'll Love It

A compact, heavy-duty gas range that adds real output and flexibility without taking over your cook line.

Great for kitchens that need a dedicated four-burner station in a 24 inch footprint.
High BTU output supports fast recovery for back-to-back orders.
Cabinet base keeps essential tools and pans within easy reach.

Specifications

Brand	Imperial
Model	IHR-4-24-XB
Series	Spec Series (Heavy Duty) Add-A-Unit Range
Power Type	Gas (Natural Gas)
Installation Type	Freestanding floor model
Top Configuration	(4) open burners
Number of Burners	4
BTU per Burner	35,000 BTU/hr (7,000 BTU/hr low simmer)
Total BTU	140,000 BTU/hr
Base Type	Open cabinet/storage base with bottom shelf
Overall Dimensions (W x D x H)	24 in x 38 in x 42 in
Weight	495 lb
Exterior Finish	Stainless steel front and sides (includes stainless landing ledge, backguard, and kick plate)
Grates	Cast iron "S" grates (wavy grate design)
Controls	Manual controls
Standard Legs	6 in legs with adjustable feet
Additional Features	Removable crumb tray; cast-iron burners removable for cleaning; stainless pilot tubing; solid brass top burner valves
