American Range

American Range AR-4B-36RG 60 in Gas Restaurant Range with 4 Open Burners, 36 in Raised Griddle/Broiler and Double Ovens

$12,261.00 ~~Precio rebajado$25,812.00ahorra $13,551.00~~

Key Features:

60 inch heavy duty gas restaurant range with (4) 32,000 BTU open burners for high-output, flexible cooking.
36 inch raised griddle/broiler on right with 3/4 inch thick plate and manual controls.
Two 26-1/2 inch standard ovens, each supplied with (2) racks for multi-pan baking and roasting.
Durable stainless steel construction on front and sides; includes 20 inch back riser and shelf standard (6 inch stub back optional).
258,000 BTU total input (76.0 kW) with cETLus and ETL-Sanitation listings; Made in USA.
6 inch adjustable chrome plated legs for stable, level installation.

Detailed Description

The American Range AR-4B-36RG is a heavy duty 60 inch gas restaurant range built for high-volume line cooking with an integrated raised griddle/broiler. Four 32,000 BTU open burners handle stockpots and saute work, while the 36 inch raised griddle/broiler on the right adds dedicated flat-top and finishing capacity. Two standard ovens provide baking and roasting space with manual controls for straightforward operation. A stainless steel front and sides, plus a high shelf backriser and adjustable chrome-plated legs, round out a durable, professional setup.

Product Details

High-Output Cooking Power

(4) 32,000 BTU open burners plus a raised griddle and broiler section for fast, high-heat production.

Two Full-Size Standard Ovens

Double oven base with (2) racks per oven to bake, roast, and finish while you work the top.

Built for Commercial Kitchens

Stainless steel front and sides with a backriser and shelf for a durable, professional footprint.

American Range AR-4B-36RG commercial gas range front view with burners and raised griddle

4 Open Burners Plus Raised Griddle and Broiler

Run sauté, stock, and high-heat searing on the burners while keeping a dedicated griddle and broiler surface ready for continuous service.

(4) open burners, 32,000 BTU each
36 inch raised griddle and broiler section on the right
Manual controls for straightforward operation

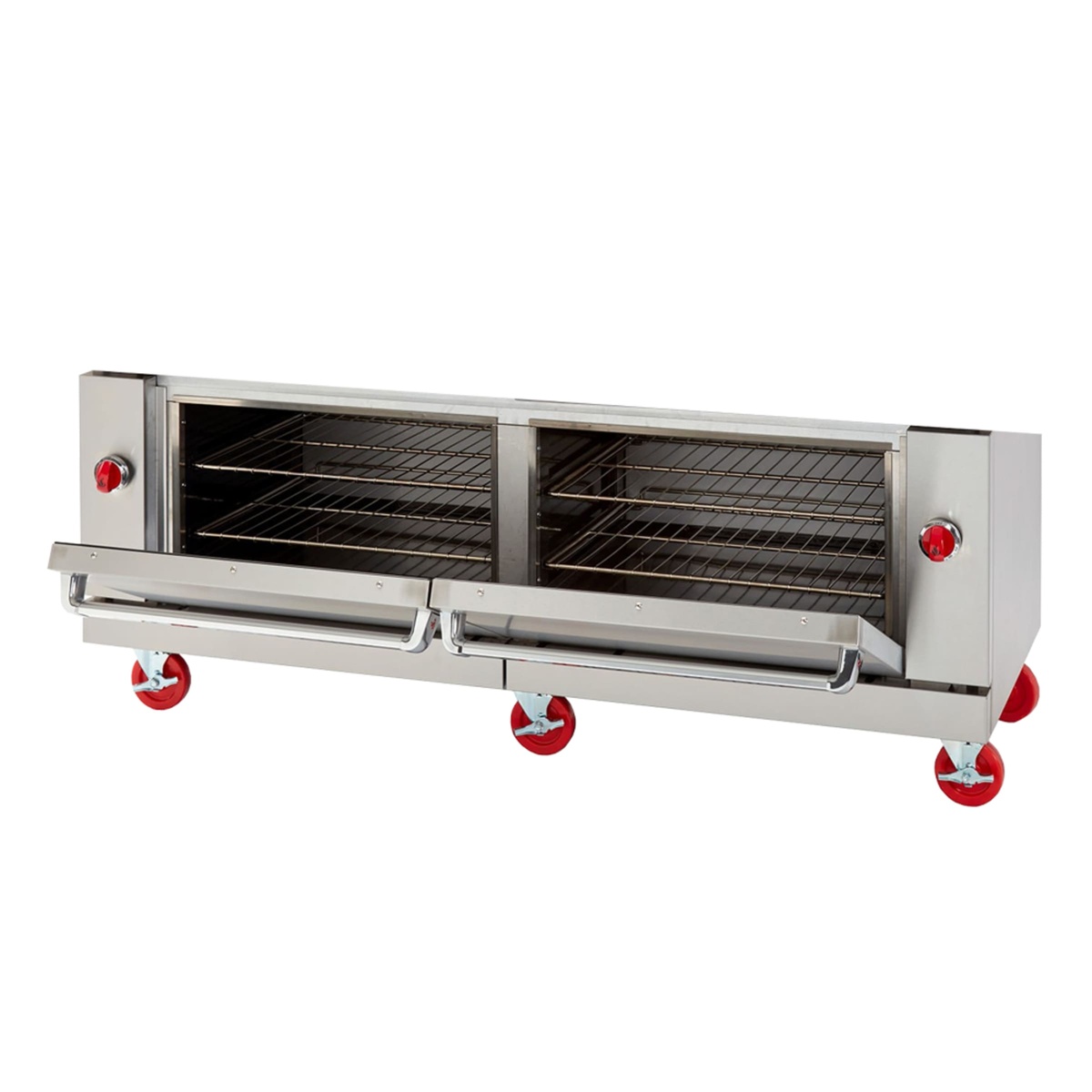

Double standard oven base with open doors showing oven racks

Double Ovens for Parallel Production

Keep sheet pans, roasts, and finishing work moving without tying up the cooktop.

(2) standard ovens, 26-1/2 inch wide
(2) racks per oven
Freestanding configuration for flexible placement

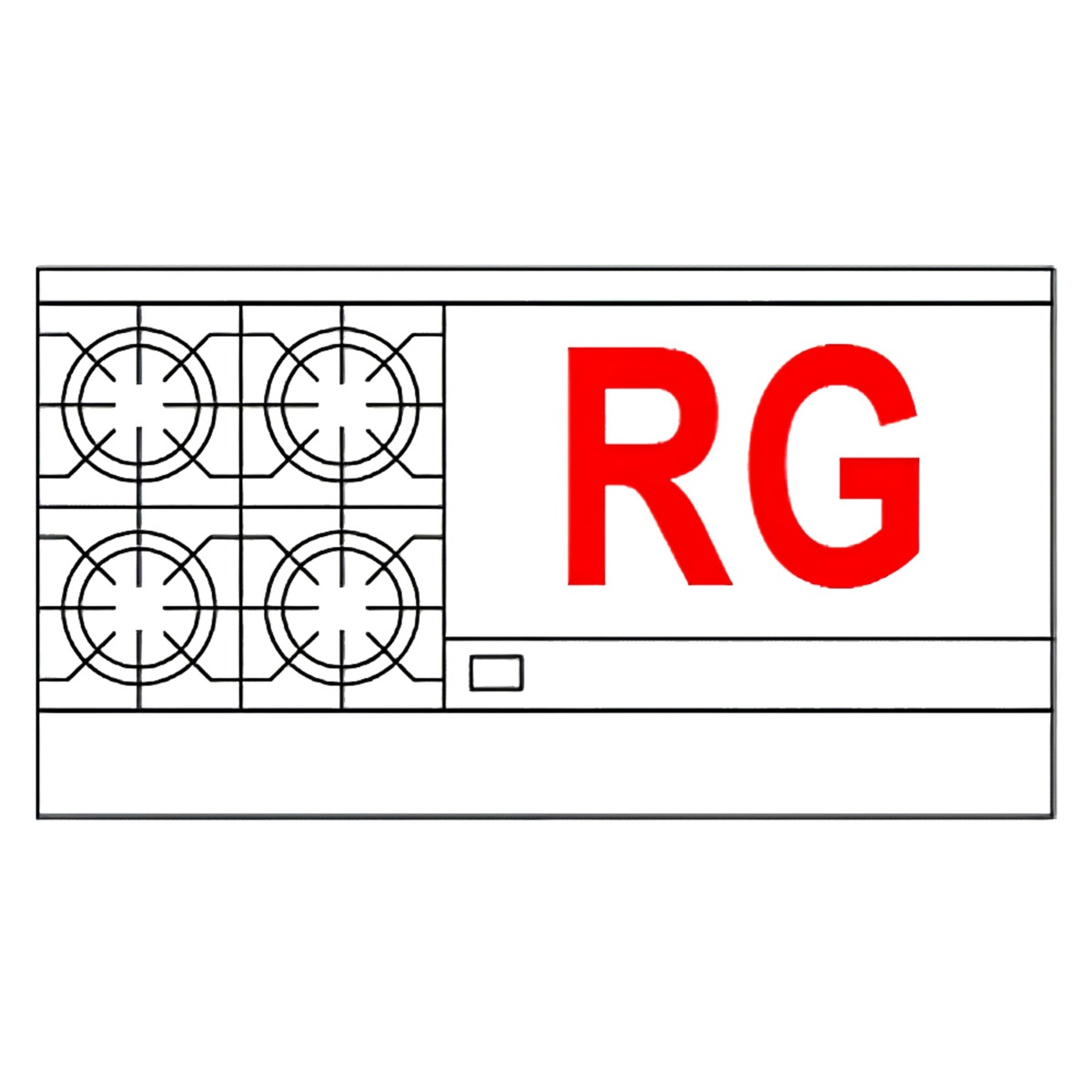

Top layout diagram showing four burners and raised griddle configuration

Optimized 60 Inch Layout

Designed for busy lines that need burners and a large griddle surface in a single footprint.

60 inch wide cooking suite
3/4 inch thick griddle plate
Backriser and shelf standard, with optional 6 inch stub back

Key Details at a Glance

Total Output

258,000 BTU (76.0 kW)

Construction

Stainless steel front and sides

Certifications

cETLus, ETL-Sanitation

Made In

USA

From the Cresco Resco Team

Why You'll Love It

A heavy-duty American Range suite that combines open-burner versatility, a large raised griddle surface, and two standard ovens in one 60 inch platform.

Great for high-volume menus that need burners and griddle capacity side by side.
3/4 inch griddle plate with manual controls for dependable line cooking.
Stainless steel exterior and ETL-Sanitation listing for commercial use.

Specifications

Manufacturer	American Range
Model / MPN	AR-4B-36RG
Equipment Type	Heavy-duty commercial gas range with raised griddle/broiler and double standard ovens
Overall Width	60 in
Overall Depth	32.25 in
Overall Height	56 in
Installation Type	Freestanding
Top Configuration	(4) open burners + (1) 36 in raised griddle/broiler (right side)
Number of Burners	4
Burner Type	Open
BTU per Burner	32,000 BTU
Raised Griddle Plate Thickness	3/4 in
Controls	Manual
Oven Base	(2) standard ovens, 26.5 in wide
Standard Oven Interior Dimensions (each)	26.5 in W x 22.5 in D x 13.5 in H
Oven Racks	(2) racks per oven
Rack Positions (standard oven)	5 positions per oven
Total Input	258,000 BTU (76.0 kW)
Gas Connection	3/4 in NPT inlet
Gas Type	Specify Natural Gas (NG) or LP
Vent / Backsplash	20 in back riser with shelf (option: 6 in stub back)
Construction	Stainless steel front and sides
Legs	6 in adjustable chrome-plated legs
Certifications	cETLus, ETL-Sanitation
Country of Origin	Made in USA
Warranty	2-year limited parts and labor
