American Range

American Range AR-4B-12RG LP 36 in 4-Burner Gas Range with 12 in Griddle/Broiler and Standard Oven (LP)

$6,576.00 ~~Precio rebajado$13,845.00ahorra $7,269.00~~

Key Features:

36 inch commercial gas range with (4) 32,000 BTU lift off open burners and 12 inch raised griddle with integrated broiler on the right
3/4 inch thick griddle plate for high heat retention and recovery
Standard oven base with (2) racks and 5 rack positions; thermostat range up to 500°F
Manual controls with individual pilots/valves for straightforward operation and serviceability
Durable stainless steel front and sides; includes 6 inch adjustable chrome plated legs and choice of riser and high shelf or stub back
Liquid propane (LP) configuration with 3/4 inch gas inlet
cETLus and ETL Sanitation listed

Detailed Description

The American Range AR-4B-12RG LP is a 36 inch heavy-duty restaurant range built for high-output line cooking in a compact footprint. Four 32,000 BTU open burners handle sauté, boil, and sear, while the 12 inch raised griddle and broiler section adds fast finishing and griddling capacity on the right. A full-size standard oven with two racks and five rack positions supports baking and roasting with manual, straightforward controls. Stainless steel front and sides and a backriser with high shelf help it stand up to daily commercial use.

Product Details

High-Output Open Burners

Four lift-off open burners rated at 32,000 BTU each for heavy-duty cooking.

Built-In Griddle and Broiler Zone

12 inch raised griddle and broiler area with independent manual controls.

Kitchen-Ready Stainless Build

Stainless steel front and sides, plus durable cast-iron top grates.

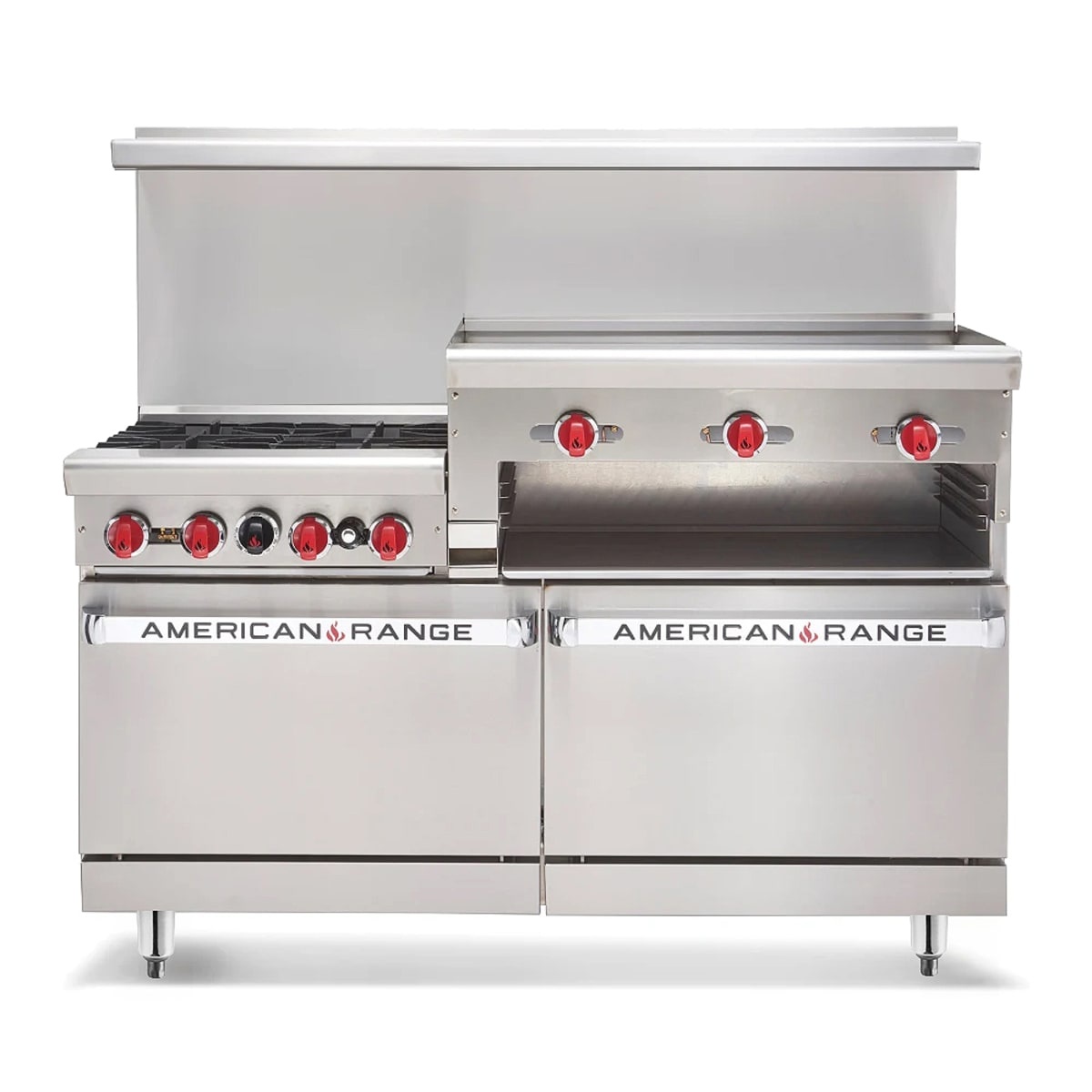

American Range AR-4B-12RG commercial gas range with four open burners and a raised griddle and broiler section

One Range, Multiple Stations

Combine everyday burner work with a dedicated raised griddle and broiler area to keep service moving.

(4) 32,000 BTU lift-off open burners with 12 inch by 12 inch cast-iron grates
12 inch raised griddle and broiler on the right with a 3/4 inch thick steel plate
Manual control valve and stainless pilot for each griddle burner

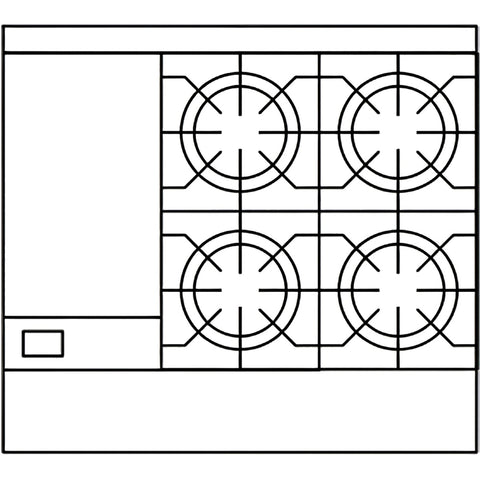

Top-view layout drawing showing four burners with a raised griddle and broiler section

Designed for Fast Line Flow

The cooktop layout keeps burners and the raised griddle and broiler zone within easy reach for efficient multitasking.

Full-width drip pan under burners for simpler cleanup
3 inch wide grease collector on the raised griddle
Adjustable steel legs; casters optional

Key Specifications

Overall size36 in W x 32.25 in D x 56 in H

Total output183,000 BTU

Configuration(4) open burners plus 12 in raised griddle and broiler section

WarrantyTwo-year limited parts and labor

Ideal For

High-volume restaurants Diners and breakfast service Burger and sandwich lines Catering kitchens

From the Cresco Resco Team

Why You'll Love It

The AR-4B-12RG brings together powerful open burners with a dedicated raised griddle and broiler zone, giving your line more flexibility in the same footprint.

Great for kitchens that need burners, griddling, and broiling without adding another piece of equipment.
3/4 inch griddle plate helps hold heat for consistent results during rushes.
Stainless exterior and removable drip pan support faster end-of-shift cleanup.

Specifications

Brand	American Range
Model	AR-4B-12RG LP
Equipment Type	Commercial gas restaurant range with griddle, broiler, and oven
Installation Type	Freestanding
Gas Type	Liquid propane (LP)
Overall Width	36 in
Overall Depth	32.25 in
Overall Height	56 in
Top Configuration	(4) open burners plus (1) 12 in raised griddle and broiler on right
Number of Burners	4
Burner Type	Open
BTU per Burner	32,000 BTU
Total BTU	183,000 BTU
Griddle Plate Thickness	3/4 in
Controls	Manual
Oven Base	Standard oven
Number of Ovens	1
Standard Oven Dimensions (W x D x H)	26.5 in x 22.5 in x 13.5 in
Oven Racks Included	2
Rack Positions	5
Maximum Temperature	500 F
Gas Inlet Size	3/4 in
Vent / Backsplash	Backriser with high shelf (choice of 20 in riser or 6 in stub back)
Construction	Stainless steel front and sides
Legs	6 in adjustable chrome plated legs
Certifications	cETLus; ETL-Sanitation
Warranty	2-year limited parts and labor
Shipping Weight	525 lb
