American Range

American Range AR-12G-4B 36 in 4-Burner Gas Range with 12 in Griddle and Standard Oven

$4,553.00 ~~Precio rebajado$9,585.00ahorra $5,032.00~~

Key Features:

36 inch commercial gas range with (4) 32,000 BTU lift off open burners and 12 inch x 12 inch cast iron top grates
Integrated 12 inch griddle with 1 inch thick steel plate, 20,000 BTU burner, manual control valve, and grease collector for easier cleanup
Single oven base with 35,000 BTU steel oven burner, 250 to 500°F thermostat range, porcelain enamel interior, and spring assisted counterweight door
Includes (2) chrome plated oven racks with multiple rack guide positions; removable full width drip pan under burners
Stainless steel front, sides, and landing ledge; 6 inch adjustable legs (casters optional); 100% safety gas shut off

Detailed Description

The American Range AR-12G-4B is a heavy-duty 36 inch gas restaurant range built for high-output line cooking. It pairs four 32,000 BTU open burners with a 12 inch steel griddle plate for flexible sauté, boil, and flat-top production in one footprint. A standard oven with porcelain enamel interior and a 250 to 500°F thermostat supports consistent baking and roasting service. Stainless steel front and sides, lift-off burner heads, and a full-width drip pan help streamline cleanup in busy kitchens.

Product Details

183,000 BTU Total Output

High heat for busy service with powerful open burners and a dedicated griddle.

250 to 500°F Oven Thermostat

Dial in bake and roast temperatures in the standard oven.

Heavy-Duty Build

Stainless steel front and sides with cast-iron top grates for daily commercial use.

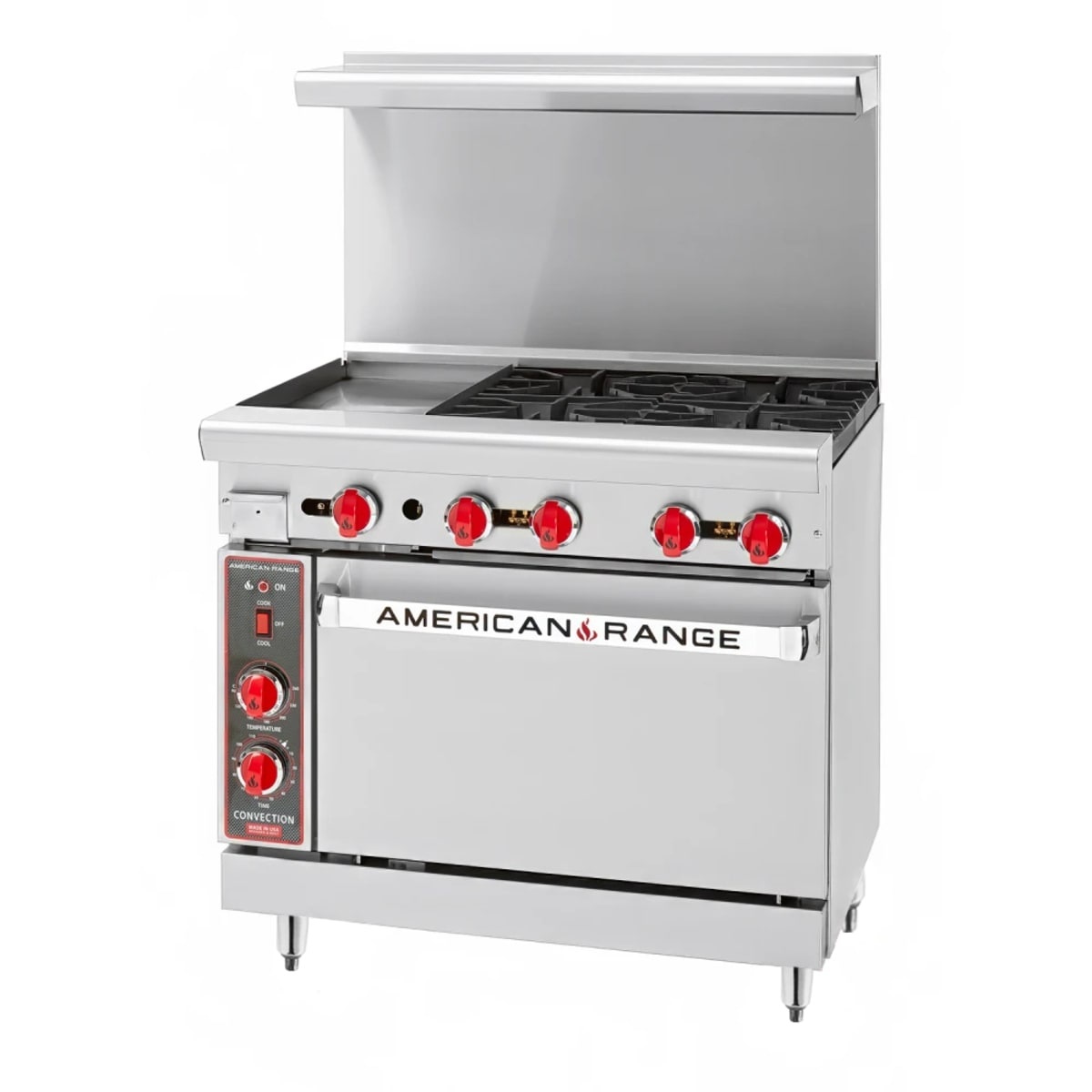

American Range AR-12G-4B 36-inch gas range with four open burners, 12-inch griddle, and single oven

Burners Plus Griddle Versatility

Designed for line cooking that needs both high-heat burner work and a dedicated griddle surface in one 36-inch footprint.

(4) 32,000 BTU/hr lift-off open burners
(1) 12-inch griddle with 1-inch thick steel plate
Manual controls and individual pilots for griddle burners

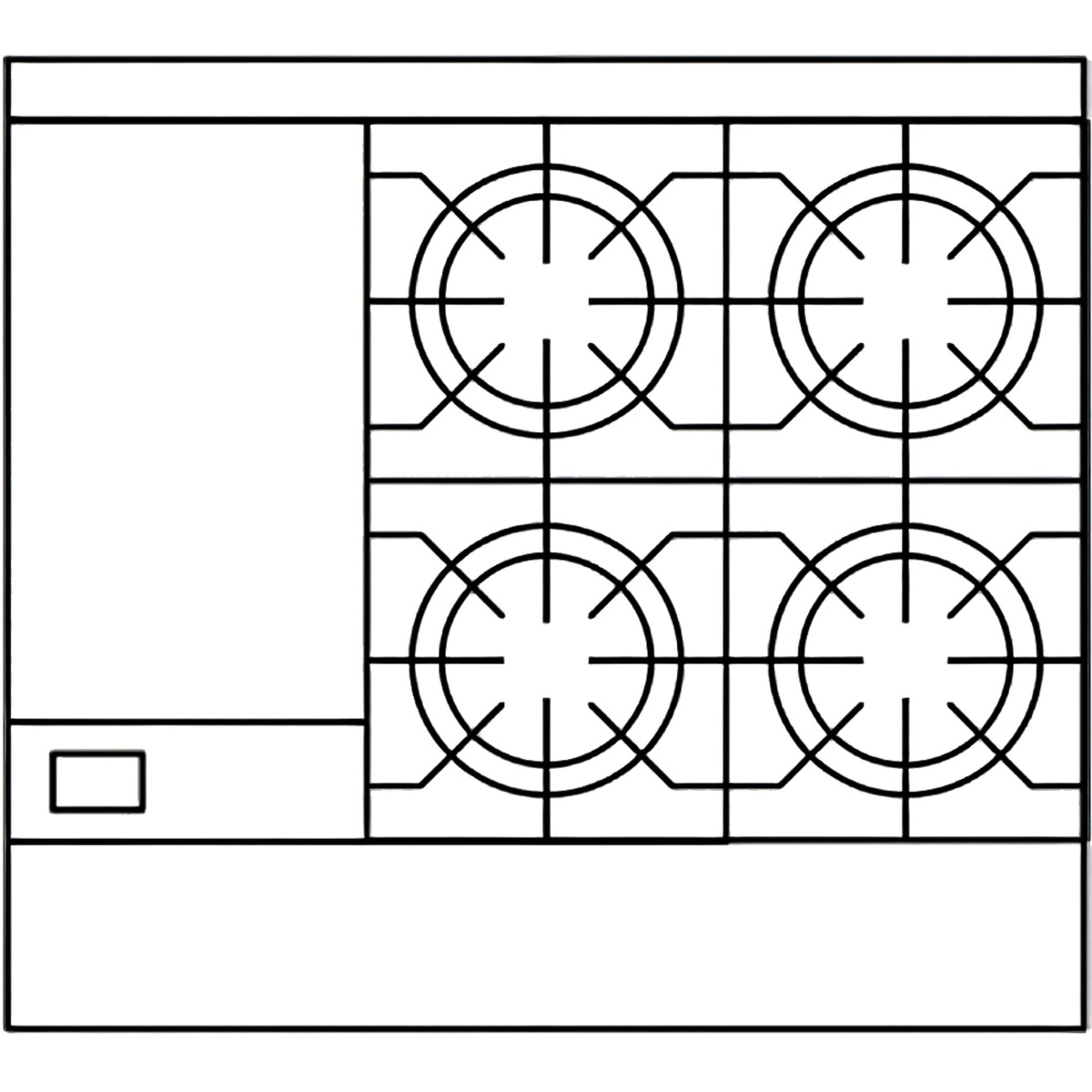

Top-view configuration diagram showing a 12-inch griddle section and four burner grates

Efficient, Familiar Cooktop Layout

Four open burners handle pots and pans while the 12-inch griddle supports fast, consistent flat-top items.

12-inch by 12-inch cast-iron top grates
Removable full-width drip pan under the burners
3-inch wide grease collector for the griddle

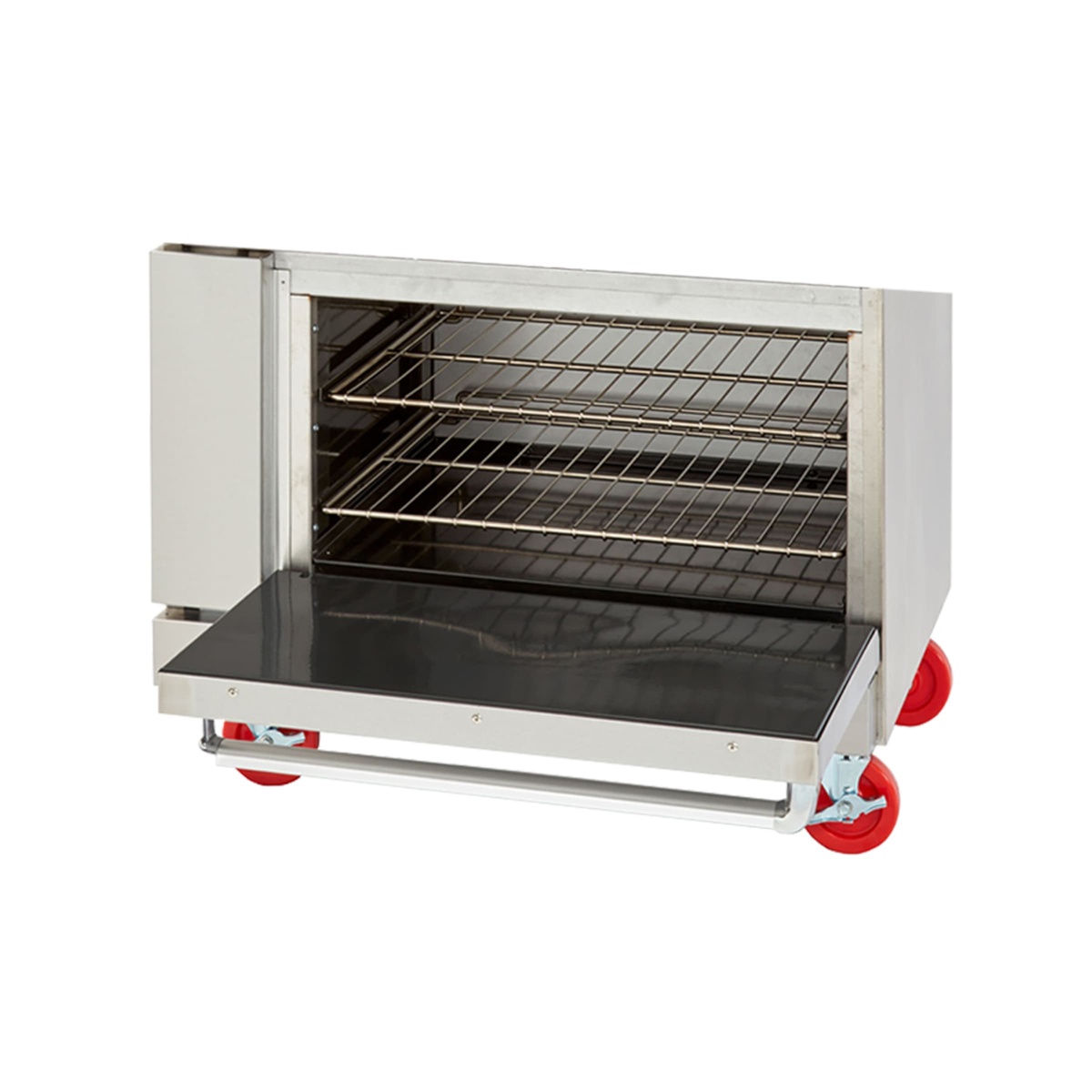

Standard oven interior with two chrome-plated racks and an open drop-down door

Standard Oven for Everyday Baking

A powerful standard oven supports steady production for sheet pans, roasting, and holding during service.

35,000 BTU/hr steel oven burner
Porcelain enamel oven interior for easier cleaning
Includes (2) chrome-plated oven racks

Why Choose This Configuration

183,000

Total BTU

32,000

BTU Per Burner

250 to 500°F

Oven Thermostat Range

Ideal For

High-volume restaurants Cafes and diners Hotel and banquet kitchens Institutional cooking

From the Cresco Resco Team

Why You'll Love It

The AR-12G-4B combines high-output open burners, a compact griddle, and a standard oven to keep service moving in demanding kitchens.

Great for menus that need both saute and flat-top cooking.
Heavy-duty stainless exterior and cast-iron grates for commercial durability.
Pairs well with prep tables and refrigerated chef bases to streamline line workflow.

Specifications

Manufacturer	American Range
Model	AR-12G-4B
Equipment Type	Commercial gas restaurant range
Configuration	4 open burners + 12 in griddle + (1) standard oven
Total BTU	183,000 BTU
Number of Burners	4
Open Burner BTU (each)	32,000 BTU/hr
Top Grates	12 in x 12 in cast iron
Griddle Width	12 in
Griddle Plate Thickness	1 in steel plate
Griddle Burner Rating	20,000 BTU/hr (one burner per 12 in section)
Oven Type	Standard oven
Oven Burner Rating	35,000 BTU/hr
Oven Temperature Range	250 to 500 F
Oven Interior Dimensions (W x D x H)	26 1/2 in x 22 1/2 in x 13 1/2 in
Oven Interior Finish	Porcelain enamel
Oven Racks Included	2 chrome plated racks
Rack Positions	5 positions
Controls	Manual
Gas Inlet Size	3/4 in
Construction	Stainless steel front and sides; 6 in front landing ledge
Legs	6 in adjustable legs
Overall Width	36 in
Overall Height	56 in
Overall Depth	32.25 in
Weight	425 lb
Certifications	cETLus; ETL-Sanitation
Warranty	2 year parts and labor
