True MFG Co.

True Manufacturing T-23DT-G-HC~FGD01 27" One-Section Dual Temperature Reach-In Refrigerator/Freezer with Framed Glass Doors

$11,465.17 ~~Precio rebajado$37,939.00ahorra $26,473.83~~

Key Features:

Dual temperature reach-in unit with two independent, self-contained capillary tube refrigeration systems - refrigerator section maintains 33-38°F while the freezer section holds product at -10°F
Energy-efficient "Low-E" double pane thermal tempered glass doors on the refrigerator section and triple pane thermal insulated glass on the freezer section for superior chill retention
Extruded stainless steel door frames with 15" extruded aluminum handles; door locks standard on both half doors
Positive seal, self-closing doors with lifetime guaranteed hinges and torsion-type closure system; one-piece magnetic door gaskets are tool-free removable for easy cleaning
3 adjustable, heavy-duty PVC-coated wire shelves with a clear-coated aluminum interior and stainless steel floor
Reverse condensing fan motor self-cleans the condensing coil by blowing debris away for 20 seconds after compressor startup, extending unit lifespan
R290 hydrocarbon refrigerant for reduced environmental impact; foamed-in-place polyurethane insulation for maximum energy efficiency
Bottom-mounted compressor in the coolest, most grease-free area of the kitchen; easily accessible condenser coil for routine maintenance
LED interior lighting for clear product visibility and easy retrieval
Mounted on 4-inch casters for effortless repositioning and cleaning access; "no stoop" lower shelf design and top-of-cabinet storage maximize usable space
Stainless steel front with aluminum sides resists scratching and denting; digital thermometers for precise temperature monitoring
115V/60Hz/1-phase operation at 6.3A with NEMA 5-15P plug; 7-year parts, labor, and compressor warranty

Detailed Description

The True Manufacturing T-23DT-G-HC~FGD01 is a one-section, dual-temperature reach-in refrigerator/freezer built for demanding commercial kitchens where space and efficiency are at a premium. Equipped with two independent, self-contained capillary tube refrigeration systems, it maintains the refrigerator section at 33-38 degrees F and the freezer section at -10 degrees F simultaneously. The framed glass half-door design features Low-E double-pane thermal glass on the refrigerator and triple-pane thermal glass on the freezer, maximizing energy efficiency and product visibility. Bottom-mounted compressors operate in the coolest, most grease-free zone of the kitchen, extending equipment life and simplifying condenser maintenance. Powered by eco-friendly R290 hydrocarbon refrigerant and mounted on 4-inch casters for easy repositioning, this unit delivers the durability and precision True Manufacturing is known for in U.S.-made commercial refrigeration.

Product Details

Dual Temperature Control

Refrigerator holds 33-38°F on top; freezer maintains -10°F below - two independent systems in one unit.

Lifetime Door Hinge Guarantee

Positive-seal, self-closing doors backed by a lifetime guarantee on hinges and the torsion-type closure system.

Eco-Friendly R290 Refrigerant

Runs on hydrocarbon R290 refrigerant paired with foamed-in-place polyurethane insulation for superior efficiency.

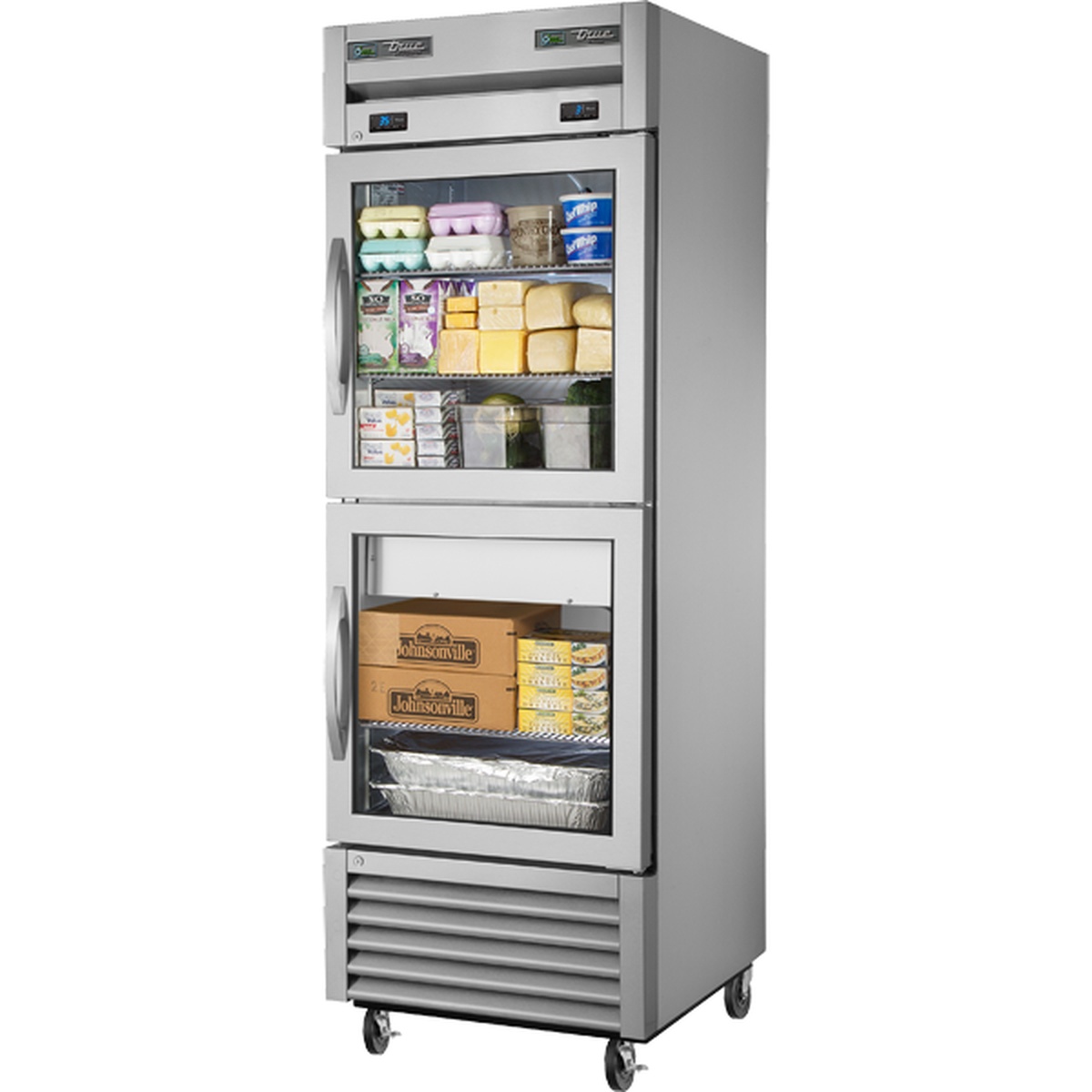

True T-23DT-G-HC~FGD01 one-section dual temperature reach-in refrigerator/freezer with two framed glass half doors and casters

One Cabinet, Two Climates

The True T-23DT-G-HC~FGD01 combines refrigerator and freezer storage in a single 27-inch-wide reach-in unit - ideal for compact or fast-paced kitchens that need both cold and frozen capacity without doubling equipment footprint.

Top section refrigerates at 33-38°F; bottom freezes at -10°F
Two framed, thermal glass half doors for full interior visibility
Refrigerator door features double-pane "Low-E" glass; freezer door uses triple-pane thermal glass
LED lighting illuminates the entire interior
3 adjustable, heavy-duty PVC-coated wire shelves

Key Specifications

Capacity23 cu. ft. total

Electrical115V / 60 Hz / 1 ph - 6.3 A - NEMA 5-15P

ConstructionStainless steel front, aluminum sides and interior, stainless steel floor

Warranty7-year parts and labor; 7-year compressor

Dimensions27.03" W x 31.81" D x 83.34" H

Mobility4-inch casters included (uninstalled) for easy repositioning

Performance at a Glance

33-38°F

Refrigerator Range

-10°F

Freezer Hold Temp

7 yr

Compressor Warranty

Ideal For

Compact commercial kitchens Fast-casual restaurants Bars and cafes Food service operations needing dual temps Kitchens prioritizing energy efficiency

From the Cresco Resco Team

Why You'll Love It

The True T-23DT-G-HC~FGD01 delivers the versatility of a full refrigerator and freezer combination in one space-saving, commercially built unit with lasting reliability.

Perfect for kitchens that require both refrigerated and frozen storage without sacrificing valuable floor space.
The self-cleaning reverse condensing fan motor extends service life by automatically clearing the condensing coil of dust and debris.
Stainless steel front, extruded aluminum handles, and magnetic one-piece door gaskets make daily cleaning fast and straightforward.

Specifications

Brand	True Manufacturing
Model	T-23DT-G-HC~FGD01
Series	T-Series
Type	Reach-In Dual Temperature Refrigerator/Freezer
Sections	1
Number of Doors	2
Door Type	Framed Glass Half-Door, Swing
Refrigerator Door Glazing	Low-E Double Pane Thermal Tempered Glass
Freezer Door Glazing	Triple Pane Thermal Insulated Glass
Hinge Configuration	Left
Number of Shelves	3
Shelving Type	Adjustable PVC-Coated Wire
Interior Material	Clear-Coated Aluminum with Stainless Steel Floor
Exterior Material	Stainless Steel Front, Aluminum Sides
Insulation	Foamed-In-Place Polyurethane
Lighting	LED
Thermometer Type	Digital
Refrigerant	R290 (Hydrocarbon)
Compressor Location	Bottom
Refrigeration Systems	2 Independent Self-Contained Capillary Tube Systems
Refrigerator Temperature Range	33°F to 38°F (0.5°C to 3.3°C)
Freezer Temperature	-10°F (-23.3°C)
Voltage	115V / 60 Hz / 1 Phase
Amps	6.3 A
NEMA Configuration	5-15P
Width	27 1/16 in. (27.03 in.)
Depth	31 13/16 in. (31.81 in.)
Height	83 3/8 in. (83.34 in.)
Weight	380 lbs (173 kg)
Mobility	4 in. Casters (Included, Uninstalled)
Warranty	7-Year Parts & Labor; 7-Year Compressor
