T&S Brass

T&S Brass AG-5C 1/2" NPT Gas Appliance Connector with Quick Disconnect

$55.60 ~~Precio rebajado$104.90ahorra $49.30~~

Key Features:

2-piece quick-disconnect design with brass socket and plug; socket acts as an automatic shut-off valve when disconnected, enhancing safety during appliance removal
1/2" NPT female freespin inlet and 1/2" NPT female freespin outlet for easy, tool-free alignment and connection to gas supply lines
Rated for a minimum gas hose capacity of 99,000 BTU/hr, supporting high-demand commercial cooking equipment
Maximum operating pressure of 0.5 psi (0.03 bar) and maximum temperature of 350°F (176.67°C) for reliable performance in commercial kitchen environments
Engineered for efficient, full gas flow with no flow restriction through the connector body
Compliant with ANSI Z21.41 / CSA 6.9 and NFPA 54 safety standards, meeting commercial installation code requirements
Part of T&S Brass Safe-T-Link product line, designed specifically for foodservice appliance gas connections

Detailed Description

The T&S Brass AG-5C is a 2-piece quick disconnect gas appliance connector from the Safe-T-Link line, purpose-built for commercial foodservice kitchens. Both the inlet and outlet feature 1/2 NPT female freespin connections, allowing for tool-free positioning and simplified hookup without twisting the gas line. The solid brass socket and plug design delivers efficient, full gas flow and provides an automatic shut-off when the plug and socket are separated, adding a critical layer of safety in busy kitchen environments. Rated for a minimum capacity of 99,000 BTU/hr, a maximum operating pressure of 0.5 psi, and a maximum temperature of 350°F, this connector is engineered for the rigors of professional cooking equipment. Compliance with ANSI Z21.41/CSA 6.9 and NFPA 54 ensures the AG-5C meets code requirements for gas appliance connections.

Product Details

Instant Quick Disconnect

2-piece socket and plug design enables fast connection and disconnection of gas appliances with full, efficient gas flow.

Built-In Safety Shutoff

The quick-disconnect socket automatically acts as a shutoff valve when the plug and socket are separated, preventing gas leaks.

Solid Brass Construction

Brass socket and plug deliver long-lasting durability and reliable performance in demanding commercial kitchen environments.

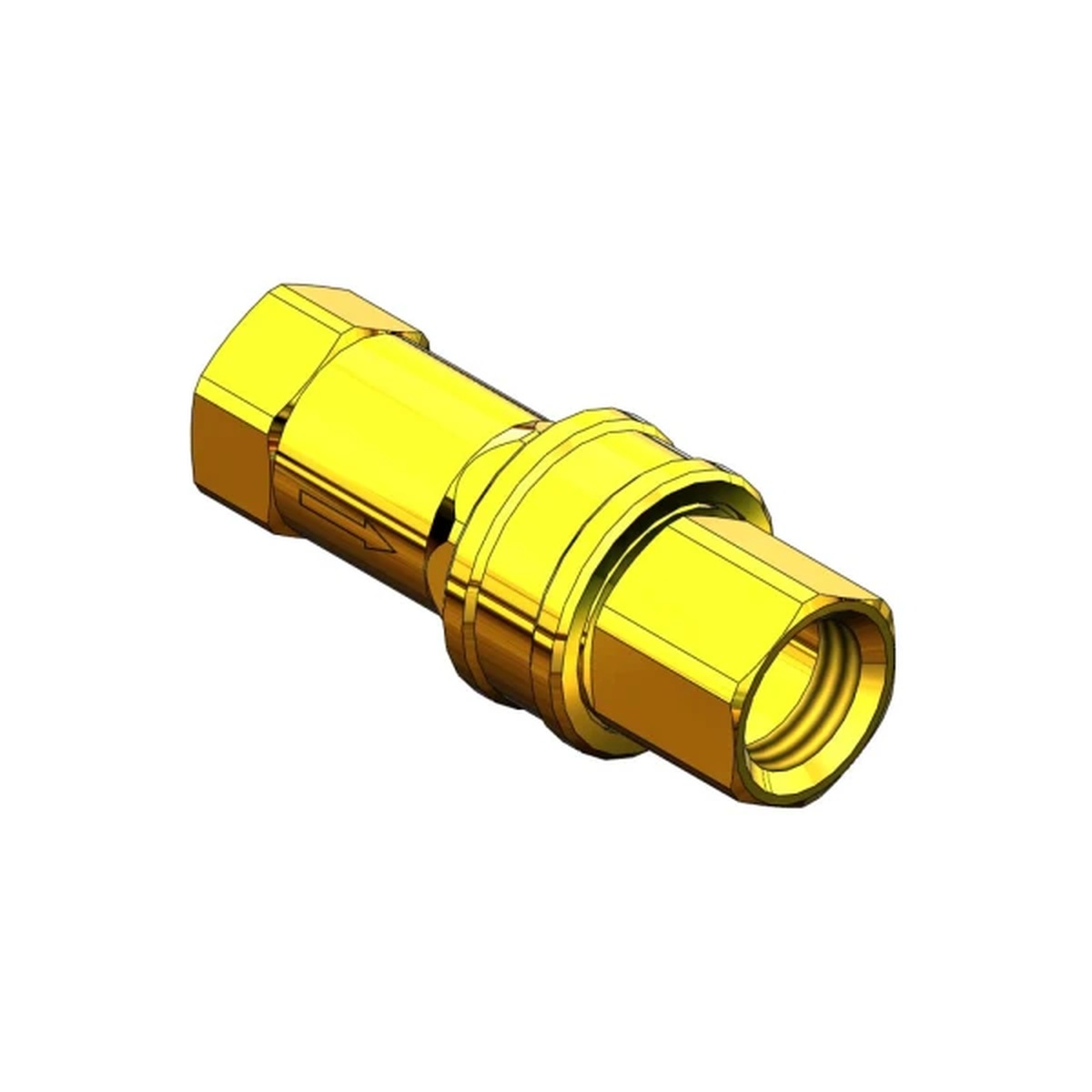

T&S Brass AG-5C brass quick disconnect gas appliance connector with 1/2-inch NPT female freespin inlet and outlet

1/2" NPT Quick Disconnect Gas Connector

The T&S Brass AG-5C is a Safe-T-Link 2-piece quick disconnect designed for gas appliance connections in commercial foodservice settings. Both the inlet and outlet feature 1/2" NPT female freespin threads for straightforward installation and repositioning without twisting the line.

1/2" NPT female freespin inlet and outlet
2-piece brass socket and plug assembly
Provides efficient, full gas flow throughout connection
Socket doubles as an automatic shutoff when disconnected

Key Specifications

Gas Capacity99,000 BTU/hr minimum

Max Temperature350°F (176.67°C)

Max Pressure0.5 psi (0.03 bar)

MaterialBrass socket and plug

CertificationsANSI Z21.41 / CSA 6.9, NFPA 54

Connection Type1/2" NPT female freespin (both ends)

Ideal For

Commercial restaurants School cafeterias Institutional kitchens Gas appliance replacement Foodservice equipment connections

From the Cresco Resco Team

Why You'll Love It

The T&S Brass AG-5C Safe-T-Link quick disconnect delivers reliable, code-compliant gas connections that simplify appliance servicing and enhance kitchen safety.

Ideal for commercial kitchens requiring frequent appliance repositioning or replacement.
Built-in shutoff function in the socket eliminates the need for a separate valve during disconnection.
Certified to ANSI Z21.41 / CSA 6.9 and NFPA 54 for peace of mind in regulated environments.

Specifications

Model Number	AG-5C
Brand / Series	T&S Brass / Safe-T-Link
Connector Type	Gas
Feature	Quick Disconnect
Inlet Connection	1/2" NPT Female Freespin
Outlet Connection	1/2" NPT Female Freespin
Quick Disconnect Configuration	2-Piece (Socket & Plug)
Material	Brass (Socket & Plug)
Gas Hose Capacity	99,000 BTU/hr (Minimum)
Maximum Pressure	0.5 psi (0.03 bar)
Maximum Temperature	350°F (176.67°C)
Certifications / Compliances	ANSI Z21.41 / CSA 6.9, NFPA 54
Weight	0.82 lbs (0.37 kg)
Box Dimensions (L x W x H)	4.63" x 3.06" x 4.06"
UPC	671262230162
