True MFG Co.

True Manufacturing TD-65-24-S-HC 65" Stainless Steel Solid Slide Lid Deep Well Horizontal Bottle Cooler with Hydrocarbon Refrigerant

$3,872.69 ~~Precio rebajado$12,815.00ahorra $8,942.31~~

Key Features:

Large-capacity deep well bottle cooler holds 22 cases of 12 oz. bottles or 32.5 cases of 12 oz. cans, making it ideal for high-volume bars, restaurants, and cafes
All stainless steel exterior including countertop, sliding lids, cabinet front, sides, and back for a professional appearance and easy wipe-down cleaning
Forced air refrigeration system using eco-friendly R290 hydrocarbon refrigerant with zero ODP and zero GWP, maintaining temperatures between 33-38°F via a factory-balanced, self-contained capillary tube system
Electronically commutated evaporator and condenser fan motors reduce heat output and energy consumption while delivering consistent airflow; condensing fan motor automatically reverses on startup to purge dust from the coil and extend unit life
Front-access condensing unit slides out from behind the front grille for straightforward preventative maintenance without moving the unit
Foamed-in-place high-density polyurethane insulation throughout the entire cabinet structure minimizes cold air loss and maximizes energy efficiency
Heavy-duty galvanized steel interior resists corrosion and withstands the demands of continuous commercial use
Two sliding lids with barrel locks provide security against theft and unauthorized access
Four heavy-duty 10mm PVC-coated adjustable bin dividers keep bottles and cans organized and stable
Interior LED lighting improves product visibility and accessibility during service
Bottle cap opener and cap catcher included (field installed) for added bar convenience
Welded heavy-duty steel frame rail with black powder coat finish provides a corrosion-resistant base structure
Operates on 115V/60Hz/1-ph drawing only 1.9A with a NEMA 5-15P plug; 1/5 HP motor keeps operating costs low
cULus listed and UL EPH Classified; backed by an industry-leading 7-year parts, labor, and compressor warranty
Made in the USA

Denver

Normalmente está listo en 2 a 4 días

Fresno

Normalmente está listo en 2 a 4 días

True Manufacturing TD-65-24-S-HC 65" Stainless Steel Solid Slide Lid Deep Well Horizontal Bottle Cooler with Hydrocarbon Refrigerant

$3,872.69~~$12,815.00~~

Detailed Description

The True Manufacturing TD-65-24-S-HC is a 65-inch deep well horizontal bottle cooler purpose-built for high-volume bars, restaurants, and cafes that demand reliable, accessible cold beverage storage. Featuring an all-stainless steel exterior with solid sliding lids and barrel locks, this unit keeps bottles and cans secured and organized using four PVC-coated adjustable bin dividers. The R290 hydrocarbon refrigeration system pairs electronically commutated evaporator and condenser fan motors with a factory-balanced, self-contained capillary tube system to maintain temperatures between 33 and 38 degrees Fahrenheit while minimizing energy consumption. Foamed-in-place polyurethane insulation with zero ODP and zero GWP seals in the cold, and a reversing condensing fan motor automatically clears the coil of dust to help extend service life. A bottle cap opener and cap catcher are included, and LED interior lighting ensures easy product identification during the busiest service periods.

Product Details

High-Capacity Storage

Holds 22 cases of 12 oz. bottles or 32.5 cases of 12 oz. cans for demanding service environments.

Secure, Durable Build

All stainless steel exterior with barrel-lock sliding lids and a welded, powder-coated steel frame rail resist daily wear and deter theft.

Eco-Friendly Refrigeration

R290 Hydrocarbon refrigerant delivers efficient, consistent cooling with zero ozone depletion and zero global warming potential.

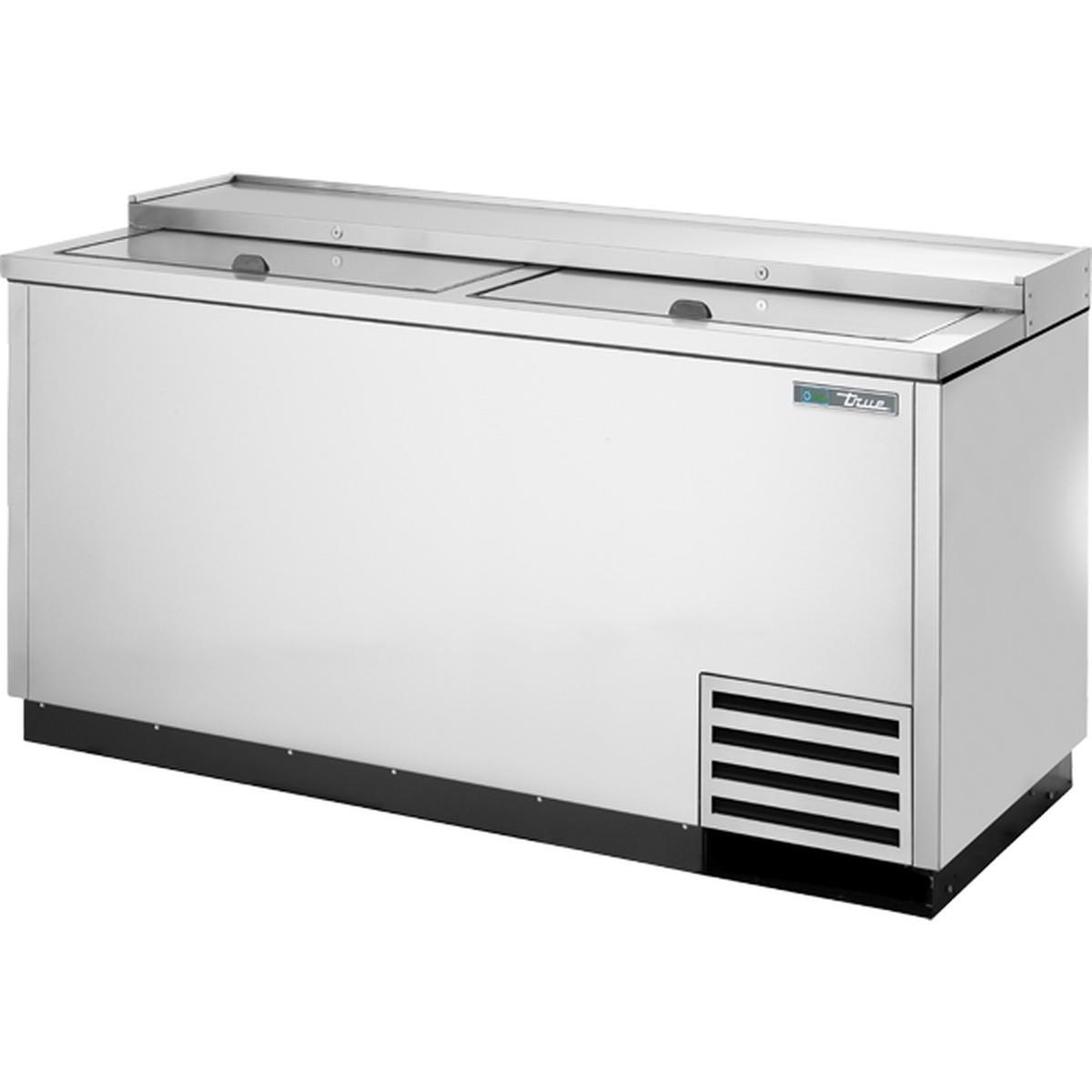

True TD-65-24-S-HC stainless steel deep well horizontal bottle cooler with two sliding lids and front ventilation grille

Built for the Bar, Engineered to Last

The True TD-65-24-S-HC is a solid slide-lid, stainless steel deep well bottle cooler designed for high-volume bars, restaurants, and cafes. Its flat-top profile integrates seamlessly into any back bar setup while its factory-balanced forced-air refrigeration system keeps beverages at a precise 33 to 38 degrees Fahrenheit.

Stainless steel countertop, lids, front, sides, and back
Heavy-duty galvanized steel interior for long-lasting resilience
Foamed-in-place polyurethane insulation retains cold air efficiently
Condensing unit accessible from the front grille for easy servicing

Key Specifications

Capacity22 cs 12 oz bottles / 32.5 cs 12 oz cans (528 bottles)

RefrigerantR290 Hydrocarbon

Temperature Range33 to 38 degrees F

Electrical115V / 60Hz / 1ph, 1.9A, 1/5 HP, NEMA 5-15P

Dimensions (W x D x H)64.63 in. x 27.63 in. x 33.38 in.

Warranty7-Year Parts & Labor; 7-Year Compressor

Why the TD-65-24-S-HC Stands Out

528

12 oz Bottle Capacity

7-Year

Compressor Warranty

R290

Zero ODP Refrigerant

Organization and Convenience Features

4 heavy-duty PVC-coated adjustable bin dividers (10 mm thick) for flexible product organization
Interior LED lighting illuminates contents for quick product retrieval
Barrel locks on sliding lids protect inventory and deter theft
Bottle cap opener and cap catcher included (field installed)
Electronically commutated fan motors reduce heat and energy consumption
Reverse condensing fan motor clears dust from the coil at each startup

Ideal For

Bars and Nightclubs Restaurants Cafes and Bistros High-Volume Food Service Back Bar Installations

From the Cresco Resco Team

Why You'll Love It

The True TD-65-24-S-HC delivers the capacity, security, and refrigeration precision that busy commercial bars and restaurants demand in a rugged all-stainless package.

A standout choice for back bar setups that need to store large quantities of bottles and cans within easy reach of staff.
Eco-responsible R290 hydrocarbon refrigerant paired with electronically commutated motors keeps energy costs low without sacrificing cooling performance.
Backed by a best-in-class 7-year parts, labor, and compressor warranty for long-term peace of mind.

Specifications

Model	TD-65-24-S-HC
Series	TD Series
Product Type	Forced Air Bottle Cooler
Exterior Finish	Stainless Steel
Interior Material	Galvanized Steel
Insulation	Foamed-in-place Polyurethane (Zero ODP, Zero GWP)
Width	64.63"
Depth	27.63"
Height	33.38"
Weight	370 lbs (168 kg)
Interior Volume	20 cu. ft.
Capacity (12 oz. Bottles)	22 cases (528 bottles)
Capacity (12 oz. Cans)	32.5 cases
Number of Lids	2 Sliding
Lid Locks	Barrel Locks
Bin Dividers	4 PVC-Coated, 10mm Thick, Adjustable
Interior Lighting	LED
Refrigerant	R290 (Hydrocarbon)
Temperature Range	33°F - 38°F
Compressor Location	Side Mounted
Motor	1/5 HP
Voltage	115V / 60 Hz / 1-Phase
Amperage	1.9 A
NEMA Configuration	5-15P
Cord Length	7 ft.
Certifications	cULus, UL EPH Classified
Warranty	7-Year Parts & Labor; 7-Year Compressor
Made in USA	Yes
