BK RESOURCES

BK Resources UB4-18-IBCP36-8 36" x 18" Underbar Insulated Ice Bin with 8-Circuit Cold Plate and Lid

$2,030.00 ~~Precio rebajado$3,384.00ahorra $1,354.00~~

Key Features:

18-Gauge T-304 Stainless Steel Construction - Full T-304 stainless steel body and exterior provide superior corrosion resistance and long-term durability in demanding high-volume bar environments.
8-Circuit Aluminum Cold Plate - Integrated 8-circuit aluminum cold plate efficiently pre-chills beverages running through draft or cocktail lines, reducing the need for mechanical refrigeration and maintaining drink quality during peak service.
100 lb Ice Capacity with Deep Insulated Bin - Holds up to 100 lbs of ice in a 12-9/16" deep insulated bin, ensuring a consistent ice supply throughout the busiest service periods without frequent refills.
Included Lid for Sanitary Compliance - Comes complete with a stainless steel lid, satisfying health code requirements for human consumption ice storage and protecting ice quality between service periods.
4" Backsplash Riser - Rear backsplash helps contain spills and splashes, keeping the surrounding underbar area cleaner and reducing cleanup time.
Stainless Steel Legs, Bracing, and Adjustable Bullet Feet - Heavy-duty stainless steel legs and side bracing deliver structural stability, while adjustable high-impact corrosion-resistant bullet feet allow for precise leveling on uneven floors.
1/2" NPT Drain with Drain Plug Included - Factory-installed 1/2" NPT drain fitting and included drain plug (BKDR-325CP) allow for easy drainage and fast cleanup without additional hardware purchases.
NSF Certified - NSF certification confirms compliance with commercial food service sanitation standards, supporting health inspection requirements in professional kitchen and bar settings.
Standard 32-1/2" Working Height - Designed to integrate seamlessly into standard underbar configurations at the industry-standard 32-1/2" counter height.

Detailed Description

The BK Resources UB4-18-IBCP36-8 is a heavy-duty underbar ice bin built for demanding commercial bar environments, offering a 100 lb ice capacity with a 12-9/16 deep insulated bin to keep ice cold through peak service hours. At the heart of this unit is an 8-circuit aluminum cold plate that chills beverages directly from your draft or post-mix lines without additional refrigeration equipment. Constructed from 18-gauge T-304 stainless steel throughout, this unit delivers lasting corrosion resistance and professional-grade durability. Stainless steel legs and side bracing with adjustable high-impact corrosion-resistant bullet feet ensure a stable, level installation on any bar floor surface. NSF certified and sized at 36L x 18W x 33-1/2H, it integrates cleanly into standard underbar configurations.

Product Details

100 lb Ice Capacity

Generous 12-9/16" deep insulated bin keeps ice fresh and available throughout peak service hours.

Built-In Drain System

1/2" NPT drain with drain plug and included drain assembly makes cleanup quick and effortless.

NSF Certified

Meets NSF standards for food-safe commercial use, backed by a 1-year manufacturer warranty.

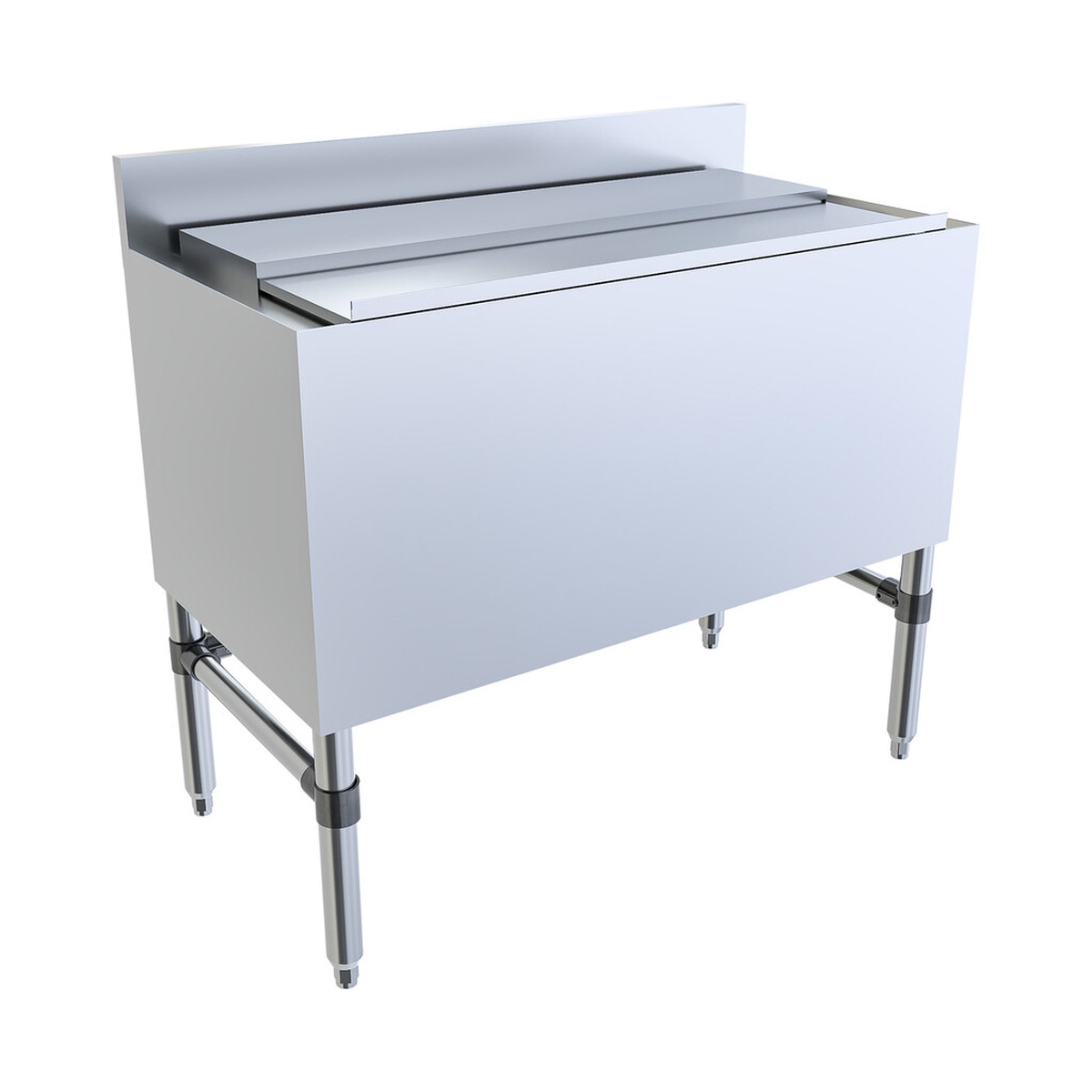

BK Resources UB4-18-IBCP36-8 underbar ice bin angled view with sliding lid and stainless legs

Heavy-Duty T-304 Stainless Steel Construction

Built from 18-gauge T-304 stainless steel, this underbar ice bin is engineered to withstand the demands of high-volume bar service. The robust construction resists corrosion and is easy to maintain even through constant use.

18 ga T-304 stainless steel throughout
Stainless steel legs and side bracing for lasting stability
Adjustable high-impact corrosion-resistant bullet feet for secure leveling
Included sliding lid for ice protection

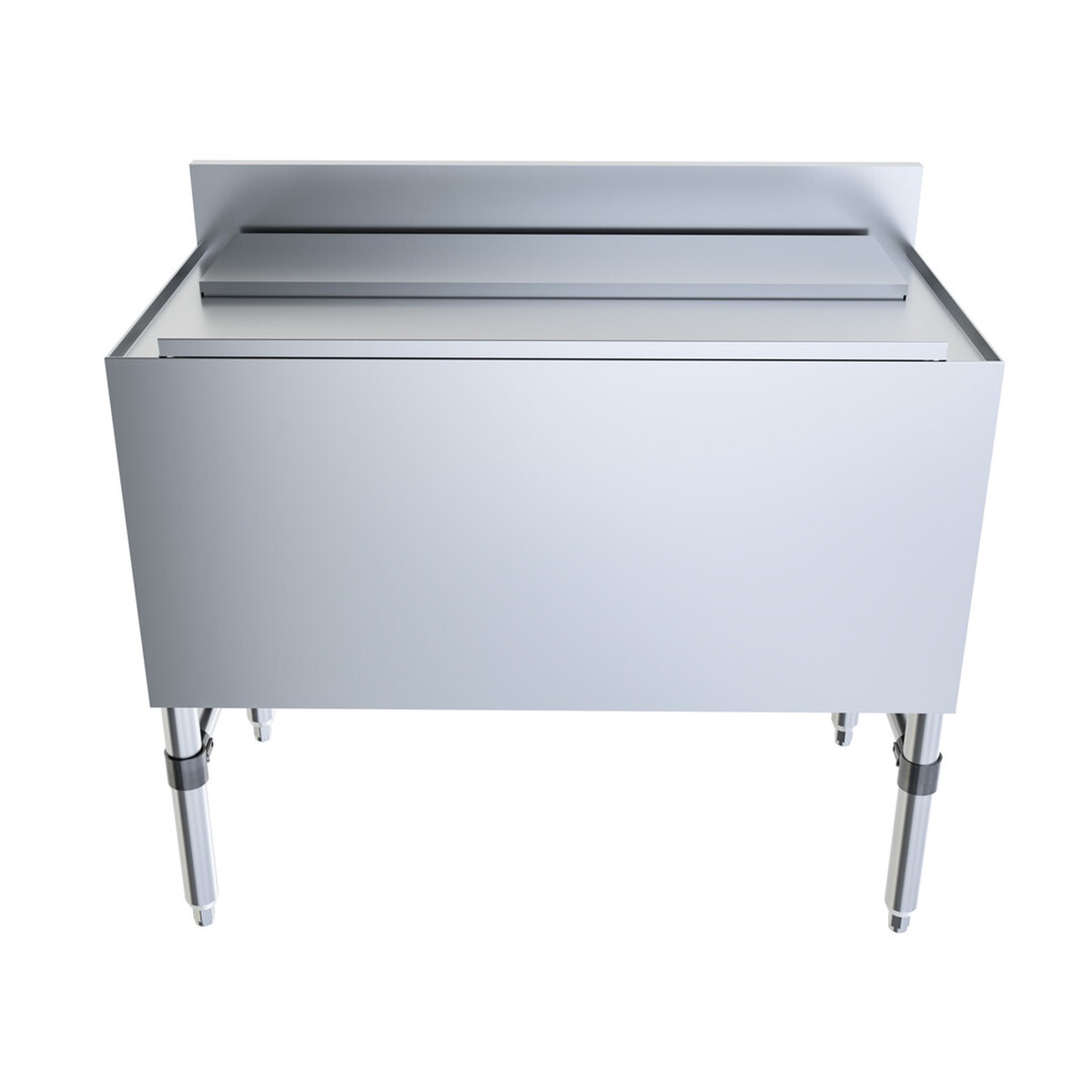

BK Resources UB4-18-IBCP36-8 underbar ice bin front view showing backsplash and lid

Designed for Seamless Underbar Integration

At 36"L x 18"W x 33-1/2"H, this ice bin fits precisely into standard underbar setups, maximizing counter space without sacrificing storage capacity. The 4" backsplash contains spills and keeps the workspace clean.

36" length fits standard bar configurations
32-1/2" standard height aligns with underbar counters
4" backsplash riser helps contain splash and spills
Compact 18" depth minimizes bar floor footprint

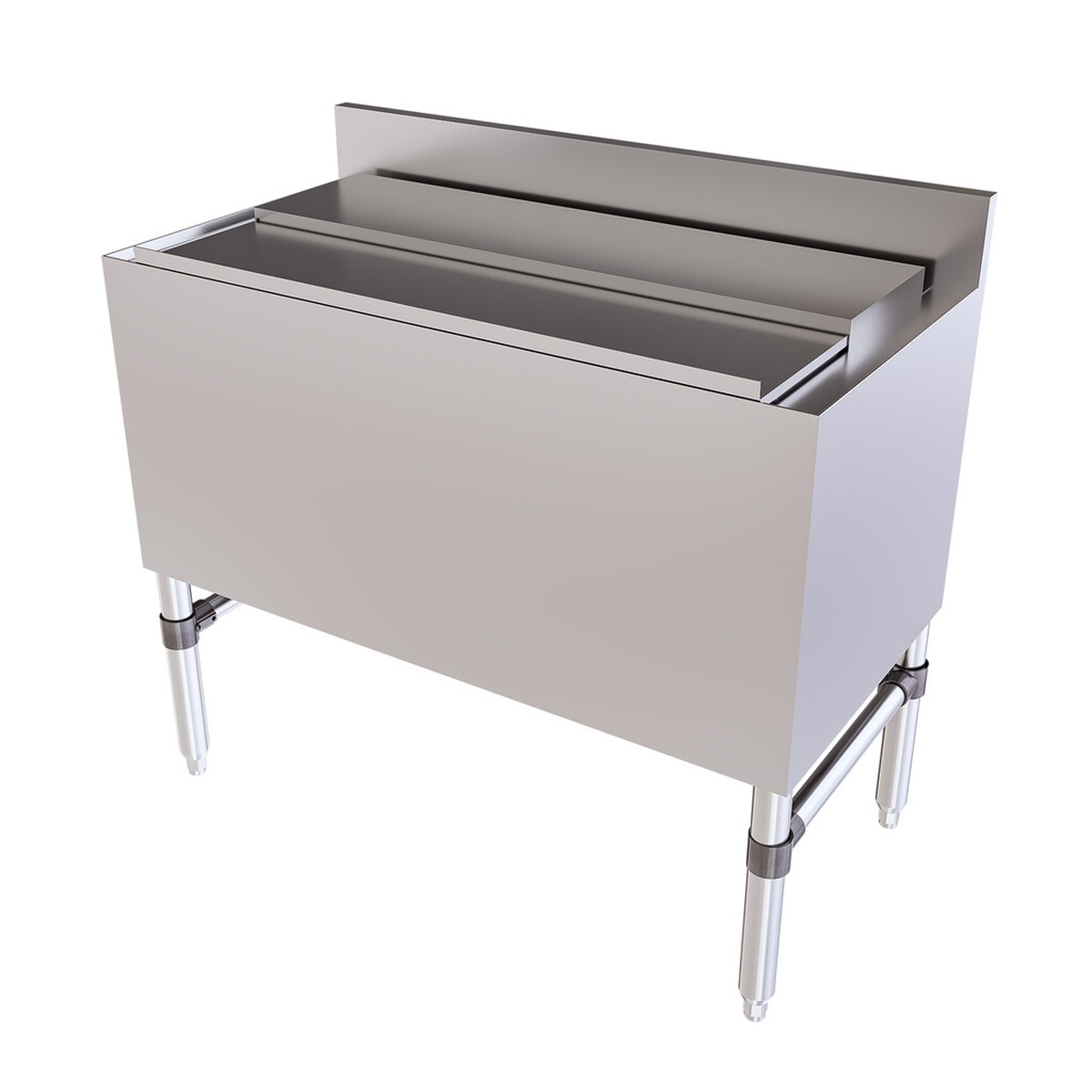

BK Resources UB4-18-IBCP36-8 underbar ice bin alternate angled view showing stainless steel body and open top

8-Circuit Aluminum Cold Plate for Superior Cooling

The integrated 8-circuit aluminum cold plate uses the stored ice to chill beverage lines, eliminating the need for mechanical refrigeration. This passive cooling system keeps drinks at ideal serving temperatures while reducing energy costs.

8-circuit aluminum cold plate built into the base
Chills up to 8 beverage lines simultaneously
Passive ice-cooled design saves on energy
Ideal for draft beer, soda, and mixed beverage systems

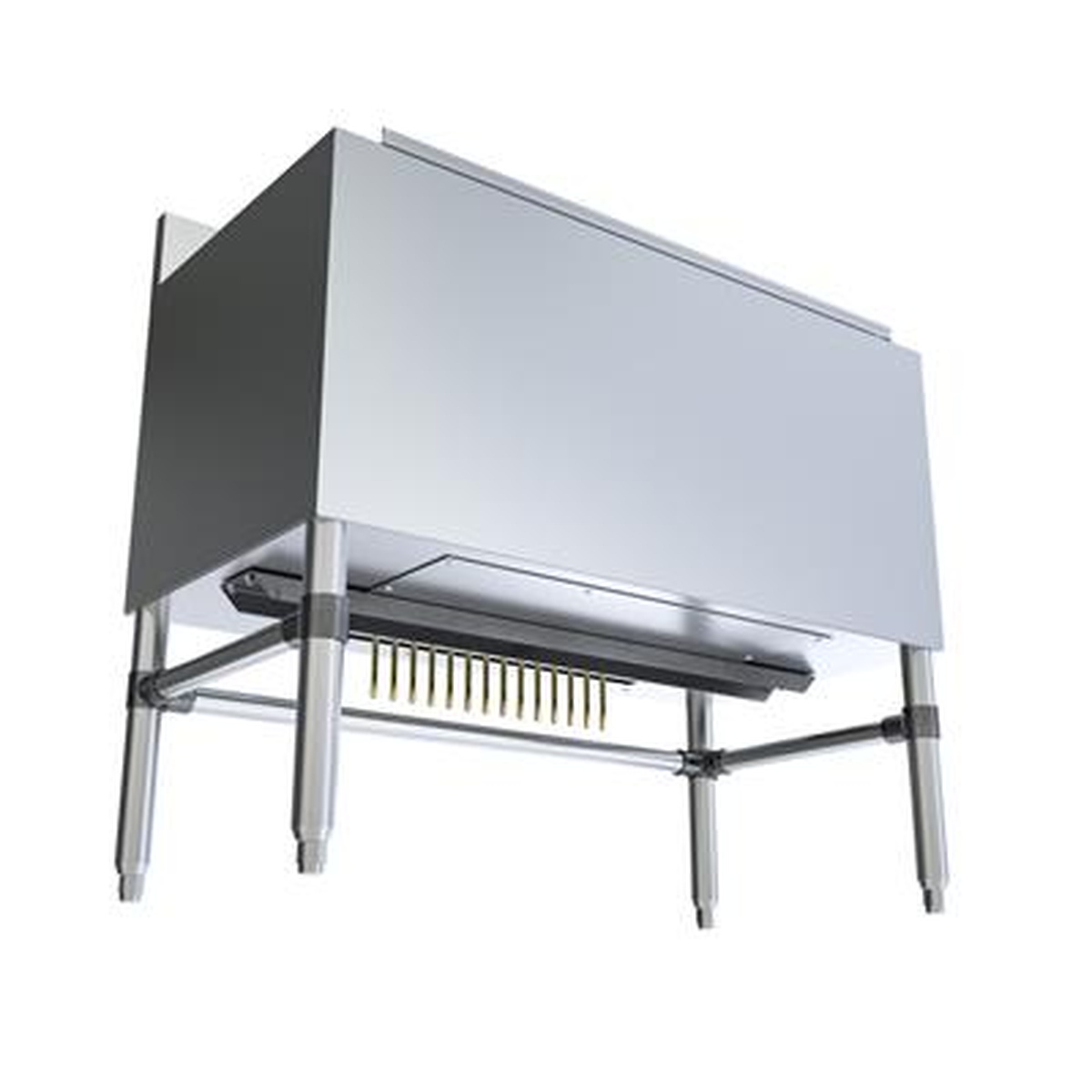

BK Resources UB4-18-IBCP36-8 underbar ice bin rear view showing 8-circuit cold plate line connections underneath

Ready-to-Connect Cold Plate Plumbing

The rear cold plate connections are clearly accessible for quick and easy hookup to your beverage draft system. The well-organized circuit layout ensures efficient line management in tight underbar spaces.

8 clearly labeled circuit ports for beverage lines
Accessible rear connection layout simplifies installation
Compatible with standard bar draft and post-mix systems
Includes drain assembly (BKDR-325CP) for easy maintenance

Key Specifications

Ice Capacity100 lbs

Drain1/2" NPT with drain plug

CertificationNSF Listed

Steel Grade18 ga T-304 Stainless

Cold Plate8-Circuit Aluminum

Bin Depth12-9/16" insulated

At a Glance

100 lb

Ice Capacity

Cold Plate Circuits

36"

Overall Length

From the Cresco Resco Team

Why You'll Love It

The BK Resources UB4-18-IBCP36-8 delivers professional-grade ice storage and passive beverage line cooling in one durable, NSF-certified underbar unit.

Perfect for high-volume bars and restaurants that need reliable, large-capacity ice storage at underbar height.
The 8-circuit cold plate passively chills up to 8 beverage lines using stored ice, eliminating additional refrigeration equipment.
Pairs seamlessly with BK Resources underbar sinks, speed rails, and workboard units to build a complete bar station.

Specifications

Model Number	UB4-18-IBCP36-8
Overall Dimensions	36" L x 18" W x 33-1/2" H
Ice Bin Depth	12-9/16"
Ice Capacity	100 lbs
Cold Plate	8-Circuit Aluminum
Construction Material	T-304 Stainless Steel, 18 Gauge
Backsplash Height	4"
Drain	1/2" NPT with Drain Plug (Includes BKDR-325CP)
Base Type	Stainless Steel Legs & Side Bracing
Feet	Adjustable High-Impact Corrosion-Resistant Bullet Feet
Certification	NSF
Warranty	1 Year
Shipping Weight	163 lbs
