JOHN BOOS & CO.

John Boos UBIB-1836-X 36" Underbar Ice Bin/Cocktail Unit, Stainless Steel

$1,105.00

Key Features:

36" Slim-Line Underbar Footprint: Overall dimensions of 36"W x 18"D x 32-1/2"H integrate seamlessly into standard underbar configurations without sacrificing bar workspace.
Large-Capacity Insulated Ice Bin: The 34"W x 15"D x 13-1/2" deep fully insulated ice bin holds up to 148 lbs of ice and features a built-in drain, slowing melt rates during peak service.
2-Piece Sliding Lid: A two-piece sliding lid provides convenient, one-handed access to the ice bin while keeping ice covered and sanitary between uses.
18/300 Stainless Steel Construction: The entire body is fabricated from 18-gauge, Type 300 stainless steel for superior corrosion resistance and long-term durability in high-volume bar environments.
Reinforced Leg Assembly with Adjustable Bullet Feet: Stainless steel legs with cross-bar side bracing provide a rigid, stable base, while adjustable stainless steel bullet feet allow leveling on uneven floors.
3" Rear Backsplash: The integrated 3" tall backsplash protects adjacent equipment and wall surfaces from splash and condensation damage.
No Cold Plate (X Model): This model ships without a cold plate, making it an ideal choice for operations that do not require draft beer line cooling or prefer a dedicated ice-only bin.
NSF Certified: Meets NSF sanitation standards, supporting health code compliance in commercial bar and foodservice installations.
1-Year Warranty: Backed by John Boos' 1-year warranty against defects in materials and workmanship.

Detailed Description

The John Boos UBIB-1836-X is a 36-inch slim-line underbar ice bin and cocktail unit built for demanding commercial bar environments. Constructed from durable 18/300 stainless steel, the fully insulated ice bin holds up to 148 lbs of ice and features a built-in drain for easy meltwater management. A 2-piece sliding lid provides convenient access while keeping ice protected, and a 3-inch rear backsplash guards adjacent surfaces from splashes and spills. The unit stands on stainless steel legs with side bracing and adjustable bullet feet for stable, level installation in any underbar setup. This model does not include a cold plate, making it a straightforward, high-capacity ice storage solution that is NSF certified for commercial use.

Product Details

148 lb Ice Capacity

Fully insulated 34"W x 15"D x 13.5"H bin keeps ice longer and handles high-volume demand.

18/300 Stainless Steel Body

Corrosion-resistant stainless steel construction with reinforced legs, side bracing, and adjustable bullet feet.

Ice Bin with Drain

Built-in drain simplifies meltwater management, keeping your bar station clean and operational.

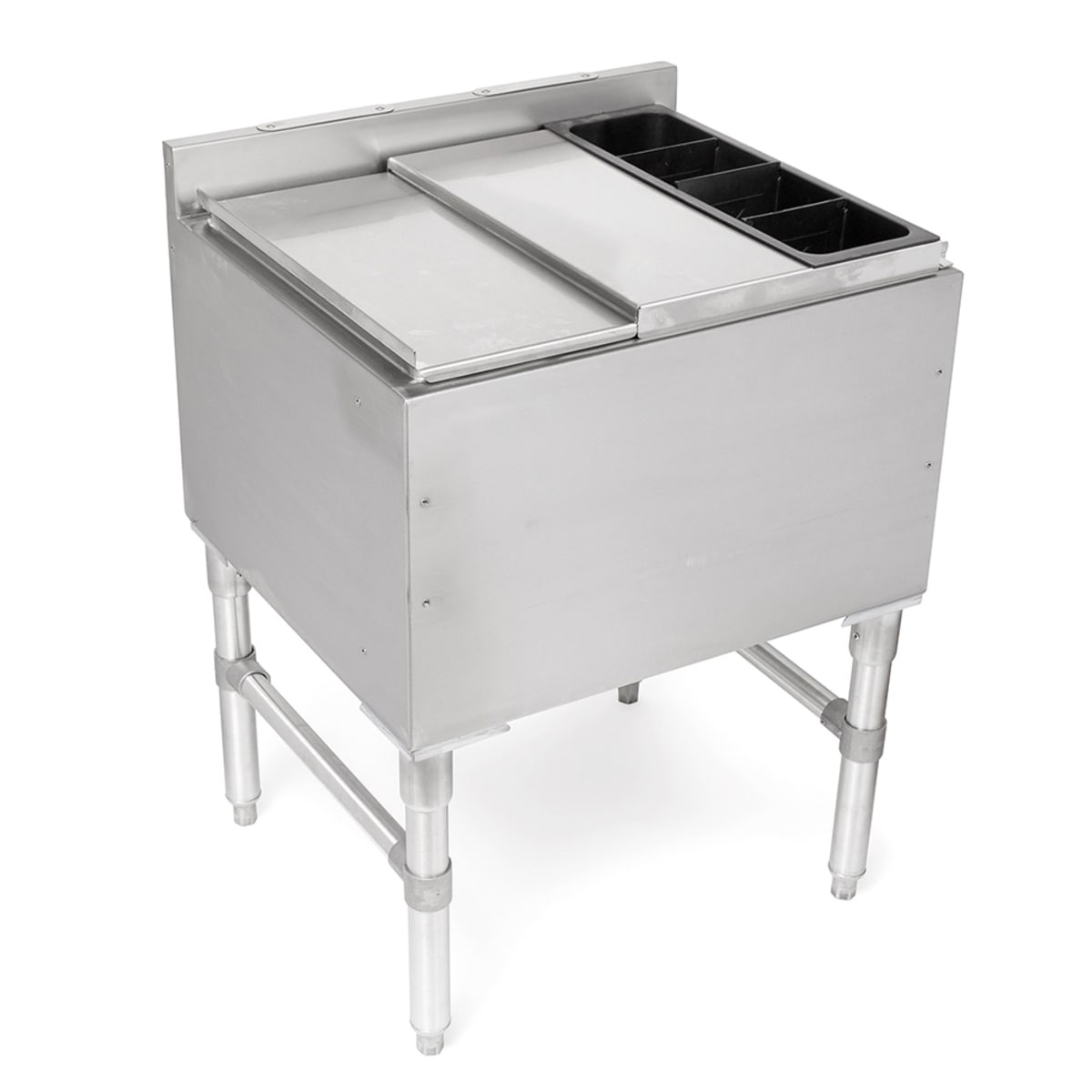

John Boos UBIB-1836-X 36-inch stainless steel underbar ice bin cocktail unit with sliding lid and adjustable legs

Slim-Line Design Built for the Bar

The John Boos UBIB-1836-X is a 36-inch-wide underbar ice bin and cocktail station engineered for commercial bar environments. Its slim-line profile fits neatly under the bar top while delivering exceptional ice-holding performance.

Overall dimensions: 36"W x 18"D x 32.5"H
Insulated ice bin: 34"W x 15"D x 13.5"H
2-piece sliding lid for easy access
3" tall backsplash protects adjacent surfaces
Without cold plate for straightforward ice storage

Key Specifications

Overall Width36 inches

Material18/300 Stainless Steel

Ice Capacity148 lbs

CertificationsNSF Certified

Bin Dimensions34"W x 15"D x 13.5"H

Warranty1 Year Against Defects

At a Glance

148 lb

Ice Capacity

36"

Overall Width

18/300

Stainless Steel Grade

Ideal For

Commercial Bars Restaurant Cocktail Stations High-Volume Service Areas Catering Operations Hotel Bars

From the Cresco Resco Team

Why You'll Love It

The John Boos UBIB-1836-X delivers professional-grade ice storage in a streamlined, durable underbar package trusted by commercial kitchens and bars worldwide.

Perfect for busy bar programs that need reliable, high-capacity ice access at arm's reach.
Fully insulated bin with built-in drain and 2-piece sliding lid keeps ice fresh and service efficient throughout every shift.
NSF-certified and backed by a 1-year warranty, offering peace of mind alongside heavy-duty stainless steel construction.

Specifications

Brand	John Boos & Co.
Model	UBIB-1836-X
Type	Freestanding Underbar Ice Bin / Cocktail Unit
Overall Width	36 in.
Overall Depth	18 in.
Overall Height	32-1/2 in.
Ice Bin Width	34 in.
Ice Bin Depth (Front-to-Back)	15 in.
Ice Bin Depth (Interior)	13-1/2 in.
Ice Capacity	148 lbs.
Construction Material	18/300 Stainless Steel
Gauge	18 Gauge
Backsplash Height	3 in.
Cold Plate	Without Cold Plate
Lid	2-Piece Sliding Lid
Drain	Yes
Insulation	Fully Insulated
Legs	Stainless Steel with Side Bracing
Feet	Adjustable Stainless Steel Bullet Feet
Weight	83 lbs.
Certifications	NSF
Warranty	1-Year Against Defects in Material & Workmanship
