JOHN BOOS & CO.

John Boos UBIB-1824-X 24" Insulated Underbar Ice Bin / Cocktail Unit with Sliding Lid

$923.00

Key Features:

18-gauge Type 300 stainless steel construction with satin finish for lasting durability and a professional appearance
Foam-insulated ice bin with approximately 95 lb ice capacity, maintaining temperatures for high-volume bar service
Slim-Line design at 18" front-to-back depth maximizes usable bar floor space without sacrificing capacity
Overall dimensions: 24"W x 18"D x 32-1/2"H; ice bin interior: 22"W x 15" front-to-back x 13-1/2" deep with built-in drain
Includes 2-piece sliding lid for easy access and ice containment during busy service periods
3" high backsplash with access plates on top for routing soda gun lines cleanly through the unit
Standard threaded inserts allow adjacent units to be bolted together for seamless modular bar configurations
Standard front inserts accommodate speed rail attachment, keeping bar tools organized and within reach
Bolt-on 1-5/8" stainless steel legs with 1-1/4" front-to-back bracing for a rigid, fast-install underbar setup
1" adjustable stainless steel bullet feet provide leveling flexibility on uneven floors
1-7/8" drain plug with 1" MPT x 1-1/2" long drain connection for straightforward plumbing hookup
Z-Clip included for secure wall mounting
NSF certified, meeting commercial foodservice sanitation standards

Detailed Description

The John Boos UBIB-1824-X is a Slim-Line underbar ice bin and cocktail unit built for high-volume bar operations, offering a compact 18 front-to-back footprint without sacrificing capacity. The foam-insulated ice bin holds up to 95 lbs of ice and features a convenient 2-piece sliding lid for quick access during busy service. Constructed from 18-gauge type 300 stainless steel with a satin finish, it delivers lasting durability in demanding environments. Thoughtful design details include standard threaded inserts for attaching adjacent units, front inserts for speed rail attachment, access plates for soda gun lines, and a Z-clip for wall mounting. NSF certified for food safety compliance.

Product Details

95 lb Ice Capacity

Foam-insulated bin holds up to 95 lbs of ice, keeping pace with busy bar service.

Commercial-Grade Construction

18-gauge Type 300 stainless steel with satin finish and bolt-on legs for lasting durability.

Easy Drain and Cleanup

1-7/8" drain plug and 1" MPT drain connection make end-of-shift cleanup fast and straightforward.

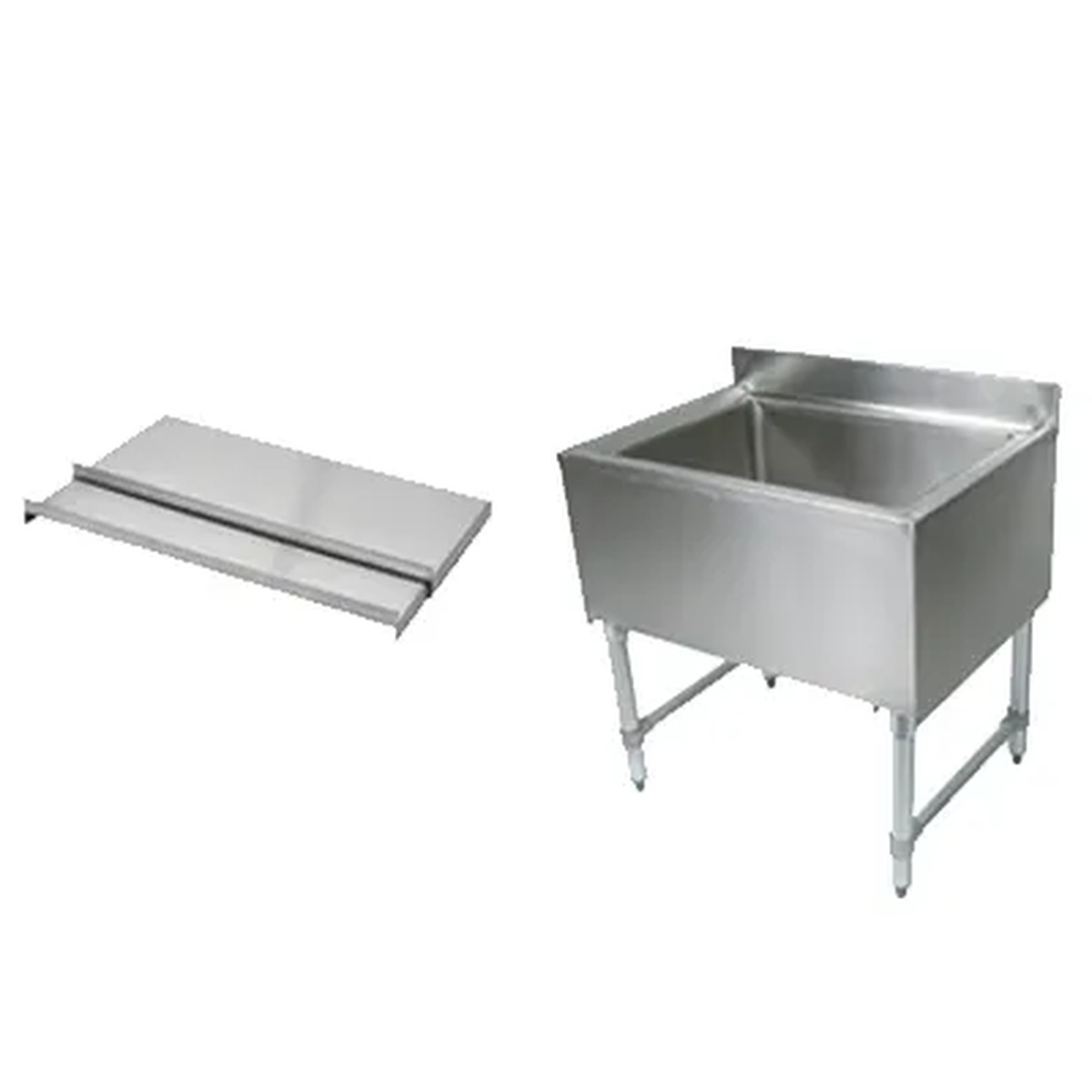

John Boos UBIB-1824 stainless steel underbar ice bin with 2-piece sliding lid shown alongside the unit

Slim-Line Design Built for the Bar

The John Boos UBIB-1824 is an 18"-deep underbar ice bin engineered to fit neatly beneath standard bar tops without wasting valuable floor space. Its 2-piece sliding lid keeps ice cold and accessible during the busiest rushes.

Overall size: 24"W x 18"D x 32-1/2"H
Insulated ice bin: 22"W x 15" front-to-back x 13-1/2" deep
2-piece sliding lid included for quick ice access
3" high backsplash provides back-wall protection

Key Specifications

Ice CapacityApprox. 95 lbs

Material18-gauge Type 300 stainless steel

Drain1-7/8" plug, 1" MPT connection

CertificationNSF certified

Feet1" adjustable stainless steel bullet feet

Overall Dimensions24"W x 18"D x 32-1/2"H

Ready to Integrate Into Any Bar Setup

Standard threaded inserts allow adjacent units to be fastened together for a seamless modular bar run. Front inserts accept speed rail attachments, while access plates on top of the backsplash accommodate soda gun lines. A Z-clip enables secure wall mounting.

Full-service bars Hotel beverage stations Restaurant cocktail stations Modular underbar runs High-volume nightlife venues

From the Cresco Resco Team

Why You'll Love It

The John Boos UBIB-1824 delivers professional ice storage in a slim, practical form that keeps bartenders efficient and well-supplied throughout any service.

Perfect for bars and cocktail stations needing a reliable, high-capacity ice supply in a compact 18"-deep footprint.
18-gauge Type 300 stainless steel with foam insulation ensures ice stays cold longer while the unit holds up to years of heavy commercial use.
Pairs seamlessly with speed rails, soda guns, and adjacent John Boos underbar units for a fully integrated bar workstation.

Specifications

Model	UBIB-1824
Type	Slim-Line Underbar Ice Bin / Cocktail Unit
Overall Dimensions	24"W x 18"D x 32-1/2"H
Ice Bin Dimensions	22"W x 15" front-to-back x 13-1/2" deep
Ice Capacity (Approximate)	95 lbs
Material	18 gauge type 300 stainless steel, satin finish
Insulation	Foam insulated ice bin
Cover	2-piece sliding lid
Backsplash Height	3"
Legs	Bolt-on 1-5/8" stainless steel legs
Bracing	1-1/4" stainless steel front-to-back bracing
Feet	1" adjustable stainless steel bullet feet
Drain Plug	1-7/8"
Drain Connection	1" MPT, 1-1/2" long
Cold Plate	Without
Speed Rail Attachment	Standard front inserts included
Adjacent Unit Attachment	Standard threaded inserts included
Soda Gun Access	Access plates on top of backsplash
Wall Mounting	Z-Clip included
Weight	65 lbs
Certification	NSF
