BK Resources UB4-18-IBCP36-7 36" Underbar Insulated Ice Bin with 7-Circuit Cold Plate

$1,955.00 ~~Precio rebajado$3,259.00ahorra $1,304.00~~

Key Features:

18 Gauge T-304 Stainless Steel Construction: Heavy-duty 18 ga T-304 stainless steel body delivers long-lasting corrosion resistance in demanding bar and underbar environments.
7-Circuit Aluminum Cold Plate: Integrated 7-circuit aluminum cold plate chills beverages directly as they pass through, eliminating the need for a remote chiller and reducing operational complexity.
100 lb Ice Capacity: Generously sized 12-9/16" deep insulated ice bin holds up to 100 lbs of ice, supporting high-volume bar service throughout a full shift.
Full-Size Underbar Footprint: At 36"L x 18"W x 33-1/2"H, this unit fits standard underbar configurations and includes a 4" rear backsplash riser to protect walls and contain spills.
Stainless Steel Legs and Side Bracing: Robust stainless steel legs and cross-bracing provide structural rigidity, while adjustable high-impact corrosion-resistant bullet feet allow for precise leveling on uneven floors.
1/2" NPT Drain with Drain Plug: Built-in 1/2" NPT drain with removable plug (drain BKDR-325CP included) simplifies cleanout and complies with sanitation standards.
Lid Included: Comes with a fitted sliding lid to protect ice from contamination, meeting NSF requirements for human consumption applications.
NSF Certified: Carries NSF certification, confirming compliance with food safety and sanitation standards required by health departments in commercial foodservice operations.
1-Year Manufacturer Warranty: Backed by a 1-year warranty, providing added confidence for commercial installations.

Detailed Description

The BK Resources UB4-18-IBCP36-7 is a 36 underbar insulated ice bin engineered for the demands of high-volume bar service. Constructed from 18-gauge T-304 stainless steel, it pairs a deep 12-9/16 insulated bin with a 7-circuit aluminum cold plate to keep beverages chilled without mechanical refrigeration. The bin holds up to 100 lbs of ice and features a 4 backsplash riser, 1/2 NPT drain with drain plug, and stainless steel legs and side bracing with adjustable corrosion-resistant bullet feet. NSF certified and backed by a 1-year warranty, it delivers the durability and hygiene standards professionals expect in a permanent bar installation.

Product Details

100 lb Ice Capacity

Generously sized 12-9/16" deep insulated bin keeps ice ready for high-volume bar service.

T-304 Stainless Steel Build

18-gauge T-304 stainless steel construction delivers lasting durability in demanding underbar environments.

NSF Certified

Meets NSF standards for commercial food service, making it suitable for professional bar installations.

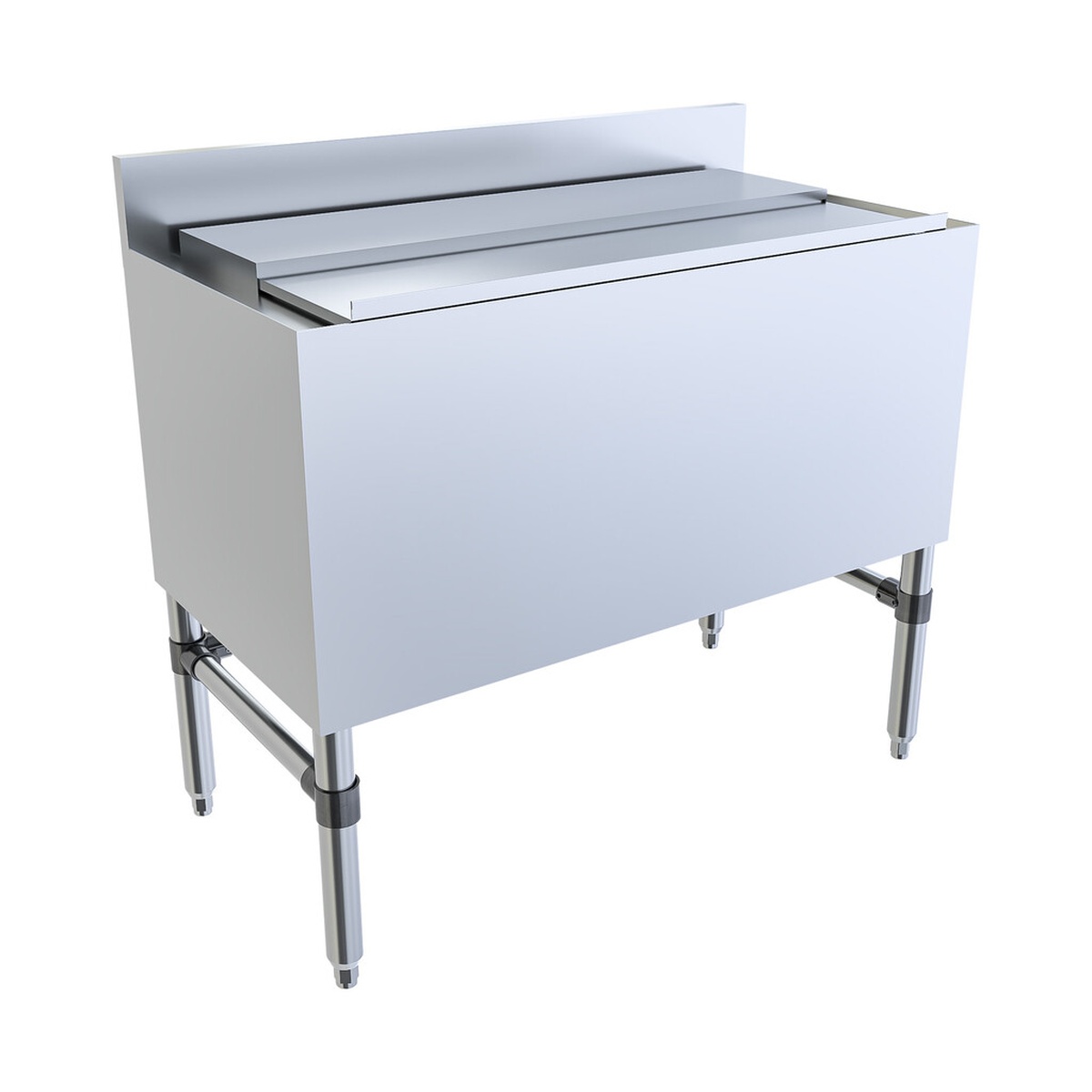

BK Resources UB4-18-IBCP36-7 underbar ice bin angled view with lid closed and stainless steel legs

Professional Underbar Ice Bin Built for Busy Bars

The BK Resources UB4-18-IBCP36-7 is a 36" x 18" insulated underbar ice bin engineered for commercial bars and restaurants that demand reliable, high-capacity ice storage at every shift.

36"L x 18"W x 33-1/2"H overall footprint fits standard underbar configurations
100 lb ice capacity supports continuous beverage service
Included lid maintains ice quality and meets food safety requirements
Stainless steel legs and side bracing provide a sturdy, long-lasting base

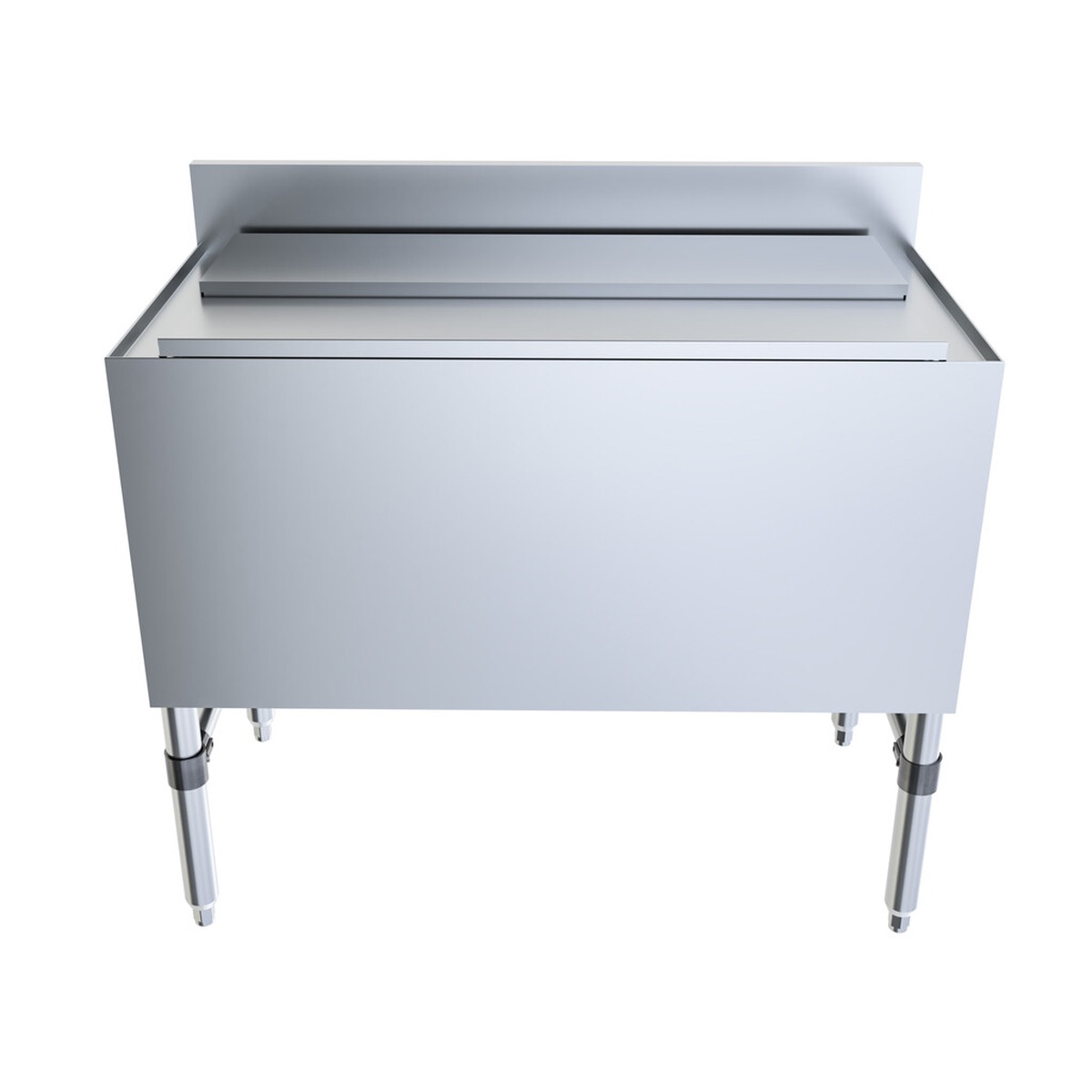

BK Resources underbar ice bin straight front view showing backsplash and stainless exterior

Standard Underbar Height with Rear Backsplash Protection

Designed to integrate seamlessly beneath a standard bar top, this unit features a rear backsplash riser to protect walls and keep the workspace clean during heavy use.

4"H backsplash riser shields the wall from splashes and condensation
Standard 32-1/2" to 33-1/2" working height suits most underbar layouts
Adjustable high-impact, corrosion-resistant bullet feet accommodate uneven floors
Clean stainless steel exterior wipes down quickly for effortless maintenance

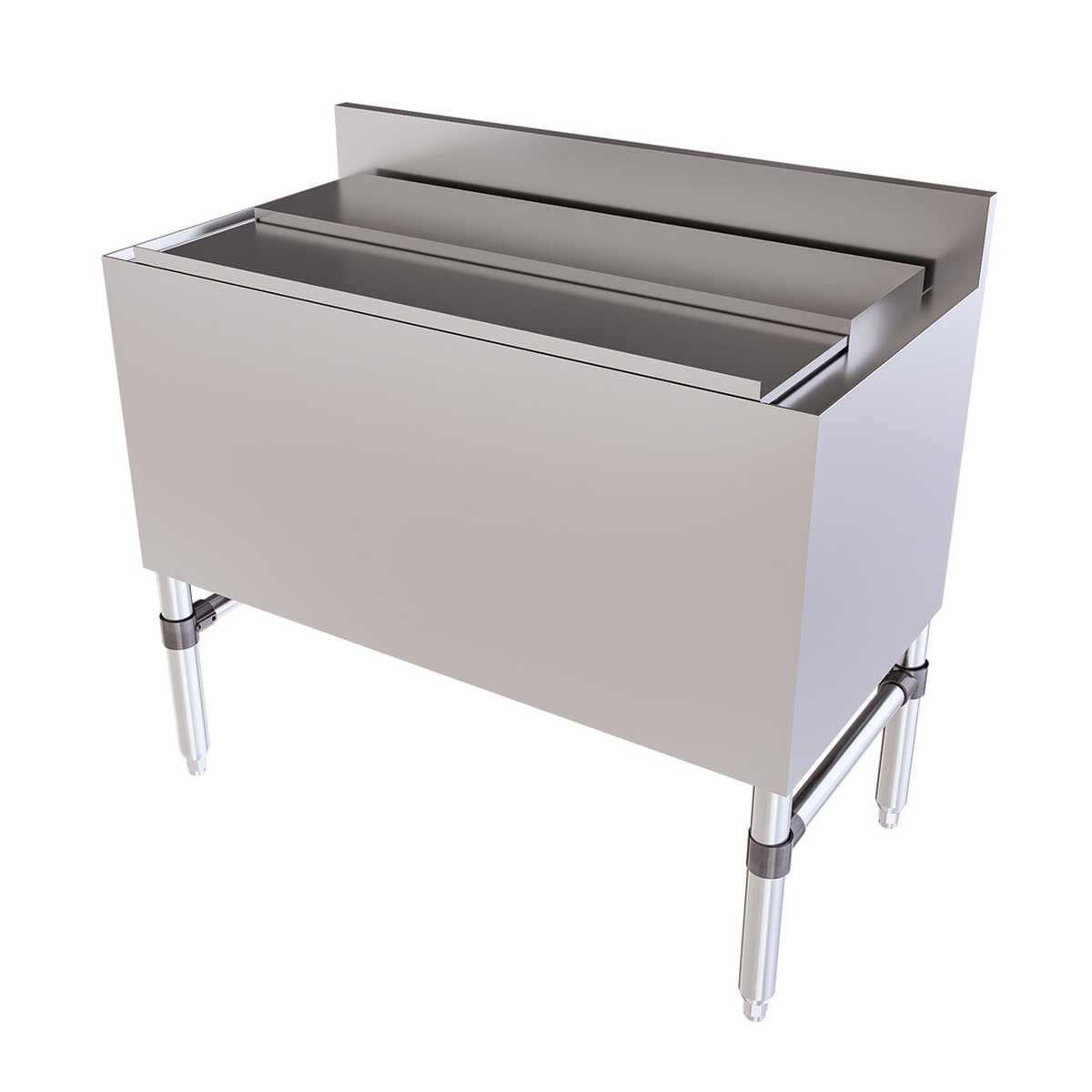

BK Resources underbar ice bin angled view with lid partially open revealing insulated bin interior

Deep Insulated Interior Preserves Ice Longer

The 12-9/16" deep insulated ice bin maximizes ice retention, reducing the frequency of refills and keeping beverages colder for longer throughout a full service period.

12-9/16" deep bin depth maximizes usable ice volume
Insulated construction slows ice melt during extended service periods
1/2" NPT drain with drain plug simplifies cleanout at the end of service
18-gauge T-304 stainless steel interior resists corrosion and staining

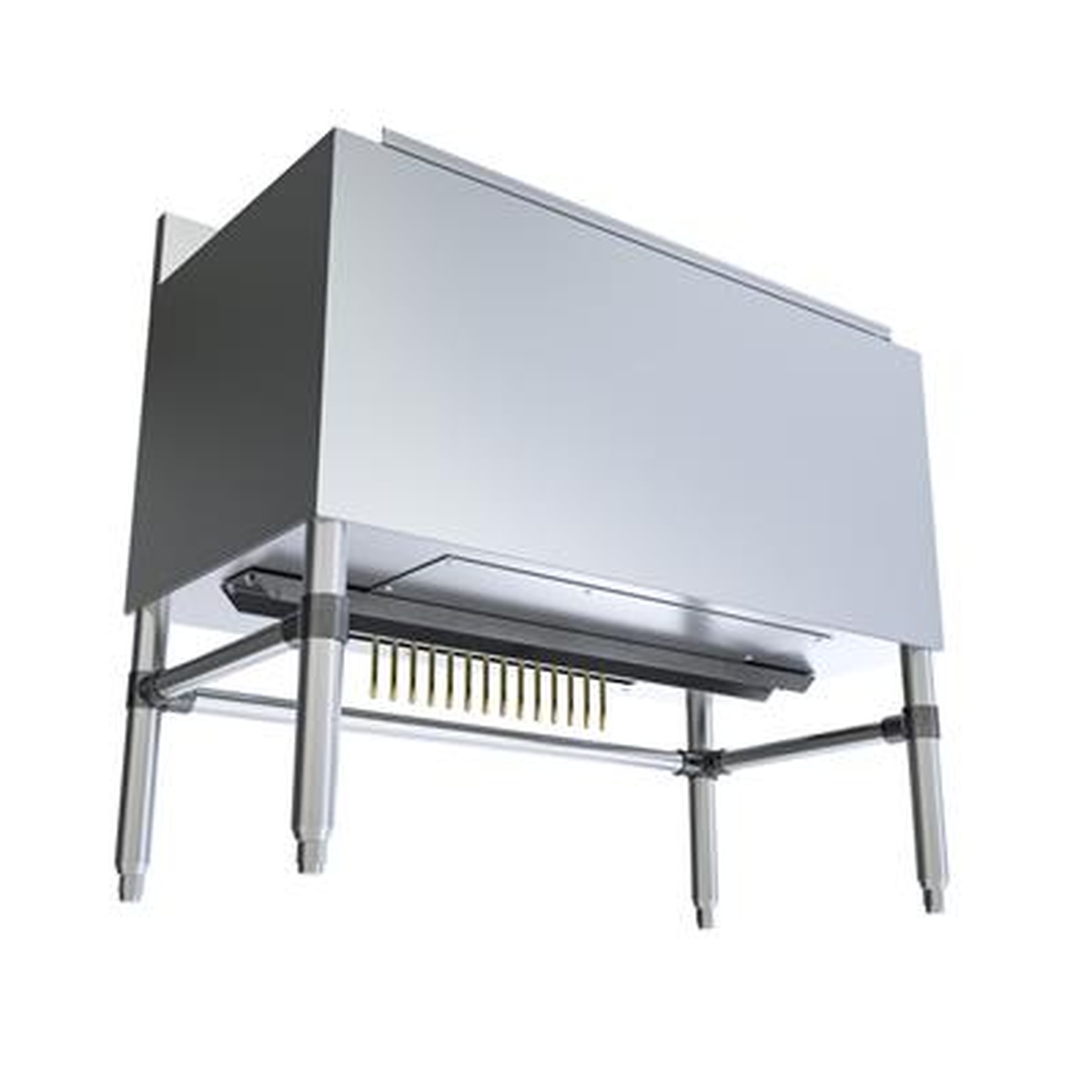

BK Resources underbar ice bin bottom view showing 7-circuit aluminum cold plate tubing assembly

7-Circuit Aluminum Cold Plate for Chilled Draft Beverages

Integrated beneath the ice bin, the 7-circuit aluminum cold plate uses the existing ice supply to pre-chill beverage lines, delivering perfectly cold drinks at the tap without additional refrigeration.

7 independent circuits accommodate multiple beverage lines simultaneously
Aluminum cold plate transfers cold efficiently from ice to product lines
Eliminates the need for a separate inline chiller for most bar setups
Designed to work alongside BK Resources underbar accessories and speed rails

From the Cresco Resco Team

Why You'll Love It

The BK Resources UB4-18-IBCP36-7 combines a 100 lb insulated ice bin with a built-in 7-circuit cold plate in a single NSF-certified unit, giving commercial bars a space-efficient solution for ice storage and beverage line chilling.

Ideal for full-service bars, restaurants, and high-volume beverage stations that need reliable underbar ice storage.
The integrated 7-circuit cold plate reduces equipment clutter and keeps multiple draft lines chilled using the bin's own ice supply.
Pairs with BK Resources speed rails and bottle well holders for a complete, cohesive underbar setup.

Specifications

Model Number	UB4-18-IBCP36-7
Overall Dimensions	36"L x 18"W x 33-1/2"H
Width (Side to Side) OA	31" - 36"
Depth (Front to Back) OA	18" - 19"
Ice Bin Depth	12-9/16"
Ice Capacity	100 lbs
Construction	T-304 Stainless Steel
Steel Gauge	18 Gauge
Cold Plate	7-Circuit Aluminum Cold Plate
Backsplash Height	4"
Base Type	Stainless Steel Legs and Bracing
Feet	Adjustable High-Impact Corrosion-Resistant Bullet Feet
Drain	1/2" NPT Drain with Drain Plug (Includes BKDR-325CP)
Certifications	NSF
Warranty	1 Year
Gross Weight	164 lbs
UPC	840653124896
