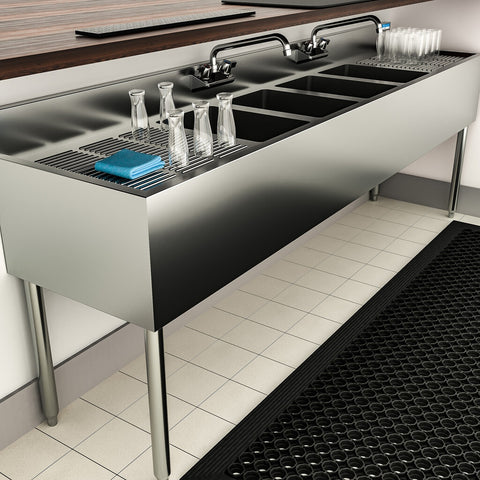

BK Resources UB4-18-484TS 84" Four-Compartment Underbar Sink with Two Drainboards and Workforce Faucets

$1,537.00 ~~Precio rebajado$2,563.00ahorra $1,026.00~~

Key Features:

Four Integrally Welded Compartments: Each bowl measures 10"(L) x 14"(W) x 10"(D), providing generous capacity for multi-stage washing, rinsing, and sanitizing in high-volume bar and prep environments.
T-304, 18-Gauge Stainless Steel Construction: The top, front, ends, and legs are all fabricated from 18/304 stainless steel, delivering superior corrosion resistance, durability, and long-term sanitation performance.
Dual Stamped and Pitched Drainboards: Two approximately 19" drainboards - one on each end - are stamped and pitched for efficient drainage, supporting a continuous wash-rinse-dry workflow without a break in the work surface.
Includes Two Lead-Free Workforce Faucets (BKF-W2-10-G): Splash-mounted at 4" O.C. with 10" swing spouts, these lead-free chrome-finish faucets meet health code requirements and allow easy access across all four compartments.
Complete Drain Package Included: Comes with BKDR-2 basket drains and BK-OT-15075 7" overflow tubes, simplifying installation and ongoing maintenance without the need for separate drain hardware purchases.
4-1/2" Backsplash Riser: Provides effective splash containment along the rear of the sink, protecting walls and adjacent equipment during high-speed service.
Stainless Steel Legs with Adjustable Corrosion-Resistant Feet: Heavy-duty stainless legs paired with adjustable high-impact feet allow for precise leveling on uneven floors and maintain a hygienic, rust-resistant understructure.
Adjustable End Bracing: Provides structural rigidity across the full 84" span, ensuring stability even under demanding commercial use conditions.
Slim-Line Profile: Overall dimensions of 84"L x 18-1/4"W x 33-1/2"H are engineered to fit within standard underbar footprints, maximizing usable bar or prep space without sacrificing sink capacity.
NSF Certified: Meets National Sanitation Foundation standards, confirming compliance with food safety and sanitation requirements for commercial foodservice installations.

Detailed Description

The BK Resources UB4-18-484TS is a Slim-Line four-compartment underbar sink engineered for high-volume bar and commercial kitchen operations. Built from T-304 18-gauge stainless steel throughout, including the top, front, ends, and legs, it delivers long-term corrosion resistance and a professional-grade standard of sanitation. Four integrally welded bowls measuring 10 x 14 x 10 provide generous capacity for multi-stage washing and rinsing, while two stamped and pitched drainboards on each end streamline drying and prep workflow. The unit ships complete with two lead-free BKF-W2-10-G swing-spout workforce faucets, BKDR-2 basket drains, and overflow standpipes, making it a ready-to-install solution for restaurants, bars, and catering environments. NSF certified and lead-free compliant, it meets strict foodservice sanitation requirements right out of the box.

Product Details

Heavy-Duty Construction

T-304 18-gauge stainless steel top, front, ends, and legs built for lasting commercial use.

Easy Clean and Drain

Includes basket drains and 7" overflow tubes for straightforward maintenance and drainage.

NSF Certified and Lead-Free

Meets commercial food safety standards with lead-free splash mount workforce faucets included.

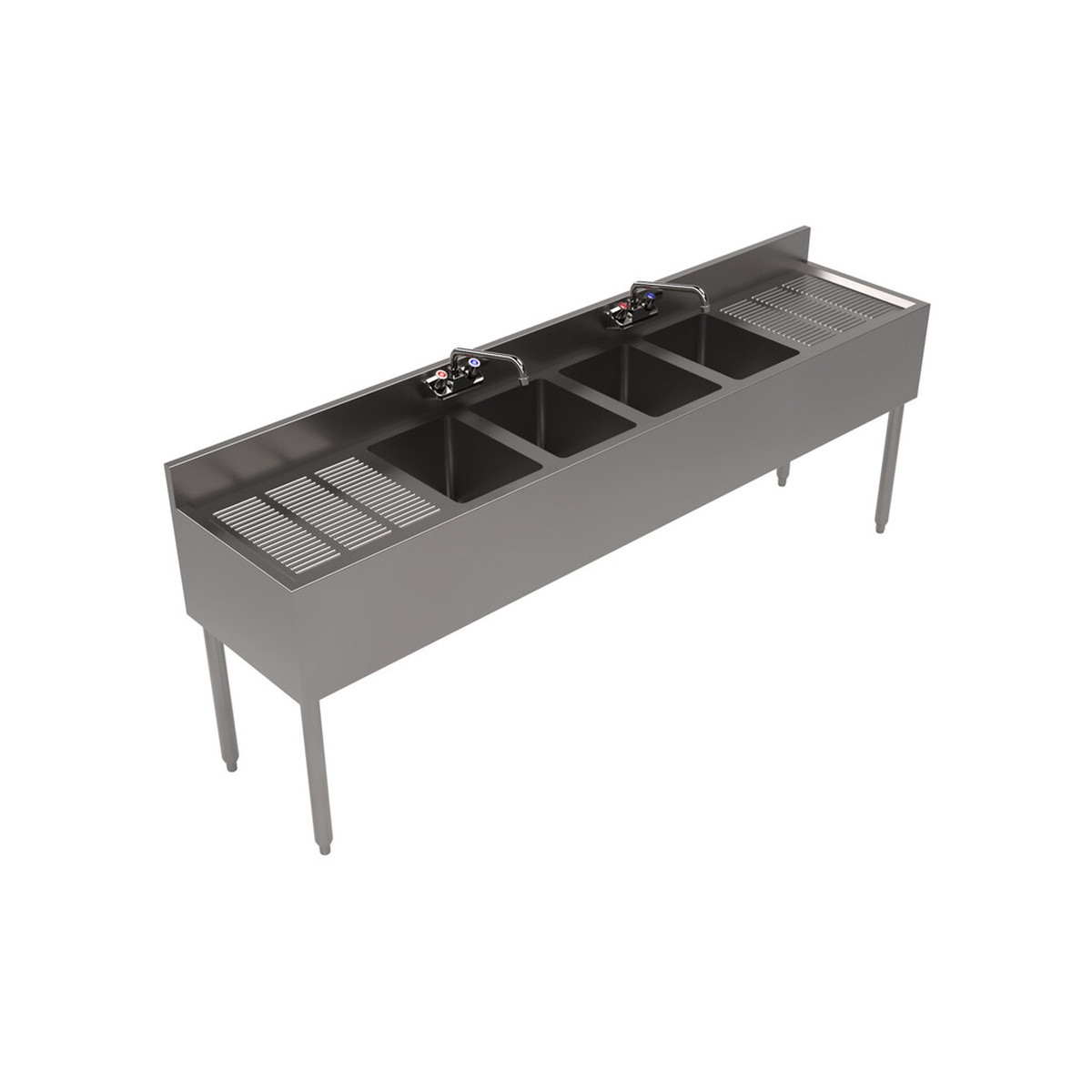

BK Resources UB4-18-484TS four-compartment underbar sink with dual drainboards, stainless steel legs, and faucets, angled view on white background

Four Compartments for High-Efficiency Workflow

The BK Resources UB4-18-484TS Slim-Line Underbar Sink delivers four integrally welded compartments designed to support multi-stage washing, rinsing, and sanitizing in busy bar and kitchen environments.

Four compartments each measuring 10"(L) x 14"(W) x 10"(D)
Drainboards on both left and right sides for organized prep flow
Overall dimensions: 84"W x 18-1/4"D x 32-1/2"H
Slim-line 18" depth maximizes underbar space efficiency

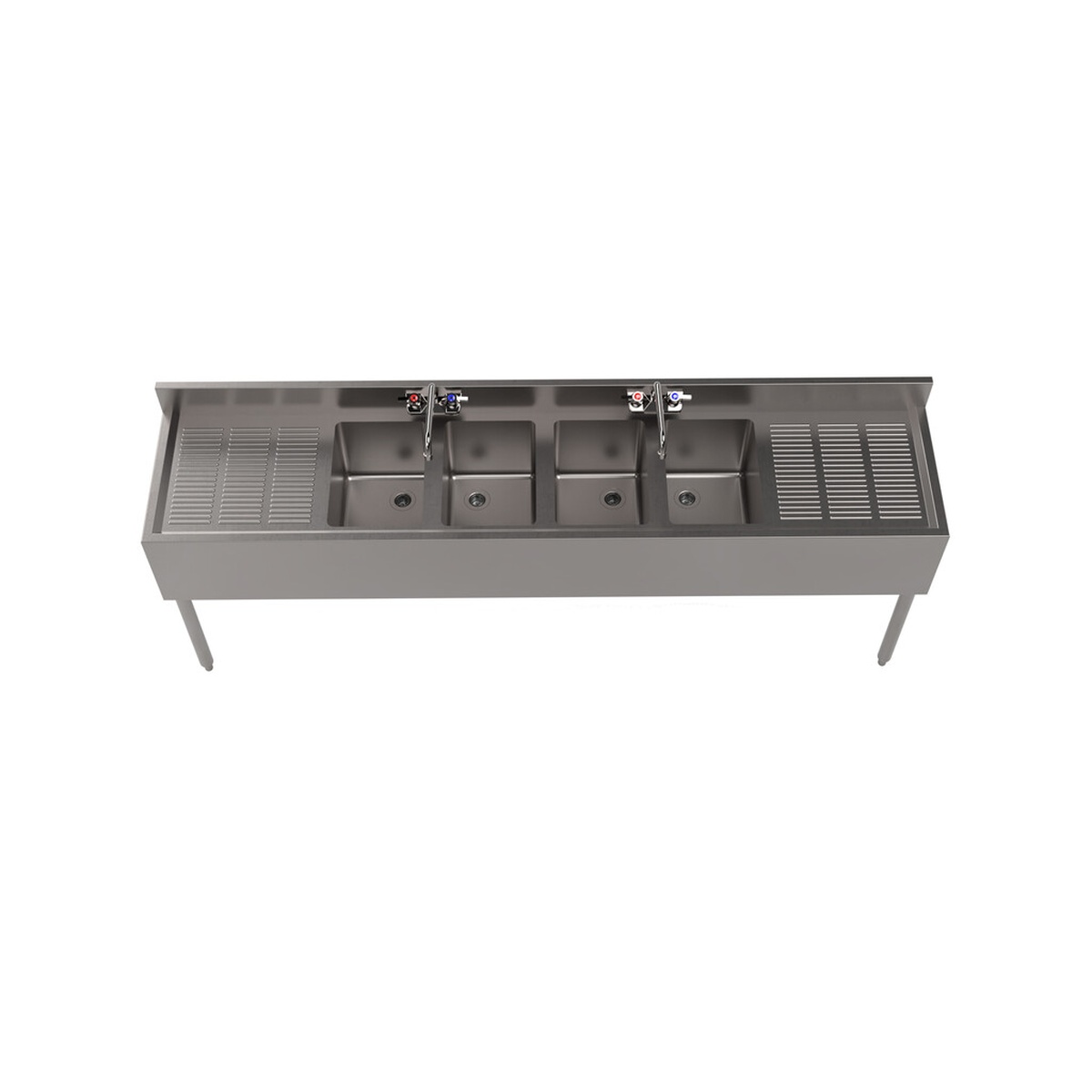

BK Resources UB4-18-484TS four-compartment underbar sink top-down view showing four bowls, two drainboards, and dual faucets on white background

Stamped Drainboards and Pitched Drainage

Both integrated drainboards are stamped and pitched to guide water efficiently toward the bowls, reducing standing water and keeping the work surface dry and safe during high-volume service.

Two drainboards positioned on left and right ends
Stamped and pitched for automatic runoff
4" backsplash riser protects walls from splashing
4" O.C. splash mount faucet positioning for easy access

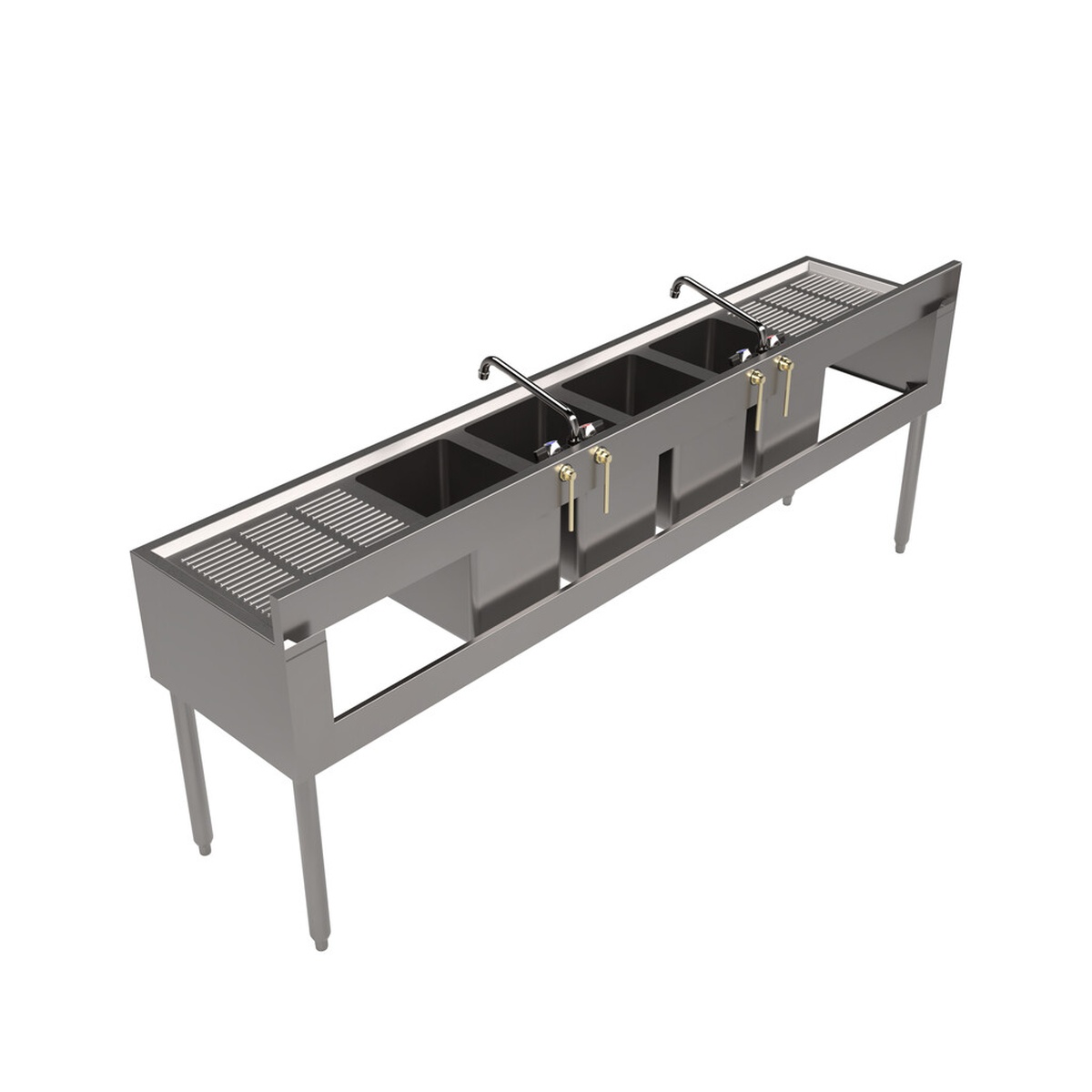

BK Resources UB4-18-484TS four-compartment underbar sink rear angled view showing open leg structure, drainboards, and stainless steel frame on white background

Commercial-Grade Frame and Adjustable Support

The stainless steel leg framework with adjustable end bracing and corrosion-resistant feet ensures a stable, level installation on any commercial floor surface, providing long-term structural integrity.

Stainless steel legs and bracing throughout
Adjustable end bracing for added rigidity
Adjustable high-impact corrosion-resistant feet
Open undercounter design supports easy cleaning and access

Key Specifications

MaterialT-304, 18-gauge stainless steel

Bowl Size10"(L) x 14"(W) x 10"(D)

CertificationsNSF certified, Lead-free

Compartments4 compartments with 2 drainboards

Overall Dimensions84"W x 18-1/4"D x 32-1/2"H

IncludesFaucets, basket drains, overflow tubes

From the Cresco Resco Team

Why You'll Love It

The BK Resources UB4-18-484TS delivers commercial-grade durability, smart layout design, and everything needed for compliant, efficient dishwashing right out of the box.

Ideal for bars, restaurants, and catering operations requiring multi-stage washing in a compact underbar footprint.
T-304 stainless steel construction with NSF certification and lead-free faucets ensures long-term sanitation compliance.
Comes complete with workforce faucets, basket drains, and overflow tubes so the unit is ready to connect and operate immediately.

Specifications

Model Number	UB4-18-484TS
Brand	BK Resources
Product Type	Slim-Line Underbar Four Compartment Sink
Overall Dimensions	84" W x 18-1/4" D x 32-1/2" H
Overall Width (Side-to-Side)	79" - 84"
Overall Depth (Front-to-Back)	18" - 19"
Construction Material	T-304 18 Gauge Stainless Steel Top, Front, Ends & Legs
Stainless Series	300 Series (T-304)
Steel Gauge	18 Gauge
Number of Compartments	4
Bowl Dimensions (Each)	10" L x 14" W (front-to-back) x 10" D
Bowl Depth (Rim to Drain)	10"
Drainboards	(2) 19" - Left & Right
Backsplash Height	4"
Faucets Included	Yes - (2) BKF-W2-10-G Lead-Free Workforce Faucets
Faucet Mounting	4" O.C. Splash Mount
Faucet Spout Type	Swing
Faucet Spout Size	10"
Faucet Finish	Chrome
Included Accessories	BKF-W2-10-G Faucets, BKDR-2 Basket Drains, BK-OT-15075 7" Overflow Tubes
Leg / Base Type	Stainless Steel Legs with Adjustable High-Impact Corrosion-Resistant Feet
Weight	91.5 lbs
NSF Certified	Yes
Lead-Free	Yes
Electrical Requirements	Not Applicable
Delivery Method	Truckline Only
Warranty	1 Year
UPC	840653128245
