Vulcan FEG

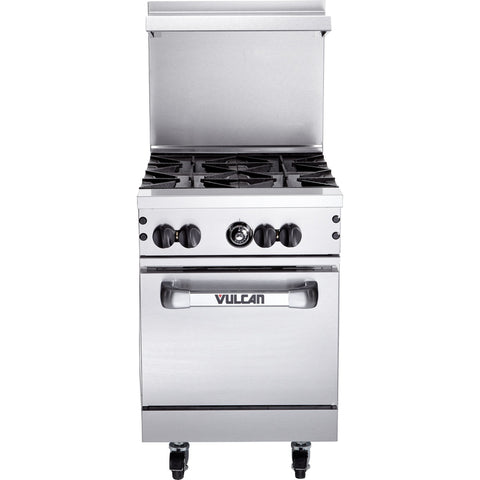

Vulcan 24S-4B-QS-PLATINUM 24 in Gas Restaurant Range with 4 Burners and Standard Oven

$4,483.00 ~~Precio rebajado$11,507.00ahorra $7,024.00~~

Key Features:

24 inch wide commercial gas range with (4) 30,000 BTU/hr open top burners; lift off burner heads support faster cleaning
Standard baker's depth oven rated at 23,000 BTU/hr; thermostat adjusts from 250°F to 500°F; includes 2 oven racks with 4 rack positions and fits full size sheet pans front to back
Shrouded flashtube pilot system (one pilot per two burners) designed to reduce energy use
Durable build with fully MIG welded frame plus stainless steel front, sides, and backriser; includes lift off high shelf
Operator and maintenance friendly details including cool to the touch control knobs, heavy duty lift off cast grates, and an extra deep pull out crumb tray with welded corners
6 inch stainless steel adjustable legs for leveling during installation

Detailed Description

The Vulcan 24S-4B-QS-PLATINUM is a compact 24 inch gas restaurant range built for high-output line cooking in tight spaces. Four 30,000 BTU open burners provide responsive heat for sautéing, simmering, and searing, while the standard oven supports baking and finishing. A stainless steel exterior and fully MIG welded frame are designed for daily commercial use and easier cleanup. The unit includes a lift-off high shelf and adjustable legs for practical installation and workflow.

Product Details

High-Output Cooking Power

Four open burners rated at 30,000 BTU each with 143,000 BTU total output.

Standard Oven Versatility

Baker's depth oven with 250°F to 500°F thermostat range and two racks.

Built for Daily Service

Stainless steel exterior with a fully MIG welded frame for durability and stability.

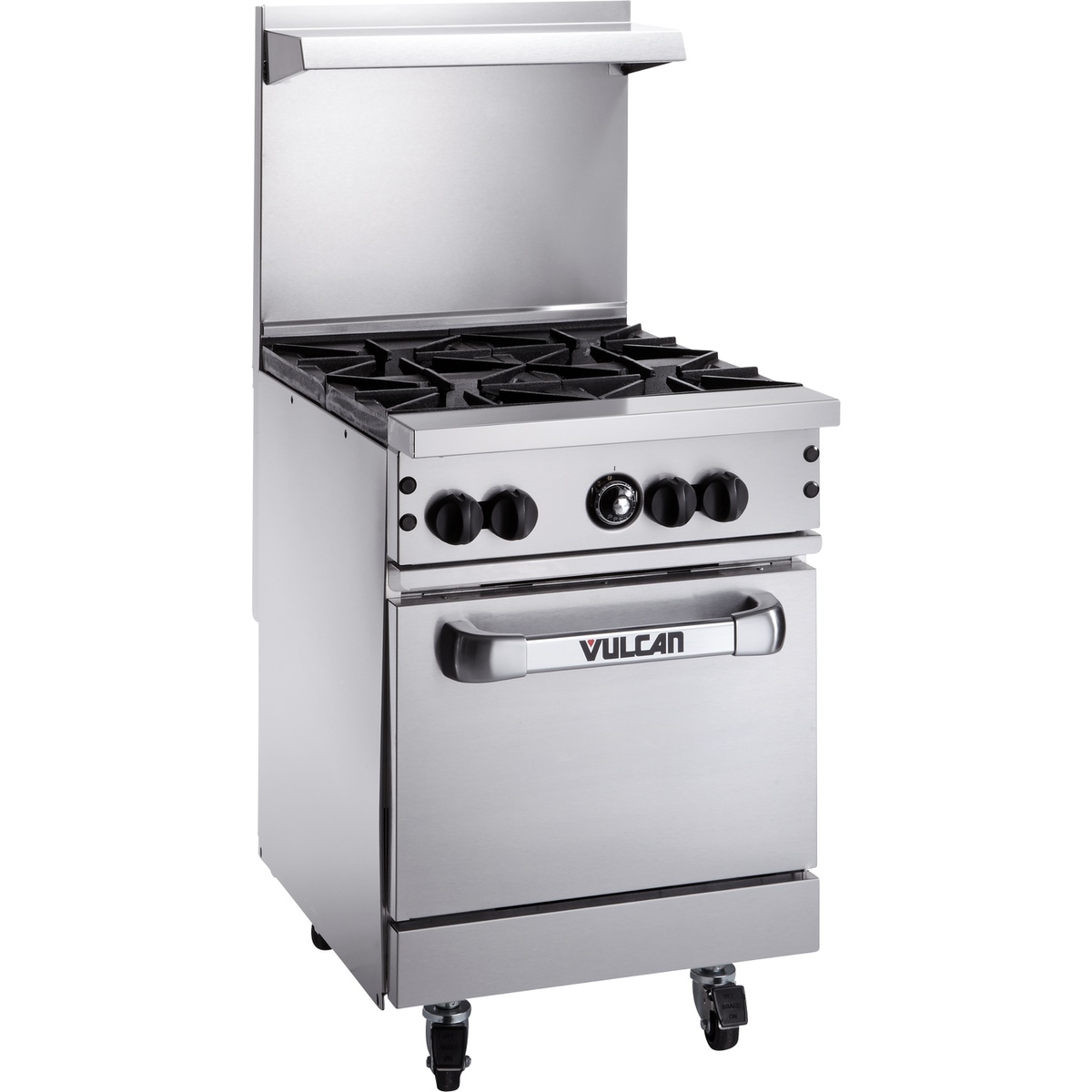

Angled view of the Vulcan 24-inch gas range with four open burners, high shelf, and standard oven

Compact 24 inch Footprint, Full Line Capability

Designed for space-sensitive cook lines, this 24 inch wide range delivers a complete burner and oven station in one footprint.

Overall dimensions: 24 inch W x 34 inch D x 58 inch H (on 6 inch adjustable legs)
Standard oven base for baking, roasting, and finishing
Lift-off high shelf for added staging space

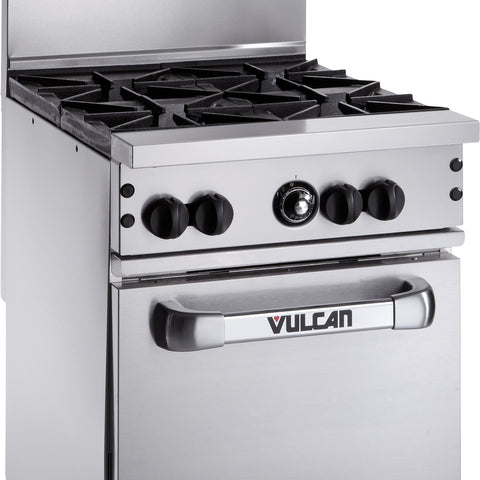

Close-up of cast iron grates and front control panel on the Vulcan four-burner gas range

Four 30,000 BTU Open Burners

Responsive heat supports searing, simmering, and sautéing, while heavy-duty grates handle busy service.

(4) open top burners, 30,000 BTU/hr each
Heavy-duty cast grates with lift-off design for easier cleaning access
Cool-to-the-touch control knobs

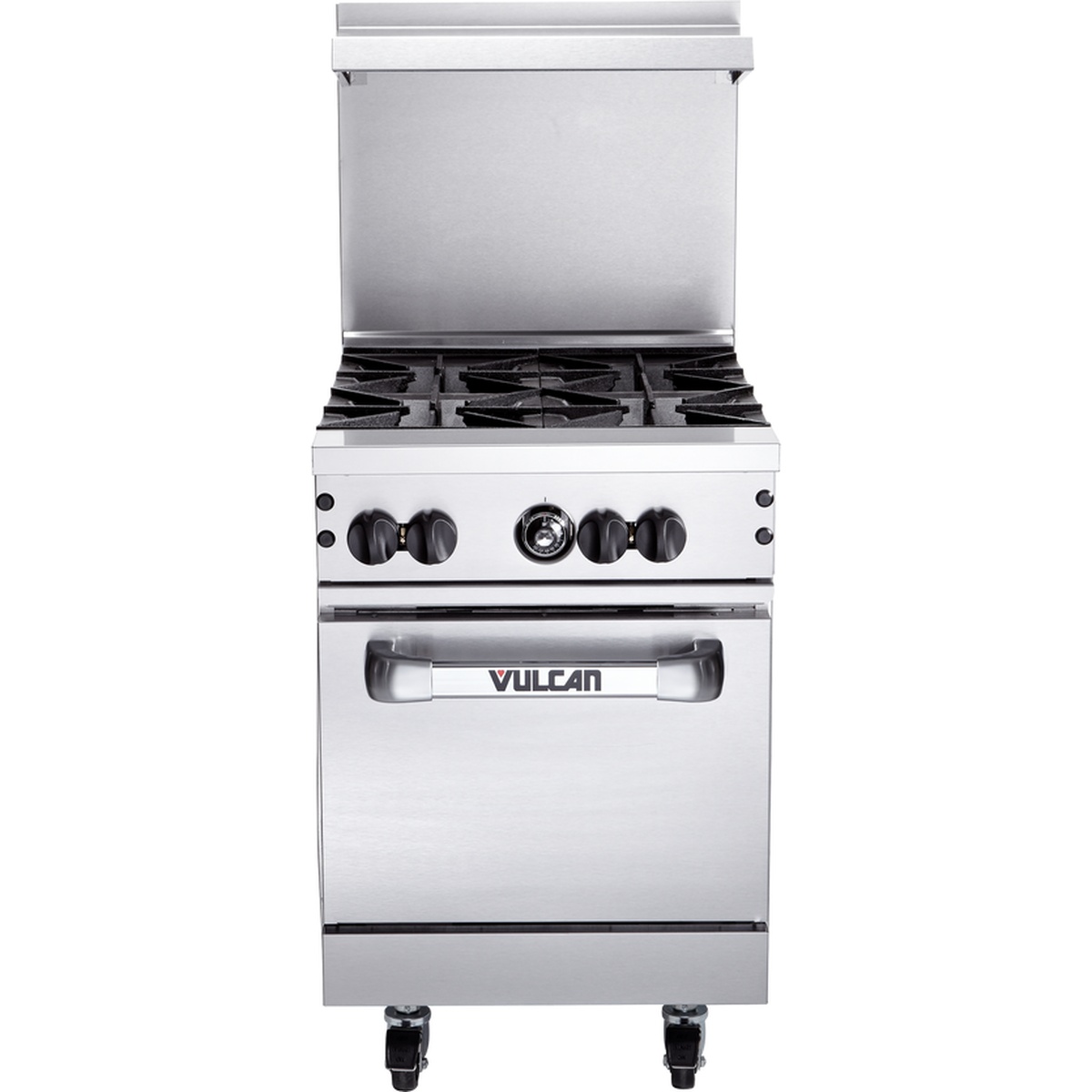

Front view of the Vulcan 24-inch gas range showing four burner controls and standard oven door

Oven Performance for Real Production

The baker's depth oven cavity is designed to keep pace with day-to-day prep and line finishing.

23,000 BTU/hr standard oven cavity
Thermostat adjusts from 250°F to 500°F
Two racks with four rack positions

Why Choose This Model

30,000

BTU per burner

143,000

Total BTU

250°F to 500°F

Oven thermostat range

Ideal For

Compact cook lines Prep and finishing stations Restaurants and commercial kitchens Sauté, sauces, and bake-off

From the Cresco Resco Team

Why You'll Love It

A compact, commercial gas range that pairs four high-BTU burners with a standard oven to keep service moving in limited space.

Great for adding a dedicated sauté and oven station without expanding your line.
Durable stainless exterior and fully MIG welded frame built for daily use.
Lift-off components support faster end-of-shift cleanup.

Specifications

Brand	Vulcan
Model	24S-4B-QS-PLATINUM
Series	Endurance
Equipment Type	Commercial gas range with standard oven
Overall Dimensions (W x D x H)	24 in x 34 in x 58 in (on 6 in adjustable legs)
Width	24 in
Depth	34 in
Height	58 in
Power Source	Gas
Gas Type	Natural gas or propane (LP)
Top Configuration	(4) open burners
Burner BTU	30,000 BTU/hr each
Total BTU	143,000 BTU/hr
Oven Base	Standard oven
Oven BTU	23,000 BTU/hr
Oven Temperature Range	250°F to 500°F
Oven Capacity Note	Baker's depth; full size sheet pans fit front-to-back
Oven Racks	2 racks; 4 rack positions
Pilot System	Shrouded flash tube; 1 pilot per 2 burners
Exterior Construction	Stainless steel front, sides, and backriser
Frame Construction	Fully MIG welded frame
Grates	Heavy-duty cast grates; lift-off (12 in x 12 in front, 12 in x 14 in back)
Included Shelf	Lift-off high shelf
Legs	6 in stainless steel adjustable legs
Crumb Tray	Extra deep pull-out crumb tray with welded corners
Approx. Weight	350 lb
Certifications	NSF, CSA
Warranty	1-year limited parts and labor
