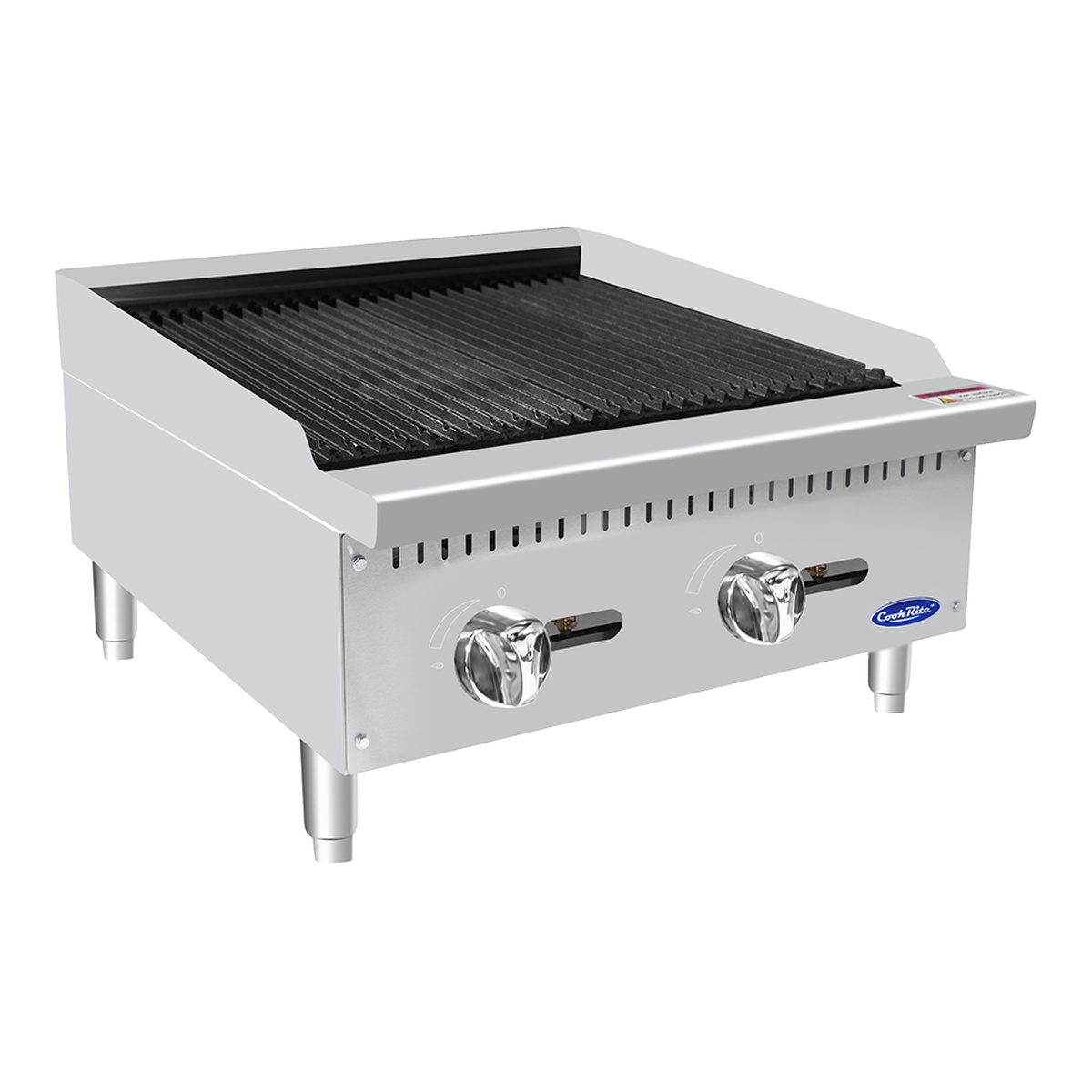

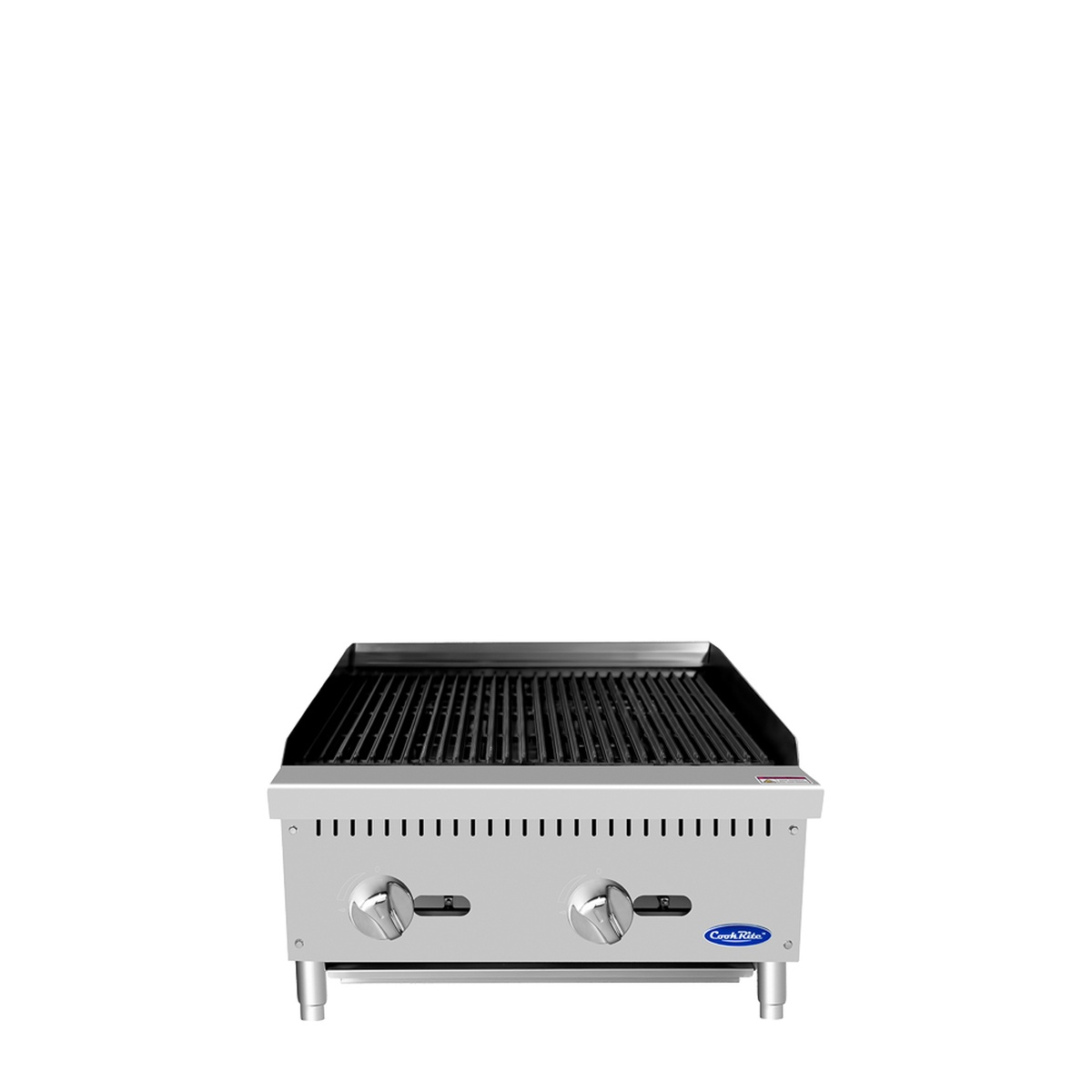

Compact 24 Inch Countertop Footprint
Designed to add charbroiled menu items without sacrificing line space.
- Overall dimensions: 24 in W x 27-3/5 in D x 15-1/5 in H
- Cooking surface: 23.9 in W x 20.2 in D (483 sq in.)
- Adjustable stainless steel legs for leveling
Adjustable, Reversible Cast Iron Grates
Dial in the cooking height and turn grates to match your grilling needs.
- Heavy-duty cast iron grates
- Top grates are adjustable multi-level
- Independent controls help manage different product loads
Stainless Construction for Daily Service
A stainless exterior and interior supports durability and routine wipe-down cleaning.
- Stainless steel exterior and interior
- Stainless steel radiant plates (per manufacturer descriptions)
- Commercial certifications: cETLus and ETL-Sanitation (NSF/ANSI 4)

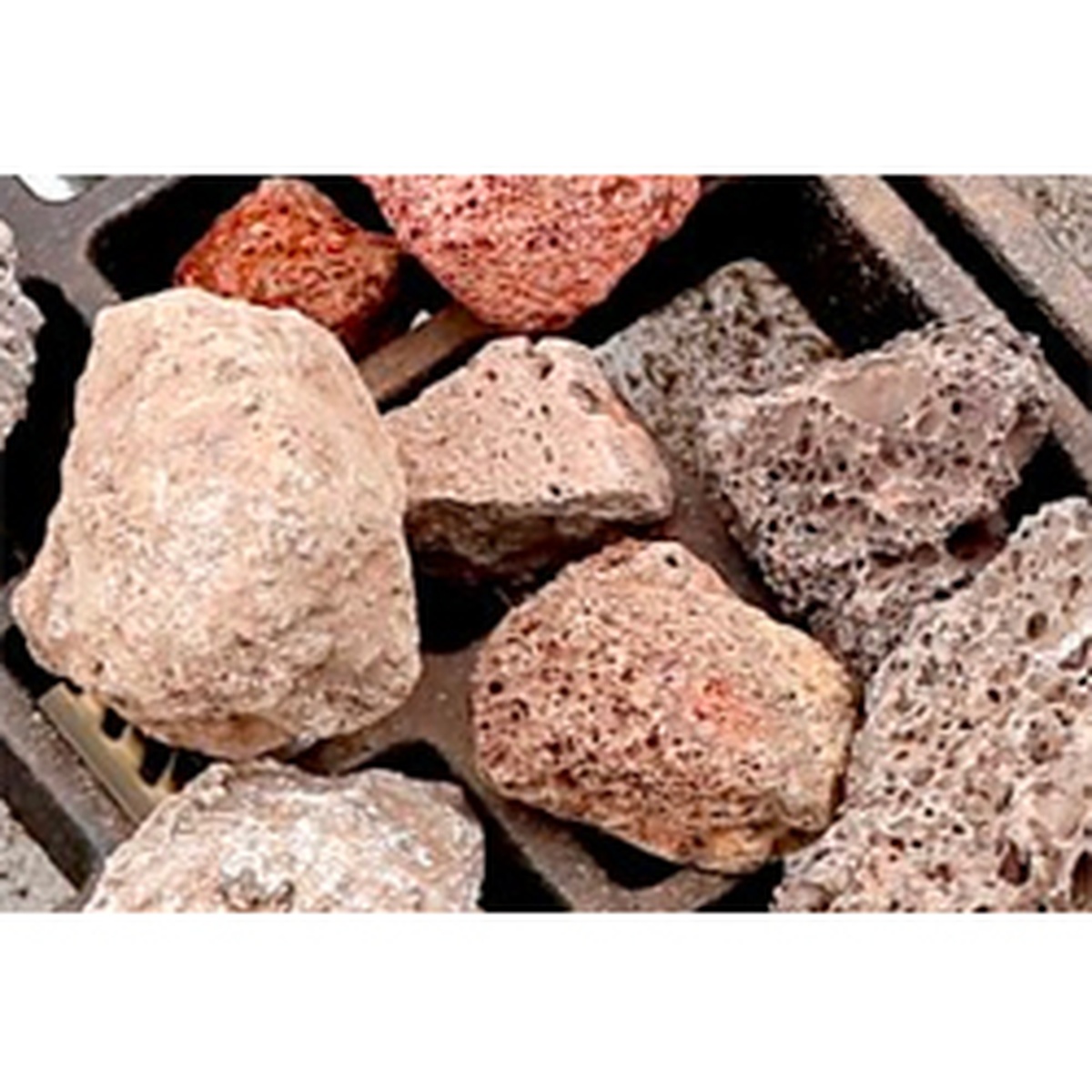

Char Rock Flavor, Standard
Lava briquettes help create radiant heat and the charbroiled results guests expect.
- Includes lava briquettes standard
- Two 35,000 BTU burners with standby pilot
- Natural gas unit that ships with an LP conversion kit
Key Specifications
Why You'll Love It
The ATCB-24 brings high-output charbroiling to a compact countertop setup with durable materials and simple manual control.
- Great for sandwich shops, diners, and busy prep lines adding grilled proteins and vegetables.
- Multi-level cast iron grates and lava briquettes help deliver classic charbroiler results.
- Easy to integrate with a 3/4 in NPT rear gas connection and included regulator.
| Model | ATCB-24 |
| Brand / Series | Atosa USA / CookRite |
| Installation Type | Countertop |
| Fuel Type | Natural Gas (field convertible; ships with LP conversion kit) |
| Total BTU | 70,000 BTU/hr |
| Number of Burners | 2 |
| BTU per Burner | 35,000 BTU |
| Burner Material | Stainless Steel |
| Ignition | Standing Pilot (Standby Pilot) |
| Control Type | Independent manual controls every 12" |
| Heating Source | Radiant / Lava Rock (lava briquettes included) |
| Grate Material | Cast Iron |
| Grate Type | Heavy-duty, reversible, adjustable multi-level |
| Cooking Surface | 23.9" W x 20.2" D (483 sq in.) |
| Overall Dimensions | 24" W x 27-3/5" D x 15-1/5" H |
| Construction | Stainless steel exterior and interior, radiant plates, and legs |
| Legs | Adjustable stainless steel legs (standard) |
| Gas Connection | 3/4" NPT rear connection; regulator included |
| Net Weight | 136.9 lb |
| Shipping Weight | 168.2 lb |
| Certifications | cETLus, ETL-Sanitation (NSF/ANSI 4) |
| Warranty | 1-year parts & labor (U.S. only) |
Brochure not available.
