Vulcan FEG

Vulcan EV36S-2FP24G208 Endurance Series 36" Electric Range with 2 French Plates, 24" Griddle, and 1 Standard Oven - 208V, 15.8 kW

$17,719.00 ~~Precio rebajado$36,998.00ahorra $19,279.00~~

Key Features:

Two 9-1/2" Round French Hot Plates: Each sealed cast iron plate delivers 2 kW of output with infinite heat controls, providing smooth, even heating ideal for stock pots and saute pans while being far easier to clean than traditional coil-style burners.
24" Wide, 7/8" Thick Polished Steel Griddle: Right-side griddle features thermostatic controls with one thermostat per 12" of width for precise zone temperature management across a 200-500 degrees F range, perfect for high-volume breakfast and short-order production.
Standard Oversized Oven Base: Delivers 5 kW of output with a 200-500 degrees F thermostat, top browning control, a "low" heat setting, porcelain bottom and door back, and a three-position rack guide with one adjustable rack included.
Cool Touch Control Knobs: Insulated side-compartment-mounted controls keep operator contact surfaces cooler during service, improving safety and precision in a busy line environment.
Heavy-Duty Welded Construction: Fully welded aluminized steel frame with stainless steel front, sides, 23" backsplash, and plate shelf provides lasting durability in demanding commercial kitchens.
Flexible Electrical Configuration: Operates on 208V, 3-phase power and is field convertible to single phase, with additional 240V and 480V variants available for compatibility with different facility requirements.
Compact 36" Footprint with Adjustable Legs: At just 36" wide with 6" height-adjustable legs, this range fits seamlessly into tight kitchen layouts while still offering a full suite of cooking surfaces.
Industry Certifications: cULus listed, UL EPH Classified, and NSF certified, meeting the safety and sanitation standards required for commercial foodservice installations.

Detailed Description

The Vulcan EV36S-2FP24G208 is a 36 Endurance Series commercial electric range built for high-volume kitchens demanding reliability and versatility. It features two 9-1/2 round cast iron French hotplates on the left, each rated at 2 kW, delivering smooth, even heat that is far easier to clean than traditional coil-style burners. A 24 wide, 7/8 thick polished steel griddle on the right side offers precise thermostatic temperature control for batch cooking pancakes, eggs, burgers, and more. Below, an oversized standard oven base with a 5 kW output and a 200-500°F thermostat handles baking and warming needs, while a fully welded aluminized steel frame with stainless steel front, sides, and back riser ensures lasting durability in demanding commercial environments.

Product Details

Precise Temperature Control

Thermostatic griddle controls and oven thermostat maintain 200-500°F with accuracy.

High-Output Electric Power

15.8 kW total output across two 2 kW French plates and a 5 kW oven at 208V.

Commercial-Grade Construction

Fully welded aluminized steel frame with stainless steel front, sides, and back riser.

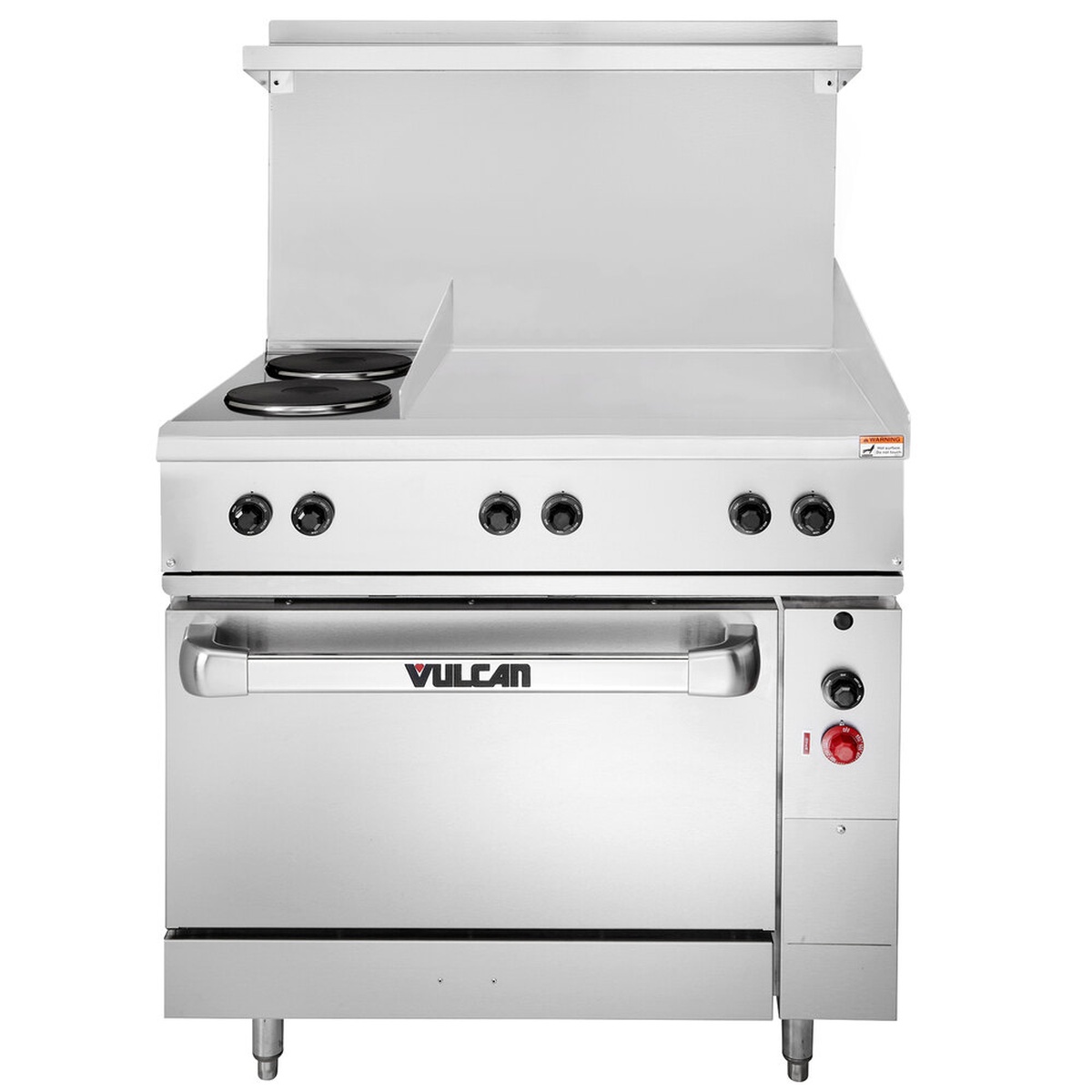

Vulcan EV36S-2FP24G208 36-inch electric range with two French plates, 24-inch griddle, and standard oven base, front view

Endurance Series 36" Electric Range

The Vulcan EV36S-2FP24G208 is built for the demands of a busy commercial kitchen, combining two French hotplates, a 24" griddle, and a full standard oven base in one compact 36" footprint.

Two 9.5" round French plates with 2 kW cast iron heating elements each
24" wide, 7/8" thick polished steel griddle on the right side
Oversized standard oven base with one adjustable rack and top browning control
6" adjustable stainless steel legs for flexible installation

Key Specifications

Total Wattage15.8 kW

Oven Temp Range200 - 500°F

Voltage / Phase208V, 3-Phase (field convertible to 1-phase)

Overall Dimensions36"W x 34"D x 58"H

Oven Interior26.5"W x 26.375"D x 14"H

CertificationscULus, UL EPH Classified, NSF

At a Glance

French Hotplates (2 kW each)

24"

Griddle Width

15.8 kW

Total Power Output

Ideal For

Breakfast and brunch kitchens High-volume restaurants Diners and short-order kitchens Catering operations Hotel and institutional kitchens

From the Cresco Resco Team

Why You'll Love It

The Vulcan EV36S-2FP24G208 packs a versatile, high-output cooking suite into a compact 36" electric range built for demanding commercial environments.

Perfect for operations that need simultaneous stovetop, griddle, and oven cooking without a large footprint.
Easy-to-clean smooth cast iron French plates and polished steel griddle surface reduce daily maintenance time.
Field-convertible from 3-phase to 1-phase power adds installation flexibility across different kitchen configurations.

Specifications

Series	Endurance
Power Type	Electric
Voltage	208V
Phase	3 Phase (field convertible to 1 Phase)
Total Wattage	15.8 kW
Frequency	60 Hz
Connection Type	Hardwire
Installation Type	Freestanding
Overall Width	36"
Overall Depth	34"
Overall Height	58"
Weight	500 lb.
Top Configuration	2 French Plates (left) with 24" Griddle (right)
Number of French Plates	2
French Plate Diameter	9 1/2"
French Plate Output (Each)	2 kW
French Plate Controls	Infinite
Griddle Width	24"
Griddle Plate Thickness	7/8"
Griddle Surface Material	Polished Steel
Griddle Controls	Thermostatic (1 per 12" of width)
Griddle Location	Right Side
Cooking Surface Width	24"
Cooking Surface Depth	27 1/4"
Cooking Surface Height	37"
Number of Ovens	1
Oven Type	Standard Oversized
Oven Output	5 kW
Oven Temperature Range	200°F - 500°F
Oven Door Type	Solid
Oven Rack Positions	3
Oven Racks Included	1
Oven Interior Width	26 1/2"
Oven Interior Depth	26 3/8"
Oven Interior Height	14"
Frame Construction	Fully Welded Aluminized Steel
Exterior Finish	Stainless Steel Front, Sides, Back Riser, and Legs
Leg Height	6" Adjustable
Certifications	cULus, UL EPH Classified, NSF
