Scotsman

Scotsman UN1520A-1 Undercounter Nugget Ice Maker with Bin, 167 lb/day, Air-Cooled

$4,464.00 ~~Precio rebajado$10,889.00ahorra $6,425.00~~

Key Features:

High-Volume Nugget Ice Production: Produces up to 167 lb of Scotsman's signature Original Chewable Nugget Ice per 24 hours (125 lb AHRI-certified at 90°F/70°F), with a 57 lb integrated storage bin to keep up with peak demand.
Space-Saving Undercounter Design: At just 20" wide with a front-breathing condenser, no side clearances are required, making it ideal for tight commercial installations. Compatible with ADA countertops when the optional floor mount kit replaces the adjustable legs.
Self-Contained, Air-Cooled Condenser: Eliminates the need for additional water lines for cooling, simplifying installation and reducing operational complexity.
Durable Stainless Steel Construction: Features a stainless steel evaporator and auger for maximum longevity, paired with a rust-free front panel and corrosion-resistant aluminum alloy side panels for a long service life in demanding environments.
Sealed, Maintenance-Free Bearings: Reduces preventative maintenance requirements and extends the operational life of the unit, minimizing downtime and service costs.
Environmentally Responsible Refrigerant: Uses R290 hydrocarbon refrigerant, which has zero ozone depletion potential and a low global warming potential (GWP), while delivering 4,100 BTU/hr heat transfer capacity.
Energy Star Certified and Efficient: Rated at 5.23 kWh/100 lb of ice and 12.0 gallons of water per 100 lb, meeting ENERGY STAR standards and US Safe Drinking Water Act low-lead requirements.
Quick-Install Ready: Ships with a power cord (NEMA 5-15P plug), ice scoop, and 6" adjustable legs for fast, straightforward installation out of the box.
Unit-Specific QR Code: Provides instant access to service manuals, cleaning guides, and warranty history directly from the machine, streamlining service calls and operator training.
3-Year Parts and Labor Warranty: Backed by a commercial 3-year parts and labor warranty, reflecting Scotsman's confidence in build quality. Designed, engineered, and assembled in the USA.

Denver

Normalmente está listo en 2 a 4 días

Fresno

Normalmente está listo en 2 a 4 días

Scotsman UN1520A-1 Undercounter Nugget Ice Maker with Bin, 167 lb/day, Air-Cooled

$4,464.00~~$10,889.00~~

Detailed Description

The Scotsman UN1520A-1 is a self-contained, air-cooled undercounter nugget ice maker purpose-built for commercial environments where space is at a premium and ice demand is high. At just 20 inches wide with a front-breathing design requiring zero side clearance, this unit fits into virtually any service setup while producing up to 167 lb of Scotsman's signature Original Chewable Nugget Ice per day. The machine's stainless steel evaporator and auger, sealed maintenance-free bearings, and corrosion-resistant panel construction are engineered for long service life with minimal preventative maintenance. An Energy Star certification and the use of R290 refrigerant with zero ozone depletion potential demonstrate a commitment to operational efficiency and environmental responsibility. Designed, engineered, and assembled in the USA, the UN1520A-1 is backed by a 3-year parts and labor commercial warranty for added confidence.

Product Details

High-Volume Ice Production

Produces up to 167 lb of chewable nugget ice per day with a 57 lb built-in storage bin.

Built for Durability

Stainless steel evaporator and auger, rust-free front panel, and sealed maintenance-free bearings.

ENERGY STAR Certified

Uses R290 refrigerant with zero ozone depletion potential. NSF, AHRI, and cULus listed.

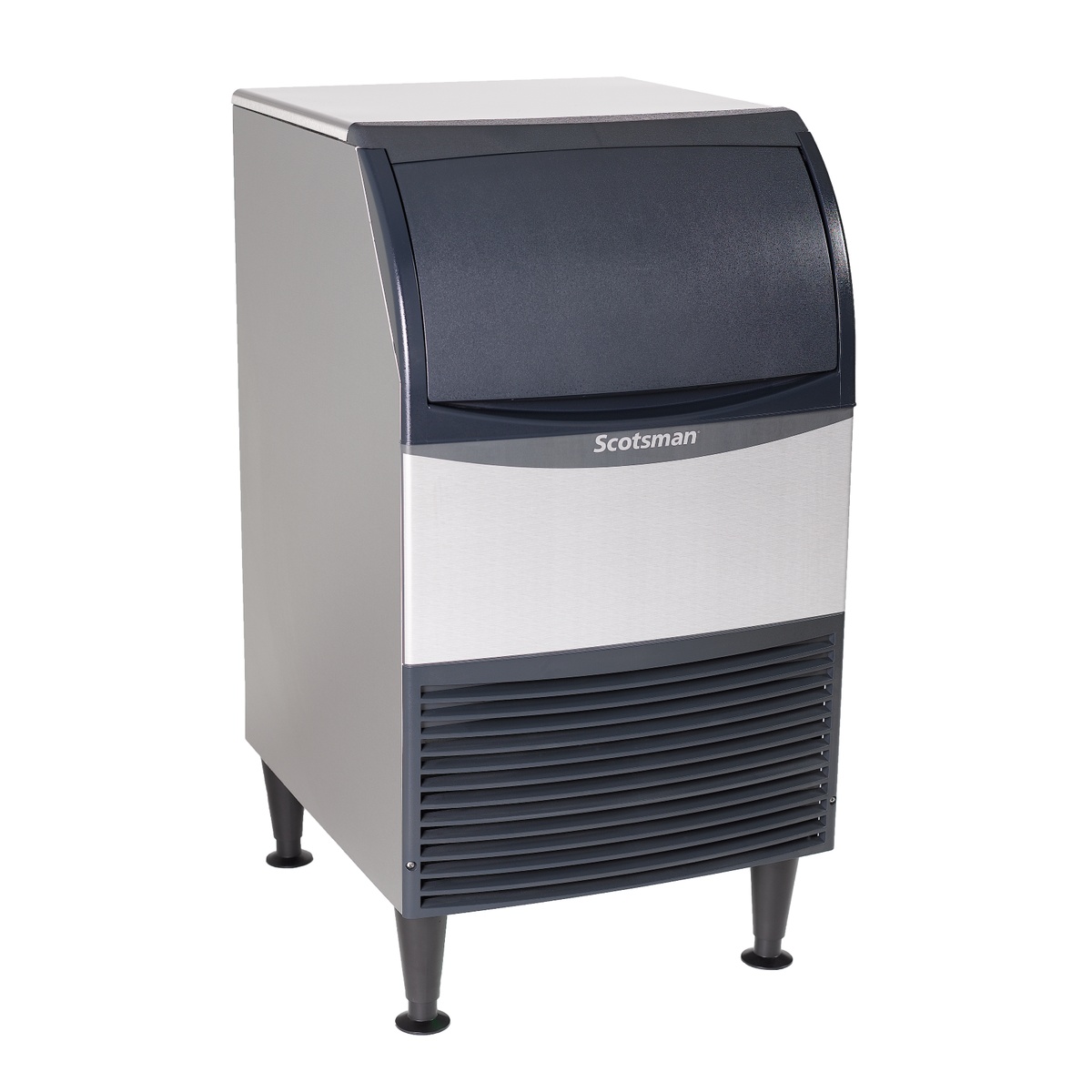

Scotsman UN1520A-1 undercounter nugget ice maker with slide-back bin door and stainless steel front panel

Space-Saving Undercounter Design

At only 20 inches wide, the Scotsman UN1520A-1 fits into the tightest kitchen spaces without sacrificing ice output. Its front-breathing design requires no side clearances, and the ergonomic slide-back bin door makes accessing ice effortless.

Only 20" W x 24" D x 38" H footprint
Front-breathing -- no side clearance required
ADA compliant with optional floor mount kit (sold separately)
Adjustable 6-inch legs for uneven surfaces

Key Specifications

Daily Production167 lb @ 70°F/50°F; 125 lb AHRI @ 90°F/70°F

Bin Capacity57 lb storage bin included

Electrical115V / 60 Hz / 1 Phase, NEMA 5-15P cord

BTU / Refrigerant4,100 BTU/hr; R290 hydrocarbon refrigerant

Water Usage12.0 gallons per 100 lb of ice produced

Warranty3-year parts and labor (commercial)

Ideal For

Scotsman's Original Chewable Nugget Ice is soft, chewable, and absorbs flavors -- making it the preferred choice across a wide range of settings.

Restaurants and Cafes Bars and Hospitality Healthcare Facilities Office Break Rooms Compact Commercial Kitchens

From the Cresco Resco Team

Why You'll Love It

The Scotsman UN1520A-1 delivers up to 167 lb of the Original Chewable Nugget Ice per day in a slim 20-inch undercounter footprint -- purpose-built for demanding commercial environments.

Perfect for food service, healthcare, hospitality, and office settings that need reliable, high-volume soft ice in a tight space.
Sealed, maintenance-free bearings and a stainless steel evaporator and auger keep downtime and service costs low.
Ships ready to plug in -- includes a power cord with NEMA 5-15P plug, ice scoop, and adjustable legs for quick installation.

Specifications

Model Number	UN1520A-1
Brand	Scotsman
Type	Undercounter Ice Maker with Bin, Nugget-Style
Ice Type	Nugget
Condenser Type	Air-Cooled, Self-Contained
24-Hour Ice Production (Max)	167 lb (76 kg) @ 70°F air / 50°F water
24-Hour Ice Production (AHRI Certified)	125 lb @ 90°F air / 70°F water
Bin Storage Capacity	57 lb (26 kg)
Dimensions (W x D x H)	20" W x 24" D x 38" H
Shipping Carton Dimensions (W x D x H)	22" W x 27" D x 38" H
Weight	129 lb
Voltage / Frequency / Phase	115V / 60 Hz / 1 Ph
Power Connection	Cord with NEMA 5-15P plug
Energy Consumption	5.23 kWh / 100 lb
Water Usage	12.0 gallons / 100 lb
Refrigerant	R290 (Hydrocarbon)
BTU/Hour	4,100 BTU/hr
Drain Type	Gravity
Leg Height	6" adjustable
ADA Compliant	Yes (with optional floor mount kit, sold separately)
Ambient Air Temperature Range	50°F - 100°F
Incoming Water Temperature Range	40°F - 100°F
Incoming Water Pressure	20-80 PSIG
Front Panel Material	Rust-resistant steel
Side Panel Material	Corrosion-resistant aluminum alloy
Evaporator / Auger Material	Stainless steel
Bearings	Sealed, maintenance-free
Warranty	3-year parts & labor (commercial); 1-year parts & labor (residential)
Certifications	ENERGY STAR®, NSF, cULus, AHRI
UPC	00840315402027
Included Accessories	Power cord, NEMA 5-15P plug, ice scoop, adjustable legs
Origin	Designed, engineered, and assembled in the USA
