Champion Industries UH230B High-Temp Undercounter Dishwasher

$9,020.20 ~~Precio rebajado$13,273.00ahorra $4,252.80~~

Key Features:

High temperature undercounter warewasher with built-in electric booster for 180F (82C) final rinse (70F/39C rise) and Rinse Sentry cycle extension to help ensure sanitizing rinse temperature.
Multi-Power configuration supports in-field conversion for 208 to 240V and single to three phase (Multi-Volt and Multi-Phase) for installation flexibility.
Energy and ware protection features including Shear Energy performance design and StemSure soft start to help reduce chipping and breakage.
90-second total cycle time with extended wash option for difficult ware and de-liming; NSF certified pot and pan cycle in extended wash.
Integrated operation and durability features: pumped drain, detergent and rinse aid pumps, low-water tank heat protection, door safety switch, quiet double-wall construction, top-mounted slide-out controls, and stainless steel construction with stainless top and side panels.
Independent stainless steel interchangeable upper and lower wash and rinse arms plus advanced digital temperature monitoring.

Champion Industries UH230B High-Temp Undercounter Dishwasher

$9,020.20~~$13,273.00~~

Detailed Description

The Champion Industries UH230B is a high-temperature undercounter dishwashing machine built for compact, high-performance warewashing. It features a built-in electric booster to achieve a 180°F final rinse and includes Rinse Sentry to extend the cycle if needed to meet temperature requirements. Designed with quiet double-wall construction and stainless steel top and side panels, it is built for durability in busy kitchens. Multi-Power capability supports in-field conversion across 208 to 240V and single- or three-phase applications.

Product Details

High-Temp Sanitizing Rinse

Built-in electric booster supports a 180F final rinse with digital temperature monitoring.

Multi-Power Flexibility

Multi-Volt and Multi-Phase design allows in-field conversion for 208 to 240V and single to three phase.

Built for Daily Service

Stainless steel construction with quiet double-wall design and interchangeable wash and rinse arms.

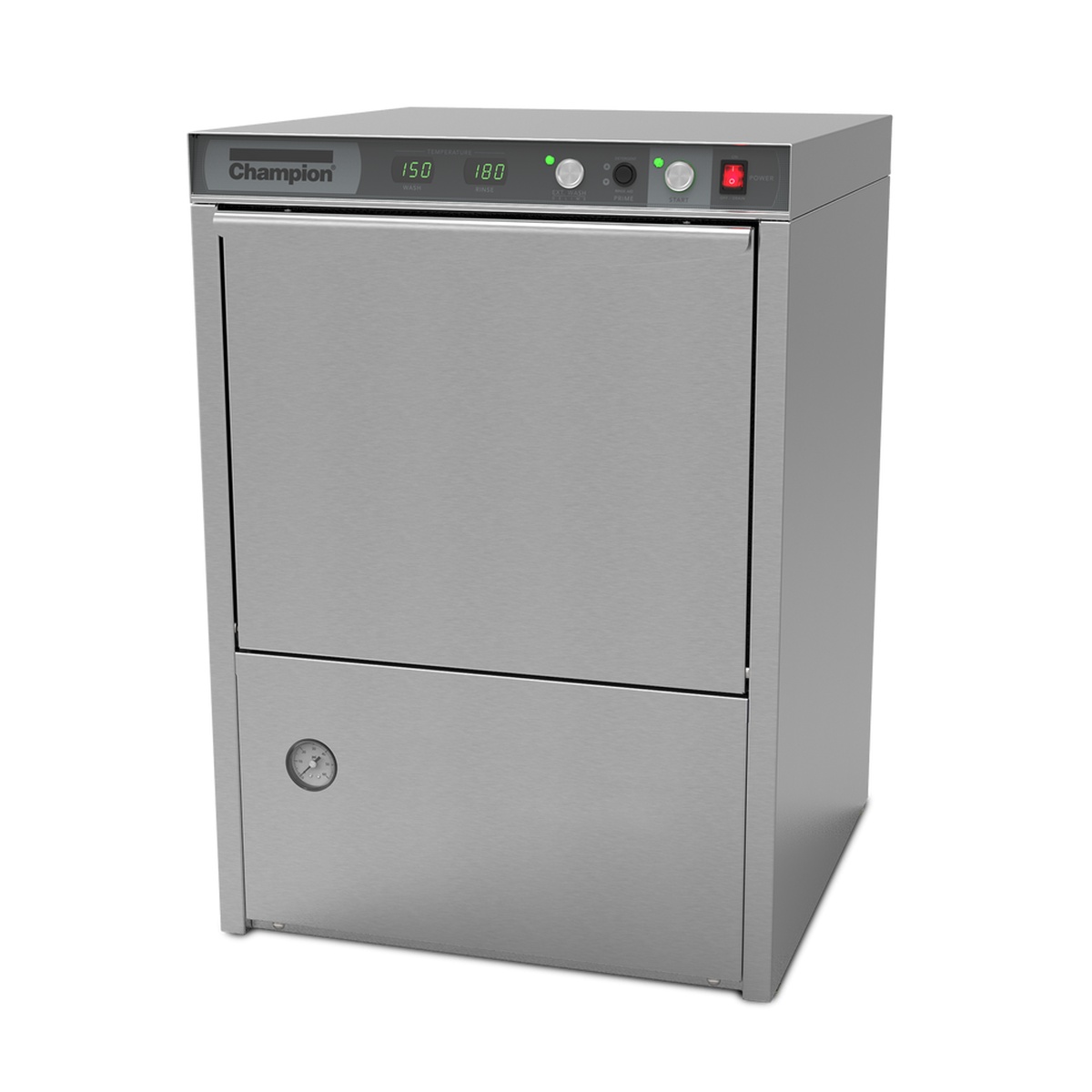

Champion UH230B undercounter dishwashing machine, front view

Compact Undercounter Warewashing

The Champion UH230B is a high-temperature undercounter dishwashing machine designed for light to medium soil applications, including operations up to 50 seats.

90-second total cycle time
StemSure soft start helps protect glasses and dishware from chipping and breaking
Pumped drain, detergent pump, and rinse aid pump for streamlined operation

Key Specifications

Overall Dimensions

33-3/4 in H x 24 in W x 25 in D

Electrical

208 to 240V, Multi-Volt and Multi-Phase convertible

Sanitizing Rinse

180F final rinse supported by built-in electric booster

Warranty

1 Year Parts and Labour

Designed for Safer, Smoother Shifts

Rinse Sentry extends cycle time to help ensure a 180F final rinse
Door safety switch and low-water tank heat protection
Automatic drain cycle and extended wash option for difficult ware and de-liming

From the Cresco Resco Team

Why You'll Love It

A compact, high-temperature undercounter dishwasher built to deliver consistent sanitizing results with flexible power options.

Great for light to medium soil dish and glass applications in smaller operations.
Built-in electric booster and temperature monitoring help support code-compliant results.
Quiet double-wall construction and soft start help protect both your team and your wares.

Specifications

Manufacturer	Champion Industries
Model	UH230B
Type	Undercounter dishwasher
Sanitizing / Temperature	High temperature; 180°F final rinse with built-in electric booster (70°F rise)
Cycle Time	90 seconds
Rack Capacity	Up to 40 racks/hour (90-second cycle)
Water Usage	0.78 gal per rack
Recommended Use	Light to medium soil; up to 50 seats
Electrical	208-240V, 60Hz, multi-phase (field convertible 1 or 3 phase); hardwired
Booster Heater	6 kW electric booster
Motor	1 HP
Amperage	22-36 A
Overall Dimensions (H x W x D)	33 3/4 in x 24 in x 25 in
Shipping Weight	215 lb
Drain	Pumped drain; automatic drain cycle
Water Inlet	1/2 in connection; minimum 110°F inlet water
Construction	Stainless steel construction with stainless top and side panels; quiet double-wall construction
Controls / Monitoring	Top mounted slide-out controls; advanced digital temperature monitoring
Included Chemical Dispensing	Detergent pump and rinse aid pump
Safety Features	Door safety switch; low-water tank heat protection
UPC (GTIN)	400013002891
Warranty	1 year parts and labor
Certifications	NSF certified pot and pan cycle (extended wash cycle)
