Champion Industries

Champion Industries UH130B High-Temp Undercounter Rack Dishwasher with Built-In Booster, 25 Racks/hr

$7,044.10 ~~Precio rebajado$10,365.00ahorra $3,320.90~~

Key Features:

High-temperature undercounter rack dishwasher with built-in electric booster to deliver a 180°F final rinse (70°F/21°C rise) plus Rinse Sentry that extends the cycle as needed to hit final-rinse temperature.
Fast 141-second cycle and rated up to 25 racks per hour for medium to heavy soil applications (recommended up to 60 seats).
Multi-Power (Multi-Volt and Multi-Phase) design supports in-field electrical conversion for 208 to 240V and single-phase to three-phase applications (model dependent).
Wash Refresh automatically drains wash water between cycles to help ensure fresh wash water for heavily soiled loads; includes Advanced Digital Temperature Monitoring for compliance visibility.
StemSure soft-start helps protect glassware and dishes from chipping; quiet double-wall construction for reduced operating noise.
Operator and service features include detergent and rinse aid pumps, pumped drain, automatic tank fill, door safety switch, low-water tank heat protection, prime switch, and delime button.
Durable stainless steel top and side panels with a 15-3/4 inch door opening to accommodate larger wares and trays.
1 HP wash pump motor; one-year parts and labor warranty.

Champion Industries UH130B High-Temp Undercounter Rack Dishwasher with Built-In Booster, 25 Racks/hr

$7,044.10~~$10,365.00~~

Detailed Description

The Champion UH130B is a high-temperature undercounter rack dishwasher built for reliable sanitizing performance in compact spaces. It delivers up to 25 racks per hour with a 141-second cycle and an integrated electric booster designed to support a 180°F final rinse. Features like Wash Refresh, Rinse Sentry, and StemSure help maintain wash quality while protecting delicate ware. Stainless steel panels and quiet double-wall construction make it a durable, operator-friendly choice for busy bar and kitchen stations.

Product Details

High-Temp Sanitation Control

Advanced digital temperature monitoring with 180b0F final rinse support.

Built-In Booster and Multi-Power

Electric booster for 180b0F rinse and infield convertible 208 to 240V options.

Fresh Water Every Load

Wash Refresh automatically drains after each cycle for clean wash water on the next rack.

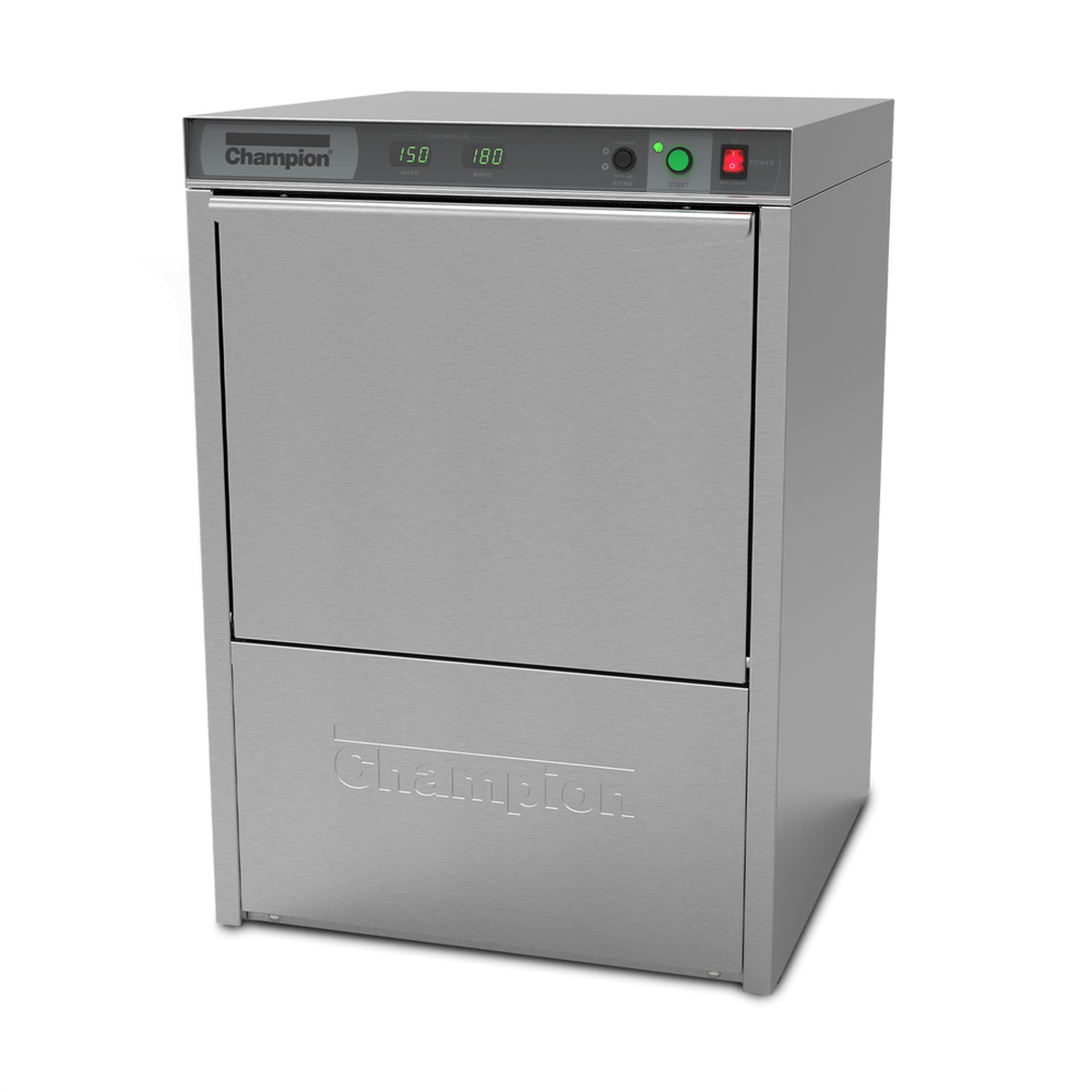

Champion UH130B stainless steel undercounter dishwasher

Compact Undercounter Performance

Designed for medium to heavy soil environments, the UH130B delivers high-temp cleaning in a space-saving footprint.

Up to 25 racks per hour with a 141-second cycle
15-3/4 inch door opening to accept larger wares, including trays
Quiet double-wall construction with stainless steel top and side panels

Key Specifications

Capacity

25 racks per hour

Cycle Time

141 seconds

Exterior Dimensions (H x W x D)

33-3/4 in x 24 in x 25 in

Electrical Options

Multi-Power convertible 208 to 240V and single to three phase

Sanitizing Rinse Support

Built-in electric booster for 180b0F final rinse (70b0F rise)

Warranty

1 year parts and labor

Ideal For

Up to 60-seat operations Medium to heavy soil loads Bars, cafes, and compact kitchens

From the Cresco Resco Team

Why You'll Love It

The UH130B packs high-temperature sanitation, smart water refresh, and durable construction into an undercounter footprint built for busy service.

Great when you need high-temp results without giving up floor space.
Built-in booster and Rinse Sentry help support 180b0F final rinse performance.
Quiet double-wall design and stainless panels suit front and back of house installs.

Specifications

Manufacturer	Champion Industries
Model	UH130B
Type	Undercounter rack dishwasher
Sanitizing	High temperature
Built-in booster heater	Yes; 180°F final rinse (70°F rise)
Capacity	25 racks/hour
Cycle time	141 seconds (2 min 21 sec)
Door opening	15-3/4 in
Overall dimensions (H x W x D)	33-3/4 in x 24 in x 25 in
Electrical	Multi-Power: convertible 208-240V; single- or three-phase (60 Hz)
Wash pump motor	1 HP
Drain type	Pumped drain
Chemical feed	Detergent pump and rinse aid pump
Construction	Stainless steel top and side panels; quiet double-wall construction
Recommended use	Medium to heavy soil; up to 60 seats
Warranty	1 year parts and labor
