MANITOWOC

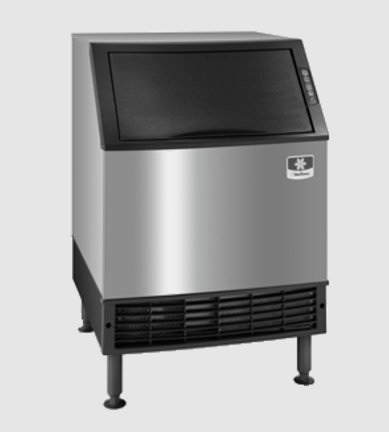

Manitowoc UDF0140A NEO 26" Undercounter Air-Cooled Full Dice Ice Machine, 135 lb./Day

$2,523.00 ~~Precio rebajado$5,799.00ahorra $3,276.00~~

Key Features:

High Daily Ice Output: Produces up to 135 lb. of full dice cube ice per day and stores up to 90 lb. in the integrated bin, making it ideal for low-to-medium volume commercial applications or as a point-of-use supplement to larger ice systems.
Full Dice Cube Format: Produces uniform 7/8" x 7/8" x 7/8" full dice cubes that melt slowly and pack efficiently, well suited for beverages, blended drinks, and food display applications.
Compact Undercounter Footprint: Designed to fit under standard counters at 26" W x 28" D x 38.5" H, saving valuable floor space while delivering production-level ice output right at the point of use.
Intuitive LED Push Pad Control Panel: Features universally recognizable illuminated icons indicating power status, bin-full condition, service needs, and active clean cycles. A built-in delay function pauses ice production for 4, 12, or 24 hours to match operational schedules and reduce unnecessary energy use.
Tool-Free Maintenance Design: Pop-out air filter allows quick, no-tool removal for routine cleaning, and the bin slides out for full interior access during more thorough maintenance procedures, minimizing downtime.
Energy Efficient Operation: Rated at 9.6 kWh per 100 lb. of ice produced, helping reduce utility costs in high-demand environments. Uses R404A refrigerant.
Air-Cooled Configuration: Self-contained air-cooled system eliminates the need for external condenser connections, simplifying installation in kitchens, bars, server lines, and banquet facilities.
2025 Kitchen Innovations Award Recipient: Recognized by the National Restaurant Association for progressively boosting efficiency and productivity in commercial foodservice operations.
Ready-to-Install Electrical Setup: Factory pre-wired at 115V/60Hz/1PH with a 6' power cord and NEMA 5-15P plug; requires a standard 3/8" water supply connection.
Industry Certifications: NSF certified, cULus listed, CE marked, and ARI/AHRI certified, meeting rigorous food safety, electrical, and performance standards for commercial use.

Fresno

Normalmente está listo en 2 a 4 días

Las Vegas

Normalmente está listo en 2 a 4 días

Manitowoc UDF0140A NEO 26" Undercounter Air-Cooled Full Dice Ice Machine, 135 lb./Day

$2,523.00~~$5,799.00~~

Detailed Description

The Manitowoc UDF0140A is a NEO series undercounter ice machine built for operators who need reliable, high-output ice production in a space-saving package. Producing up to 135 lb. of full dice cubes per day and storing up to 90 lb. in its integrated bin, this air-cooled unit is engineered to fit under standard counters at just 26 wide. The machine features an intuitive LED push pad control panel with recognizable icons for bin-full status, service alerts, and a flexible delay function that can pause production for 4, 12, or 24 hours to match operational schedules. Tool-free maintenance is made simple through a pop-out air filter and a forward-sliding, removable bin for full interior access. A 2025 Kitchen Innovations Award recipient, the UDF0140A delivers efficiency at 9.6 kWh/100 lbs of ice, making it a smart, economical choice for bars, small restaurants, and hospitality operations.

Product Details

135 lb Daily Output, 90 lb Storage

Produces up to 135 lb of full dice ice per day with a built-in 90 lb bin - production and storage in one compact unit.

Intuitive LED Control Panel

Push-pad controls with universally recognizable icons and a delay function that halts production for 4, 12, or 24 hours.

Tool-Free Cleaning and Maintenance

Pop-out air filter and a removable bin provide quick, tool-free access for routine cleaning and full interior maintenance.

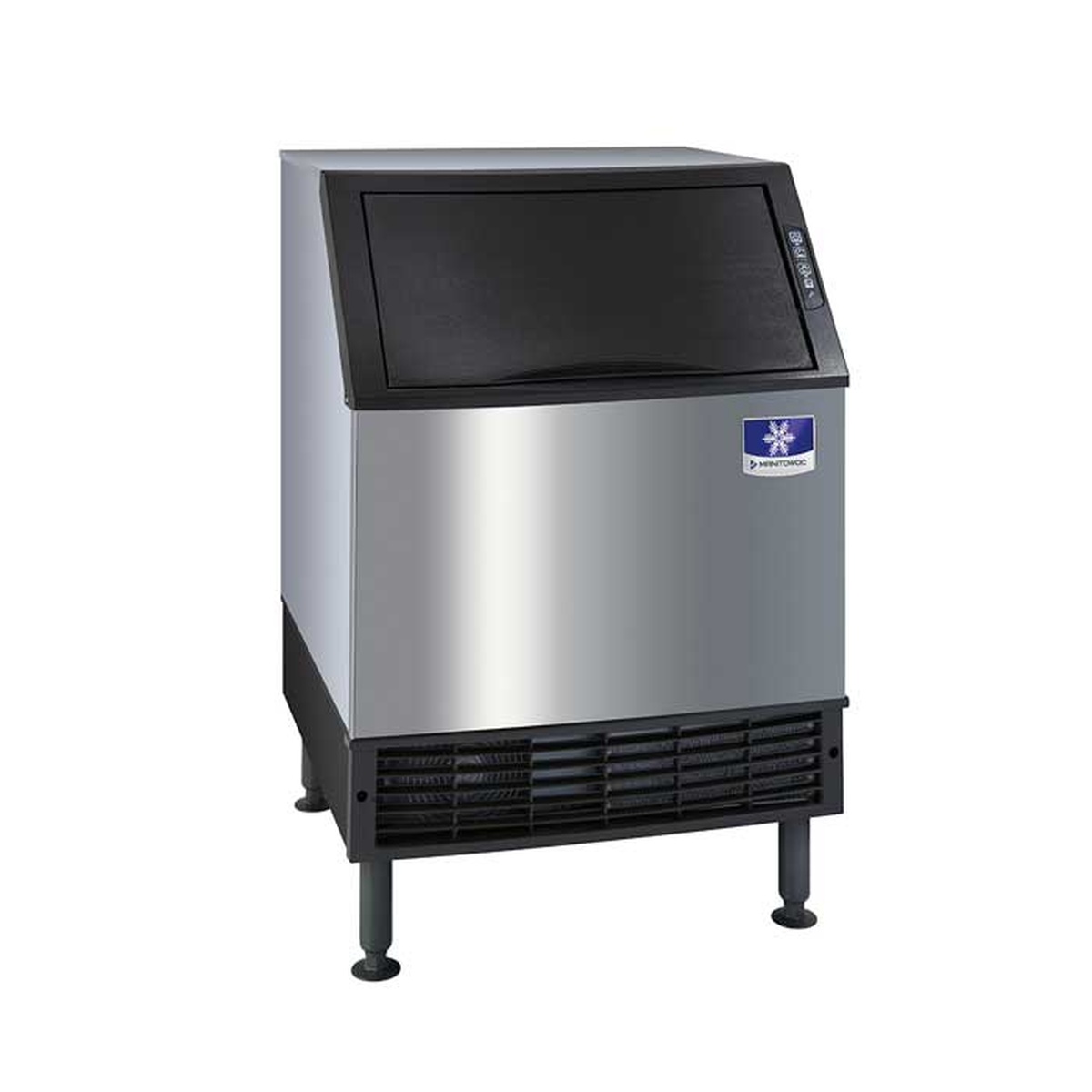

Manitowoc UDF0140A NEO undercounter ice machine in stainless steel with angled bin door and front ventilation grille

Space-Saving Undercounter Design

The Manitowoc NEO UDF0140A is engineered to fit directly under a standard counter, delivering ice right where you need it without sacrificing valuable floor space. The angled bin door slides up and out of the way for effortless access.

Compact 26"W x 28"D x 38.5"H footprint
Stainless steel exterior for durability and easy wipe-down
Adjustable flange feet for leveling on uneven surfaces
Air-cooled operation with front-facing ventilation

Full dice ice cubes shown in a glass with citrus garnish, with a close-up of a single dice cube

Full Dice Ice for Any Application

The UDF0140A produces classic 7/8" x 7/8" x 7/8" full dice cubes - a versatile, high-demand ice form ideal for beverages, food displays, and blended drinks.

7/8" full dice cubes melt slowly for longer-lasting chill
Clear, uniform cubes enhance presentation in any glass
Well-suited for bars, restaurants, hotels, and banquet halls

Half dice ice cubes shown in an iced tea glass with lemon and mint, with a close-up of a single half dice cube

NEO Platform: Built for Performance and Efficiency

The NEO line is designed with improvements in performance, intelligence, and convenience that make this ice machine easier to own and less expensive to operate over its lifetime.

Energy use rated at 9.6 kWh per 100 lbs of ice produced
2025 Kitchen Innovations Award recipient
NSF, cULus, CE, and AHRI certified
R404A environmentally considerate refrigerant

Key Specifications

Ice ProductionUp to 135 lb/day

Bin Capacity90 lb storage

Water Connection3/8" supply line

Electrical115V / 60 Hz / 1 PH, NEMA 5-15P

Dimensions (W x D x H)26" x 28" x 38.5"

CertificationsNSF, cULus, CE, AHRI

From the Cresco Resco Team

Why You'll Love It

The Manitowoc NEO UDF0140A delivers reliable, high-volume ice production in an undercounter form factor that fits any commercial setting without compromising output or usability.

Ideal for bars, restaurants, hotels, banquet halls, and server lines where space is limited but ice demand is steady.
The LED control panel with delay function and pop-out air filter make daily operation and upkeep straightforward for any staff member.
A 2025 Kitchen Innovations Award winner backed by NSF, cULus, CE, and AHRI certifications for verified commercial-grade performance.

Specifications

Model	UDF0140A
Type	Undercounter Ice Machine
Cooling Type	Air Cooled
Ice Type	Full Dice Cube
Cube Dimensions	7/8" x 7/8" x 7/8"
Daily Ice Production	135 lb (at 70°F air / 50°F water)
Bin Storage Capacity	90 lb
Width	26" (66 cm)
Depth	28" (71.1 cm)
Height	38.5" (97.8 cm)
Weight	153 lb (69.4 kg)
Voltage	115-120V / 60 Hz / 1 PH
Plug Type	NEMA 5-15P
Power Cord Length	6 ft
Water Connection	3/8"
Refrigerant	R404A
Energy Use	9.6 kWh / 100 lb of ice
Certifications	NSF, cULus, CE, AHRI
UPC	400012984259
