True MFG Co.

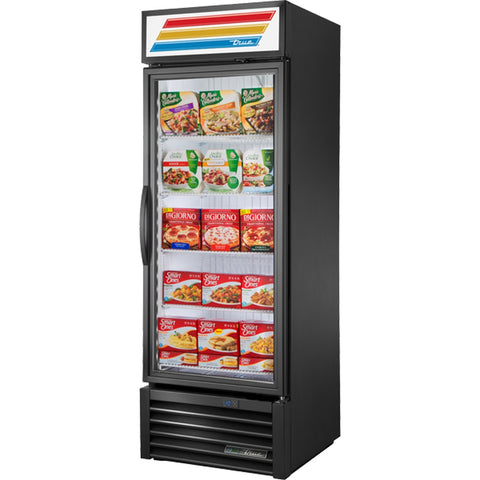

True GDM-23F-HST-HC~TSL01 27" One-Section Black Glass Door Merchandiser Freezer with Health Safety Timer

$9,571.09 ~~Precio rebajado$28,342.00ahorra $18,770.91~~

Key Features:

Health Safety Timer (HST) automatically locks the door and triggers an audible alarm if cabinet temperatures exceed 0°F for more than 30 minutes, preventing the sale of potentially unsafe frozen food
Backup battery power supply maintains the door lock even during a power outage, ensuring uninterrupted food safety compliance
R-290 hydrocarbon refrigerant paired with a bottom-mounted 1 HP compressor maintains a consistent -10°F interior temperature, ideal for ice cream and frozen food merchandising
Triple-pane, thermal-insulated glass door with extruded aluminum frame and self-closing torsion-type closure system maximizes product visibility while preserving cold temperatures
Right-hinged, self-closing door fitted with a 12-inch extruded aluminum handle; magnetic one-piece door gaskets are removable without tools for easy cleaning
Energy-efficient LED interior lighting provides bright, even illumination to showcase products, generating less heat than fluorescent bulbs and lasting significantly longer
Illuminated exterior sign panel with colorful True Refrigeration header offers prime space for promotional or brand signage to drive impulse purchases
Four PVC-coated wire shelves adjustable in 1/2-inch increments accommodate a wide range of frozen product sizes and packaging
Black powder-coated, cold-rolled steel exterior with white aluminum interior lining and a scratch- and stain-resistant stainless steel floor for long-lasting durability
Polyurethane foamed-in-place cabinet insulation delivers superior thermal retention and structural rigidity
Electronically commutated condenser and evaporator fan motors ensure efficient, consistent airflow throughout the cabinet
Automatic defrost system is time-initiated and temperature-terminated, with epoxy-coated evaporator coils that resist corrosion
Self-contained capillary tube refrigeration system requires no external tubing, simplifying installation and service
Bottom-mounted condensing unit raises merchandise off the floor for improved product access and easier servicing
Operates on 115V/60Hz/1-phase power with a NEMA 5-15P plug; front air intake allows flexible placement against walls or between other units

Detailed Description

The True GDM-23F-HST-HC~TSL01 is a 27-inch, one-section swing-door merchandiser freezer engineered for high-visibility frozen food display in convenience stores, grocery retailers, and specialty food environments. Its triple-pane thermal insulated glass door, bright LED interior lighting, and illuminated exterior sign panel work together to maximize product appeal and drive impulse sales. A standout Health Safety Timer (HST) automatically locks the door and triggers an audible alarm if cabinet temperatures exceed 0°F for more than 30 minutes, with a battery backup ensuring the lock holds even during a power outage. The bottom-mounted 1 HP compressor runs on R290 hydrocarbon refrigerant to maintain a consistent -10°F, while four adjustable PVC-coated wire shelves, a durable black powder-coated exterior, and electronically commutated fan motors round out a unit built for long-term commercial reliability.

Product Details

Precise Temperature Hold

Maintains a consistent -10 degrees F using R290 hydrocarbon refrigerant with automatic defrost.

Health Safety Timer

Locks the door and sounds an alarm if temperatures exceed 0 degrees F for 30+ minutes, with battery backup.

4 Adjustable Shelves

PVC-coated wire shelves adjust in 1/2-inch increments to accommodate a wide variety of frozen products.

One-Section Glass Door Merchandiser Freezer

The True GDM-23F-HST-HC~TSL01 is a 27-inch wide, single-section swing-door display freezer engineered for high-visibility frozen food merchandising. Its triple-pane thermal insulated glass door delivers crystal-clear product visibility while retaining cold temperatures efficiently.

Black powder-coated, cold-rolled steel exterior
White aluminum interior with a scratch-resistant stainless steel floor
Illuminated exterior sign panel attracts customer attention
Right-hinged, self-closing door with a 12-inch extruded aluminum handle
Magnetic gaskets snap into the door frame for an airtight seal

Key Specifications

Capacity20.8 cu. ft.

Maintained Temp-10 degrees F

Electrical115V / 60Hz / 1 Ph, 9.5A, NEMA 5-15P

Shelf Count4 PVC-coated wire shelves

Dimensions27"W x 31.5"D x 78.63"H

CompressorBottom-mounted, 1 HP, R290 refrigerant

Built for Commercial Frozen Food Display

20.8

Cu. Ft. Capacity

-10°F

Operating Temperature

380 lbs

Unit Weight

Ideal For

Convenience stores Grocery retailers Specialty food shops Ice cream displays Frozen meal merchandising

From the Cresco Resco Team

Why You'll Love It

The True GDM-23F-HST-HC~TSL01 combines commercial-grade reliability with advanced food safety technology in a sleek, high-visibility display package.

Perfect for retailers who need dependable frozen food merchandising with strong product visibility.
The Health Safety Timer with battery backup provides peace of mind and protects your inventory around the clock.
Energy-efficient LED lighting and an R290 hydrocarbon refrigerant system reduce operating costs over time.

📞 Have Questions About This Product?

Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:

Fresno, CA 559-233-3700

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Sacramento, CA 916-446-3300

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Reno, NV 775-786-6565

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Las Vegas, NV 702-387-1977

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Denver, CO 303-343-3333

Mon-Fri 8am-5pm, Sat 10am-2pm MT

Specifications

Model	GDM-23F-HST-HC~TSL01
Series	GDM Series
Product Type	Swing Door Merchandiser Freezer
Color / Finish	Black
Sections	1
Door Count	1
Door Design	Swing
Hinge Configuration	Right
Width	27"
Depth	29 7/8"
Height	78 5/8"
Capacity	20.8 cu. ft.
Weight	380 lbs (173 kg)
Shelf Count	4
Shelf Type	PVC-Coated Wire
Exterior Material	Black Powder-Coated, Cold-Rolled Steel
Interior Material	White Aluminum
Floor Material	Stainless Steel
Insulation Type	Polyurethane Foam
Refrigerant	R290 (Hydrocarbon)
Maintained Temperature	-10°F
Compressor Location	Bottom
Compressor HP	1 HP
Air Intake	Front
Voltage	115V
Hertz	60 Hz
Phase	1
Amperage	9.5 A
NEMA Configuration	5-15P
Lighting	LED
Warranty	6-Year Parts / 5-Year Labor / 7-Year Compressor Parts
