MANITOWOC

Manitowoc JCT1200-261 Vertical Discharge Remote Ice Machine Condenser - 208/230V

$1,482.00 ~~Precio rebajado$3,407.00ahorra $1,925.00~~

Key Features:

Compatible with Manitowoc Indigo NXT iT1200N Ice Machines: Engineered specifically for use with Manitowoc Indigo NXT iT1200N remote ice machines using R410A refrigerant, ensuring seamless integration and optimized performance.
Vertical Discharge Air-Cooled Design: Top-mounted vertical discharge fan efficiently directs hot air upward and away from the unit, maximizing airflow and cooling performance even in tight installation spaces.
Indoor or Outdoor Installation Flexibility: Designed to be installed at a convenient remote location indoors or outdoors, away from the ice machine, with up to 20" of allowable bottom clearance for versatile placement options.
Wide Operating Temperature Range: Rated to operate in ambient temperatures from -20°F to 120°F, making it suitable for demanding environments including cold storage rooms and rooftop installations.
Improved Ice Production Efficiency: By dissipating heat away from the ice machine, the remote condenser lowers the ambient air temperature at the ice maker, maximizing ice-making capacity and reducing energy consumption.
Reduces HVAC Load: Relocating heat rejection away from the ice machine minimizes air conditioning loads in kitchen and service areas, contributing to a more comfortable environment for staff and patrons.
Flexible Power Connection: Requires a 208/230V, 1-phase, 60 Hz hardwire connection; can be powered directly from the ice machine (recommended) or from a separate dedicated electrical source when needed.
Multi-Certification Compliance: Certified by AHRI, UL, and CE, meeting rigorous industry standards for safety, performance, and quality assurance in commercial foodservice applications.
Compact Footprint: Measures 24.5" W x 28" D x 38" H and weighs 67 lbs, allowing for practical placement in rooftop, mechanical room, or back-of-house environments without occupying excessive space.

Denver

Normalmente está listo en 2 a 4 días

Fresno

Normalmente está listo en 2 a 4 días

Manitowoc JCT1200-261 Vertical Discharge Remote Ice Machine Condenser - 208/230V

$1,482.00~~$3,407.00~~

Detailed Description

The Manitowoc JCT1200-261 is a vertical discharge, air-cooled remote condenser system engineered specifically for use with Manitowoc Indigo NXT iT1200N series ice machines using R-410A refrigerant. By relocating heat dissipation away from the ice machine, either indoors or outdoors, this unit lowers ambient temperatures at the machine to maximize ice production and reduce air conditioning load. Rated for operation across an exceptionally wide temperature range of -20 to 120 degrees Fahrenheit, it performs reliably in demanding commercial environments. Installation is flexible, supporting up to 20 inches of bottom clearance and connection via a remote tubing line kit. Certified by AHRI, UL, and CE, the JCT1200-261 delivers proven quality and compliance for food service and commercial refrigeration applications.

Product Details

Vertical Discharge Airflow

Top-discharge fan design optimizes airflow and maximizes cooling performance indoors or outdoors.

Enhanced Energy Efficiency

Dissipates heat away from the ice machine, lowering ambient temperature and reducing energy consumption.

Durable Construction

Built for demanding commercial environments with AHRI, UL, and CE certifications for assured quality and safety.

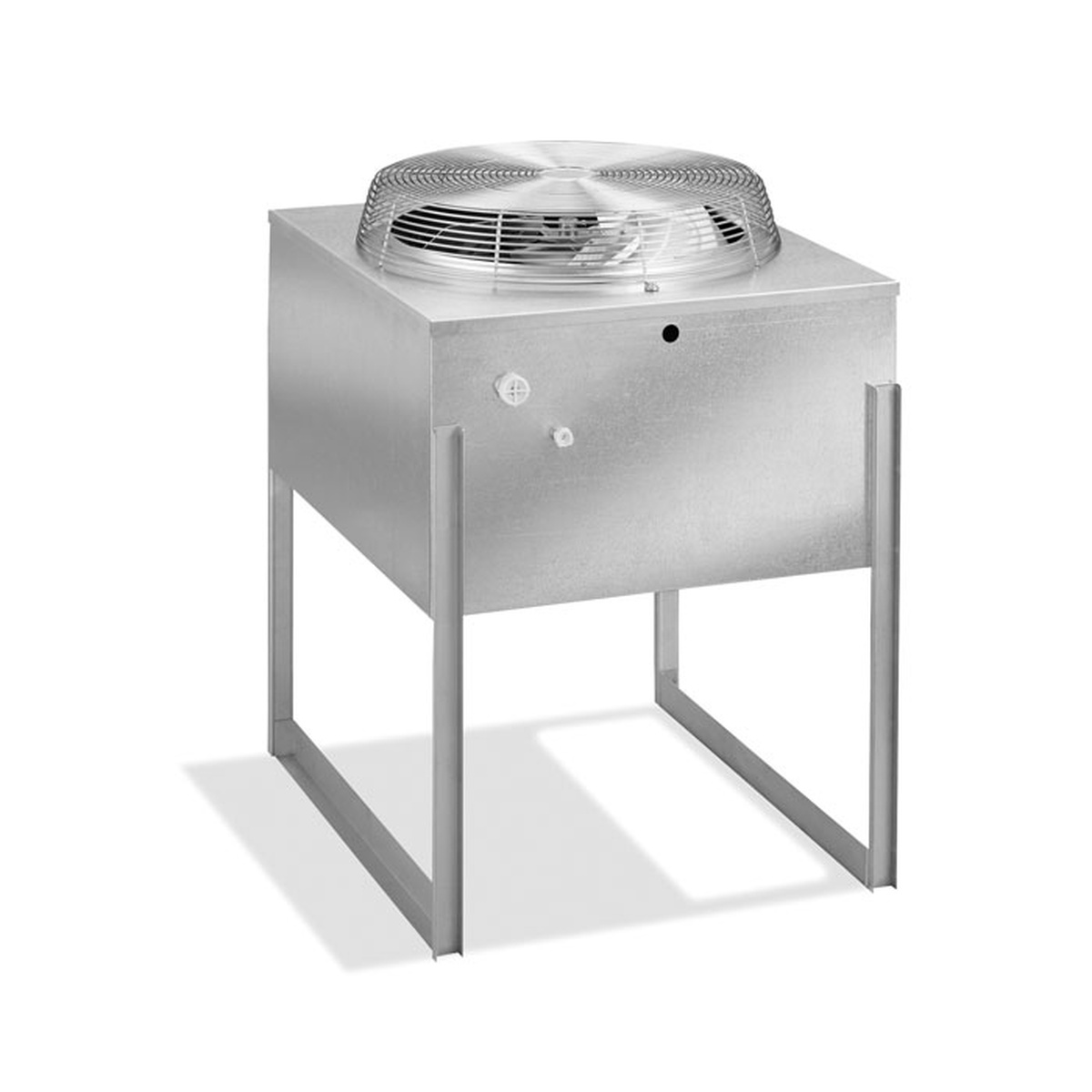

Manitowoc JCT1200-261 vertical discharge air-cooled remote condenser unit on steel stand, top fan visible

Remote Cooling Where You Need It

The Manitowoc JCT1200-261 is a vertical discharge, air-cooled remote condensing unit engineered specifically for use with Manitowoc Indigo NXT iT1200N series ice machines using R410A refrigerant. By locating the condenser away from the ice machine, heat is effectively dissipated at a convenient location.

Installs indoors or outdoors for flexible placement
Lowers ambient temperature near the ice machine for improved ice production
Connects via a remote tubing line kit (sold separately)
Can be supplied power from the ice machine or a separate electrical source

Key Specifications

Dimensions (W x D x H)24.5" x 28" x 38"

Electrical208/230V, 1 Amp, 60 Hz, 1 Phase

Operating Temp Range-20°F to 120°F

Condenser TypeAir-Cooled, Vertical Discharge

Weight67 lb

CertificationsAHRI, UL, CE

Performance at a Glance

-20 to 120°F

Operating Temp Range

20"

Max Bottom Clearance

208/230V

Electrical Connection

Ideal For

Manitowoc Indigo NXT iT1200N Ice Machines High-Volume Commercial Kitchens Rooftop or Outdoor Installations Spaces Requiring Reduced Ambient Heat R410A Refrigerant Systems

From the Cresco Resco Team

Why You'll Love It

The Manitowoc JCT1200-261 delivers reliable, remote heat dissipation that maximizes ice production and lowers energy costs in any commercial setting.

Ideal for food service operations running Manitowoc Indigo NXT iT1200N ice machines with R410A refrigerant.
Vertical discharge design and wide operating temperature range make it suitable for both indoor and outdoor placement.
AHRI, UL, and CE certified for confidence in commercial-grade quality and safety compliance.

Specifications

Model	JCT1200-261
Type	Vertical Discharge Air-Cooled Remote Condenser
Compatible Ice Machine Series	Manitowoc Indigo NXT iT1200N Remote Ice Machines
Refrigerant	R-410A
Width	24 1/2"
Depth	28"
Height	38"
Weight	67 lb
Voltage	208/230V
Amperage	1 Amp
Frequency	60 Hz
Phase	1 Phase
Connection Type	Hardwire
Operating Temperature Range	-20°F to 120°F
Maximum Bottom Clearance	20"
Installation Location	Indoors or Outdoors
Certifications	AHRI, UL, CE
UPC	400010920273
