HOSHIZAKI WESTERN

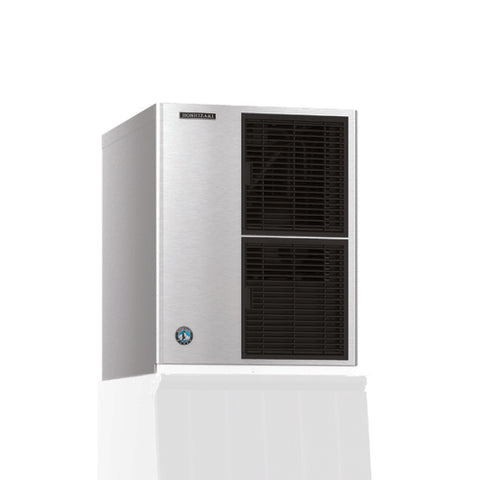

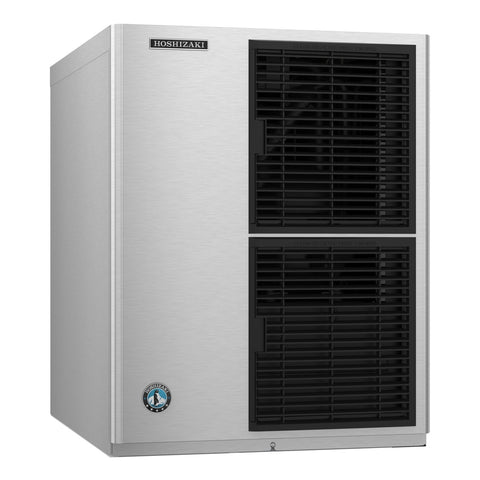

Hoshizaki KM-520MAJ 22" Slim-Line Air Cooled Crescent Cube Ice Machine - 556 lb.

$4,535.00 ~~Precio rebajado$9,070.00ahorra $4,535.00~~

Key Features:

High-Volume Crescent Cube Production: Produces up to 556 lbs of crystal-clear crescent-shaped ice per 24 hours (480 lbs AHRI certified at 90°/70°), ideal for high-demand foodservice, hospitality, and healthcare applications.
22" Slim-Line Modular Design: Compact 22" W x 27-3/8" D x 28" H footprint allows installation in tight spaces with minimal side clearance requirements; two units can be mounted side-by-side to double ice output.
Air-Cooled, Self-Contained Condenser: Simplifies installation and placement flexibility without the need for external water-cooled condenser infrastructure; operates on standard 115V/60/1 single-phase power (hardwired).
EverCheck Alert System and CycleSaver Design: The EverCheck control board provides audible alarms and easy-to-use diagnostic features for faster troubleshooting, while CycleSaver technology increases energy efficiency and reduces cleaning downtime.
H-GUARD Plus Antimicrobial Protection: Antimicrobial agent is embedded into key internal components to inhibit the growth of bacteria, mold, and other microorganisms, supporting food safety standards.
ENERGY STAR Qualified: Meets strict EPA and DOE energy efficiency guidelines at 4.68 kWh per 100 lbs and 14.7 gallons of potable water per 100 lbs (@ 90°/70°), helping operators reduce utility costs.
Durable Stainless Steel Exterior: Built to withstand the rigors of commercial kitchen environments with a corrosion-resistant stainless steel finish.
Curved Crescent Ice Cube Advantage: The curved cube geometry allows water to flow evenly over the evaporator surface during ice formation, flushing impurities away for cleaner, clearer, and more chewable ice compared to conventional grid-style cubers.
Self-Diagnostic System: Built-in diagnostics automatically adjust to changing ambient and operating conditions, minimizing the need for manual intervention and reducing the risk of unplanned downtime.
Broad Bin and Dispenser Compatibility: Compatible with a wide range of Hoshizaki bins and dispensers (B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B), providing flexible storage configurations.
Industry Certifications: NSF, UL, and AHRI certified; made in the USA, meeting rigorous performance and safety standards for commercial operations.
Strong Warranty Coverage: Backed by a 3-year parts and labor warranty on the entire machine and a 5-year parts and labor warranty on the evaporator, providing long-term peace of mind.
Operational Specs Suited for Commercial Environments: Operates within a 45-100°F ambient temperature range, 45-90°F water temperature range, and 10-113 psig water pressure; uses R-404A refrigerant (1 lb. 10.8 oz. / 760 g).

Denver

Normalmente está listo en 2 a 4 días

Las Vegas

Normalmente está listo en 2 a 4 días

Hoshizaki KM-520MAJ 22" Slim-Line Air Cooled Crescent Cube Ice Machine - 556 lb.

$4,535.00~~$9,070.00~~

Detailed Description

The Hoshizaki KM-520MAJ is a high-performance modular ice machine head designed to produce up to 556 lbs of crystal-clear crescent ice daily. Its slim 22-inch width makes it an ideal solution for kitchens with limited space without sacrificing production capacity. Built with a durable stainless steel exterior and featuring the EverCheck alert system, this unit ensures reliable operation and simplified maintenance for demanding food service environments.

Product Details

Up to 556 lbs per Day

High-output crescent cube production for demanding commercial environments.

H-GUARD Plus Antimicrobial

Embedded antimicrobial agent inhibits bacteria, mold, and microorganism growth in key components.

Durable Stainless Steel Build

Slim 22" wide stainless steel exterior is built to withstand years of continuous commercial use.

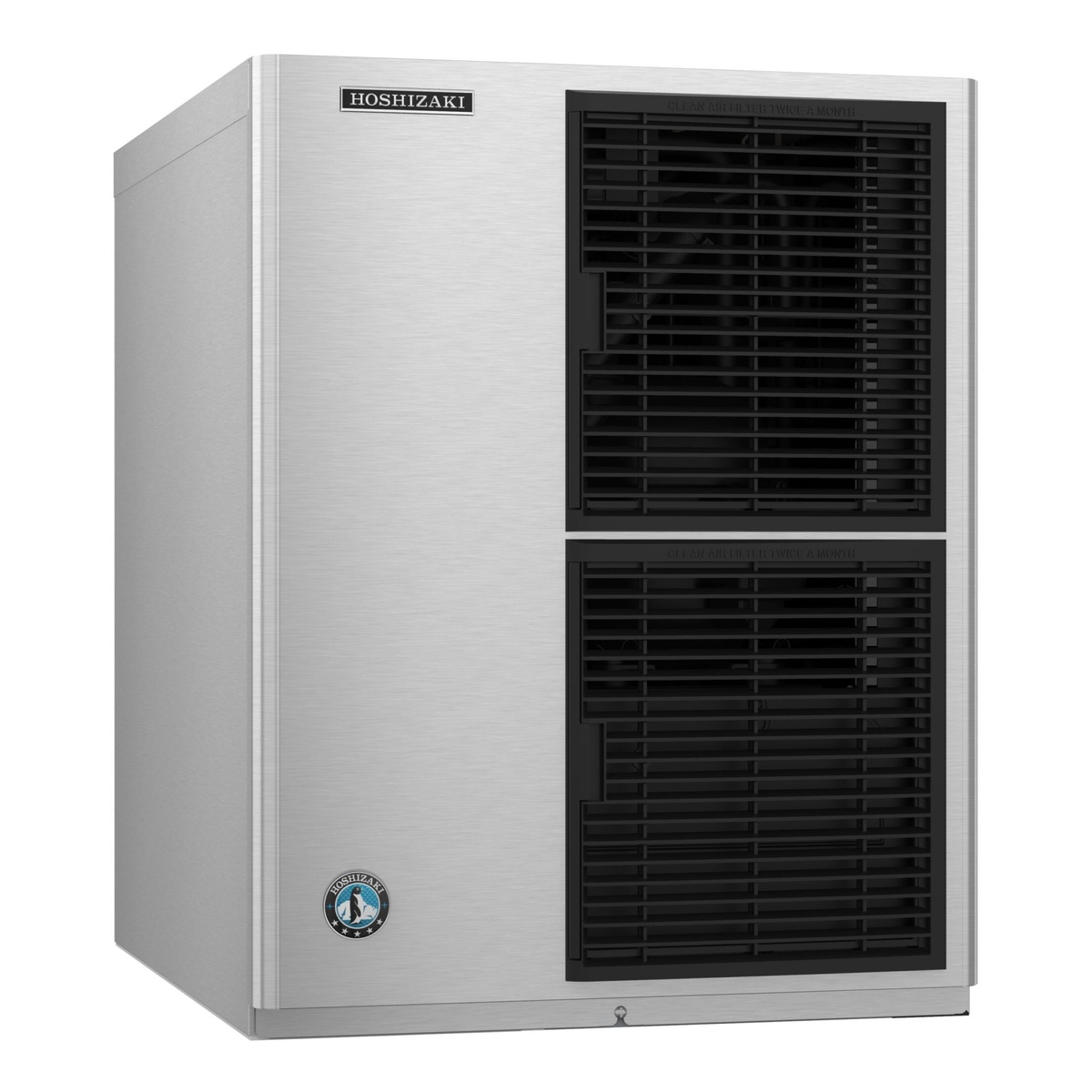

Hoshizaki KM-520MAJ modular crescent cube ice machine head, angled view showing stainless steel exterior and air-cooled condenser grilles

Slim-Line Design, Serious Output

The Hoshizaki KM-520MAJ Crescent Cuber Icemaker delivers up to 556 lbs of crystal-clear crescent ice per 24 hours in a compact 22" wide footprint - ideal for operations where space and performance both matter.

22" W x 27-3/8" D x 28" H slim-line form factor
Air-cooled condenser, 115V/60/1 single-phase electrical
Two units can be mounted side-by-side to double ice production
ENERGY STAR qualified for reduced operating costs

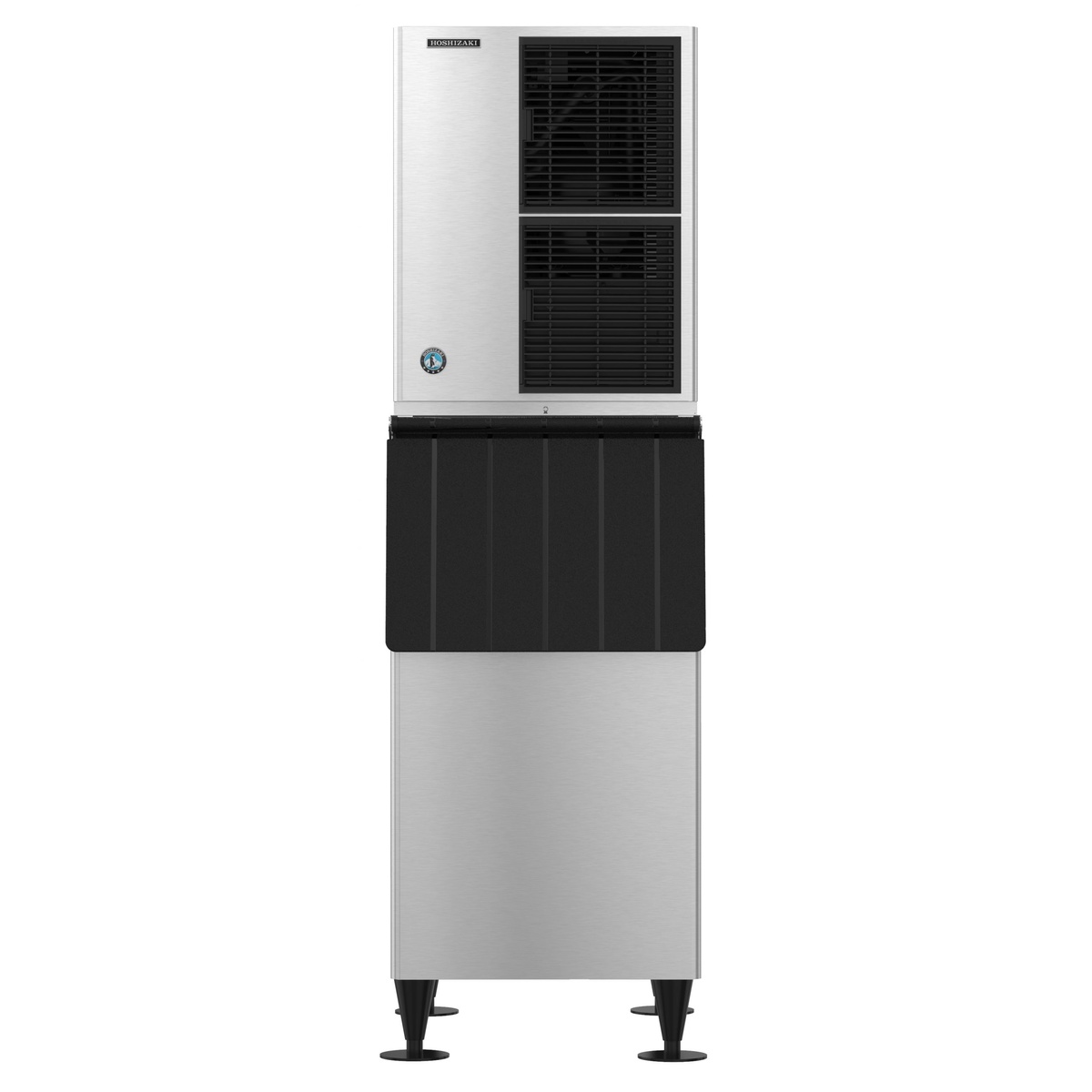

Hoshizaki KM-520MAJ ice machine head mounted on a B-300SF ice storage bin, front view

Modular Flexibility with Compatible Bins

The KM-520MAJ is a modular icemaker head designed to pair with a wide range of Hoshizaki bins and dispensers, letting you tailor your ice storage solution to your operation's exact needs.

Compatible bins: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300
Compatible dispensers: DB-130H, DB-200H, DM-200B
Bins and dispensers sold separately

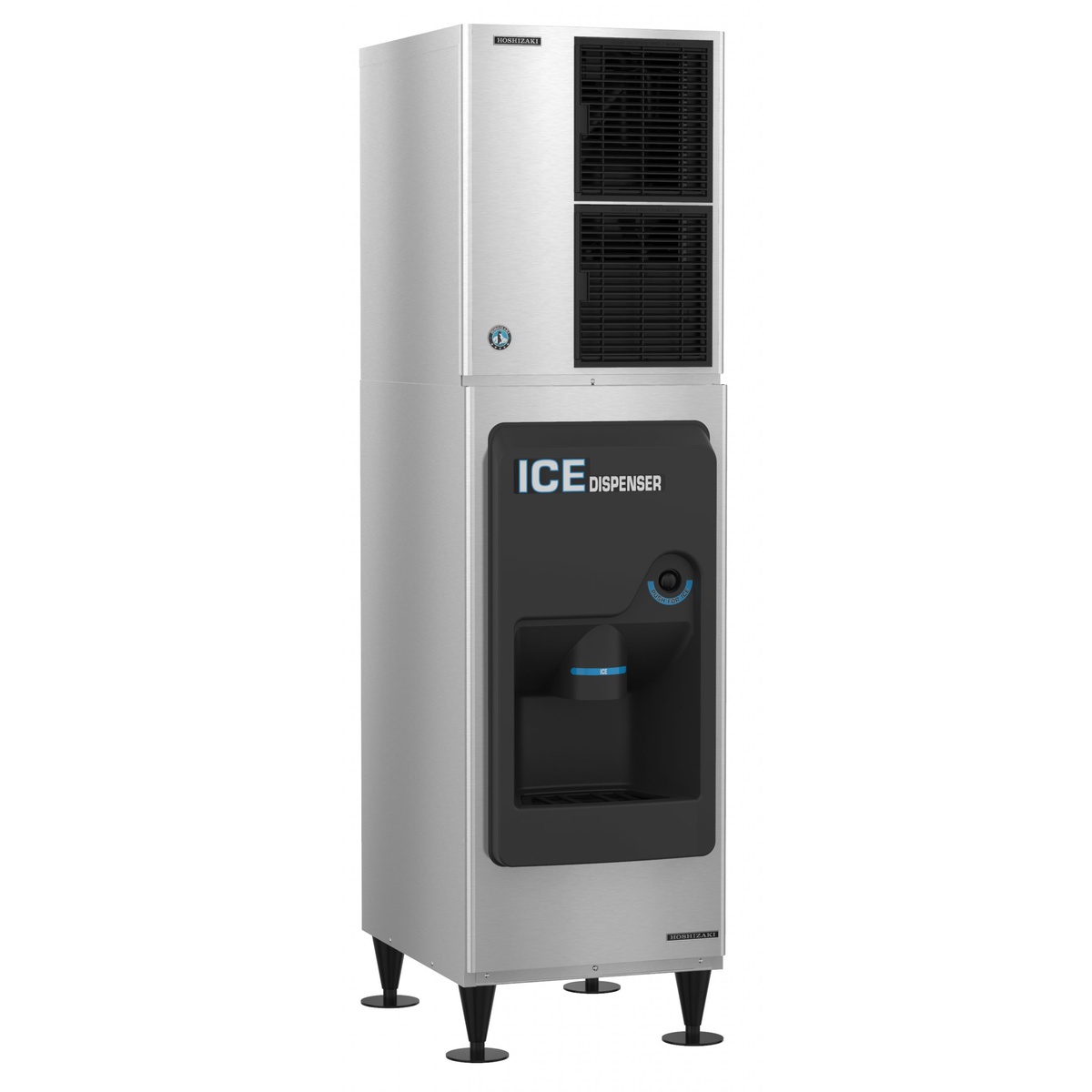

Hoshizaki KM-520MAJ ice machine head paired with DB-130H ice dispenser unit, angled view

Smart Controls and Self-Diagnostic System

The EverCheck control board keeps operation simple with an audible alarm and easy-to-use diagnostic features. The CycleSaver design boosts energy efficiency and reduces cleaning downtime, while a built-in self-diagnostic system automatically adjusts to changing conditions for truly hands-off operation.

EverCheck alert system with audible alarms and diagnostics
CycleSaver design reduces energy use and cleaning frequency
Removable air filters simplify routine maintenance
Automatic adjustment to ambient and water temperature changes

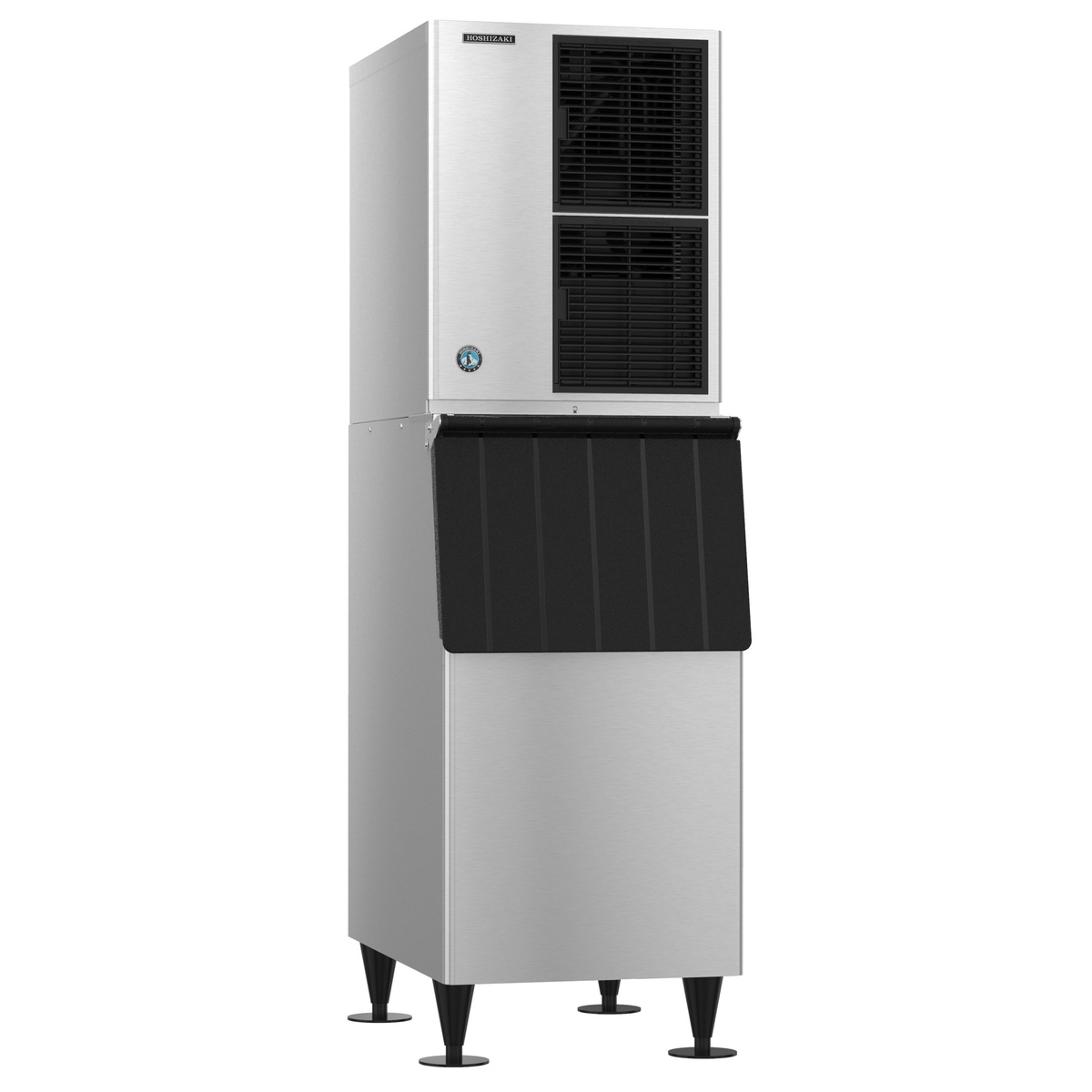

Hoshizaki KM-520MAJ ice machine head on B-300SF storage bin, angled view showing full stainless steel unit

Certifications, Warranty, and Performance Specs

Built to commercial standards and backed by strong warranty coverage, the KM-520MAJ is NSF, UL, AHRI, and ENERGY STAR certified. R-404A refrigerant and a 7,000 BTU/hr heat rejection rating ensure reliable performance across a wide range of operating conditions.

Three-year parts and labor warranty on the entire machine
Five-year parts and labor warranty on the evaporator
Operating range: ambient 45-100°F, water 45-90°F
4.68 kWh per 100 lbs at 90/70; 14.7 gal potable water per 100 lbs at 90/70
R-404A refrigerant; 10.6 amps; 20 amp max fuse; must be hardwired on-site

From the Cresco Resco Team

Why You'll Love It

The Hoshizaki KM-520MAJ delivers up to 556 lbs of premium crescent ice per day in a slim, efficient package built for the toughest commercial demands.

Ideal for restaurants, hotels, hospitals, and high-volume food service operations that need consistent, crystal-clear crescent ice.
The H-GUARD Plus antimicrobial protection, EverCheck diagnostics, and CycleSaver technology set this unit apart for hygiene and efficiency.
Pair with any compatible Hoshizaki bin or dispenser (sold separately) to build the complete ice solution your operation requires.

📞 Have Questions About This Product?

Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:

Fresno, CA 559-233-3700

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Sacramento, CA 916-446-3300

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Reno, NV 775-786-6565

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Las Vegas, NV 702-387-1977

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Denver, CO 303-343-3333

Mon-Fri 8am-5pm, Sat 10am-2pm MT

Specifications

Model	KM-520MAJ
Type	Modular Ice Machine Head, Air-Cooled
Ice Style	Crescent Cube
Daily Ice Production (Max)	556 lb / 24 hours
Daily Ice Production (AHRI Certified)	480 lb / 24 hours @ 90°F / 70°F
Dimensions (W x D x H)	22" W x 27-3/8" D x 28" H
Weight	175 lb
Exterior Material	Stainless Steel
Electrical	115V / 60 Hz / 1-Phase, 3 Wire + Ground (Hardwired, No Cord/Plug)
Voltage Range	104 - 127V
Amperage	10.6A
Max Fuse / HACR Breaker	20A
Refrigerant	R-404A (1 lb. 10.8 oz. / 760 g)
Heat Rejection	7,000 BTU/hr
Ambient Temperature Range	45 - 100°F
Water Temperature Range	45 - 90°F
Water Pressure	10 - 113 psig
Energy Consumption	4.68 kWh per 100 lb @ 90°/70°
Water Usage	14.7 gal of potable water per 100 lb @ 90°/70°
Plumbing - Water Inlet	1/2" FPT; Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent
Plumbing - Drain Outlet	3/4" FPT; Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
Compatible Bins & Dispensers (Sold Separately)	B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
Warranty - Machine	3 Years Parts & Labor
Warranty - Evaporator	5 Years Parts & Labor
Certifications	ENERGY STAR, NSF, UL, AHRI
Country of Origin	USA
