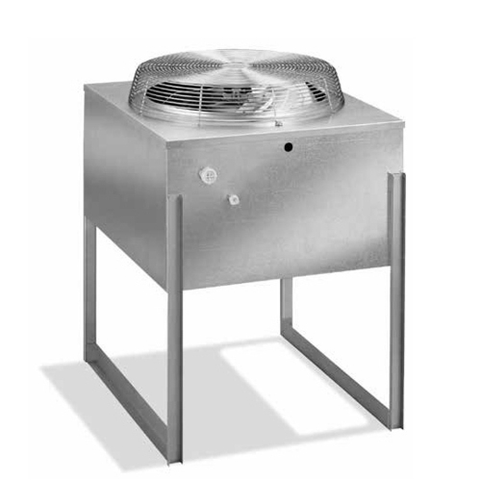

Manitowoc JCT1500-261 Vertical Discharge Air-Cooled Remote Ice Machine Condenser

$1,645.00 ~~Precio rebajado$3,781.00ahorra $2,136.00~~

Key Features:

Vertical Discharge Air-Cooled Remote Condenser: Top-mounted fan expels heat vertically, optimizing airflow and reducing the unit's footprint for flexible installation in tight mechanical spaces.
Compatible with Manitowoc Indigo NXT Series Ice Machines: Engineered specifically for use with Manitowoc Indigo series remote ice machines, including the IT-1500N and IT-1900N, ensuring seamless refrigeration system integration.
R-410A Refrigerant System: Utilizes R-410A refrigerant for environmentally compliant, high-efficiency heat rejection aligned with modern refrigeration standards.
Remote Heat Dissipation Improves Ice Production Efficiency: By relocating heat rejection away from the ice machine, the unit lowers ambient temperature at the ice maker, maximizing ice-making capacity while reducing air conditioning loads in the facility.
Wide Operating Temperature Range: Rated for operation between -20°F and 120°F, making it suitable for both indoor mechanical rooms and outdoor rooftop or ground-level installations.
Flexible Installation Options: Can be installed indoors or outdoors, with up to 20" of bottom clearance, and connects to the ice machine via a remote tubing line kit (sold separately).
208/230V Electrical Connection: Single-phase, 60 Hz hardwired power input that can be supplied directly from the compatible ice machine or from a separate dedicated power source.
Coated Coils Available for Harsh Environments: Optional coated coil construction provides enhanced corrosion resistance for installations in salt spray or high-humidity coastal environments.
AHRI, UL, and CE Certified: Meets rigorous industry safety and performance standards, supporting compliance requirements for commercial foodservice, healthcare, and hospitality applications.
Durable Galvanized Steel Construction with Integrated Stand: Heavy-gauge housing and an elevated steel leg frame provide structural durability and facilitate proper airflow clearance at the unit base.

Denver

Normalmente está listo en 2 a 4 días

Fresno

Normalmente está listo en 2 a 4 días

Manitowoc JCT1500-261 Vertical Discharge Air-Cooled Remote Ice Machine Condenser

$1,645.00~~$3,781.00~~

Detailed Description

The Manitowoc JCT1500-261 is a vertical discharge, air-cooled remote condenser unit engineered to work with Manitowoc Indigo series ice machines, including the i-1400, i-1600, and i-1800 models. By relocating heat dissipation to a separate indoor or outdoor location away from the ice machine, it lowers ambient temperatures at the unit to maximize ice-making capacity and reduce air conditioning loads. The JCT1500-261 is rated for operation in temperatures from -20°F to 120°F, making it suitable for a wide range of installation environments. An optional coated coil construction provides added durability in salt spray or otherwise corrosive settings. Connection to the ice machine is accomplished via a remote tubing line kit, sold separately.

Product Details

Vertical Discharge Airflow

Top-discharge fan design optimizes airflow and minimizes the unit's footprint for flexible placement indoors or outdoors.

Enhanced Energy Efficiency

Dissipates heat away from the ice machine to lower ambient temperature, maximize ice-making output, and reduce energy costs.

Certified for Commercial Use

Meets AHRI, UL, and CE standards, and features optional coated coils for durability in salt spray environments.

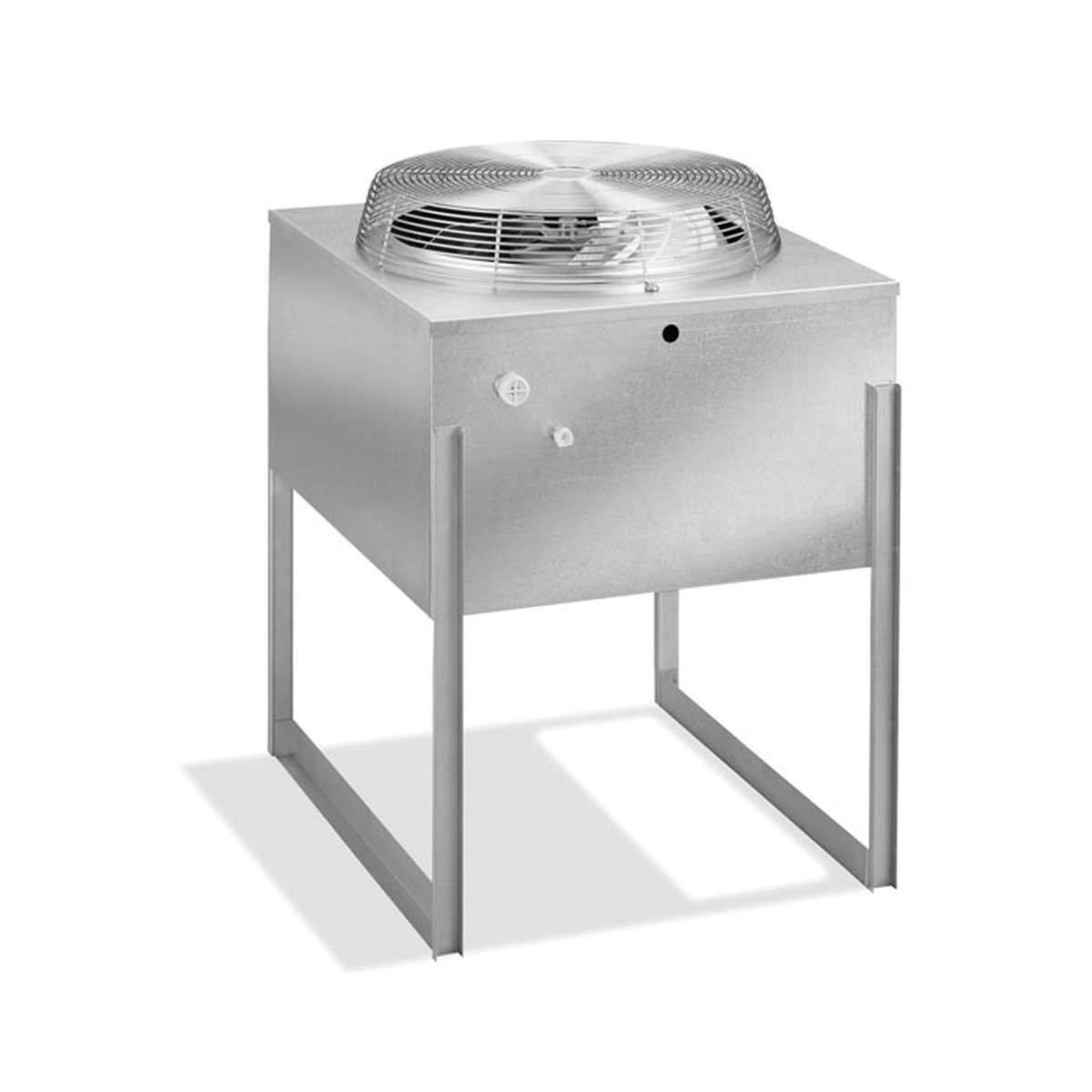

Manitowoc JCT1500-261 vertical discharge remote condensing unit with top-mounted fan on metal stand

Remote Cooling Where You Need It

The Manitowoc JCT1500-261 is an air-cooled, vertical discharge remote condensing unit built to move heat away from your ice machine and into a location that works for your operation. Whether mounted indoors or outdoors, it keeps the area around your ice machine cooler, resulting in higher production efficiency and a more comfortable workspace.

Compatible with Manitowoc Indigo series remote ice machines
Operates between -20°F and 120°F for year-round versatility
Installable with up to 20" of bottom clearance
Requires 208/230V electrical connection (hardwire)

Key Specifications

Dimensions (W x D x H)29.5" x 28" x 38"

Weight69 lb

Voltage208/230V, 1-Phase, 60Hz

Operating Range-20°F to 120°F

CertificationsAHRI, UL, CE

Coil OptionCoated coils available for salt spray environments

Ideal For

High-volume restaurants Hotels and hospitality venues Healthcare facilities Outdoor or rooftop installations Salt spray or coastal environments Manitowoc Indigo series ice machine owners

From the Cresco Resco Team

Why You'll Love It

The Manitowoc JCT1500-261 delivers reliable, remote heat dissipation that keeps your ice machine running at peak efficiency in virtually any environment.

A smart upgrade for Manitowoc Indigo series ice machine operators looking to boost production and reduce energy costs.
Vertical discharge design and a compact footprint make installation straightforward indoors or outdoors.
Optional coated coils and a wide -20°F to 120°F operating range ensure lasting performance even in harsh conditions.

Specifications

Model Number	JCT1500-261
Type	Remote Condenser Unit
Discharge Direction	Vertical
Condenser Type	Air-Cooled
Refrigerant	R-410A
Compatible Ice Machines	Manitowoc Indigo Series i-1400, i-1600, i-1800 / IT-1500N, IT-1900N
Operating Temperature Range	-20°F to 120°F
Voltage	208/230V
Phase	1-Phase
Hertz	60 Hz
Amps	1 A
Connection Type	Hardwire
Width (Left to Right)	29.5"
Depth (Front to Back)	28"
Height	38"
Product Weight	69 lb
Max Bottom Clearance	20"
Certifications	AHRI, UL, CE
UPC	400010632374
