STAR MFG.

Star Manufacturing HPDE1HP High-Performance Heated Peristaltic Single Dispenser with Portion Control, 120V/1PH

$2,626.00 ~~Precio rebajado$4,774.00ahorra $2,148.00~~

Key Features:

Patented Peristaltic Pump with 95%+ Evacuation: Pumps cheese and condiments directly from the pouch, achieving at least 95% product evacuation to minimize waste and maximize yield.
Portion Control System: Pressure-sensitive switch delivers approximately 0.75 oz (22 ml) per second, with up to 2.5 oz (74 ml) dispensed per cycle, ensuring consistent, repeatable servings from 3/4 to 2 1/2 oz.
Single Active Pouch with Reserve Preheating: Dispenses from one 6 lb (2.72 kg) pouch while holding a second 6 lb pouch in the chamber for simultaneous preheating, reducing changeover downtime.
Patented Forced Air Heating System: Circulates heat evenly throughout the chamber for precise, uniform temperature distribution across the entire pouch.
Adjustable Digital Temperature Control: Factory preset at 145°F with operator-adjustable digital controls for flexible, consistent operation across varying menu applications.
Low-Profile Design: At just 27.1" (688 mm) tall, the compact footprint fits in tight concession and counter spaces with overall dimensions of 9 2/5" W x 21" D x 27 1/10" H.
Heavy-Duty Construction: Impact-resistant plastic panels paired with stainless steel supports deliver long-term durability in high-volume commercial environments.
High-Performance Motor and Electrical Specs: Powered by a 165 RPM motor at 820W / 6.8A; runs on 120V/60Hz/1ph with a 6-ft cord and NEMA 5-15P plug. UL and cUL approved.
Right-Side Door Clearance Requirement: Requires 9 1/2" of clearance on the right side for pouch loading door access, a key installation consideration for tight counter layouts.

Detailed Description

The Star HPDE1HP is a high-performance heated peristaltic dispenser engineered for busy concession and foodservice operations that demand consistent, precise delivery of hot condiments and cheese. Its patented pump design evacuates product directly from the 6 lb pouch with at least 95% efficiency, virtually eliminating waste. A patented forced-air heating system distributes heat uniformly throughout the chamber, while an adjustable digital controller maintains temperatures with accuracy and comes factory preset at 145 degrees F. The integrated portion control system delivers repeatable servings between 3/4 and 2 1/2 oz per cycle, making it ideal for high-throughput nacho cheese and condiment service. At just 27.1 inches tall, its low-profile footprint fits comfortably in tight concession stands and stadium kitchens.

Product Details

95% Product Evacuation

Patented pump design pulls cheese and condiments directly from the pouch, leaving virtually nothing behind.

Precise Temperature Control

Patented forced air heating and adjustable digital controls keep product at a consistent, uniform temperature.

Built-In Portion Control

Pressure-sensitive switch delivers precise servings from 3/4 to 2-1/2 oz. per cycle for consistent portioning every time.

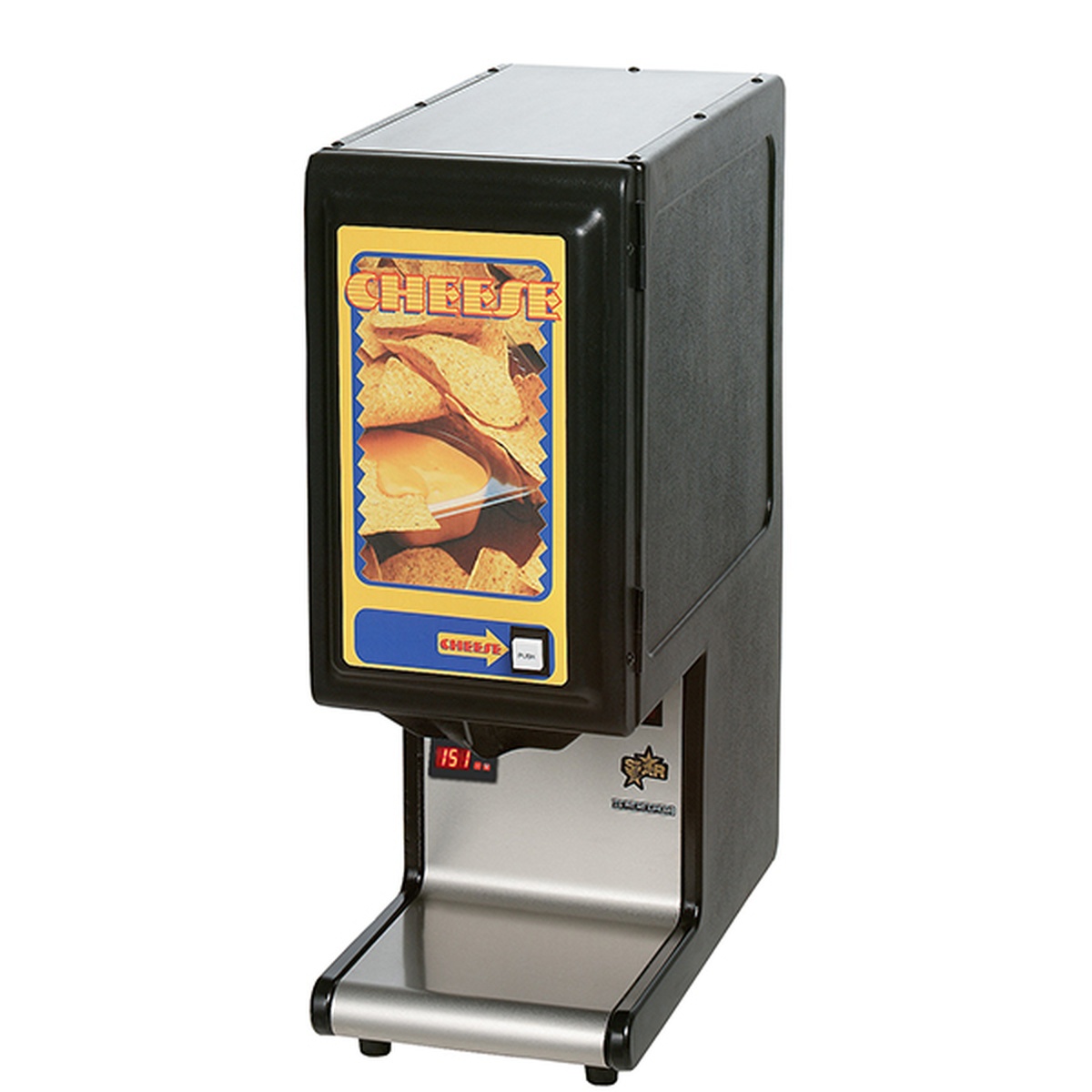

Star HPDE1HP heated peristaltic condiment dispenser with digital temperature display and cheese branding panel

Single-Pouch Dispensing with Reserve Preheating

The Star HPDE1HP is engineered for high-volume concession and foodservice operations that need reliable, consistent condiment dispensing on demand. It actively pumps from one 6-lb. pouch while holding an additional pouch in the chamber for preheating, so you never miss a beat during a rush.

Dispenses from one 6-lb. pouch at a time
Holds a second 6-lb. pouch in reserve for preheating
Factory preset temperature of 145 degrees F
Low-profile 27.1-inch tall design fits tight spaces

Key Specifications

Power820W / 6.8A / 120V, 60Hz, 1ph

CapacityOne 6-lb. active pouch + one in reserve

ConstructionStainless steel supports, impact-resistant panels

CertificationsUL and cUL Approved, NEMA 5-15P plug

Motor Speed165 RPM for consistent dispensing

WarrantyOne year parts and labor

Performance at a Glance

95%

Pouch Evacuation

145°F

Preset Temperature

2.5 oz

Max Per Cycle

Ideal For

Concession stands Sports venues Nacho cheese service Condiment dispensing High-traffic foodservice Tight kitchen spaces

From the Cresco Resco Team

Why You'll Love It

The Star HPDE1HP delivers reliable, waste-free condiment dispensing with the precision portion control and consistent heat that busy commercial operations demand.

Perfect for concession operators who need mess-free, high-volume cheese and condiment service.
The patented peristaltic pump and forced air heating system work together to eliminate cold spots and product waste.
Low-profile, 27.1-inch design and a 6-foot cord with NEMA 5-15P plug make placement and setup straightforward in virtually any space.

Specifications

Model	HPDE1HP
Brand	Star Manufacturing
Dispenser Type	Heated Peristaltic Single Dispenser
Pouch Capacity (Active)	1 x 6 lb (2.72 kg) pouch
Pouch Capacity (Reserve/Preheat)	2 x 6 lb (2.72 kg) pouches
Total Capacity	3 qt
Portion Control	Yes - approx. 0.75 oz (22 ml)/sec; up to 2.5 oz (74 ml) per cycle; 3/4-2 1/2 oz range
Factory Preset Temperature	145°F
Temperature Control	Adjustable Digital
Heating System	Patented Forced Air
Product Evacuation Rate	At least 95%
Voltage	120V / 60 Hz / 1 Phase
Wattage	820 W
Amperage	6.8 A
Motor Speed	165 RPM
Cord Length	6 ft
Plug Type	NEMA 5-15P
Construction	Stainless Steel with Impact-Resistant Plastic Panels
Color	Silver / Black
Overall Dimensions (W x D x H)	9 2/5 in. W x 21 in. D x 27 1/10 in. H (688 mm tall)
Side Clearance Required	9 1/2 in. on right side (for door opening)
UL Listed	Yes
cUL Listed	Yes
UPC	663118353781
Warranty	1-Year Parts and Labor
