T&S Brass HG-4C-48K 48" Quick Disconnect Gas Appliance Connector with Installation Kit

$202.99 ~~Precio rebajado$383.00ahorra $180.01~~

Key Features:

48" Coated Gas Appliance Connector Hose: Features stainless steel braid construction with an extruded coating for enhanced durability, flexibility, and long service life in demanding commercial kitchen environments.
1/2" NPT Male Quick-Disconnect Fitting: One end is equipped with a quick-disconnect (QD) fitting that doubles as a built-in shut-off valve, automatically cutting gas flow when the plug and socket are separated from the appliance.
FreeSpin Wall-End Connector: The opposite end features a 1/2" NPT male FreeSpin fitting that allows a full 360 degrees of rotation, reducing hose stress and extending connector life at the wall connection.
Welded Fitting Connections: Welded construction at both ends ensures a secure, leak-resistant seal for safe, reliable gas delivery.
High-Capacity Gas Flow: Rated for a minimum of 70,000 BTU/hr with a maximum operating pressure of 0.5 psi (0.03 bar) and a maximum temperature rating of 350°F (176.67°C).
Certified to ANSI Z21.69/CSA 6.16 and NSF 2: Meets stringent safety and sanitation standards required for commercial foodservice gas appliance installations.
Includes K Model Installation Kit: Comes complete with a 90-degree street elbow, a CSA-certified foodservice gas ball valve, a 5' SureLink restraining cable, and all necessary hardware for a straightforward, code-compliant installation.
Part of the Safe-T-Link Product Line: Engineered by T&S Brass specifically for foodservice applications, offering a trusted solution for connecting commercial cooking appliances to gas supply lines.

T&S Brass HG-4C-48K 48" Quick Disconnect Gas Appliance Connector with Installation Kit

$202.99~~$383.00~~

Detailed Description

The T&S Brass HG-4C-48K is a 48-inch Safe-T-Link coated flexible gas appliance connector designed for demanding commercial foodservice environments. It features a 1/2 NPT male quick-disconnect fitting on one end that acts as an automatic shut-off valve when disconnected, and a FreeSpin 1/2 NPT male connector at the wall end that rotates a full 360 degrees to reduce mechanical stress and extend service life. The hose is built with stainless steel braid construction beneath an extruded protective coating, delivering both flexibility and long-term durability. Certified to ANSI Z21.69/CSA 6.16 and NSF 2, this connector meets the safety and sanitation standards required in professional kitchen installations. An included K-model installation kit with a 90-degree street elbow, CSA-certified gas ball valve, 5-foot SureLink restraining cable, and all necessary hardware makes installation straightforward.

Product Details

Durable Stainless Braid Construction

Stainless steel braid with extruded coating delivers flexibility, protection, and long service life.

Safety Certified

Certified to ANSI Z21.69/CSA 6.16 and NSF 2 for reliable, code-compliant gas connections.

Complete Installation Kit Included

Comes with a ball valve, 90-degree street elbow, 5' restraining cable, and all necessary hardware.

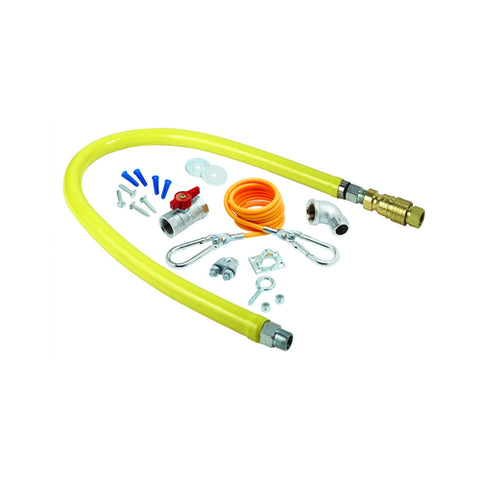

T&S Brass HG-4C-48K 48-inch yellow coated gas appliance connector hose with quick disconnect and full installation kit components

48" Safe-T-Link Gas Appliance Connector with Quick Disconnect

The T&S Brass HG-4C-48K features a 48" yellow coated hose with welded fitting connections and a stainless steel braid core. One end includes a quick-disconnect fitting that acts as a built-in shut-off valve when disconnected, and the other end features a FreeSpin connector allowing a full 360 degrees of rotation to reduce stress and extend connector life.

1/2" NPT male connections on both ends
Quick disconnect acts as shut-off when plug and socket are separated
FreeSpin wall-end connector rotates 360 degrees to relieve tension
Rated for up to 350°F and 0.5 psi maximum pressure

Key Specifications

Hose Length48 inches

Connection Size1/2" NPT Male

Max Temperature350°F (176.67°C)

BTU Capacity70,000 BTU/hr minimum

Max Pressure0.5 psi (0.03 bar)

CertificationsANSI Z21.69/CSA 6.16 & NSF 2

What's Included in the Installation Kit

The K-model installation kit bundled with this connector provides everything needed for a compliant, secure gas appliance hookup right out of the box.

90-Degree Street Elbow CSA Certified Gas Ball Valve 5' SureLink Restraining Cable All Necessary Hardware

From the Cresco Resco Team

Why You'll Love It

The T&S Brass HG-4C-48K delivers a certified, ready-to-install gas connection solution engineered for demanding foodservice environments.

Ideal for commercial kitchens connecting gas ranges, fryers, and other appliances requiring a 48" reach.
The built-in quick disconnect acts as an automatic shut-off for added safety during appliance removal.
Bundled installation kit eliminates the need to source separate components, saving time and ensuring a compliant installation.

Specifications

Model	HG-4C-48K
Series	Safe-T-Link
Connector Type	Gas Appliance Connector
Hose Length	48 in.
Connection Size	1/2 in. NPT Male
Quick Disconnect	Yes (1 QD, wall end)
FreeSpin Connector	Yes (360° rotation, wall end)
Hose Construction	Stainless steel braid with extruded coating
Gas Capacity (Min.)	70,000 BTU/hr
Maximum Pressure	0.5 psi (0.03 bar)
Maximum Temperature	350°F (176.67°C)
Certifications	ANSI Z21.69/CSA 6.16, NSF 2
Installation Kit Included	Yes (K Model)
Installation Kit Contents	1x 90° Street Elbow, 1x CSA Certified Foodservice Gas Ball Valve, 1x 5 ft. SureLink Restraining Cable, All Necessary Hardware
Brand	T&S Brass
