Everpure

Everpure EV979590 E-20 Prefilter System with EC210 Cartridge, 20-Inch

$211.01 ~~Precio rebajado$286.98ahorra $75.97~~

Key Features:

Purpose-Built Foodservice Prefilter: Designed specifically for commercial foodservice applications, the E-20 Prefilter System intercepts larger dirt and rust particles upstream of primary filter cartridges, protecting downstream equipment and water quality.
EC210 Sediment Cartridge Included: Ships complete with the EC210 cartridge, delivering 10 micron nominal sediment filtration right out of the box for immediate deployment.
Extends Primary Cartridge Life: By capturing coarse particulates before they reach fine-filtration stages, this prefilter significantly reduces loading on primary cartridges, lowering long-term filter replacement costs.
Versatile 20" Bowl Design: The updated black 20" bowl accepts most standard 20" drop-in cartridges, providing flexibility to swap in alternative replacement cartridges as application needs change.
High-Flow, Wide-Pressure Operation: Handles a maximum service flow rate of 6.0 gpm (22.7 Lpm) and operates across a broad pressure range of 10-125 psi (0.7-8.6 bar, non-shock), making it compatible with a wide variety of commercial plumbing configurations.
3/4" Inlet and Outlet Connections: Standard 3/4" inlet and outlet ports ensure straightforward integration into existing commercial water lines with minimal retrofitting.
Complete System Kit: Includes the filter housing, EC210 cartridge, head assembly with inlet/outlet ports, mounting bracket, filter wrench, and o-ring - everything needed for a full installation.
Overall Dimensions: 22.44"H x 5.16"W x 5.5"D with a rated operating temperature up to 100°F, suited for under-counter or back-of-house installations.

Detailed Description

The Everpure EV979590 E-20 Prefilter System is a 20-inch sediment prefilter purpose-built for commercial foodservice water treatment installations. Featuring an updated black bowl and an included EC210 cartridge, it intercepts larger dirt and rust particles at 10 micron nominal filtration before water reaches downstream primary filter systems. The 20-inch bowl design accepts most standard 20-inch drop-in cartridges, providing flexibility at replacement time. Rated for pressures up to 125 psi with 3/4-inch inlet and outlet connections and a maximum service flow rate of 6.0 gpm, this unit delivers reliable front-line protection that meaningfully extends the service life of primary filtration equipment.

Product Details

10 Micron Sediment Filtration

EC210 cartridge captures larger dirt and rust particles before they reach primary filters.

Extends Primary Filter Life

Upstream sediment removal protects downstream filtration systems from premature fouling.

Complete Kit Included

Comes with the 20" black bowl housing, EC210 cartridge, head assembly, wrench, and O-ring.

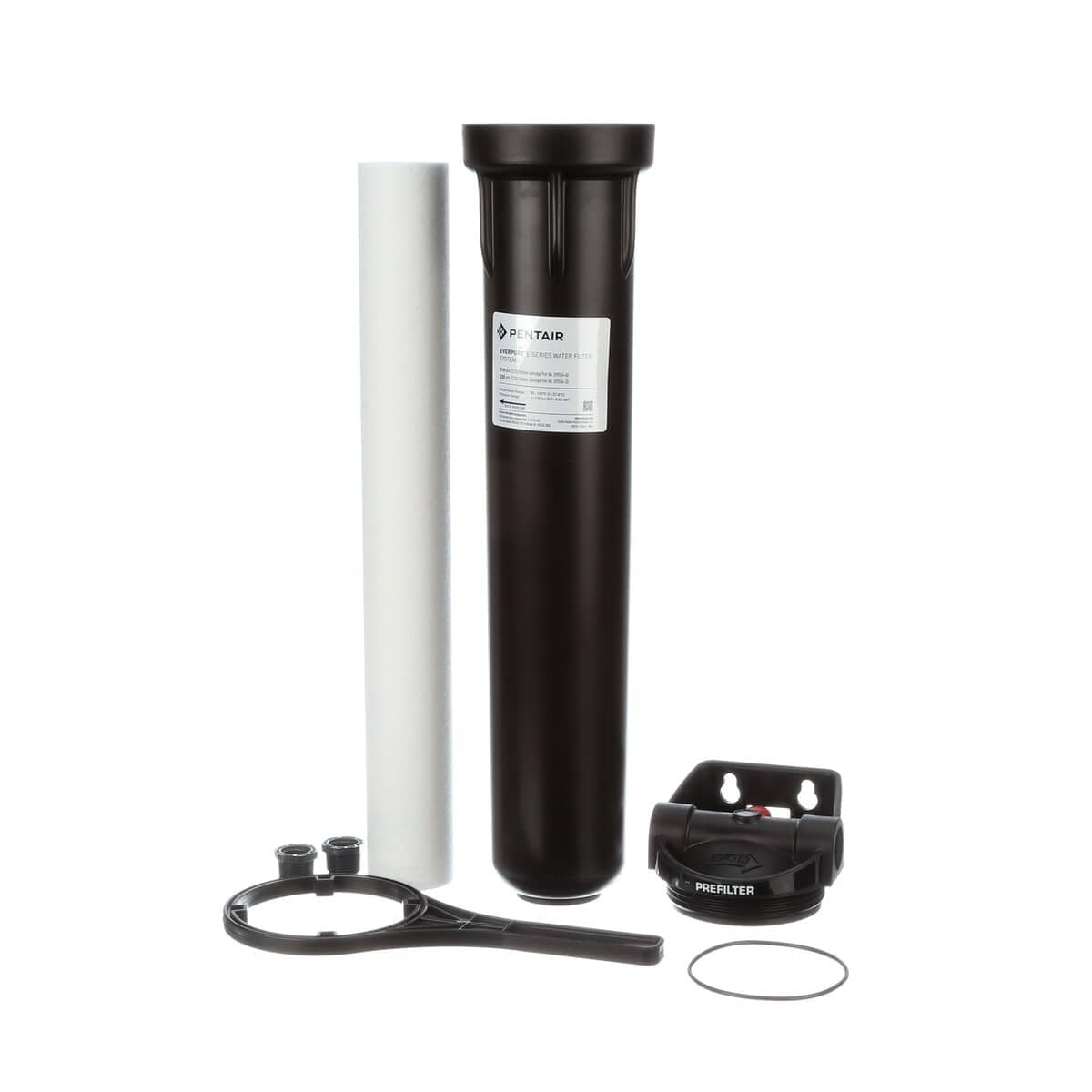

Everpure E20 prefilter system complete kit showing black housing, EC210 white cartridge, head assembly, wrench and O-ring

Everything You Need in One System

The Everpure E20 Prefilter System (EV979590) ships as a ready-to-install kit designed for foodservice and commercial water treatment applications.

20" black bowl housing with updated design
EC210 sediment cartridge included for immediate use
Head assembly, wrench, O-ring, and port plugs all included
Genuine Everpure OEM replacement part

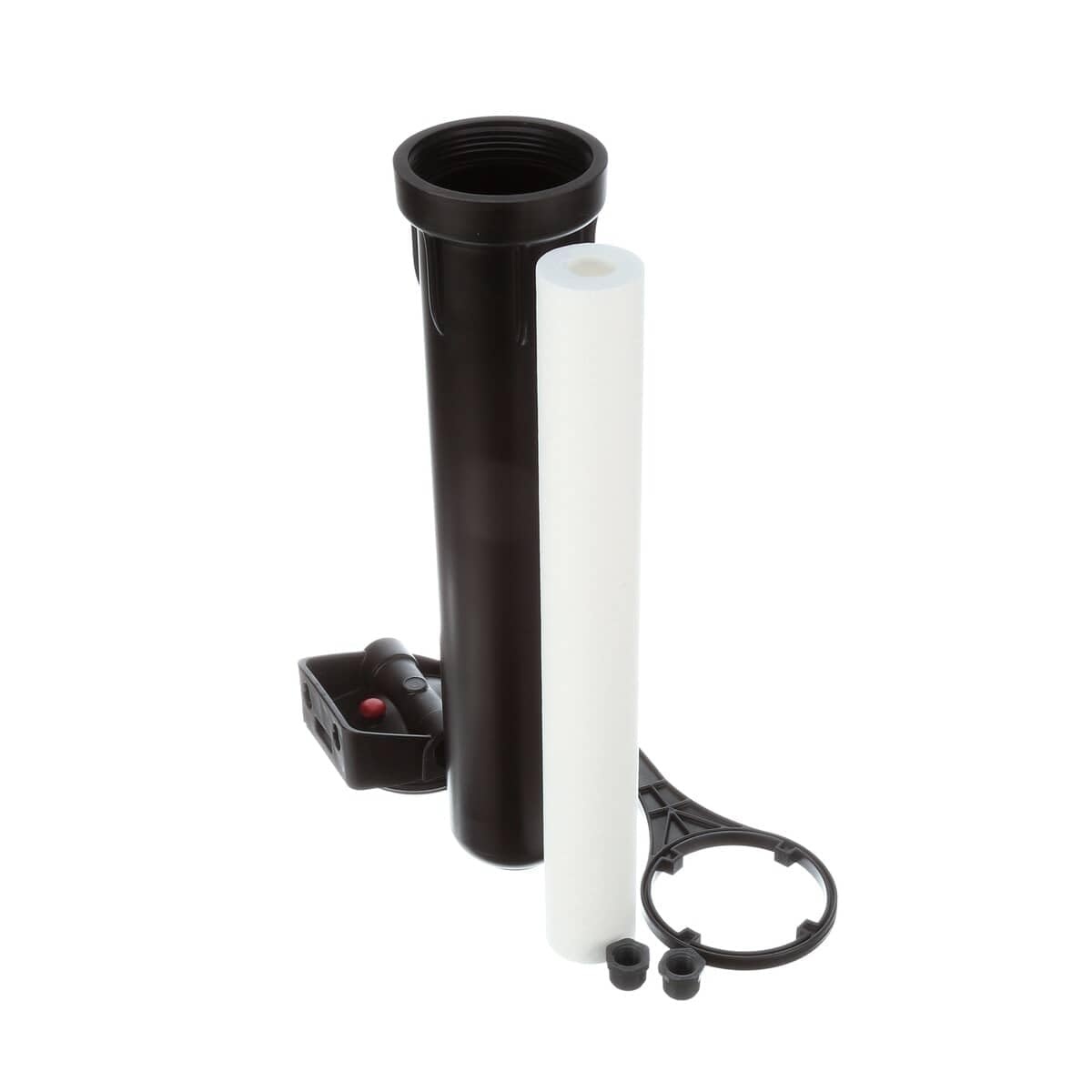

Close-up angled view of Everpure E20 prefilter components including black bowl, white EC210 cartridge, bracket, and wrench

Versatile 20" Bowl Design

The 20" bowl is engineered to accept most standard 20" drop-in cartridges, giving you flexibility when replacing filter media in the future.

Compatible with most 20" drop-in cartridge styles
Durable plastic construction rated up to 125 psi
3/4" inlet and outlet connections for easy plumbing

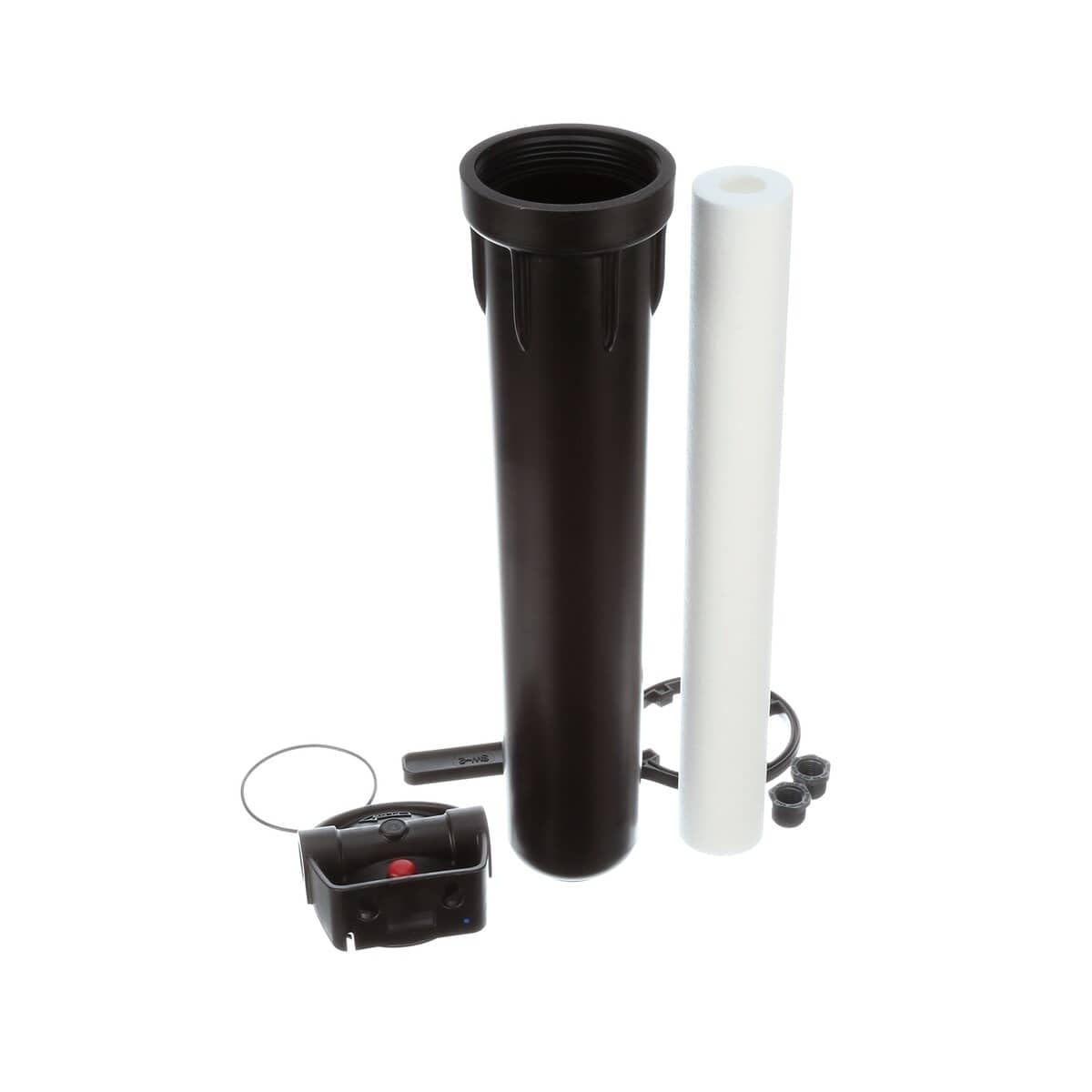

Everpure E20 prefilter system components spread out showing black housing cylinder, white cartridge, head unit, and accessories

Reliable Sediment Removal for Foodservice

Designed specifically for commercial foodservice environments, this prefilter system intercepts large particles upstream, reducing the load on your primary filtration stage.

Removes larger dirt, rust, and sediment particles
10 micron nominal filtration rating
Suitable for city water and well water supply lines
Maximum service flow rate of 6.0 gpm (22.7 Lpm)

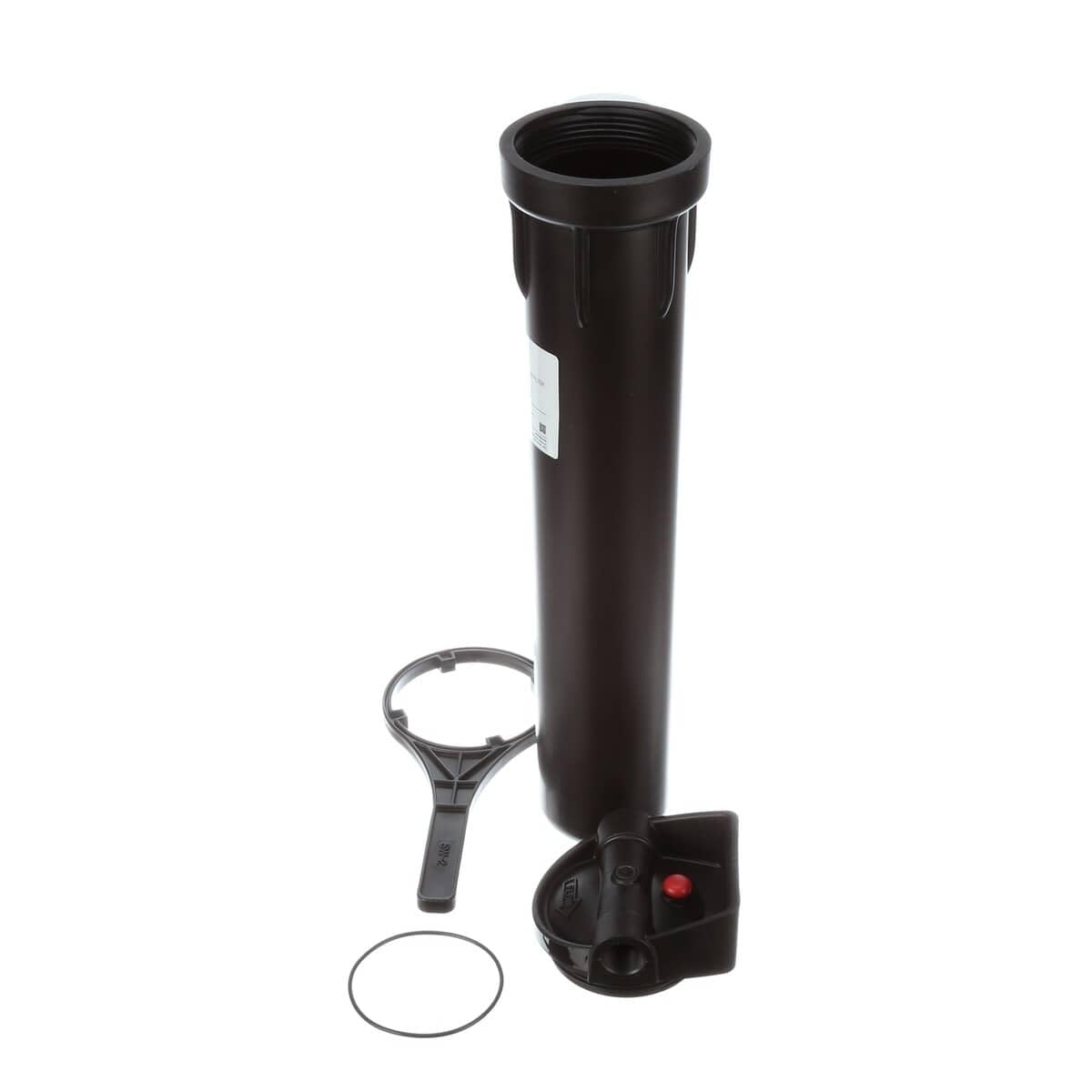

Everpure E20 prefilter black housing angled tall view with head assembly, wrench, and O-ring

Specifications at a Glance

Built to perform within a wide pressure range and sized for efficient installation in commercial under-sink or in-line configurations.

Overall dimensions: 22.44"H x 5.16"W x 5.5"D
Pressure requirements: 10 to 125 psi (non-shock)
Inlet / outlet connection: 3/4"
Max operating temperature: 100°F
Part number: EV9795-90 / EV979590

From the Cresco Resco Team

Why You'll Love It

The Everpure E20 Prefilter System is a dependable first line of defense that keeps sediment out of your water supply and extends the working life of every downstream filter in your system.

Ideal for commercial foodservice operations, beverage lines, and whole-building water treatment setups.
The included EC210 cartridge delivers 10 micron nominal filtration right out of the box with no extra purchases needed.
Pairs seamlessly with Everpure primary filter cartridges such as the MC2 series for a complete multi-stage water treatment solution.

Specifications

Part Number	EV9795-90 (EV979590)
Overall Dimensions	22.44" H x 5.16" W x 5.5" D
Item Weight	6 lbs
Material	Plastic
Inlet Connection	3/4"
Outlet Connection	3/4"
Max Service Flow Rate	6.0 gpm (22.7 Lpm)
Pressure Requirements	10 - 125 psi (0.7 - 8.6 bar), non-shock
Maximum Temperature	100°F
Filtration Level	10 Micron Nominal
Purification Method	Sedimentation
Included Cartridge	EC210
Bowl Size	20"
Installation Type	Under Sink / Inline Prefilter
Warranty	12 Months Parts
