MANITOWOC

Manitowoc Ice CVDF0600 Air Cooled Remote Condensing Unit for Indigo Series QuietQube Ice Machines

$2,104.97 ~~Precio rebajado$4,839.00ahorra $2,734.03~~

Key Features:

CVD (Cool Vapor Defrost) Technology: Uses vapor refrigerant from the receiver tank to harvest ice instead of traditional hot gas systems, eliminating the need for the compressor to be located near the ice-making evaporator and keeping heat and noise outside the customer environment.
QuietQube Compatibility: Designed specifically for Indigo Series QuietQube ice machines (IF-0600C, IBF-0620C, I-696C, and IB-696C), enabling the industry's quietest remote condenser ice machine operation.
Up to 634 lb. Daily Half-Cube Ice Production: High-capacity output with half-cube ice dimensions of 3/8 in. x 1 1/4 in. x 7/8 in., ideal for high-volume foodservice applications.
Air-Cooled Remote Condenser Design: Effectively dissipates heat at a remote location away from the ice machine, lowering ambient temperature around the unit for improved efficiency and a more comfortable work environment.
DuraTech Corrosion-Resistant Exterior: Features a DuraTech™ finish over stainless steel for long-lasting durability in demanding commercial environments.
AlphaSan Antimicrobial Components: Integrated AlphaSan® antimicrobial protection throughout key components helps inhibit bacterial growth for enhanced food safety compliance.
easyTouch Display with Programmable Production Rate: Intuitive control interface allows operators to dial in precise ice production levels, paired with an acoustical ice-sensing probe and background diagnostics for consistent, reliable performance.
Easy-Access Design for Simplified Maintenance: Hinged front access door provides quick entry to internal components, while the removable water trough, distribution tube, curtain, and sensing probes streamline routine cleaning.
Flexible Remote Line Routing: Supports up to 100 ft. of total line length, with a maximum vertical rise of 35 ft. above and a drop of 15 ft. below the ice machine, offering versatile rooftop or remote installation options.
Wide Operating Temperature Range: Functions reliably in ambient temperatures from -20 degrees F to 130 degrees F, suitable for a broad range of installation environments.
NSF Certified: Meets NSF standards for commercial ice equipment, ensuring compliance with food safety and sanitation requirements.
Electrical Specs: Operates at 208-230V / 60 Hz / 1 Phase, drawing 11.6 A at 5.53 kW; hardwire connection required.

Denver

Normalmente está listo en 2 a 4 días

Fresno

Normalmente está listo en 2 a 4 días

Manitowoc Ice CVDF0600 Air Cooled Remote Condensing Unit for Indigo Series QuietQube Ice Machines

$2,104.97~~$4,839.00~~

Detailed Description

The Manitowoc Ice CVDF0600 is an air-cooled remote condensing unit built around Manitowoc's proprietary CVD (Cool Vapor Defrost) technology, designed for use with Indigo Series QuietQube ice machines including IF-0600C and IBF-0620C models. Unlike conventional remote condenser units that rely on compressor hot gas to harvest ice, the CVDF0600 utilizes vapor refrigerant from the receiver tank, allowing the compressor and condenser to be relocated entirely outside the customer environment. The result is dramatically quieter operation, reduced ambient heat load around the ice machine, and improved overall system reliability. Installation requires a remote tubing line kit sold separately, with a maximum line length of 100 feet, up to 35 feet of vertical rise, and up to 15 feet of vertical drop. NSF certified, the CVDF0600 is a hardwired unit rated for 208-230V/60Hz/1 Phase operation.

Product Details

Air-Cooled Remote Operation

Relocates compressor heat and noise outside the customer environment for a quieter, more comfortable space.

CVD Technology

Cool Vapor Defrost uses vapor refrigerant for harvesting ice, delivering quieter and more efficient operation than hot gas systems.

DuraTech Construction

Corrosion-resistant DuraTech exterior over stainless steel with AlphaSan antimicrobial components for lasting durability.

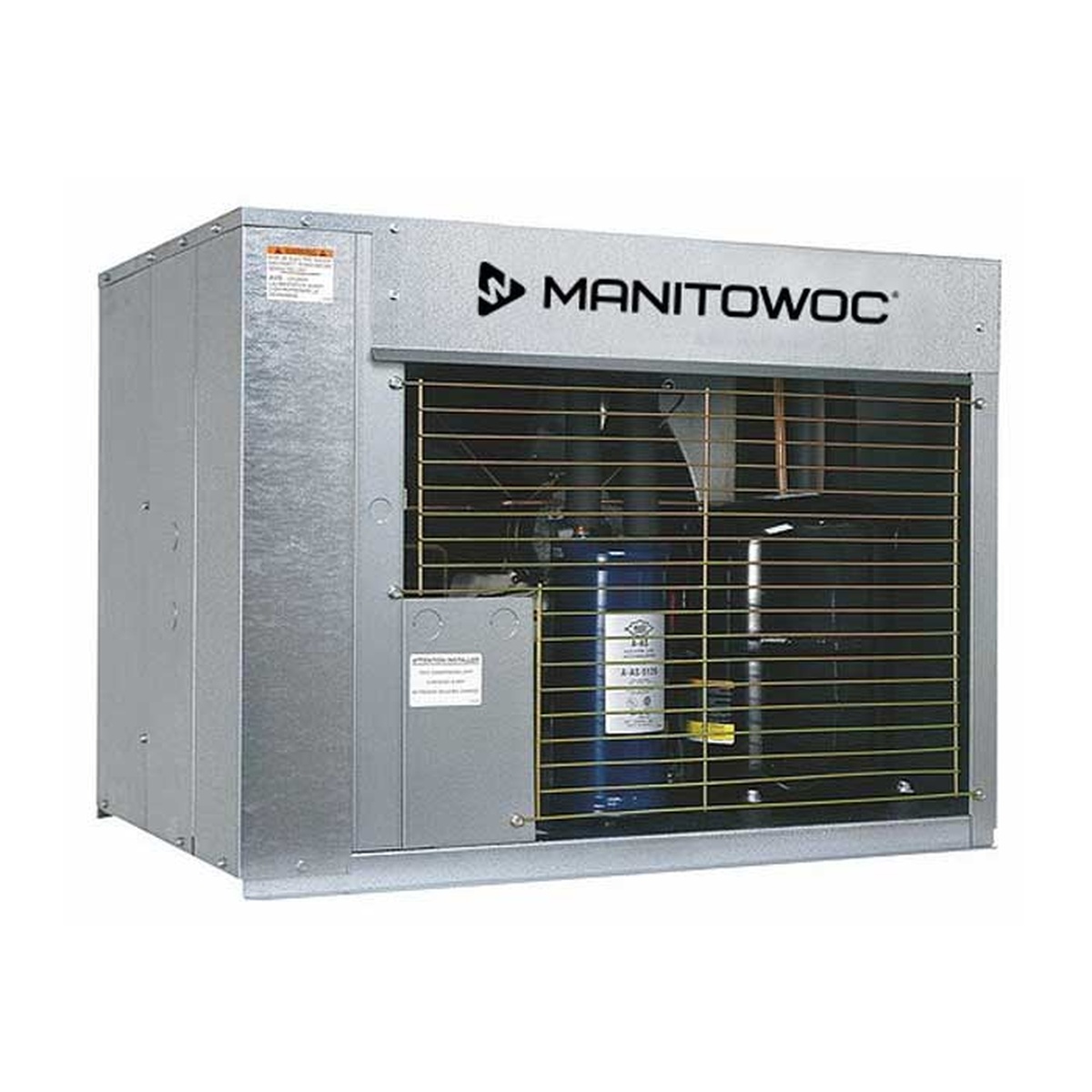

Manitowoc CVDF0600 remote condensing unit front angled view showing fan grille and compressor

Quieter Ice Production, Relocated Where It Belongs

The CVDF0600 uses Manitowoc's exclusive CVD (Cool Vapor Defrost) technology to move the compressor, heat, and noise away from your customer-facing environment. Unlike conventional hot gas remote systems, CVD uses vapor refrigerant from the receiver tank to drive harvest cycles, eliminating the need to keep the compressor near the ice-making evaporator.

Up to 634 lb of half-cube ice per day
Operates in temperatures from -20 to 130 degrees Fahrenheit
Compatible with IF-0600C and IBF-0620C QuietQube ice machines

Built for Reliable, Low-Maintenance Service

Designed to keep your ice program running smoothly, the CVDF0600 features a hinged front access door for easy access to internal components. Removable parts including the water trough, distribution tube, curtain, and sensing probes simplify routine cleaning and service.

AlphaSan antimicrobial components reduce bacterial growth
Acoustical ice-sensing probe for consistent performance monitoring
Background diagnostics keep the system self-monitored at all times
NSF Certified for commercial use

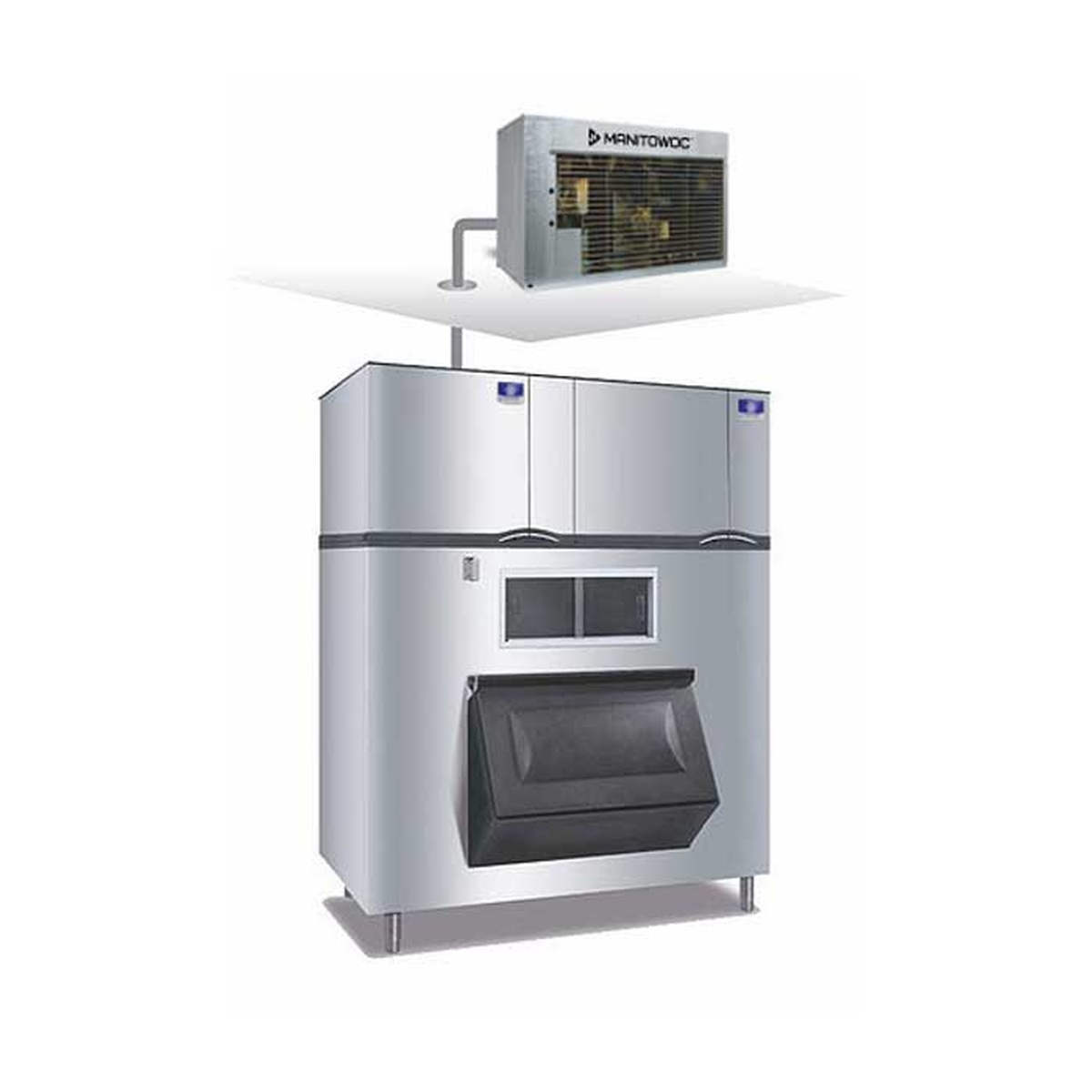

Diagram showing Manitowoc CVDF0600 remote condensing unit mounted above and connected to QuietQube ice machine and bin

Flexible Remote Installation for Any Layout

The CVDF0600 is engineered for versatile remote placement, allowing the condensing unit to be positioned up to 100 feet of total line length from the ice machine. Roof or remote exterior mounting keeps mechanical equipment away from the service area entirely.

Maximum line length: 100 feet
Maximum vertical rise: 35 feet above machine
Maximum vertical drop: 15 feet below machine
Remote tubing kit required and sold separately

Key Specifications

Daily Ice ProductionUp to 634 lb (half-cube)

Electrical208-230 V / 60 Hz / 1 Phase / 11.6 A

Operating Range-20 to 130 degrees Fahrenheit

Dimensions (W x D x H)34" x 24-1/4" x 25-3/4"

CertificationsNSF Certified

Compatible Ice MachinesIF-0600C, IBF-0620C (QuietQube Series)

From the Cresco Resco Team

Why You'll Love It

The Manitowoc CVDF0600 delivers quieter, more efficient ice production by relocating compressor heat and noise out of your service environment through advanced CVD technology.

Ideal for restaurants, hotels, and hospitality venues where customer comfort and noise levels matter.
CVD technology provides superior performance and reliability over traditional hot gas remote condenser systems.
Pair with the IF-0600C or IBF-0620C QuietQube ice machine and a compatible remote tubing kit for a complete, flexible installation.

Specifications

Brand	Manitowoc Ice
Model	CVDF0600
MFR #	CVDF0600-261
Series	QuietQube
Type	Air Cooled Remote Condensing Unit
Compatible Ice Machines	IF-0600C, IBF-0620C (QuietQube Series)
Daily Ice Production	634 lb
Ice Type	Half-Cube
Ice Dimensions	3/8 in. x 1 1/4 in. x 7/8 in.
Voltage	208-230 V
Hertz	60 Hz
Phase	1 Phase
Amperage	11.6 A
Power	5.53 kW
Plug Type	Hardwire
Width (Left to Right)	34 in.
Depth (Front to Back)	24 1/4 in.
Height	25 3/4 in.
Shipping Weight	178 lb
Maximum Line Length	100 ft
Maximum Vertical Rise	35 ft above machine
Maximum Vertical Drop	15 ft below machine
Operating Temperature Range	-20°F to 130°F
Certifications	NSF Certified
UPC	400010994885
