Bromic Heating

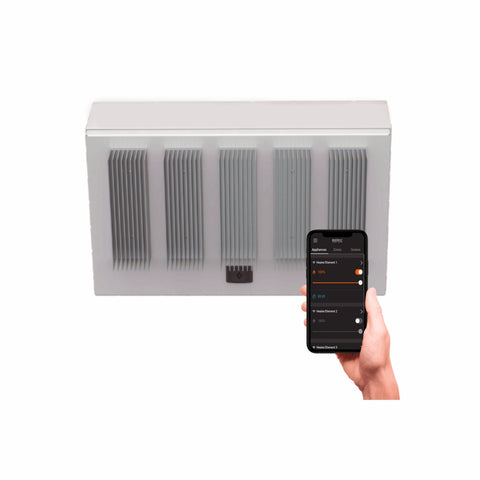

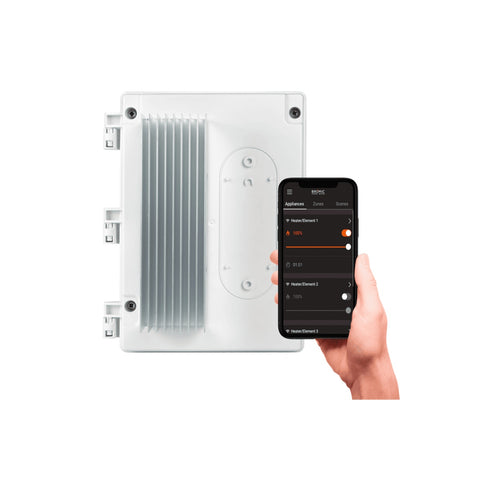

Bromic Heating BH3130011-2 Heater Dimmer Controller

$1,129.00

Key Features:

2-Channel Dimmer Control: Dual-channel design allows independent control of two separate heater circuits, with each channel managing up to 6000W of output power for maximum flexibility in commercial and multi-zone installations.
Electric Heater Compatibility: Designed exclusively for Bromic Platinum Electric and Tungsten Electric heaters, ensuring seamless integration and optimized performance within the Bromic ecosystem.
Full-Range Wireless Dimming (0-100%): Includes a 7-channel wireless remote housed in a protective enclosure, enabling precise heat output adjustment from full power down to completely off without requiring hardwired input.
Wired Control Capability: Supports hardwired integration in addition to wireless control, making it suitable for permanent commercial installations and building management system (BMS) integration.
Configurable Soft-Start Function: Built-in soft-start feature gradually ramps up power to connected heaters, reducing thermal stress and extending heater element life in high-use professional environments.
App-Based Smart Control: Compatible with the Bromic Heating app via Wi-Fi (2.4GHz) and Bluetooth connectivity for real-time adjustment, scheduling, zone grouping, and multi-site management from a single interface.
Voice Control Integration: Works with Amazon Alexa and Google Home for hands-free operation, ideal for front-of-house or hospitality settings where convenience is a priority.
Multi-Heater Zone Management: Supports grouping of unlimited connected controllers into zones, enabling centralized control of large outdoor heating arrays across patios, terraces, or event spaces.
Timer and Schedule Settings: Built-in scheduling functionality allows operators to automate on/off and dimming cycles, reducing energy consumption and labor overhead.
UL and CSA Certified: Meets UL 60730-1 and CAN/CSA E60730-1 safety standards, ensuring compliance for commercial installations in the U.S. and Canada.
1-Year Manufacturer Warranty: Backed by Bromic Heating's standard 1-year warranty for added peace of mind in professional deployments.

Detailed Description

The Bromic BH3130011-2 is a wireless dimmer switch designed exclusively for Bromic electric heaters, giving operators and homeowners precise, stepless control over heat output from 0% to 100%. Built to handle serious loads, it manages a single 6500W heater at 230VAC or two 3200W heaters simultaneously, making it well suited for both residential outdoor living spaces and high-demand commercial alfresco environments. The kit includes a wireless dimmer unit housed in a protective enclosure and a 7-channel remote, delivering a complete out-of-the-box control solution. A configurable soft-start function reduces thermal stress on heater elements at startup, extending the service life of compatible Bromic Platinum Electric and Tungsten Electric heaters. Safety certifications to UL 60730-1 and CAN/CSA E60730-1 standards round out a controller built for reliable, long-term performance.

Product Details

Full-Range Dimming Control

Wirelessly adjust heat output from 0% to 100% with precise, stepless dimming for ideal comfort.

High-Power Heater Support

Controls one 6500W heater at 230VAC (3400W at 110VAC) or two 3200W heaters at 230VAC (1700W at 110VAC).

Safety Certified & Heater-Protective

UL 60730-1 and CAN/CSA E60730-1 approved, with a configurable soft-start function that extends heater lifespan.

Key Specifications

Single Heater Load6500W at 230VAC / 3400W at 110VAC

Dual Heater LoadTwo 3200W heaters at 230VAC / Two 1700W at 110VAC

Dimming Range0% to 100% wireless control

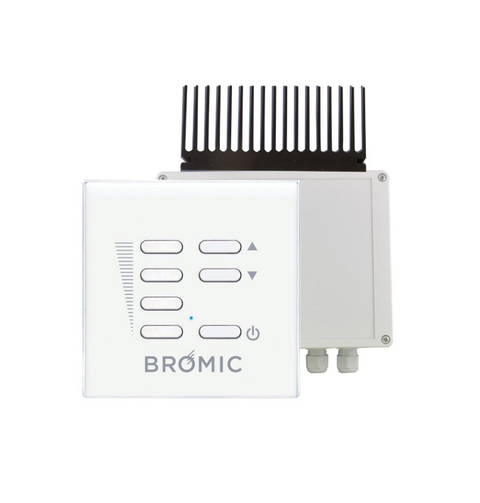

Kit ContentsWireless dimmer in protective box & 7-channel remote

CertificationsUL 60730-1, CAN/CSA E60730-1

Warranty1 Year

Wireless Dimming at a Glance

6500W

Max Single Heater Load (230VAC)

0-100%

Full Dimming Range

7-Ch

Included Remote

Ideal For

Compatible with Bromic Platinum Electric and Tungsten Electric heaters.

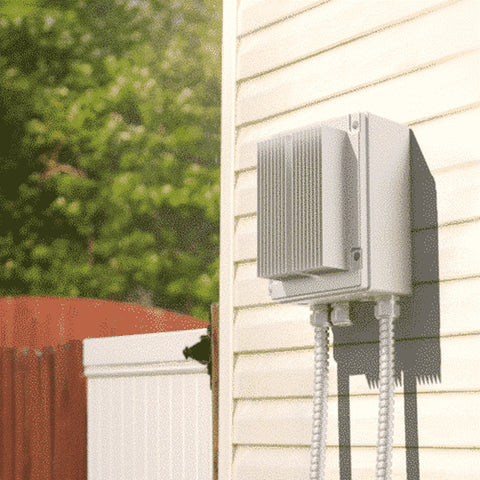

Outdoor patios & decks Residential outdoor living spaces Commercial alfresco areas Bromic Platinum Electric heaters Bromic Tungsten Electric heaters

From the Cresco Resco Team

Why You'll Love It

The Bromic BH3130011-2 Dimmer Switch with Wireless Remote puts full, flexible control of your electric heater heating output right in your hand.

Perfect for homeowners and commercial operators who want precise, hands-free heat management for Bromic electric heaters.
The configurable soft-start function protects heater elements and extends product life, making it a smart long-term investment.
The included 7-channel wireless remote and protective housing make this a complete, ready-to-use dimming solution out of the box.

Specifications
