T&S Brass

T&S Brass B-2349 Single Hole Deck Mount Pre-Rinse Faucet Unit

$413.05 ~~Precio rebajado$751.00ahorra $337.95~~

Key Features:

Single Hole Deck Mount Configuration: Polished chrome plated brass body designed for single hole deck installation, delivering a clean and professional appearance in commercial kitchen environments.
EasyInstall 24" Riser: Features T&S's EasyInstall 24" riser (model 000372-40) for streamlined setup and reduced installation time.
1.15 GPM Water-Efficient Spray Valve (B-0107): Includes the B-0107 spray valve rated at 1.15 GPM (4.35 L/min), compliant with 2019 DOE PRSV Class II standards for water conservation.
44" Flexible Stainless Steel Hose: Heavy-duty stainless steel hose (B-0044-H) with a heat resistant gray handle and hold down ring for safe, comfortable operation during high-volume pre-rinse tasks.
Quarter-Turn Eterna Compression Cartridges: Spring-checked 1/4-turn compression cartridges prevent cross flow of hot and cold water, extending service life and reducing maintenance needs.
Lever Handles with Color Coded Indexes: Chrome plated metal lever handles with color coded hot/cold indexes for intuitive, fast temperature adjustment in busy commercial kitchens.
18" Flexible Stainless Steel Supply Hoses: Included supply hoses accommodate both 1/2" NPSM and 5/8" compression (copper tubing) inlet connections for flexible plumbing hookup.
12" Adjustable Wall Bracket, Spray Valve Holder and Overhead Spring: The B-0109-03 12" wall bracket (304.8 mm) keeps the unit organized and the hose retracted, with an overhead spring for smooth operation.
Wide Operating Range: Rated for water pressure of 20-125 psi (1.38-8.62 bar) and temperatures of 40°F-140°F (4.44°C-60°C), suitable for demanding commercial use.
Full Certifications and Compliance: Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372 (lead-free), and compliant with 2019 DOE PRSV Class II requirements.
Compact Footprint with Generous Reach: Overall height of 45-1/2" (1156 mm), 14" (356 mm) overhang, and 19-13/16" (503 mm) clearance provide ample working space without overcrowding the sink area.

Detailed Description

The T&S Brass B-2349 is a commercial-grade, single-hole deck-mount pre-rinse unit engineered for the rigors of high-volume foodservice operations. Built around a polished chrome-plated brass body, it pairs a 24 EasyInstall riser with a 44 flexible stainless steel hose and a water-conserving 1.15 GPM B-0107 spray valve complete with an overhead spring and spray valve holder. Quarter-turn Eterna compression cartridges with spring checks prevent cross-flow of hot and cold water, while lever handles with color-coded indexes enable fast, intuitive single-hand control. An 18 flexible stainless steel supply hose with dual-fit 1/2 NPSM / 5/8 compression connections and a 12 adjustable wall bracket deliver a truly installation-ready package. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and 2019 DOE PRSV Class II standards, the B-2349 satisfies the compliance demands of modern commercial kitchens.

Product Details

1.15 GPM Spray Valve

B-0107 spray valve delivers efficient 1.15 GPM flow with a 44" flexible stainless steel hose and heat-resistant handle.

Precise Quarter-Turn Control

Eterna compression cartridges with spring checks and color-coded lever handles for accurate, cross-flow-free water mixing.

Certified & Compliant

Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and 2019 DOE PRSV Class II compliant.

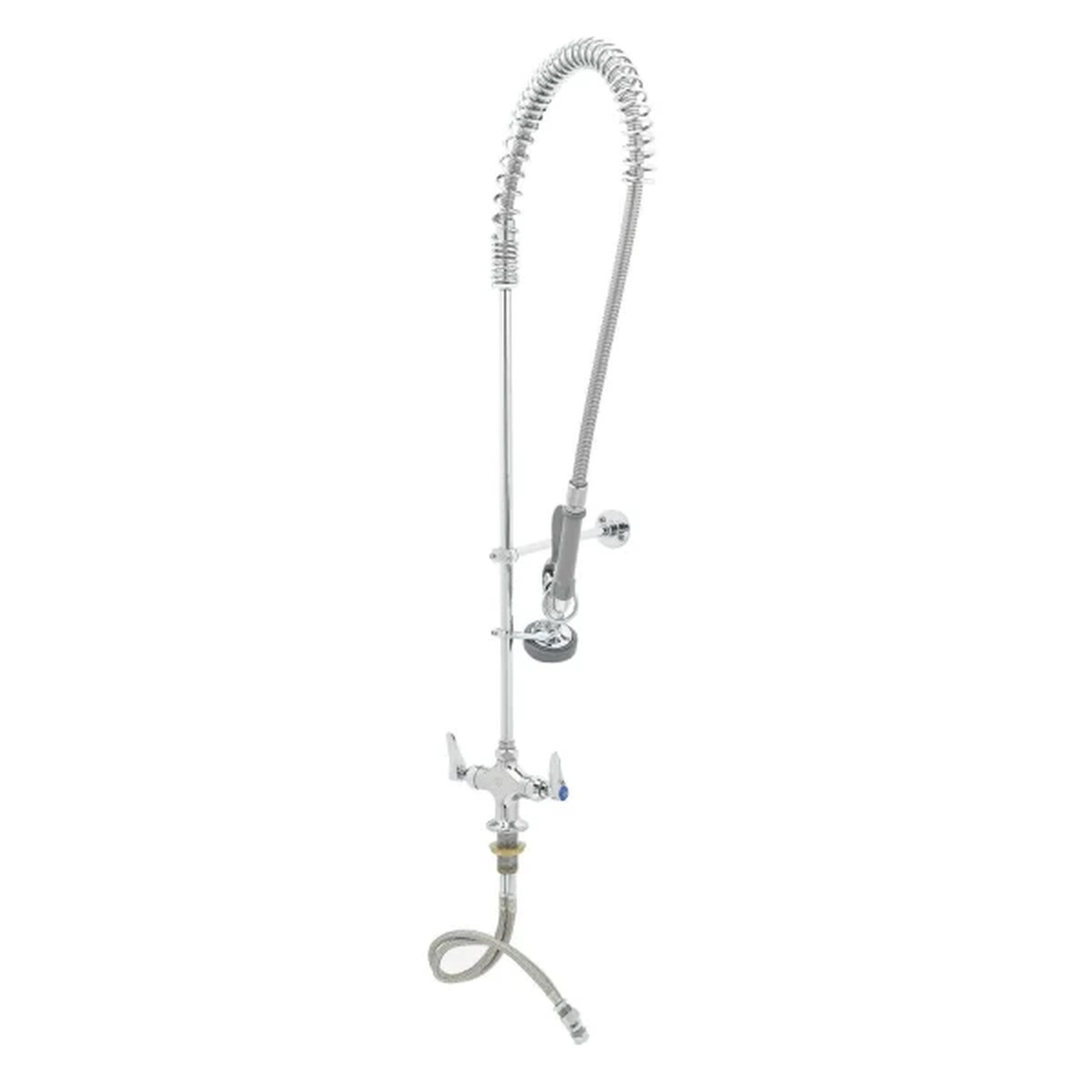

T&S Brass B-2349 single hole deck mount pre-rinse unit with polished chrome riser, overhead spring, flexible stainless steel hose, lever handles, and wall bracket

EasyInstall Deck Mount Pre-Rinse Unit

The T&S Brass B-2349 is a single hole deck mount mixing faucet designed for demanding commercial kitchens. Its polished chrome plated brass body and stainless steel components deliver lasting durability, while the EasyInstall 24" riser simplifies setup.

Polished chrome plated brass body, riser, and spray valve body
44" flexible stainless steel hose with heat-resistant gray handle and hold-down ring
18" flexible stainless steel supply hoses with 1/2" NPSM / 5/8" compression connections
12" adjustable wall bracket with spray valve holder and overhead spring included

Key Specifications

Flow Rate1.15 GPM @ 60 psi (4.35 L/min)

Pressure Range20 psi min / 125 psi max

Temperature Range40°F min / 140°F max

ConstructionPolished Chrome Plated Brass

Mount TypeSingle Hole Deck Mount

Cartridge Type1/4-Turn Eterna Compression

Ideal For

Commercial Restaurants High-Volume Kitchens Cafeteria & Institutional Facilities Food Service Operations Dish-Washing Stations

From the Cresco Resco Team

Why You'll Love It

The T&S Brass B-2349 is a complete, ready-to-install pre-rinse unit engineered for reliability and efficiency in professional foodservice environments.

Perfect for high-traffic commercial kitchens requiring durable, code-compliant plumbing solutions.
The EasyInstall 24" riser and pre-assembled components reduce installation time significantly.
NSF 61, NSF 372, and ASME certifications ensure safe, trusted performance that meets industry standards.

Specifications

Brand	T&S Brass
Model	B-2349
Product Type	Pre-Rinse Unit, Deck Mount Mixing Faucet
Mount Type	Deck Mount
Faucet Holes	Single Hole
Finish	Polished Chrome
Material	Polished Chrome Plated Brass Body, Riser & Spray Valve Body; Stainless Steel Hose; Chrome Plated Metal Handles
Handle Type	Lever Handles with Color Coded Indexes
Cartridge / Spindle	1/4-Turn Eterna Compression Cartridges with Spring Checks
Spray Valve	B-0107
Flow Rate	1.15 GPM (4.35 L/min) @ 60 psi
Riser	24 in (610 mm) EasyInstall Riser (Model 000372-40)
Hose	44 in Flexible Stainless Steel Hose with Heat Resistant Gray Handle & Hold Down Ring (B-0044-H)
Supply Hoses	18 in Flexible Stainless Steel Supply Hoses
Inlet Connection	5/8 in Copper Tubing or 1/2 in NPSM Male
Wall Bracket	12 in (305 mm) Adjustable Wall Bracket (B-0109-03)
Overall Height	45-1/2 in (1,156 mm)
Overhang	14 in (356 mm)
Clearance	19-13/16 in (503 mm)
Pressure Range	20 - 125 psi (1.38 - 8.62 bar)
Temperature Range	40°F - 140°F (4.44°C - 60°C)
Certifications	ASME A112.18.1 / CSA B125.1; NSF 61-Section 9; NSF 372; 2019 DOE PRSV Class II Compliant; EPAct 2005 Compliant
UPC	671262174503
