T&S Brass

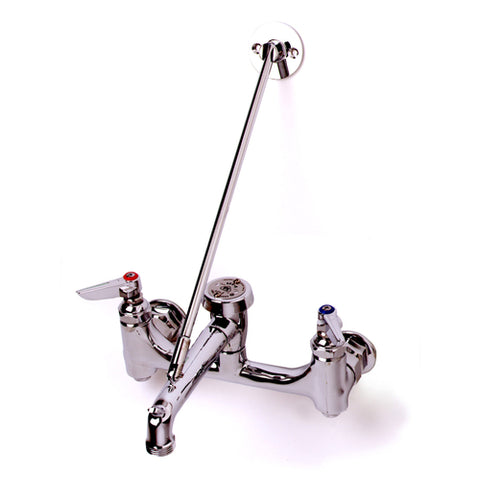

T&S Brass B-0665-BSTP Service Sink Faucet, Wall Mount, 8" Centers, Built-In Stops and Vacuum Breaker, Polished Chrome

$204.05 ~~Precio rebajado$371.00ahorra $166.95~~

Key Features:

Wall Mount, 8" Centers: Installs on standard service sinks with 8" (203.2 mm) faucet centers and 1/2" NPT female inlets, featuring a polished chrome-plated brass body built for heavy-duty commercial use.
Cast Spout with Atmospheric Vacuum Breaker and Pail Hook: Garden hose threaded outlet (3/4") with integrated vacuum breaker (ASSE 1001 certified) protects the water supply from backflow, while the pail hook speeds up bucket filling and chemical dispensing.
Built-In Service Stops: Screwdriver stops built directly into the faucet body and upper support rod allow maintenance teams to isolate and service the unit without shutting off water to the entire area, minimizing downtime.
1/4-Turn Compression Cartridges with Spring Checks: Durable compression cartridges with spring checks provide reliable, precise flow control suited for high-frequency commercial environments.
Lever Handles with Hot/Cold Identification: Easy-to-operate lever handles with color-coded hot and cold indicators support quick, ergonomic operation in demanding kitchen and janitorial settings.
High Flow Rate: Delivers up to 12.96 GPM (49.05 L/min) at operating pressures between 20 and 125 psi, accommodating rapid bucket filling and rinse-down tasks.
Wide Operating Temperature Range: Rated from 40°F (4.44°C) to 140°F (60°C), suitable for both hot and cold water service applications.
Multi-Standard Certified: Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372 (lead-free materials), and ASSE 1001; also meets ADA ANSI/ICC A117.1 accessibility requirements.

Detailed Description

The T&S Brass B-0665-BSTP is an 8-inch wall mount mixing faucet engineered for heavy-duty service sink applications in commercial kitchens, janitorial closets, and utility spaces. Its polished chrome-plated brass body and cast spout offer lasting corrosion resistance and a professional finish that stays clean under demanding daily use. An integrated atmospheric vacuum breaker with a 3/4-inch garden hose thread outlet and built-in pail hook accelerates bucket filling and hose rinsing while protecting the potable water supply from backflow contamination. Built-in screwdriver service stops in the body and upper support rod allow maintenance teams to isolate the faucet without shutting water to the entire area, significantly reducing downtime. Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, and ASSE 1001, with ADA compliance per ANSI/ICC A117.1.

Product Details

Polished Chrome Brass Construction

Full polished chrome-plated brass body and spout built for heavy commercial use.

Built-In Safety & Certifications

Vacuum breaker and service stops included. Certified to ASME, NSF 61, NSF 372, ASSE 1001 & ADA.

Garden Hose Outlet & Pail Hook

3/4" garden hose thread outlet with integrated pail hook for efficient bucket filling and rinsing.

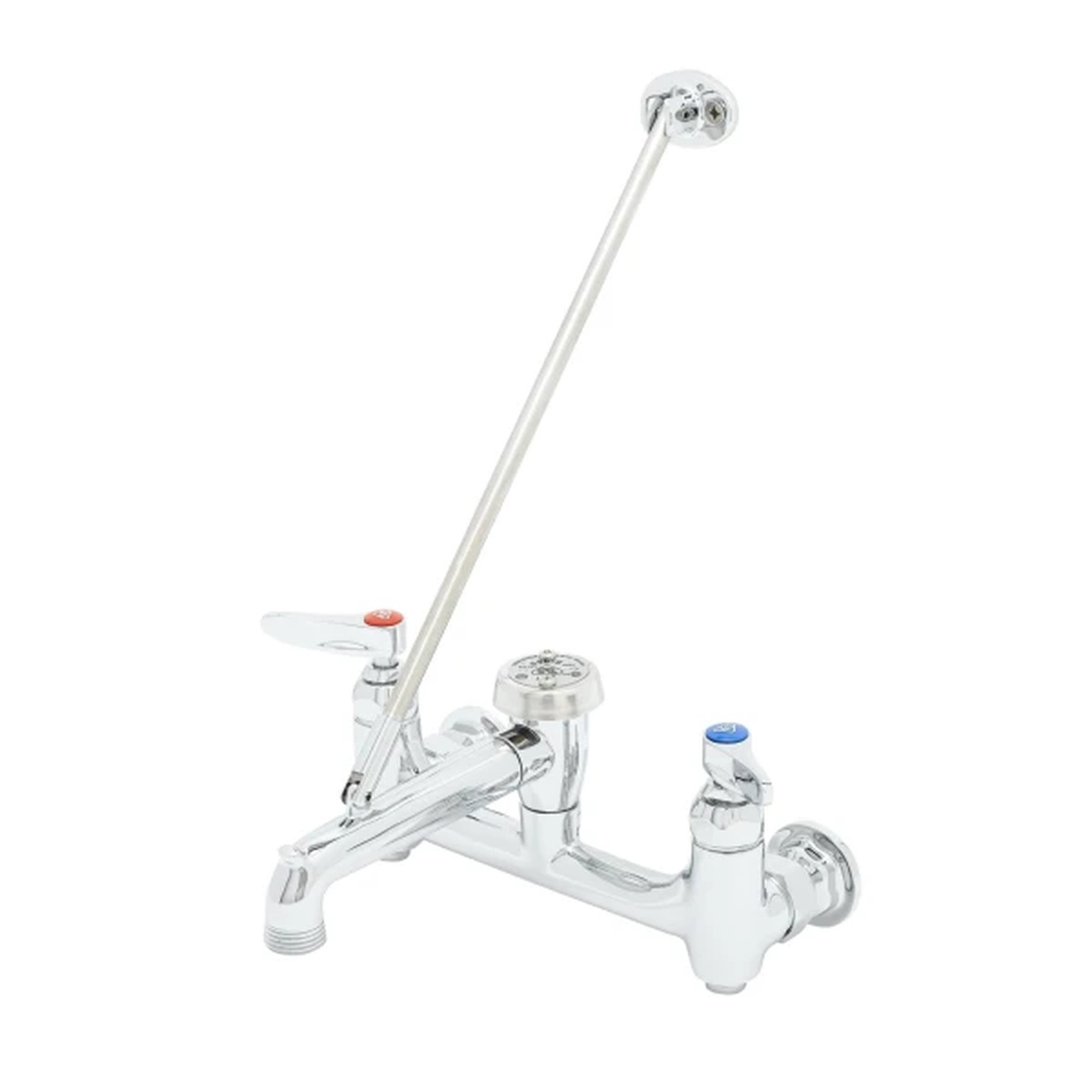

T&S Brass B-0665-BSTP wall mount service sink faucet with polished chrome finish, lever handles, vacuum breaker, and garden hose outlet

Wall Mount Design Built for Service Environments

The B-0665-BSTP mounts directly to the wall with 8" centers, making it a natural fit for standard service sinks in commercial kitchens, janitorial closets, and facilities maintenance areas.

Polished chrome-plated brass body and cast spout resist corrosion and clean quickly
Lever handles with hot/cold identification for intuitive operation
Upper support rod provides structural rigidity for the extended spout assembly
1/2" NPT female inlets for straightforward plumbing connections

Key Specifications

Faucet Centers8 in (203.2 mm)

Flow Rate12.96 GPM (49.05 L/min)

Temperature Range40°F - 140°F (4.44°C - 60°C)

Pressure Range20 - 125 psi (1.38 - 8.62 bar)

Cartridge / Spindle1/4 Turn Compression with spring checks

Inlet Connection1/2" NPT Female

Ideal For

Commercial kitchens Janitorial closets Facilities maintenance Standard service sinks High-traffic cleaning stations

From the Cresco Resco Team

Why You'll Love It

The T&S Brass B-0665-BSTP delivers professional-grade durability and safety compliance for demanding service sink applications.

Perfect for commercial kitchens, janitorial rooms, and facilities that need dependable, low-maintenance water access.
Built-in screwdriver service stops allow isolated faucet shutoff without interrupting water to the entire area, reducing downtime during peak cleaning windows.
Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, ASSE 1001, and ADA ANSI/ICC A117.1 for total compliance confidence.

Specifications

Model Number	B-0665-BSTP
Brand	T&S Brass
Faucet Type	Service Sink Faucet
Installation Type	Wall Mount
Faucet Centers	8 in (203.2 mm)
Material	Brass Construction, Polished Chrome Plated
Handle Type	Lever
Cartridge / Spindle	1/4 Turn Compression with Spring Checks
Inlet Connection	1/2 in NPT Female
Spout Type	Cast Spout
Spout Length	6 in
Outlet Type	Garden Hose Threads (3/4 in)
Flow Rate	12.96 GPM (49.05 L/min)
Max Pressure	125 psi (8.62 bar)
Min Pressure	20 psi (1.38 bar)
Max Temperature	140°F (60°C)
Min Temperature	40°F (4.44°C)
Vacuum Breaker	Atmospheric Vacuum Breaker (Built-In)
Built-In Stops	Yes, Screwdriver Service Stops in Body
Pail Hook	Yes
Upper Support Rod	Yes
Lead Compliance	Non-Potable
Weight	8.00 lbs
UPC	671262006187
Certifications	ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, ASSE 1001, ADA (ANSI/ICC A117.1)
