T&S Brass B-0235-LN Wall Mount Double Pantry Faucet Base with Adjustable Centers

$203.78 ~~Precio rebajado$370.50ahorra $166.72~~

Key Features:

Wall-mounted mixing faucet featuring a polished chrome-plated brass body for enhanced durability and easy maintenance in commercial kitchens.
Adjustable inlet arms with 1/2 inch NPT female connections accommodate installation centers ranging from 2 1/4 inches to 8 1/4 inches.
Equipped with quarter-turn compression cartridges that include integrated spring checks to prevent water cross-flow.
Ergonomic lever handles come with color-coded indexes for quick identification and precise control of water flow and temperature.
Designed with a swivel outlet (less nozzle) that is compatible with various T&S Brass swivel spouts for customized reach.
Certified to meet ADA, NSF 61-Section 9, and NSF 372 standards for safety, lead-free compliance, and accessibility.

Fresno

Normalmente está listo en 2 a 4 días

Las Vegas

Normalmente está listo en 2 a 4 días

T&S Brass B-0235-LN Wall Mount Double Pantry Faucet Base with Adjustable Centers

$203.78~~$370.50~~

Detailed Description

The T&S Brass B-0235-LN is a heavy-duty wall-mount mixing faucet base designed for commercial pantry and kitchen applications. Constructed from polished chrome-plated brass, this unit features adjustable inlet arms that accommodate centers from 2 1/4 inches to 8 1/4 inches for versatile installation. It comes equipped with quarter-turn Eterna compression cartridges with spring checks to prevent cross-flow and ergonomic lever handles for precise control. This base is designed for use with T&S swivel nozzles (sold separately), providing a customizable solution for professional sink setups.

Product Details

Polished Chrome Brass Construction

Low-lead, chrome-plated brass body built for lasting commercial durability.

Adjustable Centers

Inlet arms adjust from 2 1/4 in. to 8 1/4 in. for flexible installation.

Multi-Standard Certified

Meets ASME A112.18.1/CSA B125.1, NSF 61, NSF 372, and ADA A117.1 requirements.

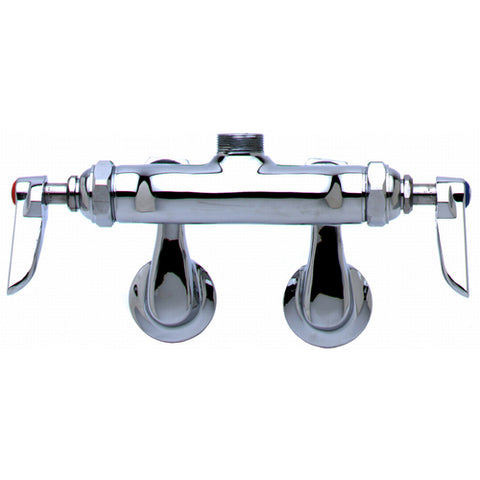

T&S Brass B-0235-LN double pantry swivel base faucet with lever handles and chrome finish, front-angle view

Wall-Mount Mixing Faucet Built for Commercial Sinks

The T&S Brass B-0235-LN is a double pantry swivel base faucet designed for demanding commercial sink applications. Its wall-mount profile keeps the sink deck clear while delivering reliable hot and cold water mixing.

Polished chrome-plated brass body with swivel outlet
Wall-mount design with 1/2 in. NPT female inlets
Operating pressure range: 20 to 125 psi
Temperature range: 40°F to 140°F

T&S Brass B-0235-LN faucet assembly showing lever handles and spring check cartridges, rear-angle view

Precise Control with Spring Check Cartridges

Compression cartridges with integrated spring checks keep valves sealed under pressure and resist backflow, protecting water quality and extending service life in high-use environments.

1/4-turn compression cartridges for smooth, reliable operation
Spring check feature for added safety and backflow prevention
Lever handles allow one-handed operation
16.9 GPM maximum flow rate

T&S Brass B-0235-LN faucet showing swivel outlet port and adjustable inlet arms, side-angle view

Flexible Installation with Adjustable Inlet Arms

The swivel base and adjustable inlet arms make the B-0235-LN easy to fit a wide range of sink configurations without modifications. The less-nozzle (LN) design allows pairing with the nozzle of your choice.

Centers adjustable from 2 1/4 in. to 8 1/4 in.
Default centers at 3 3/8 in. (85.7 mm)
1/2 in. IPS female flange connection
Overall width: 9 1/5 in.

Key Specifications

Adjustable Centers2 1/4 in. to 8 1/4 in.

MaterialLow-lead chrome-plated brass

Max Flow Rate16.9 GPM (63.97 L/min)

Temperature Range40°F to 140°F

Pressure Range20 to 125 psi

CertificationsASME A112.18.1, NSF 61, NSF 372, ADA

From the Cresco Resco Team

Why You'll Love It

The T&S Brass B-0235-LN delivers commercial-grade reliability and installation flexibility in one certified, low-lead package.

Ideal for commercial kitchens, bars, and pantry sinks requiring a durable wall-mount mixing faucet.
Adjustable inlet arms and swivel outlet accommodate a broad range of sink configurations without special tools.
Multiple certifications including NSF 61, NSF 372, and ADA compliance ensure it meets the highest safety and accessibility standards.

📞 Have Questions About This Product?

Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:

Fresno, CA 559-233-3700

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Sacramento, CA 916-446-3300

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Reno, NV 775-786-6565

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Las Vegas, NV 702-387-1977

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Denver, CO 303-343-3333

Mon-Fri 8am-5pm, Sat 10am-2pm MT

Specifications

Model Number	B-0235-LN
Brand	T&S Brass
Faucet Type	Double Pantry Swivel Base Mixing Faucet
Mount Type	Wall Mount
Material	Polished Chrome-Plated Brass
Finish	Chrome
Handle Type	Lever
Number of Handles	2
Centers	3 3/8 in (85.7 mm)
Adjustable Center Range	2 1/4 in to 8 1/4 in
Inlet Connection	1/2 in NPT Female
Cartridge / Spindle	1/4 Turn Compression
Operation	Manual
Special Feature	Spring Check
Nozzle	Less Nozzle (Nozzle Not Included)
Flow Rate	16.9 GPM (63.97 L/min)
Max Pressure	125 psi (8.62 bar)
Min Pressure	20 psi (1.38 bar)
Max Temperature	140°F (60°C)
Min Temperature	40°F (4.44°C)
Overall Width	9 1/5 in (9.2 in)
Low Lead Compliant	Yes
Certifications	ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, ADA ANSI/ICC A117.1
Warranty	1-Year Limited Against Defects in Material & Workmanship
