T&S Brass

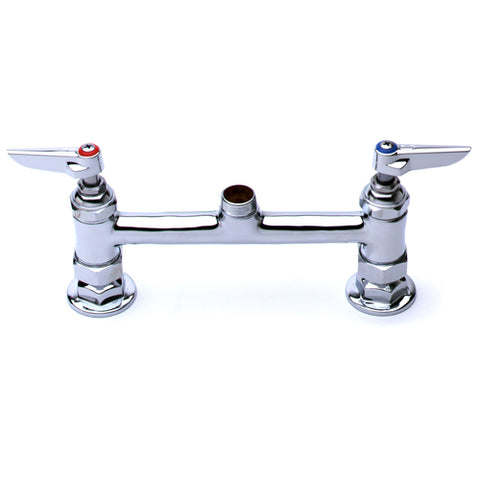

T&S Brass B-0220-LN Deck Mount Swivel Base Mixing Faucet, 8" Centers, No Nozzle

$155.65 ~~Precio rebajado$283.00ahorra $127.35~~

Key Features:

Double pantry swivel base design with deck mount installation on 8" centers, adjustable from 7 3/4" to 8 1/4" for flexible sink compatibility
Sold without nozzle; swivel outlet is threaded to accept T&S swing nozzles, allowing operators to select the nozzle best suited for their application
Quarter-turn Eterna compression cartridges with integrated spring checks to prevent cross-flow of hot and cold water, delivering reliable, long-lasting performance in demanding commercial kitchens
Lever handles with color-coded hot/cold indexes for quick, intuitive operation even during high-volume service
Polished chrome plated brass body and chrome plated metal handles for durability and corrosion resistance
1/2" NPT eccentric flanged female inlets with 2" flanges allow for minor positional adjustments during installation
Lock washer included for rigid, drip-free mounting when a fixed application is required
Rated up to 28.63 GPM at a maximum 60 PSI, with an operating temperature range of 40°F to 140°F
Certified to NSF/ANSI 61, NSF/ANSI 372 (Low Lead, 0.25% max), ASME A112.18.1 / CSA B125.1, and compliant with City of Los Angeles, Commonwealth of Massachusetts, and BAA/ARRA requirements

Detailed Description

The T&S Brass B-0220-LN is a double pantry swivel base deck mount mixing faucet built for the demands of commercial foodservice environments. Constructed with a polished chrome plated brass body, it installs on 8 centers with adjustable spread from 7-3/4 to 8-1/4, accommodating a range of sink configurations. Quarter-turn Eterna compression cartridges with integrated spring checks prevent the cross-flow of hot and cold water, delivering reliable long-term performance. The swivel outlet is sold without a nozzle and accepts T&S swing nozzles for customized water delivery, while a lock washer is included for rigid applications. Certified to NSF/ANSI 61, NSF/ANSI 372, and ASME A112.18.1/CSA B125.1 with low lead content compliance, this faucet is a trusted, code-compliant choice for busy restaurant kitchens.

Product Details

Polished Chrome Brass Body

Durable polished chrome plated brass construction with matching chrome plated metal lever handles.

Adjustable Centers & Swivel Outlet

Centers adjust from 7-3/4" to 8-1/4". Swivel outlet accepts T&S swing nozzles for versatile placement.

Multi-Standard Certified

Meets NSF/ANSI 61, NSF/ANSI 372, ASME A112.18.1 / CSA B125.1, and Low Lead (0.25% Max) requirements.

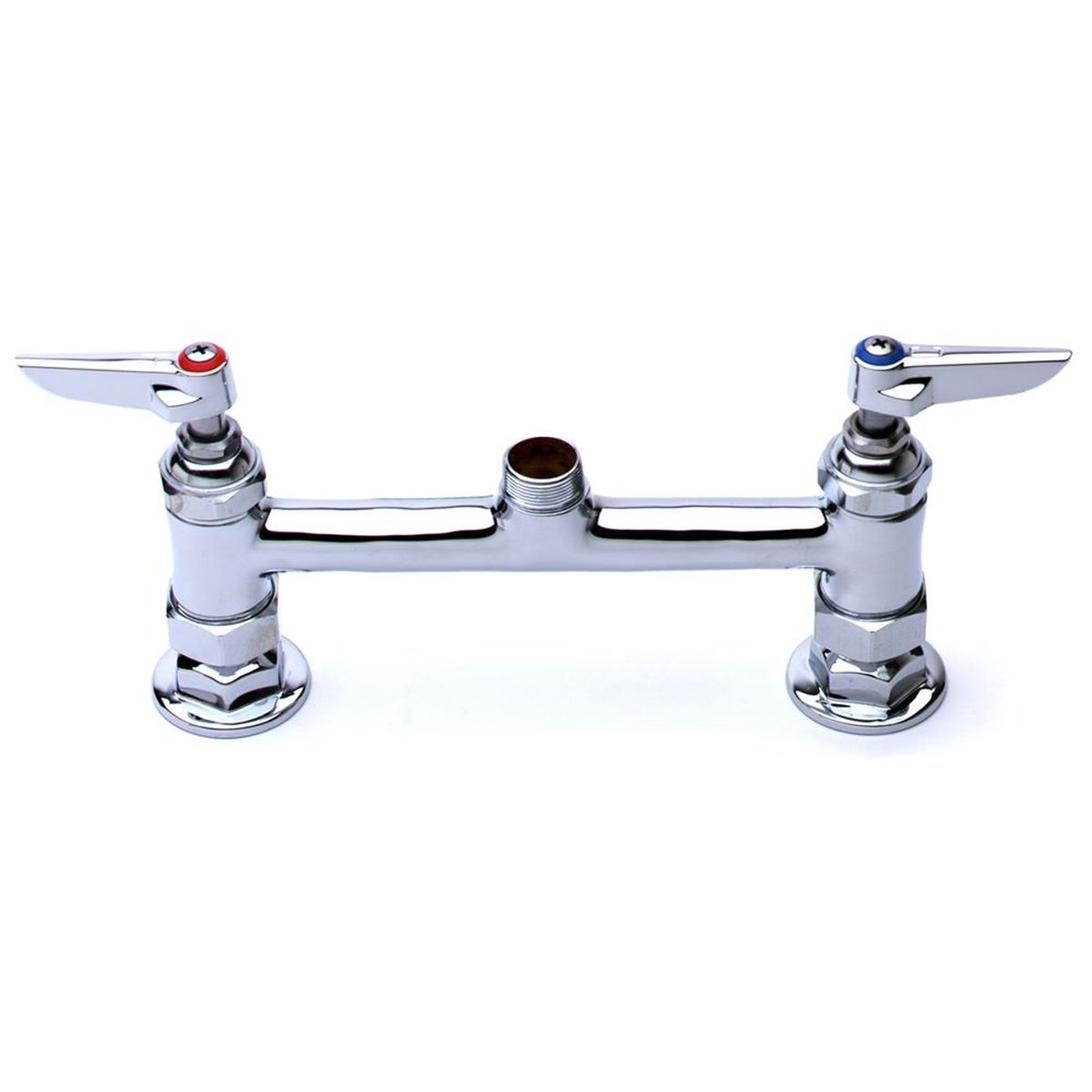

T&S Brass B-0220-LN deck mount swivel base mixing faucet with lever handles and chrome plated brass body, no nozzle

Deck Mount Design Built for Commercial Demands

The T&S Brass B-0220-LN is an 8" center deck mount mixing faucet engineered for demanding commercial and foodservice environments. Its swivel base and no-nozzle outlet design provide maximum flexibility for pairing with your preferred T&S swing nozzle.

Deck mounted with 8" centers (adjustable 7-3/4" to 8-1/4")
Swivel outlet accepts T&S swing nozzles
Lock washer included for rigid, leak-free application
1/2" NPT eccentric flanged female inlets with 2" flanges

Key Specifications

Cartridge1/4 Turn Eterna Compression w/ Spring Checks

Max Flow Rate28.63 GPM

Temperature Range40°F to 140°F

Max Pressure60 PSI

Inlet Connection1/2" NPT Eccentric Flanged Female

CertificationsNSF/ANSI 61 & 372, ASME A112.18.1 / CSA B125.1, BAA/ARRA

Performance at a Glance

On-Center Spacing

28.63

GPM Max Flow

60 PSI

Max Pressure

Ideal For

Commercial Restaurant Kitchens Foodservice Operations Pantry Sink Applications Industrial Plumbing Laboratory Settings

From the Cresco Resco Team

Why You'll Love It

The T&S Brass B-0220-LN delivers the proven reliability and flexibility of a professional-grade swivel base mixing faucet built to handle the rigors of commercial use every day.

Perfect for high-traffic commercial kitchens needing a durable, no-nozzle deck mount mixing solution.
Quarter-turn Eterna cartridges with spring checks prevent cross flow of water for lasting, precise control.
Pair with any compatible T&S swing nozzle to complete your pantry sink setup with ease.

Specifications

Model Number	B-0220-LN
Brand	T&S Brass
Faucet Type	Deck Mount Swivel Base Mixing Faucet
Centers	8" (Adjustable from 7-3/4" to 8-1/4")
Handle Type	Lever with Color-Coded Indexes
Nozzle	Less Nozzle (Swivel Outlet Accepts T&S Swing Nozzles)
Cartridge / Spindle	1/4 Turn Eterna Compression with Spring Checks (Cross-Flow Prevention)
Inlet Connection	1/2" NPT Eccentric Flanged Female Inlets with 2" Flanges
Finish	Polished Chrome Plated Brass
Body Material	Polished Chrome Plated Brass
Handle Material	Polished Chrome Plated Metal
Max Flow Rate	28.63 GPM
Max Pressure	60 PSI
Max Temperature	140°F
Min Temperature	40°F
Product Height	28.00"
Product Length	12.00"
Product Weight	4.18 lbs
Certifications	NSF/ANSI 61, NSF/ANSI 372 (Lead Content), ASME A112.18.1 / CSA B125.1, Low Lead Content (0.25% Max), City of Los Angeles, Commonwealth of Massachusetts, BAA/ARRA
UPC	671262002424
Warranty	12 Months from Date of Purchase
