American Range

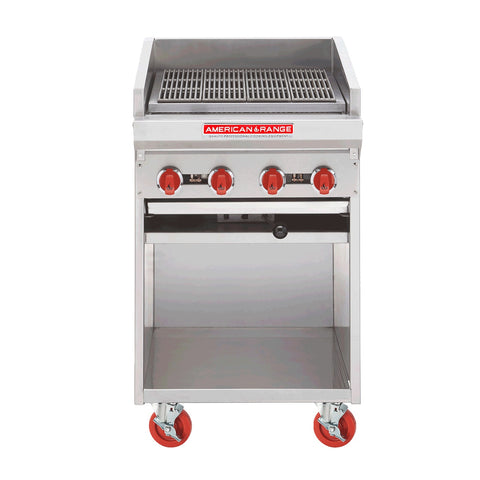

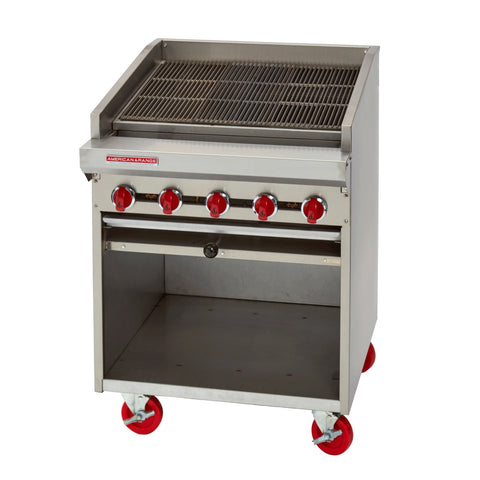

American Range ADJF-72 Adjustable Underfired Broiler Floor Model Charbroiler, 72"

$15,176.00 ~~Precio rebajado$31,950.00ahorra $16,774.00~~

Key Features:

72 inch floor model adjustable underfired radiant broiler/charbroiler with open cabinet base and stainless steel exterior construction
Adjustable cast iron grates with three position settings for flexible heat control
(12) burners rated at 20,000 BTU/hr each (240,000 BTU total) for even heat distribution
Two separate adjustable racks on 48 inch, 60 inch, and 72 inch models
Individually controlled burners with pilots, plus full size grease tray for easier cleanup
Commercial certifications listed (ETL and NSF/cETLus) and Made in USA (varies by listing)

Detailed Description

The American Range ADJF-72 is a floor model adjustable underfired radiant charbroiler built for high-volume broiling and finishing. Its 3-position adjustable cast iron grates let operators control product-to-heat distance for better sear and temperature management. Twelve 20,000 BTU/hr burners deliver even heat across a 72 inch broiling surface, while the stainless steel exterior and open cabinet base support durability and daily cleanup. A full-size grease tray helps manage drippings during continuous service.

Product Details

High-Output Heat

12 burners deliver 240,000 BTU total for strong searing and fast recovery.

Adjustable Cooking Surface

3-position adjustable grates and dual adjustable racks on 72 inch models.

Cleaner, Easier Service

Full-size grease tray helps simplify cleanup during busy shifts.

American Range ADJF-72 floor model radiant charbroiler with open cabinet base

Built for High-Volume Broiling

A floor-model radiant charbroiler designed to deliver intense heat across a wide 72 inch cooking surface.

Gas, radiant-type heating with individually controlled burners and pilots
Cast iron grates for strong heat retention
Stainless steel exterior with open cabinet base

Front view of American Range ADJF-72 adjustable top charbroiler with control knobs and storage base

Dial In Your Cook

Adjust grate position to fine-tune heat intensity and manage different proteins and finishes.

Three-position adjustable grates
Two separate adjustable racks on 48, 60, and 72 inch models
Designed for even heat distribution with 20,000 BTU/hr burners

Key Specifications

Model

ADJF-72

Type

Floor model, radiant charbroiler

Burners

Total Output

240,000 BTU

Grates

Cast iron, 3-position adjustable

Base

Open cabinet

From the Cresco Resco Team

Why You'll Love It

A wide, adjustable radiant charbroiler built to keep up with demanding service while delivering bold, grilled flavor.

Great for steakhouses, burger programs, and high-output lineups.
Adjustable grates and dual racks help you control heat and throughput.
Pair with your prep table and landing zones for a smoother grill station workflow.

Specifications

Manufacturer	American Range
Model	ADJF-72
Type	Floor model adjustable underfired/radiant charbroiler with open cabinet base
Fuel Type	Gas
Heating Source	Radiant
Width	72 in
Number of Burners	12
BTU per Burner	20,000 BTU/hr
Total BTU	240,000 BTU/hr
Total Input (kW)	70 kW
Grate Material	Cast iron
Grate Adjustment	3-position adjustable grates
Adjustable Racks	2 independent adjustable racks (for 48 in, 60 in, and 72 in units)
Construction	Stainless steel exterior
Grease Management	Full size grease tray
Approx. Weight	775 lb
Certifications (as listed)	NSF, cETLus
Country of Origin (as listed)	Made in USA
