JOHN BOOS & CO.

John Boos 3B16204-2D24-X B Series 3-Compartment Sink with 2 Drainboards, 99-1/4" W

$2,327.00

Key Features:

B Series 3-Compartment Design: Features three 16"W x 20" front-to-back x 14" deep bowls, purpose-built for commercial warewashing with a 99-1/4"W x 25-1/2"D x 44"H overall footprint.
Dual 24" Drainboards: Includes both left and right-hand 24" drainboards for efficient workflow on both sides of the sink station.
16 Gauge Type 300 Stainless Steel Construction: Bowls and top are fabricated from 16ga Type 300 stainless steel with a #4 polish satin finish, delivering superior durability and a professional appearance.
TIG Welded Top, MIG Welded Base: TIG welding on the sink top ensures strong, sanitary seams with exposed welds polished to match adjacent surfaces; stainless steel bases are MIG welded for structural integrity.
Fully Coved and Bullnosed Corners: All vertical and horizontal interior corners are coved at 3/4" radius for easy cleaning, while all outside corners are bullnosed to provide safe, polished edges.
10" Boxed Backsplash: Full-length 10" high boxed backsplash includes a 45-degree top with a 2" return to wall and a 1" turned-down rear lip, keeping splash contained and walls protected.
Pre-Drilled Faucet Holes: Comes with 1" faucet holes in the backsplash on 8" centers for splash-mount faucet installation.
Formed Bowl Bottoms for Drainage: Bowl bottoms are formed to drain to 3-1/2" diameter die-stamped openings, promoting thorough self-draining and easy maintenance.
Heavy-Duty Stainless Steel Leg Assembly: Supported by 1-5/8" round O.D. stainless steel legs with 1-1/4" round O.D. stainless steel adjustable side bracing and stainless steel gussets for a rigid, stable base.
1" Adjustable Bullet Feet: Stainless steel adjustable bullet feet allow for precise leveling on uneven floors.
NSF Certified: Meets NSF sanitation standards, making it compliant for use in commercial foodservice operations.

John Boos 3B16204-2D24-X B Series 3-Compartment Sink with 2 Drainboards, 99-1/4" W

$2,327.00

Detailed Description

The John Boos 3B16204-2D24-X is a heavy-duty B Series three-compartment sink engineered for demanding commercial kitchen environments. Spanning 99-1/4 in overall width, it features three 16 x 20 x 14 deep stainless steel bowls flanked by dual 24 drainboards for a complete wash-rinse-sanitize workflow. Fabricated from 16-gauge Type 300 stainless steel with a #4 satin polish finish, the sink is TIG welded at the top with exposed welds polished to match the adjacent surface, ensuring a clean, professional look built to last. The full-length 10 boxed backsplash with a 45-degree return and stainless steel bullet feet with adjustable legs make this unit both code-compliant and adaptable to uneven floors. NSF-certified and built by one of the most trusted names in commercial foodservice equipment, this sink is an ideal centerpiece for three-compartment manual ware-washing stations.

Product Details

Heavy-Duty Stainless Construction

16-gauge Type 300 stainless steel with #4 polish satin finish, TIG-welded top with polished exposed welds.

Efficient Drainage System

Bowl bottoms formed for drainage to 3-1/2" die-stamped openings, with two 24" left and right drainboards.

NSF Certified Commercial Grade

NSF listed for commercial kitchen use, with adjustable bullet feet and crossrail bracing for stable installation.

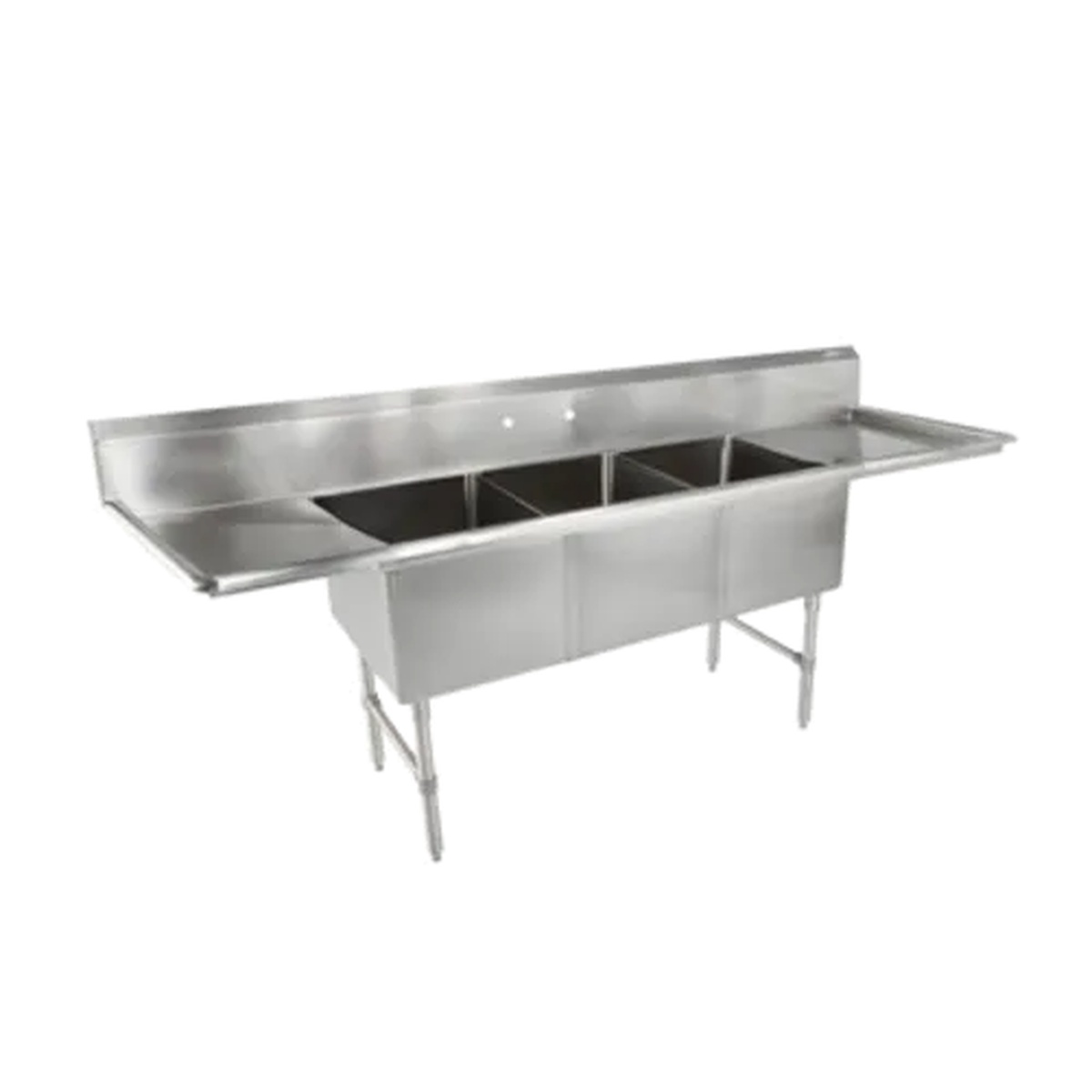

John Boos 3B16204-2D24-X three-compartment stainless steel sink with dual 24-inch drainboards on white background

B Series Three-Compartment Sink with Dual Drainboards

The John Boos 3B16204-2D24-X delivers a full 99-1/4" workspace in a single unit, combining three deep wash compartments with 24" drainboards on both the left and right sides. Built from 16-gauge 300 series stainless steel, it is designed to handle the demands of a high-volume commercial kitchen.

Three compartments: 16"W x 20" front-to-back x 14" deep each
Two 24" drainboards, one on each side
Overall dimensions: 99-1/4"W x 25-1/2"D x 44"H
All corners coved at 3/4" radius and bullnosed for safe, clean edges

Key Specifications

Compartments3 compartments, 16"W x 20"D x 14" deep

Overall Size99-1/4"W x 25-1/2"D x 44"H

Backsplash10"H boxed, 2" return at 45 degrees, 1" faucet holes

Legs and Feet1-5/8" O.D. stainless steel legs, 1" adjustable bullet feet

Bracing1-1/4" round O.D. adjustable stainless steel side bracing

Weld QualityTIG welded top; MIG welded base; exposed welds polished to match

At a Glance

16 ga

Type 300 Stainless Steel

3 + 2

Compartments + Drainboards

99-1/4"

Total Width

Ideal For

Full-service restaurants Institutional kitchens Catering operations School and hospital cafeterias NSF-required commercial kitchens

From the Cresco Resco Team

Why You'll Love It

The John Boos 3B16204-2D24-X B Series sink brings NSF-certified, professional-grade wash station performance to any commercial kitchen in a single, expansive unit.

Perfect for high-volume operations requiring a complete wash, rinse, and sanitize workflow in one run of equipment.
Dual 24" drainboards and 14" deep compartments maximize utility without requiring additional countertop space.
Pair with a splash-mount faucet (8" centers, faucet holes pre-drilled in backsplash) to complete the workstation setup.

Specifications

Model	3B16204-2D24-X
Series	B Series
Number of Compartments	3
Overall Dimensions (W x D x H)	99-1/4" x 25-1/2" x 44"
Compartment Size (W x D x Depth)	16" W x 20" front-to-back x 14" deep
Number of Drainboards	2
Drainboard Configuration	Left & Right, 24" each
Material	Type 300 Stainless Steel
Gauge	16 Gauge
Finish	#4 Polish, Satin Finish
Base Construction	MIG Welded Stainless Steel
Top/Bowl Construction	TIG Welded; exposed welds polished to match adjacent surfaces
Legs	1-5/8" Round O.D. Stainless Steel
Bracing	1-1/4" Round O.D. Stainless Steel (adjustable side bracing)
Gussets	Stainless Steel
Feet	1" Adjustable Stainless Steel Bullet Feet
Corner Radius	3/4" (all vertical and horizontal corners, coved)
Backsplash Height	10" (boxed, full length, with 2" return to wall at 45°, 1" turned down rear lip)
Drain Opening	3-1/2" Diameter Die Stamped
Faucet Holes	1" diameter, 8" on-center, splash mount in backsplash
Certifications	NSF
Weight	131 lb
