Bunn-O-Matic

BUNN 39100.0000 H5E-DV PC Dual-Volt Portion Control Hot Water Dispenser, 5 Gallon, 200°F

$1,390.00 ~~Precio rebajado$2,106.00ahorra $716.00~~

Key Features:

5-Gallon Plumbed Capacity: Direct-connection design automatically refills the tank, ensuring a continuous supply of hot water at high-volume prep stations without manual intervention.
Three Programmable Portion Control Settings: Front-mounted portion control buttons let operators dispense three preset hot water volumes with a single press; portions are fully adjustable from the front panel without additional software or hardware.
Push-and-Hold Continuous Dispense: A dedicated manual dispense button allows flexible, unmetered output for custom volume needs beyond the three preset portions.
Precise Temperature Control (60°F-210°F): Temperature is adjustable in precise 1-degree increments across a 60°F-210°F range, with a factory preset of 200°F, ensuring consistent results for gravies, sauces, gelatins, and other reconstituted foods.
Dual Voltage Adaptable: Compatible with 120V/15A or 120/208-240V/20A electrical service, providing installation flexibility across a variety of commercial kitchen configurations.
All Stainless Steel Construction: Full stainless exterior resists rust, withstands demanding kitchen environments, and simplifies sanitation.
LED Status Indicators: Dedicated Heating, Ready, and Power LED lights on the front panel give staff an at-a-glance view of unit status, reducing guesswork and improving kitchen workflow.
Large Cup Clearance: 16 4/5-inch height-to-dispenser clearance accommodates tall containers, reducing the need for manual transfers and improving safety.
NSF Certified: Meets NSF standards for commercial food service equipment, supporting health code compliance.
4,050W / 19.5A Power Output: High-wattage heating element delivers rapid recovery to keep hot water consistently available during peak service periods.
Direct Plumbed Connection: 1/4-inch male flare water inlet connects directly to a water supply line (20-90 PSI), eliminating manual refilling and reducing labor.
Compact Footprint: At just 7" W x 17.4" D x 28.4" H, the unit fits efficiently at a prep site to increase speed, safety, and efficiency for kitchen staff.

Detailed Description

The BUNN H5E-DV PC (39100.0000) is a 5-gallon plumbed hot water dispenser engineered for commercial kitchen prep stations where speed, safety, and consistency are critical. Its dual-voltage design offers flexible installation at 120V/15A or 120/208-240V/20A, making it adaptable to virtually any commercial electrical configuration. Three front-programmable portion-control buttons dispense precise amounts of hot water, while a push-and-hold button enables continuous manual dispensing for custom volumes. Temperature is precisely adjustable in 1-degree increments across a wide 60°F to 210°F range, with a factory preset at 200°F for optimal performance with powdered foods, gravies, and hot beverages. The all-stainless construction resists rust and simplifies sanitation, and LED indicator lights confirm heating and ready-to-dispense status at a glance.

Product Details

Programmable Portion Control

Three preset portion sizes plus push-and-hold continuous dispense for full flexibility.

Precise Temperature Range

60-210°F adjustable in 1° increments, preset at 200°F for consistent results.

All Stainless Construction

Rust-resistant stainless steel body stands up to demanding commercial kitchen environments.

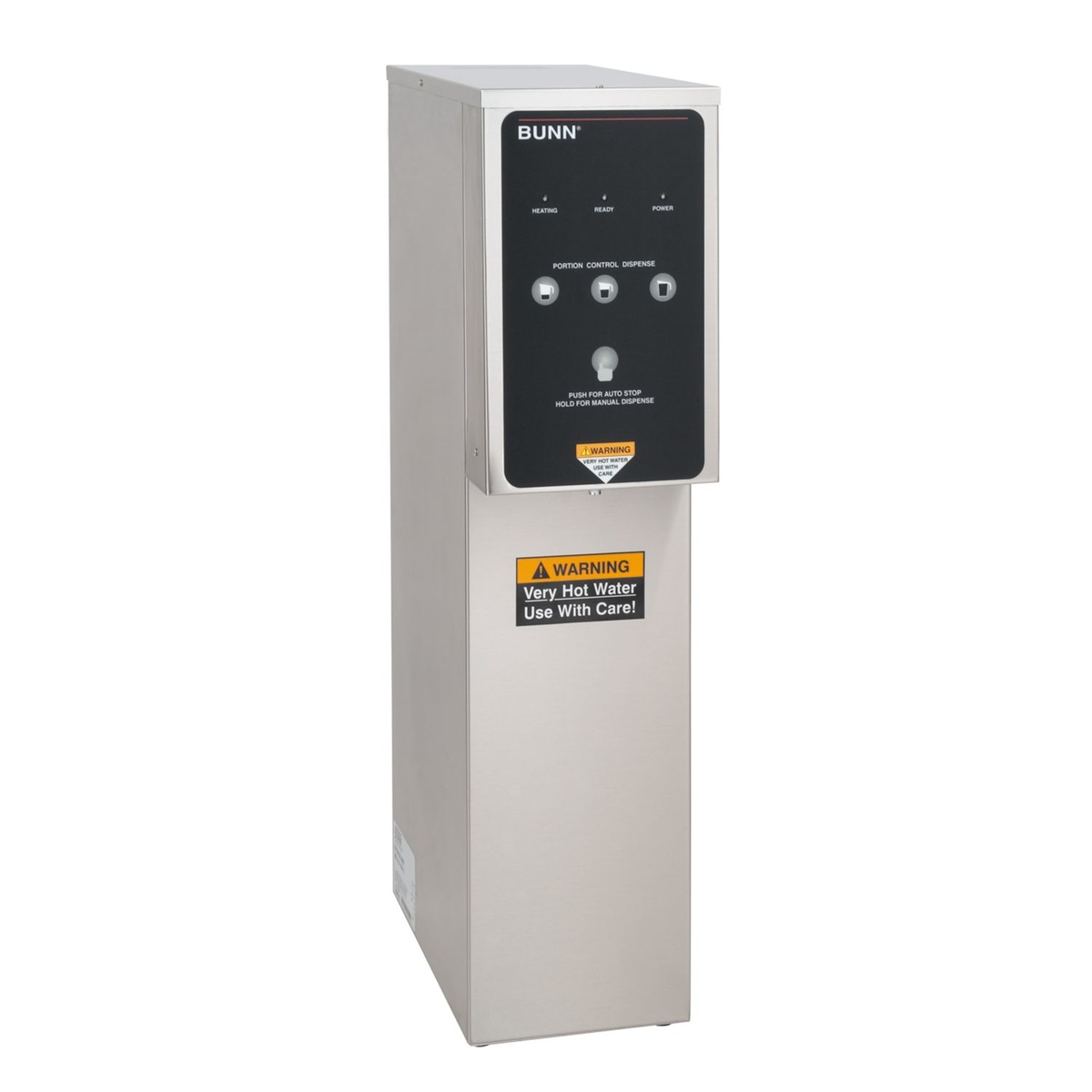

Bunn H5E-DV PC hot water dispenser with front control panel showing portion control buttons and LED status indicators

Hot Water On Demand, Where You Need It

The Bunn H5E-DV PC brings a reliable, high-capacity hot water supply directly to your prep area. With a 5-gallon tank and an auto-refill system, this dispenser keeps up with the pace of a busy commercial kitchen without interruption.

Front-mounted controls for easy, front-of-machine volume programming
Three clearly labeled portion-control buttons for repeatable dispensing
Push-and-hold manual dispense button for custom pour volumes
LED indicators show heating, ready, and power status at a glance
Large 16 4/5 in. cup clearance accommodates tall containers

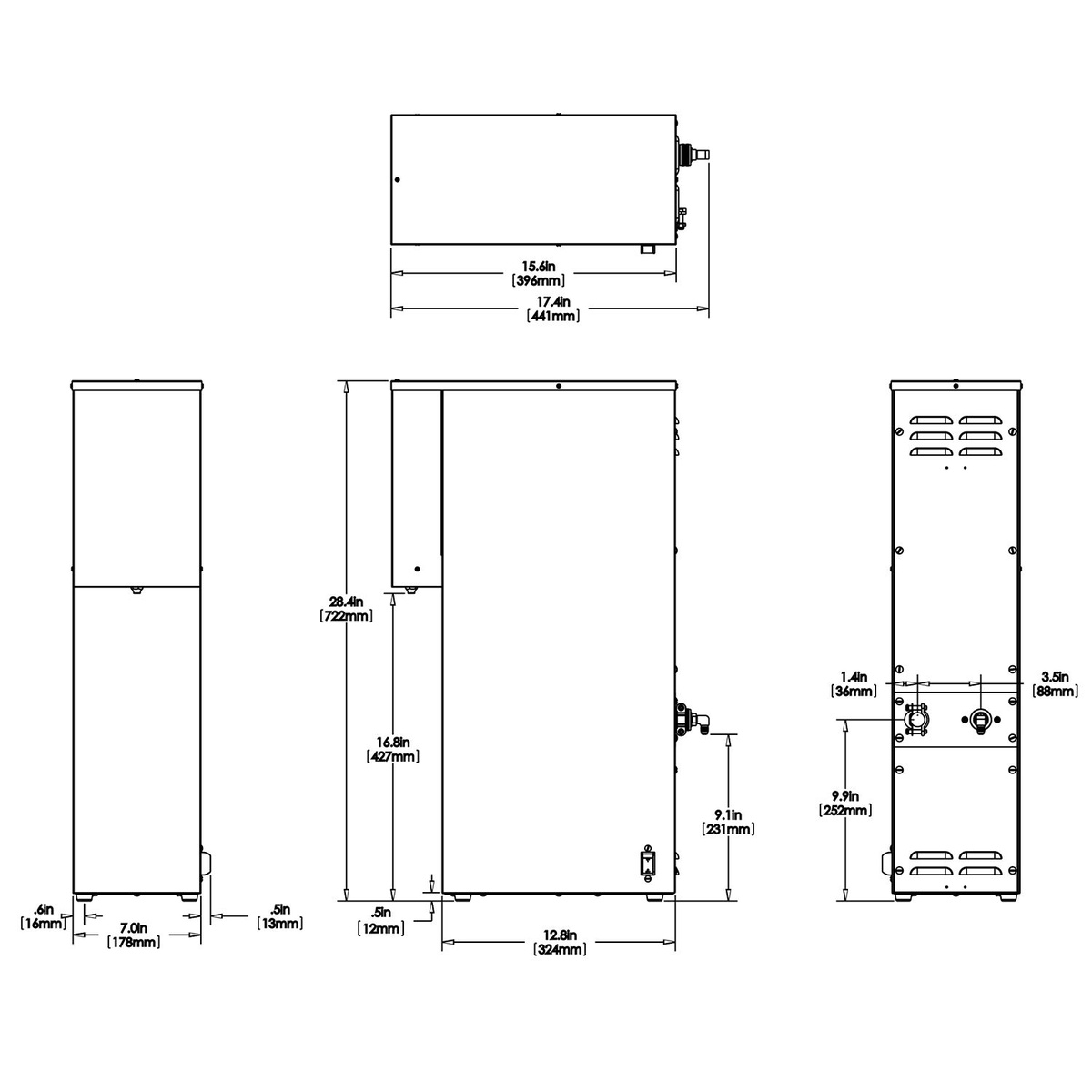

Technical dimension diagram of the Bunn H5E-DV PC hot water dispenser showing width, depth, height, and connection measurements

Compact Footprint, Commercial Capacity

Designed to fit tight prep areas without sacrificing output, the H5E-DV PC measures just 7" wide while delivering a full 5-gallon capacity. Its slim profile makes it easy to position exactly where hot water is needed most.

Dimensions: 7" W x 17.4" D x 28.4" H
5-gallon tank capacity with automatic self-refill
1/4 in. male flare direct water connection
Water supply pressure: 20-90 PSI

Key Specifications

Temperature Range60-210°F, adjustable in 1° increments

Portion Settings3 programmable + 1 continuous hold

ElectricalDual voltage: 120V/15A or 120/208-240V/20A

Power4,050 Watts | 60 Hz | 1 Phase

Performance at a Glance

5 gal.

Tank Capacity

200°F

Preset Temperature

60-210°F

Adjustable Range

Ideal For

Mashed potato & gravy prep Cheese sauce & powdered foods Gelatin reconstitution Kitchen prep stations Cafeterias & catering operations NSF-certified commercial kitchens

From the Cresco Resco Team

Why You'll Love It

The Bunn H5E-DV PC brings precision, consistency, and convenience together in a compact, all-stainless hot water dispenser built for commercial demands.

Perfect for high-throughput prep kitchens that rely on consistent, measured hot water delivery at the point of use.
Dual voltage adaptability means it integrates into virtually any commercial electrical configuration without extra hardware.
NSF certified and backed by a 1-year parts and labor warranty for peace of mind in professional foodservice settings.

Specifications

Model	H5E-DV PC
SKU / MPN	39100.0000
Capacity	5 Gallons
Height	28.4" (722 mm)
Width	7.0" (178 mm)
Depth	17.4" (441 mm)
Height to Dispenser	16.8" (427 mm)
Cup Clearance	16 4/5"
Weight	32.8 lb
Voltage	Dual Voltage - 120V/15A or 120/208-240V/20A
Wattage	4,050 W
Amperage	16.9 A
Frequency	60 Hz
Phase	1 Phase
Plug Type	Hardwire
Preset Temperature	200°F
Temperature Range	60°F - 210°F (15.5°C - 98.9°C)
Temperature Adjustment	Adjustable in 1° increments
Dispense Portions	3 programmable portion sizes + push-and-hold continuous dispense
Water Source	Direct Plumbed Connection
Water Connection	1/4" Male Flare
Water Pressure	20 - 90 PSI
Material	Stainless Steel
Certifications	NSF, UL
Warranty	1-Year Parts & Labor
