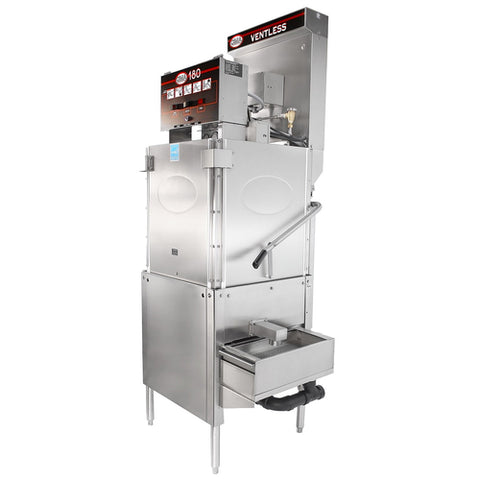

CMA Dishmachines CMA-180-VL TALL Ventless Door Type High-Temp Dishwasher with Booster

$19,898.00 ~~Precio rebajado$33,163.00ahorra $13,265.00~~

Key Features:

Ventless heat recovery and condensation removal system eliminates the need for a dedicated vent hood while capturing wash/rinse vapor heat to preheat incoming water for the booster.
Safe-T-Temp system verifies a 180 sanitizing final rinse and holds the machine in the wash cycle until booster thermostat requirements are met.
High-temperature, fully automatic door-type operation with approximately 40 racks per hour throughput (90-second minimum cycle).
Built-in electric heating package: 12 kW booster heater plus 6 kW wash tank heater.
Door Safety Interlock locks doors throughout the cycle to maintain the ventless vapor evacuation process and protect operators.
28 inch dish clearance for taller wares.
All stainless steel construction with wash tank screens to help keep soil out of spray arms; straight-thru or corner (3-door) configuration flexibility.

Denver

Normalmente está listo en 2 a 4 días

Fresno

Normalmente está listo en 2 a 4 días

CMA Dishmachines CMA-180-VL TALL Ventless Door Type High-Temp Dishwasher with Booster

$19,898.00~~$33,163.00~~

Detailed Description

The CMA Dishmachines CMA-180-VL TALL is a ventless, door-type high-temperature dishwasher designed to eliminate the need for an external hood system. Its heat recovery condensation removal process captures vapor energy to preheat incoming water, helping reduce operating costs while maintaining performance. Safe-T-Temp controls help ensure a 180°F sanitizing final rinse, while a door safety interlock keeps the cycle from being interrupted during steam evacuation. With tall ware clearance and approximately 40 racks per hour throughput, it is built for busy kitchens needing reliable sanitation in a compact footprint.

Product Details

Ventless Heat Recovery

Condenses and evacuates vapor so a vent hood is not required.

Sanitizing Final Rinse

Safe-T-Temp helps assure a 180F final rinse every cycle.

Fast Throughput

90-second cycle supports approximately 40 racks per hour.

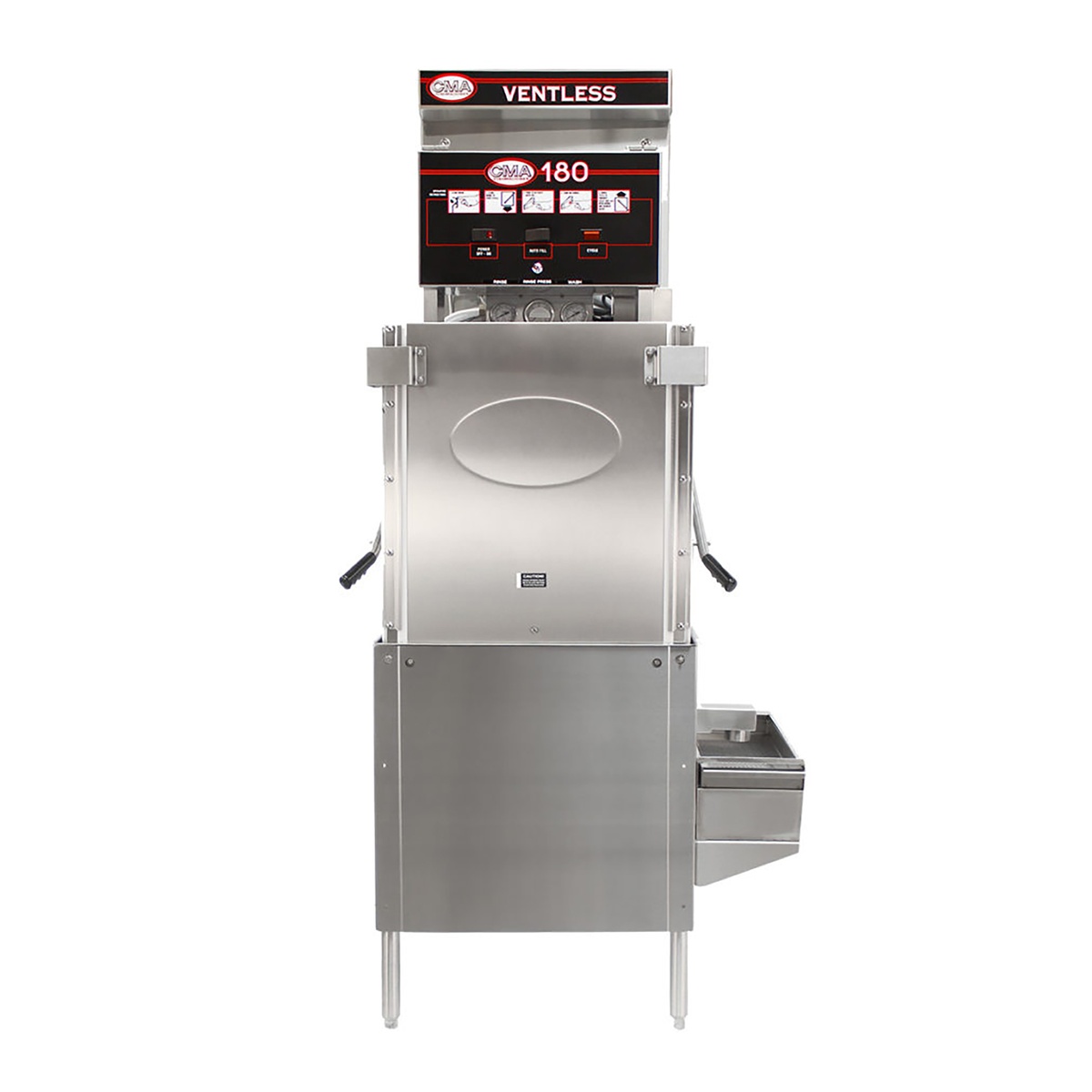

CMA Dishmachines 180-VL Tall ventless door-type dishwasher front view

Ventless Door-Type Dishwasher for Tall Ware

The CMA 180-VL Tall is built to deliver high-temperature sanitation with a ventless heat recovery process and extra dish clearance for larger items.

Ventless heat recovery and condensation removal system
28 inch dish clearance for taller wares
Door safety interlock helps keep doors locked through the full cycle

Key Specifications

Capacity

Approximately 40 racks per hour

Cycle Time

Minimum 90 seconds (wash and rinse plus steam evacuation)

Heating

12 kW booster heater, 6 kW wash tank heater

Dimensions

25.5 in W x 29 in D x 96.31 in H

Construction

Stainless steel

Water Use

Up to 0.89 gal per rack (approx), 36 gal per hour (approx)

Ideal For

Built for operations that want high-temperature results without the added complexity of a dedicated exhaust hood.

Space-conscious dishrooms Retrofits and remodels High-volume service Tall dish and pan loads

From the Cresco Resco Team

Why You'll Love It

A ventless, high-temperature door-type dishwasher designed to sanitize reliably while helping reduce hood related installation and operating demands.

Great for kitchens needing a tall 28 inch clearance machine.
Safe-T-Temp and door safety interlock support consistent, controlled cycles.
Heat recovery pre-heats incoming water to help the booster reach target temperature faster.

Specifications

Manufacturer	CMA Dishmachines
Model	CMA-180-VL TALL (180-VL Tall)
Dishwasher type	Ventless door-type (heat recovery and condensation removal)
Sanitizing	High temperature with built-in booster
Rack capacity	Approx. 40 racks/hour
Maximum dish clearance	28 in
Cycle	Fully automatic; minimum 90-second cycle (60-second wash/rinse + 30-second steam evacuation)
Water consumption	Max. 0.89 gal/rack (approx. 36 gal/hour)
Construction	Stainless steel
Installation configuration	Universal (straight-thru or corner); 3-door feature
Drain type	Gravity drain
Booster heater	Built-in 12.0 kW
Wash tank heater	6.0 kW
Wash pump motor	1 HP
Electrical	208/240/480V; 60 Hz; field convertible 3-phase to 1-phase (example configuration: 240V/60/3, 55.0A)
Key controls and safety	Door-actuated start; Safe-T-Temp 180°F final rinse; door safety interlock
Overall dimensions (W x D x H)	25.5 in x 29 in x 96.31 in
Weight	625 lb
Certifications	NSF; cULus; ENERGY STAR (ASTM also listed by one source)
