ADVANCE TABCO

Advance Tabco DI-1-5SP-1X 1-Compartment Drop-In Sink with Side Splash, 10" x 14" x 5" Bowl

$878.00 ~~Precio rebajado$1,608.00ahorra $730.00~~

Key Features:

Drop-In Design for Existing Countertops: Installs directly into a cutout on any existing work table or countertop, compatible with 12-1/4" x 18-1/4" cutouts for easy retrofitting.
Seamless One-Piece Deep-Drawn Bowl: The single-compartment bowl is formed from a single piece of steel with no seams, eliminating leak points and simplifying sanitation.
10" x 14" x 5" Deep Bowl: Rectangular bowl design maximizes usable capacity, making it well-suited for hand washing stations in high-traffic commercial kitchen environments.
Large Coved Bowl Corners: Generously rounded interior corners with a minimum 2" radius prevent debris from accumulating and reduce bacterial harborage points.
6" Backsplash and Tapered Side Splashes: Integrated splash guards contain water and soap splatter, protecting surrounding countertop surfaces and keeping the work area dry.
Deck-Mount Gooseneck Faucet Included: Comes with a K-52 deck-mounted gooseneck faucet featuring 4" on-center connections and an aerator, providing ample clearance inside the bowl.
Basket Drain Included: Fitted with a 1-1/2" IPS basket drain to catch debris and control drainage, reducing the risk of clogs in busy kitchen operations.
20-Gauge Type 304 Stainless Steel: Constructed from commercial-grade 304 series stainless steel for corrosion resistance, durability, and long-term performance in demanding foodservice environments.
Self-Rim Design with Mounting Kit Included: The self-rimming edge provides a secure, finished installation, and all necessary mounting hardware is included for standard counter thicknesses (7/8" to 1-1/2").
NSF Listed: Certified to meet NSF sanitation standards, ensuring compliance with health department requirements for commercial foodservice installations.

Detailed Description

The Advance Tabco DI-1-5SP-1X is a single-compartment drop-in hand sink engineered to install directly into existing countertops or work tables, making it an efficient upgrade for any commercial kitchen or bar. Fabricated from 20-gauge Type 304 stainless steel, its one-piece seamless deep-drawn bowl measures 10 wide x 14 front-to-back x 5 deep, providing ample volume for hand washing while resisting corrosion and wear. Large coved bowl corners eliminate debris traps and make routine cleaning fast and thorough. The unit ships complete with a deck-mounted gooseneck faucet, basket drain, and mounting hardware, so installation is straightforward with no additional components required. NSF listed, it meets the hygiene standards demanded in regulated foodservice environments.

Product Details

Seamless One-Piece Bowl

Deep-drawn construction with large coved corners for easy cleaning and no debris traps.

20-Gauge 304 Stainless Steel

Commercial-grade stainless steel body built to withstand demanding daily use.

Complete Ready-to-Install Kit

Includes gooseneck faucet, basket drain, and mounting hardware for a hassle-free setup.

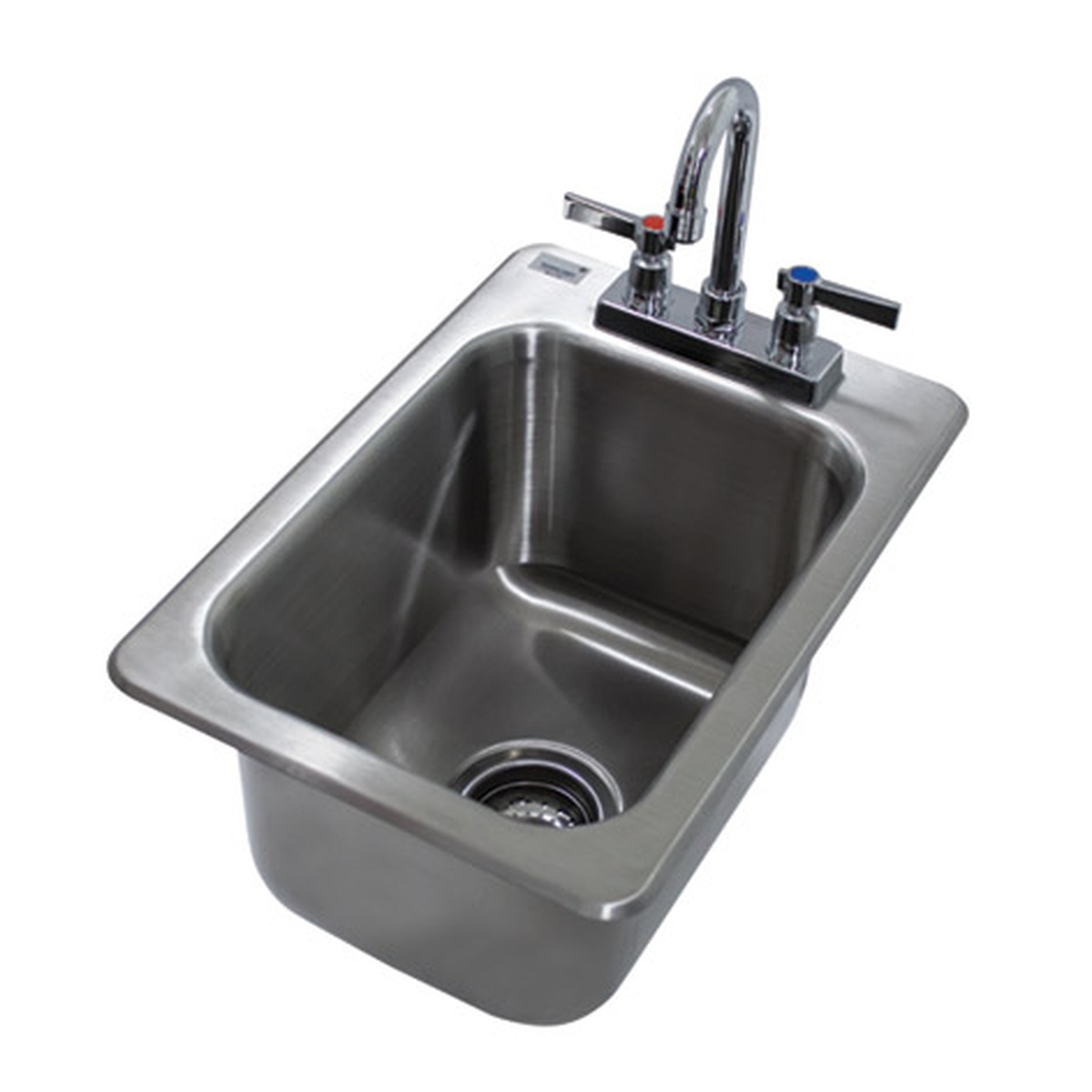

Advance Tabco DI-1-5SP-1X single-compartment stainless steel drop-in sink with gooseneck faucet and basket drain

Designed to Drop In and Get to Work

The Advance Tabco DI-1-5SP-1X is a single-compartment drop-in hand sink engineered to fit seamlessly into existing countertops and work tables. Its self-rim design and included mounting clips make installation straightforward on counters up to 1-1/2 inches thick.

Fits compatible 12-1/4" x 18-1/4" cutouts
Self-rim design with mounting hardware included
Bowl: 10" wide x 14" front-to-back x 5" deep
Overall dimensions: 13" W x 19" D x 11" H

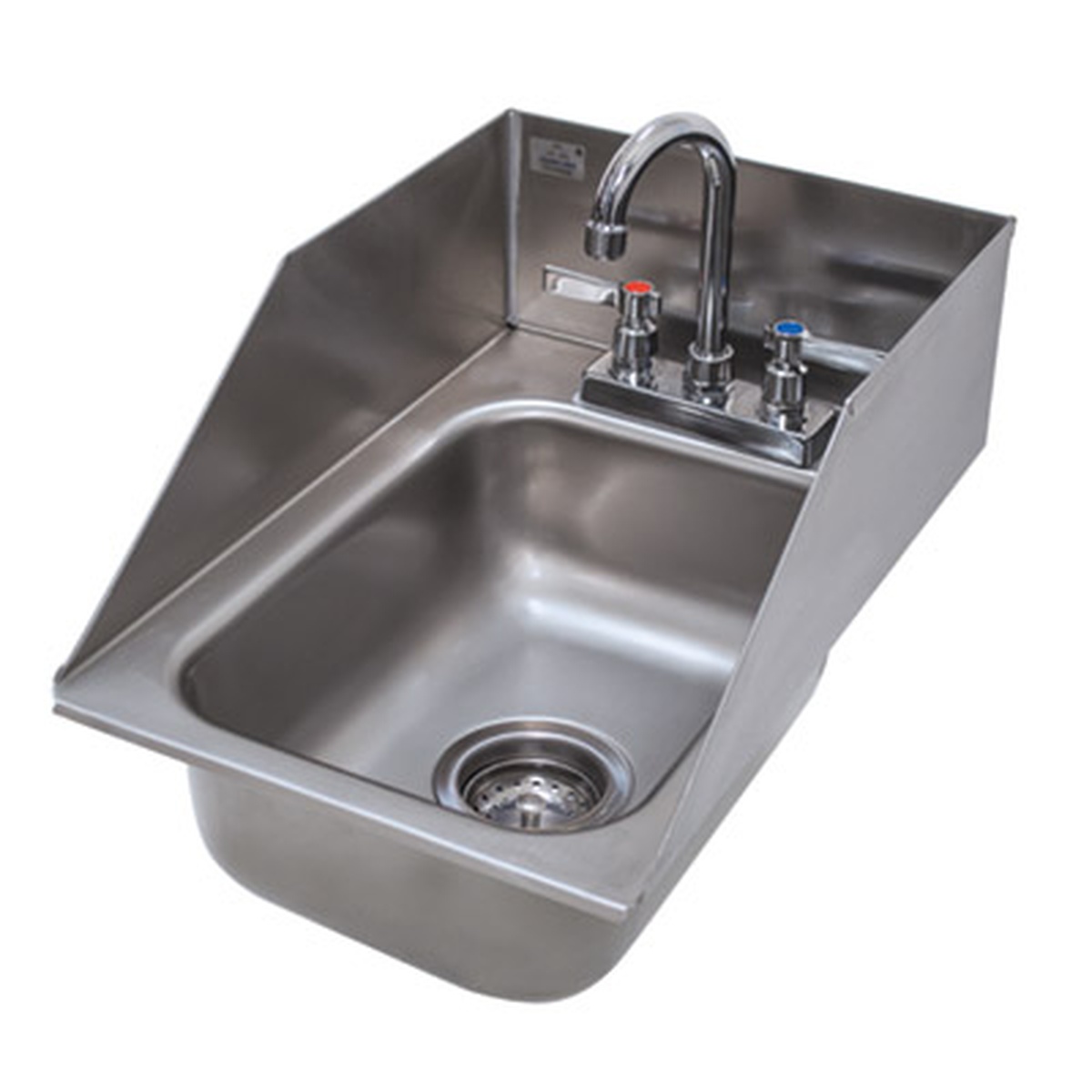

Advance Tabco drop-in sink with 6-inch backsplash and tapered side splashes shown from angle

Splash Guards That Keep Your Station Clean

A 6-inch backsplash and tapered side splashes contain water and soap within the sink area, protecting adjacent work surfaces and reducing cleanup time during busy service periods.

6" tapered side splashes catch water and soap splatter
Rectangular bowl design maximizes usable capacity
Deck-mount gooseneck faucet with 4" on-center connections
Faucet supply: 1/2 IPS male thread with aerator

Key Specifications

Material20-gauge type 304 stainless steel

Bowl Size10" W x 14" L x 5" D

Drain3-1/2" stainless steel drain with basket

CertificationNSF Listed

Compartments1 compartment

Warranty90-day parts

Ideal For

Hand-washing stations Commercial kitchens Food prep counters Bars and concession stands Retrofit installations

From the Cresco Resco Team

Why You'll Love It

The Advance Tabco DI-1-5SP-1X delivers a complete, NSF-listed hand sink solution that drops right into your existing countertop with minimal effort.

Perfect for commercial kitchens, bars, and food prep areas that need a dedicated hand-washing or utility sink without a major renovation.
The seamless deep-drawn 304 stainless steel bowl with coved corners makes sanitation straightforward and resists the wear of daily commercial use.
Everything needed for installation arrives together: gooseneck faucet, basket drain, side splashes, and mounting hardware.

Specifications

Model Number	DI-1-5SP-1X
Type	Drop-In Sink
Number of Compartments	1
Bowl Dimensions	10" W x 14" Front-to-Back x 5" Deep
Overall Dimensions	13" W x 19" D x 11" H
Required Cutout Size	12-1/4" x 18-1/4"
Bowl Shape	Rectangular
Material	20-Gauge Type 304 Stainless Steel
Bowl Construction	One-Piece Seamless Deep-Drawn
Backsplash	6" Tapered Side Splashes
Faucet	Deck-Mount Gooseneck (K-52), 4" O.C. Connections, 1/2" IPS Male Thread Supply
Drain	3-1/2" Stainless Steel with Basket, 1-1/2" IPS
Mounting Hardware	Included (Model K-28 Clips; for counters up to 1-1/2" thick)
Weight	16 lbs
Certifications	NSF Listed
Warranty	90-Day Parts
