T&S Brass

T&S Brass 069X Double Joint Swing Nozzle, 24" Overall Length

$89.87 ~~Precio rebajado$163.40ahorra $73.53~~

Key Features:

Double Joint Swing Design: Features two independent swivel joints connecting a 12" back section and 12" front section for a 24" overall reach, providing exceptional flexibility and positioning range over commercial sinks.
Chrome-Plated Brass Construction: Heavy-duty brass tubular spout with a polished chrome finish delivers lasting durability and corrosion resistance in demanding commercial foodservice environments.
Laminar Flow / Stream Regulator Outlet: Equipped with a Series 1 stream regulator outlet tip that produces a smooth, non-aerating laminar flow at 19.2 GPM (72.67 L/min), reducing splash and improving rinsing efficiency.
Universal Compatibility: Fits all standard T&S Brass swivel outlet faucets, making it a versatile replacement or upgrade for existing T&S installations.
Wide Operating Range: Rated for water temperatures from 40°F to 140°F (4.44°C to 60°C) and pressures from 20 to 125 psi (1.38 to 8.62 bar), suitable for a broad range of commercial plumbing systems.
Multi-Standard Certified: Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 (low lead compliance), meeting rigorous health and safety requirements for commercial foodservice use.
FNPT Connections: Both inlet and outlet feature FNPT (Female National Pipe Thread) connections for straightforward installation with standard commercial plumbing fittings.
Limited 1-Year Warranty: Backed by T&S Brass's limited one-year warranty for added peace of mind in professional kitchen settings.

Fresno

Normalmente está listo en 2 a 4 días

Reno

Normalmente está listo en 2 a 4 días

T&S Brass 069X Double Joint Swing Nozzle, 24" Overall Length

$89.87~~$163.40~~

Detailed Description

The T&S Brass 069X is a double joint swing nozzle engineered for demanding commercial foodservice environments, offering a generous 24-inch overall reach through two independently articulating 12-inch sections. Built from durable chrome-plated brass, this nozzle delivers up to 19.2 GPM through a laminar flow stream regulator outlet, providing a consistent, controlled flow ideal for pot washing, produce rinsing, and general sink use. The double-joint design maximizes range of motion and flexibility, fitting all standard T&S Brass swivel outlet faucets for seamless integration. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372, it meets the strictest safety and lead-free standards required in professional kitchen settings.

Product Details

Chrome-Plated Brass Construction

Double-joint tubular spout built for lasting durability in demanding commercial sink environments.

Laminar Flow Stream Regulator

Series 1 stream regulator outlet tip delivers a smooth, controlled flow at up to 19.2 GPM.

Multi-Standard Certified

Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 for safe commercial use.

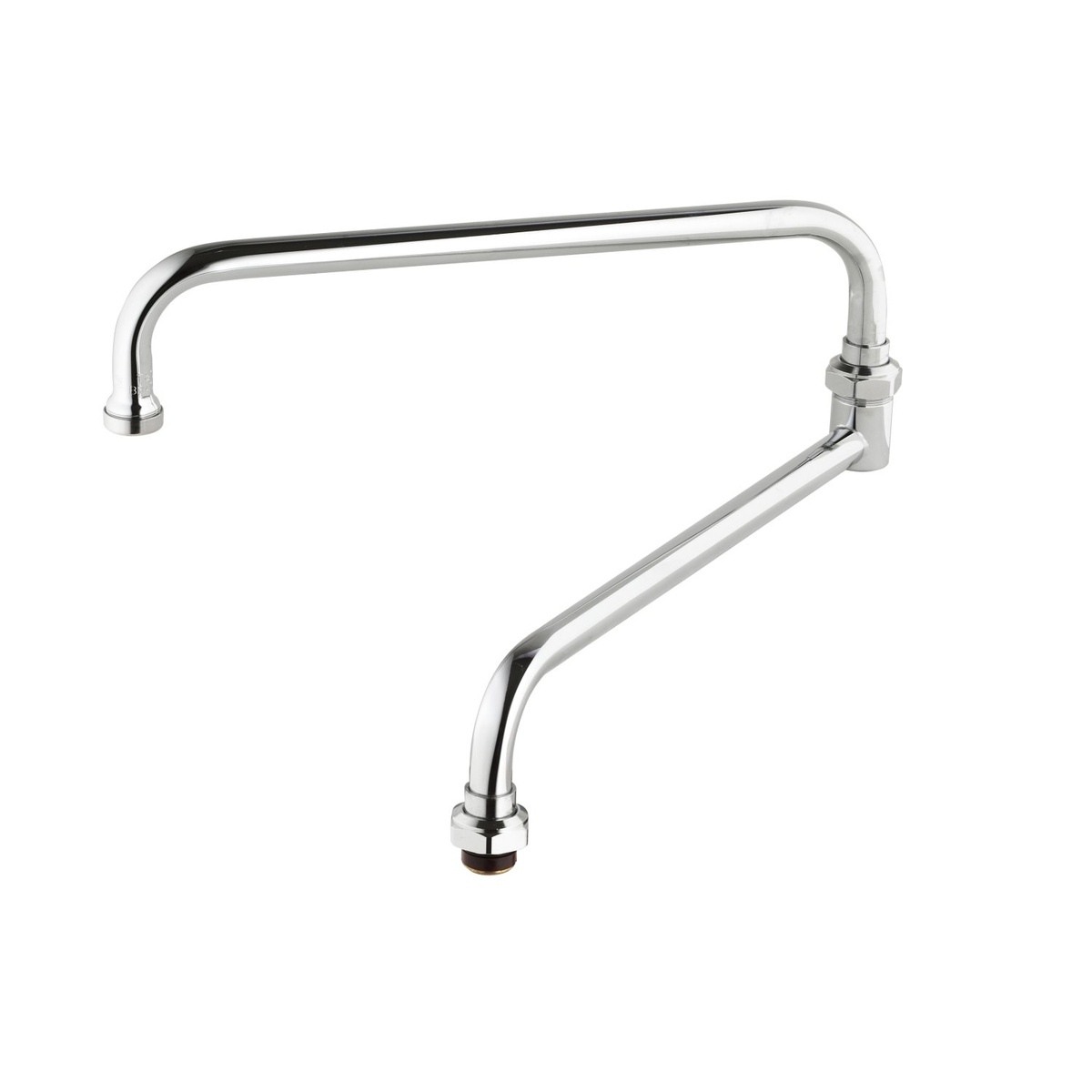

T&S Brass 069X double joint swing nozzle with chrome-plated finish, showing 12-inch back section and 12-inch front section with laminar flow outlet tip

24-Inch Double Joint Swing Nozzle

The T&S Brass 069X features two independently articulating 12-inch sections connected at a double swivel joint, providing exceptional reach and positioning flexibility over commercial sinks.

12" back section + 12" front section for 24" overall reach
Fits all standard T&S Brass swivel outlet faucets
FNPT inlet and outlet connection type
Low-lead compliant brass construction

Key Specifications

MaterialChrome-plated brass

Flow Rate19.2 GPM (72.67 L/min)

Pressure Range20-125 psi (1.38-8.62 bar)

Temperature Range40-140°F (4.44-60°C)

At a Glance

24"

Overall Length

19.2

GPM Flow Rate

125 psi

Max Pressure

Ideal For

Commercial restaurant kitchens Food service sink stations T&S Brass swivel faucet upgrades High-volume pot washing

From the Cresco Resco Team

Why You'll Love It

The T&S Brass 069X delivers the reach and flexibility professional kitchens demand, backed by rigorous safety certifications and a durable chrome-plated finish.

Perfect replacement or upgrade for any T&S Brass swivel outlet faucet setup.
Double-joint articulation allows precise positioning for large pots and deep sinks.
NSF 372 low-lead and NSF 61-Section 9 certifications ensure compliance in commercial foodservice environments.

Specifications

Model Number	069X
Product Type	Double Joint Swing Nozzle
Overall Length	24 in (609.6 mm)
Back Section Length	12 in (304.8 mm)
Front Section Length	12 in (304.8 mm)
Material	Brass, Chrome Plated
Finish	Chrome
Outlet Type	Laminar Flow / Stream Regulator
Flow Rate	19.2 GPM (72.67 L/min)
Inlet Connection Type	FNPT
Outlet Connection Type	FNPT
Max Pressure	125 psi (8.62 bar)
Min Pressure	20 psi (1.38 bar)
Max Temperature	140°F (60°C)
Min Temperature	40°F (4.44°C)
Compatibility	Fits all standard T&S Brass swivel outlet faucets
Weight	2.5 lb
Item Dimensions (L x W x H)	14 x 8 x 2 in
Certifications	ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372
Low Lead Compliant	Yes
Warranty	Limited 1 Year
