T&S Brass

T&S Brass 012444-25 Cerama Cartridge with Bonnet, RTC (Hot), Lever Handle

$49.56 ~~Precio rebajado$90.10ahorra $40.54~~

Key Features:

Ceramic Cartridge Design: Features a Cerama ceramic cartridge and spindle assembly for long-lasting, drip-free performance in high-demand commercial foodservice environments.
Hot Side Replacement (RTC): Specifically designed as a right-side hot water cartridge replacement, ensuring proper flow and temperature control on compatible T&S Brass faucets.
Complete Assembly with Bonnet: Includes the cartridge, bonnet, lever handle with red hot index, and mounting screw for a straightforward, all-in-one replacement installation.
Lever Handle: Chrome-plated metal lever handle provides easy single-hand operation and ergonomic control, compliant with ANSI A117.1 (ADA) accessibility standards.
Wide Operating Range: Rated for flow up to 7.66 GPM (28.99 L/min), pressures from 20 to 125 psi (1.38 to 8.62 bar), and temperatures from 40°F to 180°F (4.44°C to 82.22°C), suitable for demanding commercial applications.
Premium Materials: Constructed of chrome-plated brass body and chrome-plated metal handle for durability and corrosion resistance in wet commercial environments.
Industry Certifications: Meets ASME A112.18.1 / CSA B125.1 standards and NSF/ANSI 372 (Lead Content), ensuring code compliance and safe use in food service and institutional settings.
ADA Compliant: Lever handle design meets ANSI A117.1 (ADA) requirements, supporting accessibility compliance in commercial and institutional installations.

Denver

Normalmente está listo en 2 a 4 días

Reno

Normalmente está listo en 2 a 4 días

T&S Brass 012444-25 Cerama Cartridge with Bonnet, RTC (Hot), Lever Handle

$49.56~~$90.10~~

Detailed Description

The T&S Brass 012444-25 is a ceramic cartridge assembly with bonnet, engineered as a direct hot-side (RTC) replacement for commercial faucets in foodservice and plumbing environments. The ceramic spindle construction delivers exceptional wear resistance and long-term reliability under heavy daily use. The assembly ships complete with a chrome-plated lever handle, red hot-water index, and mounting screw for straightforward installation and clear hot-side identification. Rated for flow up to 7.66 GPM and a pressure range of 20 to 125 psi, it handles the demands of high-volume commercial operations without compromise. Certified to NSF/ANSI 372 and CSA B125.1 standards and compliant with ANSI A117.1 (ADA), this cartridge meets the regulatory requirements of professional kitchen and plumbing installations.

Product Details

Wide Temperature Range

Handles 40°F to 180°F (4.44°C to 82.22°C) for reliable hot-side performance.

Durable Ceramic Cartridge

Ceramic spindle cartridge with chrome plated brass body and chrome plated metal lever handle.

Certified and Compliant

Meets ASME A112.18.1 / CSA B125.1, NSF/ANSI 372, and ANSI A117.1 (ADA) standards.

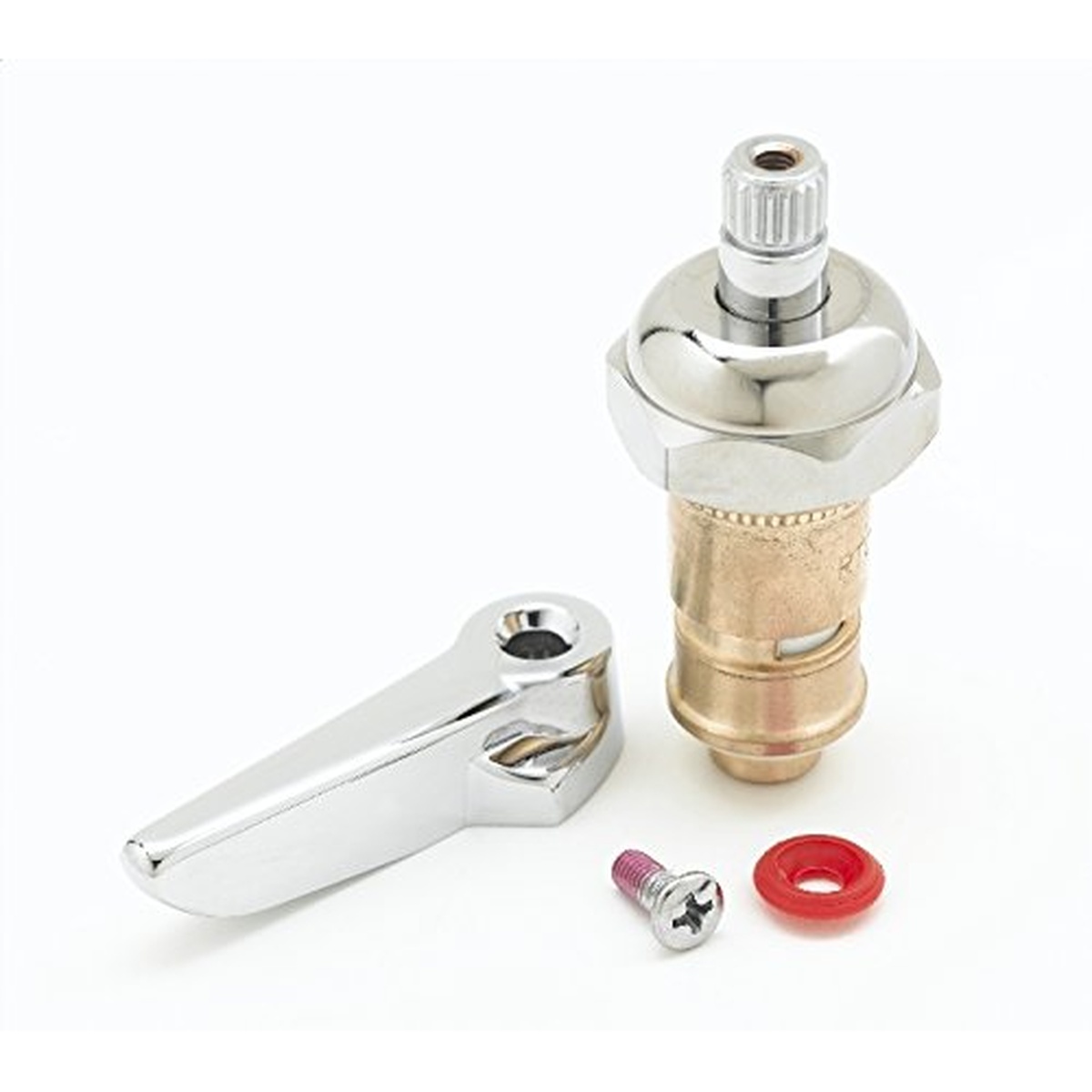

T&S Brass 012444-25 Cerama cartridge with bonnet, chrome lever handle, mounting screw, and red washer

Cerama Cartridge with Bonnet, Hot Side (RTC)

The T&S Brass 012444-25 is a complete hot-side replacement cartridge assembly designed for right-to-close (RTC) faucet applications. It includes the cerama cartridge, bonnet, lever handle with red index, and mounting screw - everything needed for a straightforward replacement.

Ceramic cartridge-spindle for long-lasting, drip-free performance
Lever handle with red hot-side index for easy identification
Chrome plated brass and metal construction for durability
Flows up to 7.66 GPM (28.99 L/min)

Key Specifications

Temperature Range40°F - 180°F (4.44°C - 82.22°C)

Pressure Range20 - 125 psi (1.38 - 8.62 bar)

Nozzle Flow7.66 GPM (28.99 L/min)

CertificationsASME A112.18.1 / CSA B125.1, NSF/ANSI 372, ADA

MaterialChrome plated brass body, chrome plated metal handle

Weight0.50 lbs (0.23 kg)

From the Cresco Resco Team

Why You'll Love It

The T&S Brass 012444-25 delivers a complete, certified hot-side cartridge replacement that restores reliable faucet performance with minimal effort.

Ideal for foodservice and commercial plumbing environments requiring ADA-compliant, certified replacement parts.
Ceramic cartridge-spindle construction resists wear and provides consistent, drip-free control over years of use.
Comes as a ready-to-install kit with lever handle, red index, and mounting screw included for a complete repair in one part.

Specifications

Brand	T&S Brass
Model / Part Number	012444-25
Product Type	Cerama Cartridge with Bonnet
Application	Hot (RTC)
Cartridge / Spindle Type	Ceramic
Handle Type	Lever (with red index and screw)
Material	Chrome plated brass body; chrome plated metal handle
Nozzle Flow Rate	7.66 GPM (28.99 L/min)
Maximum Pressure	125 psi (8.62 bar)
Minimum Pressure	20 psi (1.38 bar)
Maximum Temperature	180°F (82.22°C)
Minimum Temperature	40°F (4.44°C)
Certifications	ASME A112.18.1 / CSA B125.1; NSF/ANSI 372 (Lead Content)
Compliance	ANSI A117.1 (ADA)
Weight	0.50 lbs (0.23 kg)
Box Dimensions (L x W x H)	2.00 x 2.00 x 1.50 in
Country of Origin	United States
UPC	671262518482
