Turbo Air TGM-14RV-N6 One-Section Glass Door Refrigerated Merchandiser

$2,395.26 ~~Precio rebajado$6,413.00ahorra $4,017.74~~

Key Features:

Eco-Friendly R-600a Hydrocarbon Refrigerant: Utilizes EPA SNAP-approved R-600a hydrocarbon refrigerant with zero ozone depletion potential (ODP-0) and ultra-low global warming potential (GWP-3), meeting DOE Energy Conservation Standards.
Low-E Double Pane Glass Door: Right-hinged swing door features low-emissivity double pane glass that reduces exterior heat gain, minimizes condensation, and lowers overall energy consumption. Lightweight door construction also reduces bushing wear for smoother, longer-lasting operation.
LED Advertising Panel & Interior Lighting: Illuminated LED canopy advertising panel provides eye-catching merchandising appeal, while LED interior lighting offers up to 5x longer service life than fluorescent alternatives with lower energy draw.
Hot Gas Condensate System: Corrosion-treated condensate surfaces prevent refrigerant leakage, increase system efficiency, and eliminate the risk of condensate water overflow -- ideal for busy foodservice and retail environments.
High-Density Foamed-In-Place Polyurethane Insulation: HCFC-free, high-density polyurethane insulation is foamed in place throughout the entire cabinet structure for superior thermal retention and consistent holding temperatures of 33°F to 38°F.
4 Adjustable PE-Coated Wire Shelves: Includes four heavy-duty polyethylene-coated wire shelves (3 top + 1 bottom) that resist corrosion and support flexible product organization. Accommodates up to 150 full-line or 120 load-line bottles.
Anti-Corrosion Coated Evaporator: Factory-applied anti-corrosion coating on the evaporator extends component life and maintains reliable refrigeration performance over time.
Bottom-Mounted Self-Contained Compressor: 1/5 HP bottom-mounted compressor simplifies service access and features an energy-conserving fan control for optimized efficiency. Runs on 115V/60Hz/1-ph with a NEMA 5-15P plug at just 2.2 amps.
12.17 Cu. Ft. Capacity in a Compact Footprint: Delivers substantial merchandising space (23 5/8" W x 24 3/4" D x 73 5/8" H overall) suited for convenience stores, cafeterias, delis, and grab-and-go applications.
Industry Certifications: ETL-Sanitation and cETLus listed, ensuring compliance with commercial food equipment safety and sanitation standards.
Strong Warranty Coverage: Backed by a 2-year parts and labor warranty plus an additional 3-year compressor warranty (5 years total compressor coverage) for long-term peace of mind.

Turbo Air TGM-14RV-N6 One-Section Glass Door Refrigerated Merchandiser

$2,395.26~~$6,413.00~~

Detailed Description

The Turbo Air TGM-14RV-N6 is a one-section glass door refrigerated merchandiser built to maximize product visibility and drive impulse purchases in busy foodservice and retail settings. Its right-hinged Low-E double-pane glass door reduces heat transfer and condensation while maintaining an ideal holding temperature range of 33°F to 38°F for bottled beverages. The 12.17 cu. ft. interior supports up to 150 full-line bottles across four adjustable PE-coated wire shelves, illuminated by bright LED interior and canopy advertising lighting. A bottom-mounted compressor running on eco-friendly R600a hydrocarbon refrigerant meets DOE Energy Conservation Standards, while a hot gas condensate system and anti-corrosion coated evaporator ensure durable, dependable performance.

Product Details

Consistent Beverage Cooling

Maintains 33-38°F for optimal beverage preservation in any foodservice environment.

Flexible Storage Organization

Four adjustable, PE-coated wire shelves adapt to bottles, cans, and cartons of all sizes.

Energy-Efficient Design

Low-E double-pane glass door, R600a hydrocarbon refrigerant, and LED lighting reduce energy consumption.

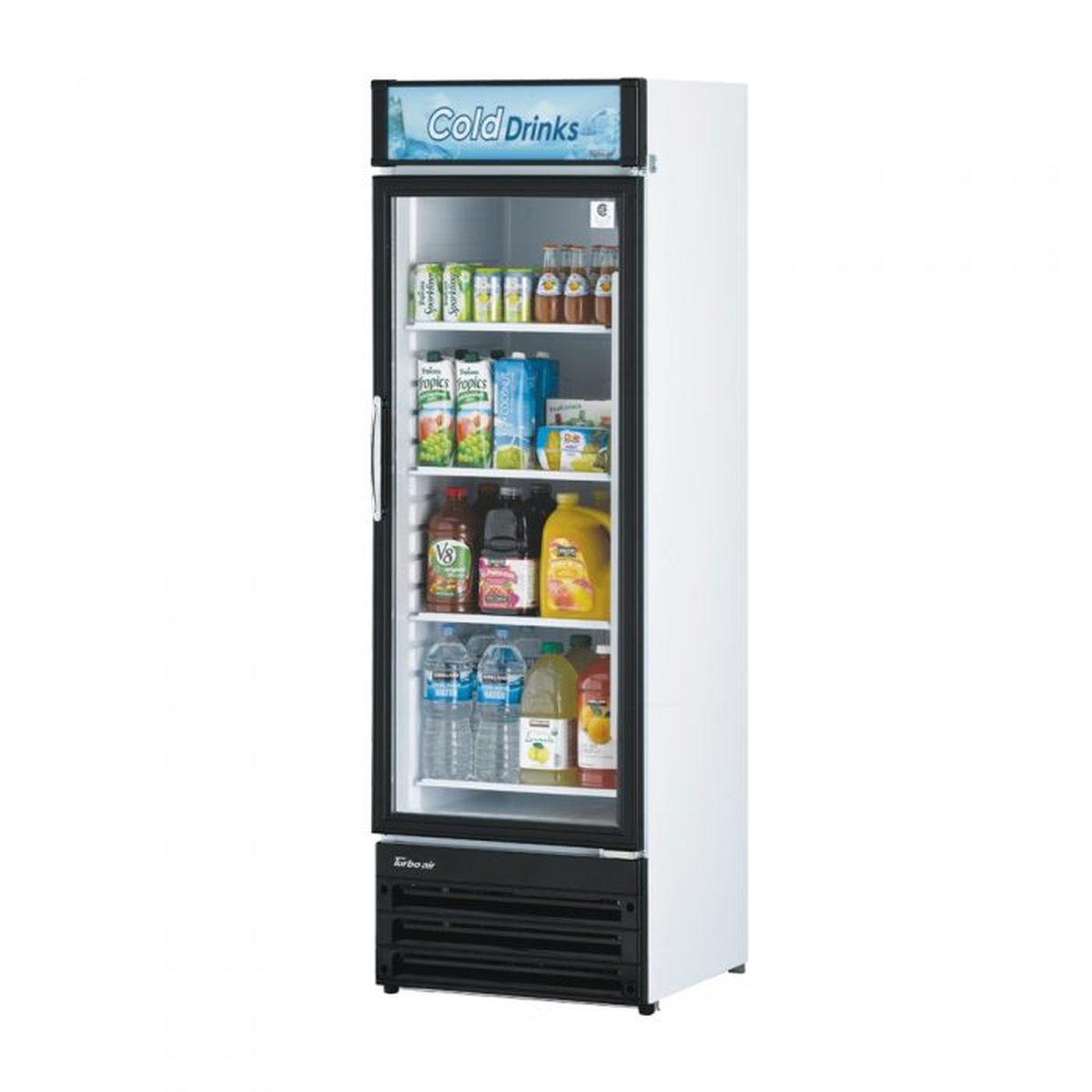

Turbo Air TGM-14RV-N6 glass door merchandiser refrigerator, angled view, stocked with beverages

High-Visibility Merchandising in a Compact Footprint

The Turbo Air TGM-14RV-N6 delivers 12.17 cu. ft. of refrigerated display space in a slim 23 5/8" wide profile. The right-hinged swing door with Low-E double-pane glass cuts heat transfer and condensation while keeping product clearly visible to customers.

12.17 cu. ft. total capacity with up to 150 full-line bottles
Low-E double-pane glass door minimizes condensation and energy loss
White cabinet with black trim for a clean, professional appearance
LED advertising panel at the top draws customer attention

Turbo Air TGM-14RV-N6 glass door merchandiser refrigerator, front view, stocked with beverages on adjustable wire shelves

Reliable Refrigeration with Low-Maintenance Engineering

A bottom-mounted compressor provides easy service access, while the hot gas condensate system prevents overflow and resists corrosion. The anti-corrosion coated evaporator and foamed-in-place high-density polyurethane insulation keep interior temperatures steady without added maintenance burden.

Bottom-mounted compressor for straightforward servicing
Hot gas condensate system prevents water overflow
Anti-corrosion coated evaporator for long-term reliability
High-density HCFC-free polyurethane insulation throughout the cabinet

Key Specifications

Capacity12.17 cu. ft. / 150 bottle max

Temp Range33°F - 38°F

Electrical115V/60Hz/1-ph, 2.2A, 1/5 HP

Shelves4 adjustable PE-coated wire shelves

Dimensions (W x D x H)23 5/8" x 24 3/4" x 73 5/8"

Warranty2-year parts & labor; 5-year compressor

From the Cresco Resco Team

Why You'll Love It

The Turbo Air TGM-14RV-N6 is a compact, single-section glass door merchandiser built to keep beverages cold, visible, and ready to sell.

Ideal for convenience stores, delis, cafeterias, and any retail operation that needs reliable cold beverage display in a narrow footprint.
R600a hydrocarbon refrigerant and Low-E double-pane glass deliver eco-friendly efficiency and reduced operating costs.
LED interior lighting and a top LED advertising panel enhance product presentation and attract customer attention around the clock.

Specifications

Model	TGM-14RV-N6
Brand	Turbo Air
Series	TGM Series
Type	Glass Door Merchandiser Refrigerator
Sections	1
Capacity	12.17 cu. ft.
Bottle Capacity (Full-Line)	150
Bottle Capacity (Load-Line)	120
Temperature Range	33°F - 38°F
Overall Dimensions (W x D x H)	23 5/8" W x 24 3/4" D x 73 5/8" H
Interior Dimensions (W x D x H)	19" W x 19 7/8" D x 57 1/2" H
Shelf Dimensions (W x D)	20 3/8" W x 16 7/8" D
Number of Doors	1
Door Type	Right-Hinged Swing Glass Door
Glass Door Construction	Double Pane with Low-E Glass
Number of Shelves	4 (3 top + 1 bottom), Adjustable, PE-Coated Wire
Refrigerant	R-600a (Hydrocarbon)
Compressor Location	Bottom-Mounted
Horsepower	1/5 HP
Voltage	115V / 60 Hz / 1 Ph
Amperage	2.2 A
Plug Type	NEMA 5-15P, 7 ft. cord
Condensate System	Hot Gas
Insulation	High-Density HCFC-Free Foamed-In-Place Polyurethane
Interior Lighting	LED
Advertising Panel	LED
Evaporator	Anti-Corrosion Coated
Exterior Finish	White Cabinet with Black Door Frame
Weight	187 lbs
Certifications	ETL-Sanitation, cETLus
Warranty	2 Years Parts & Labor; 5 Years Compressor (2+3)
