Turbo Air

Turbo Air TCB-4SDD-N Super Deluxe Club Top Beer Dispenser, 4-Keg, Dual Double-Tap Towers

$6,191.14 ~~Precio rebajado$16,576.00ahorra $10,384.86~~

Key Features:

Super Deluxe Stainless Steel Construction: Heavy-gauge stainless steel countertop, front, and sides with stainless steel interior walls and floor; galvanized steel back, bottom, and interior top for enhanced durability and sanitation in demanding commercial bar environments.
4-Keg Capacity with Dual-Tap Towers: Accommodates (4) 1/2 barrel kegs within a spacious 32" interior height, served by (2) 3" diameter stainless steel insulated beer columns, each with double faucets, for high-volume draft service.
Self-Cleaning Condenser: Automatically brushes the condenser daily to prevent dust accumulation, reducing risk of system failure, lowering maintenance demands, and extending equipment life.
Club Top Design: Combines a direct-draw cold beer dispenser with a glass chiller in one unit; easy-glide stainless steel club top lids provide convenient access to chilled glassware stored in the interior cabinet.
Precise Temperature Control: External digital temperature controller with defrost control maintains the interior at 33°F to 38°F via a forced-air cooling system for fast, balanced temperature distribution and optimal beer preservation.
Eco-Friendly R290 Hydrocarbon Refrigerant: Meets DOE Energy Conservation Standards and uses an EPA SNAP Program-approved refrigerant with zero ozone depletion potential (ODP-0) and near-zero global warming potential (GWP-3); ENERGY STAR® certified.
Side-Mount Compressor with Front Air Intake: Compressor positioned on the side allows for in-place servicing without moving the unit; front air intake enables installation in tight underbar spaces.
Ergonomic, Secure Door System: (3) swing doors with recessed easy-grip handles, self-closing mechanism, and individual locks for controlled access and reduced operational fatigue.
Four-Way Tapper Manifold Included: Comes standard with a four-way tapper manifold and an anti-corrosion coated evaporator for long-term reliability and easy keg hookup.
High-Density Polyurethane Insulation: Entire cabinet structure is foamed-in-place with HCFC-free, high-density polyurethane insulation for superior thermal efficiency.
Mobile-Ready Base: Equipped with 2.5" diameter swivel casters with front-set locks for easy repositioning and cleaning access.
Certifications: cETLus, ETL-Sanitation, and ENERGY STAR® certified; backed by a 5-Year Parts and Labor warranty and a 7-Year Compressor warranty.

Detailed Description

The Turbo Air TCB-4SDD-N is a Super Deluxe Club Top Beer Dispenser purpose-built for high-volume bar and restaurant operations. Spanning 90-3/8 wide, this unit holds four 1/2-barrel kegs and serves them through two 3 diameter stainless steel insulated beer columns, each equipped with a double faucet for four simultaneous draft pours. The self-cleaning condenser automatically brushes away dust daily, reducing maintenance demands and protecting system performance, while eco-friendly R290 hydrocarbon refrigerant delivers energy-efficient operation with minimal environmental footprint. An external digital temperature controller maintains interior temps at a precise 33°F to 38°F, and the signature club top design provides direct access to chilled glasses stored in the upper compartment. The side-mounted compressor with front air intake allows in-place servicing and makes this unit an efficient fit in tight underbar configurations.

Product Details

Self-Cleaning Condenser

Automatically brushes the condenser daily to prevent dust buildup and system failure.

Precise Temperature Control

Digital controller holds 33°F to 38°F for optimal draft beer serving temperature.

Commercial-Grade Durability

Heavy-gauge stainless steel exterior with a 5-year parts and labor warranty.

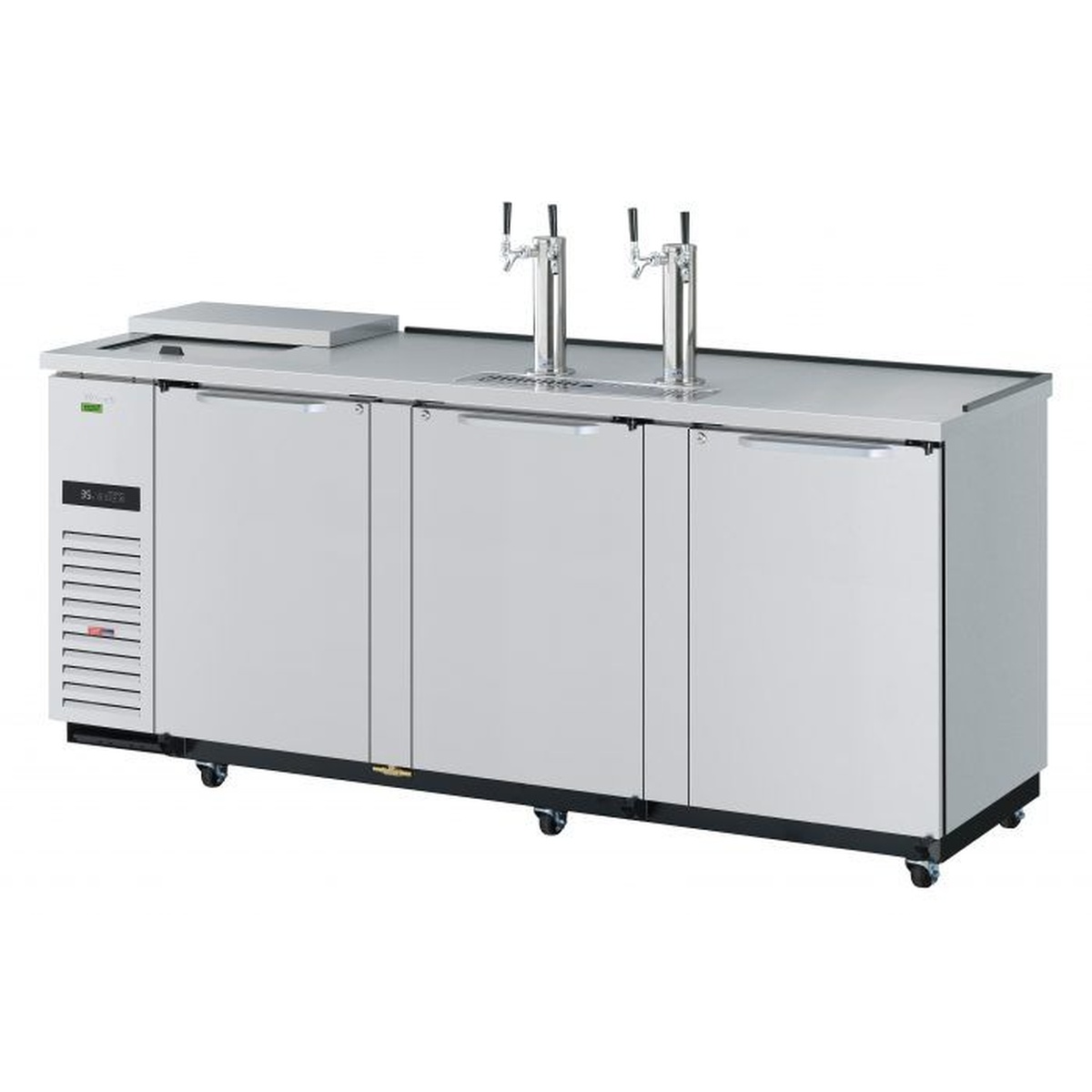

Turbo Air TCB-4SDD-N stainless steel club top beer dispenser with two dual-faucet tap towers and three swing doors on casters

Four-Keg Capacity with Dual Tap Towers

The Turbo Air TCB-4SDD-N Super Deluxe Club Top Beer Dispenser is engineered for high-volume draft service, holding (4) full 1/2-barrel kegs and featuring (2) 3" diameter stainless steel insulated beer columns, each with a double faucet for a total of four taps.

Holds (4) 1/2 barrel kegs simultaneously
Two 3" dia. stainless steel insulated beer columns with double faucets
Comes standard with a four-way tapper manifold
Club top lids glide open for easy access to chilled glasses or interior storage
Three swing doors with locks and recessed, easy-grip handles

Key Specifications

Keg Capacity(4) 1/2 Barrel Kegs

Temperature Range33°F to 38°F

Power1/3 HP, 115V/60/1-ph, 2.6A

CertificationscETLus, ETL-Sanitation, ENERGY STAR

Dimensions (W x D x H)90-3/8" x 27-1/4" x 38-5/8"

RefrigerantR290 Hydrocarbon (Eco-Friendly)

Built for the Professional Bar

1/2 Barrel Kegs

Total Draft Faucets

7 yr

Compressor Warranty

The TCB-4SDD-N is designed to keep up with the demands of a busy bar environment. Key construction highlights include:

Stainless steel countertop, exterior front and sides, and stainless steel interior walls and floor
Galvanized steel back, bottom, and interior top for added strength
High-density HCFC-free polyurethane foam-in-place insulation throughout the entire cabinet
Anti-corrosion coated evaporator for extended service life
Side-mount compressor with front air intake for easy servicing and use in tight spaces
4" dia. swivel casters with front locks for mobility and stability
NEMA 5-15P cord; 32" interior height accommodates various keg sizes

Ideal For

High-volume bars Restaurants with draft programs Craft beer taprooms Sports bars Hotels and event venues

From the Cresco Resco Team

Why You'll Love It

The Turbo Air TCB-4SDD-N delivers four-keg, four-faucet draft service with stainless steel construction and smart self-maintaining technology built for the professional bar.

Perfect for high-traffic bars and restaurants that need to serve multiple draft beer varieties without interruption.
The self-cleaning condenser and eco-friendly R290 refrigerant reduce maintenance demands and operating costs.
A 5-year parts and labor warranty plus a 7-year compressor warranty provide long-term peace of mind for a commercial investment.

Specifications

Model	TCB-4SDD-N
Type	Super Deluxe Club Top Beer Dispenser
Series	Super Deluxe (SDD)
Cabinet Width	90-3/8"
Cabinet Depth	27-1/4"
Cabinet Height	38-5/8"
Overall Height (with tap towers)	43-1/2"
Capacity	(4) 1/2 Barrel Kegs / 36.47 cu. ft.
Interior Height	32"
Number of Doors	3 Swing Doors with Locks
Exterior Finish	Stainless Steel (front & sides); Galvanized Steel (back & bottom)
Countertop	Heavy-Gauge Stainless Steel
Interior Walls & Floor	Stainless Steel
Interior Top	Galvanized Steel
Insulation	High-Density HCFC-Free Foamed-In-Place Polyurethane
Beer Columns / Towers	2 Columns, 3" Diameter, Stainless Steel Insulated
Tower Height	14-1/2"
Number of Faucets	4 (Double Faucet per Tower)
Tapper Manifold	Four-Way (Standard)
Temperature Range	33°F - 38°F
Cooling System	Forced Air
Compressor Location	Side Mount
Air Intake	Front
Refrigerant	R290 Hydrocarbon
Horsepower	1/3 HP
Voltage / Frequency / Phase	115V / 60Hz / 1-Phase
Amperage	2.6 Amps
Plug Type	NEMA 5-15P
Condenser	Self-Cleaning
Evaporator	Anti-Corrosion Coated
Temperature Controller	External Digital (with Defrost Control)
Casters	2.5" Diameter Swivel Casters with Locks (Front Set)
Weight	448 lbs
Certifications	cETLus, ETL-Sanitation, ENERGY STAR®
Parts & Labor Warranty	5 Years
Compressor Warranty	7 Years
