MANITOWOC

Manitowoc UYF0310A NEO 30" Air Cooled Undercounter Half Dice Ice Machine with 119 lb. Bin

$3,650.00 ~~Sale price$8,391.00you save $4,741.00~~

Key Features:

High-Output Half Dice Ice Production: Produces up to 290 lbs of half dice cubes (3/8" x 1-1/8" x 7/8") per 24 hours, making it suitable for medium-volume bar, restaurant, or foodservice applications.
119 lb. Integrated Storage Bin: Built-in 119 lb. (54 kg) capacity bin with a forward-sliding design and angled door that slides up and out of the way for fast, unobstructed ice access during service.
Air-Cooled, Self-Contained Condenser with Front Intake/Exhaust: Front-facing air intake and exhaust design allows installation in tight undercounter spaces and flush against adjacent equipment without sacrificing airflow performance.
Intelligent Controls and Service Indicators: Simple Power, Delay, and Clean controls let operators customize run schedules to avoid wasting water and energy during slow periods or closures. Full bin and service indicators streamline staff training and day-to-day monitoring.
Tool-Free Serviceability: Key components including the pop-out air filter and ice bin (secured with hand screws) are removable without tools, reducing cleaning time and simplifying routine maintenance.
Smooth, Sealed Food Zone for Sanitation: Features a sealed food zone with a removable water trough, distribution tube, and damper door, all designed for fast, thorough cleaning and NSF compliance.
Energy Efficient Operation: Rated at 7.0 kWh per 100 lbs of ice produced, helping to reduce operating costs over the life of the machine.
6" Adjustable Legs: Raised on 6" legs to facilitate cleaning underneath the unit and to meet commercial installation requirements.
NSF and UL Approved: Meets NSF food safety and UL safety standards, ensuring compliance for commercial kitchen and foodservice environments.
Comprehensive Warranty Coverage: Backed by a 3-year parts and labor warranty on the ice maker, 5-year parts and labor on the evaporator, 5-year parts and 3-year labor on the compressor.

Manitowoc UYF0310A NEO 30" Air Cooled Undercounter Half Dice Ice Machine with 119 lb. Bin

$3,650.00~~$8,391.00~~

Detailed Description

The Manitowoc NEO UYF0310A is a 30 air-cooled undercounter ice machine built for medium-volume commercial environments where space and efficiency are paramount. Producing up to 290 lbs of half dice cube ice per 24 hours and storing up to 119 lbs in its forward-sliding integrated bin, this unit delivers reliable output right at the point of use. Its front air intake and exhaust design allows it to be installed flush next to other equipment or in tight under-counter spaces without sacrificing airflow. Intelligent controls with full-bin and service indicators take the guesswork out of daily operation, while a built-in Delay function conserves water and energy during slow periods. Tool-free removable components including a pop-out air filter, water trough, and distribution tube make cleaning and routine maintenance fast and straightforward.

Product Details

High-Output Performance

Produces up to 295 lbs of ice daily to meet peak demand.

Simplified Maintenance

Tool-free access to the food zone and removable bin for easy cleaning.

Intelligent Controls

Intuitive feedback with bin full and service indicators.

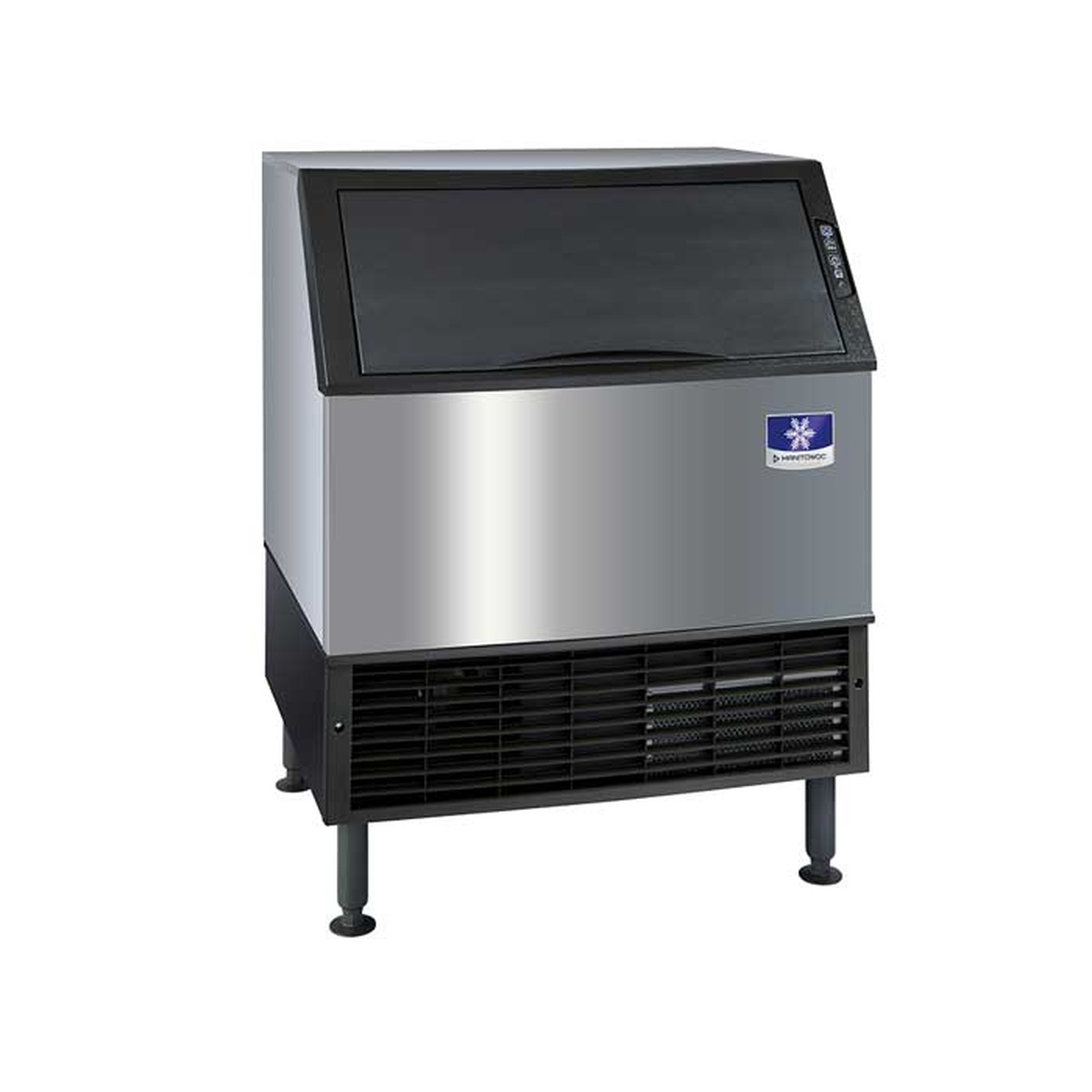

Manitowoc NEO 310 Undercounter Ice Machine full unit view

Compact Undercounter Design

The NEO 310 provides high-volume ice production in a space-saving 30-inch footprint, making it ideal for kitchens with limited floor space.

Front air intake and exhaust for tight installations
Ample 119 lb storage capacity
Durable stainless steel finish for commercial environments

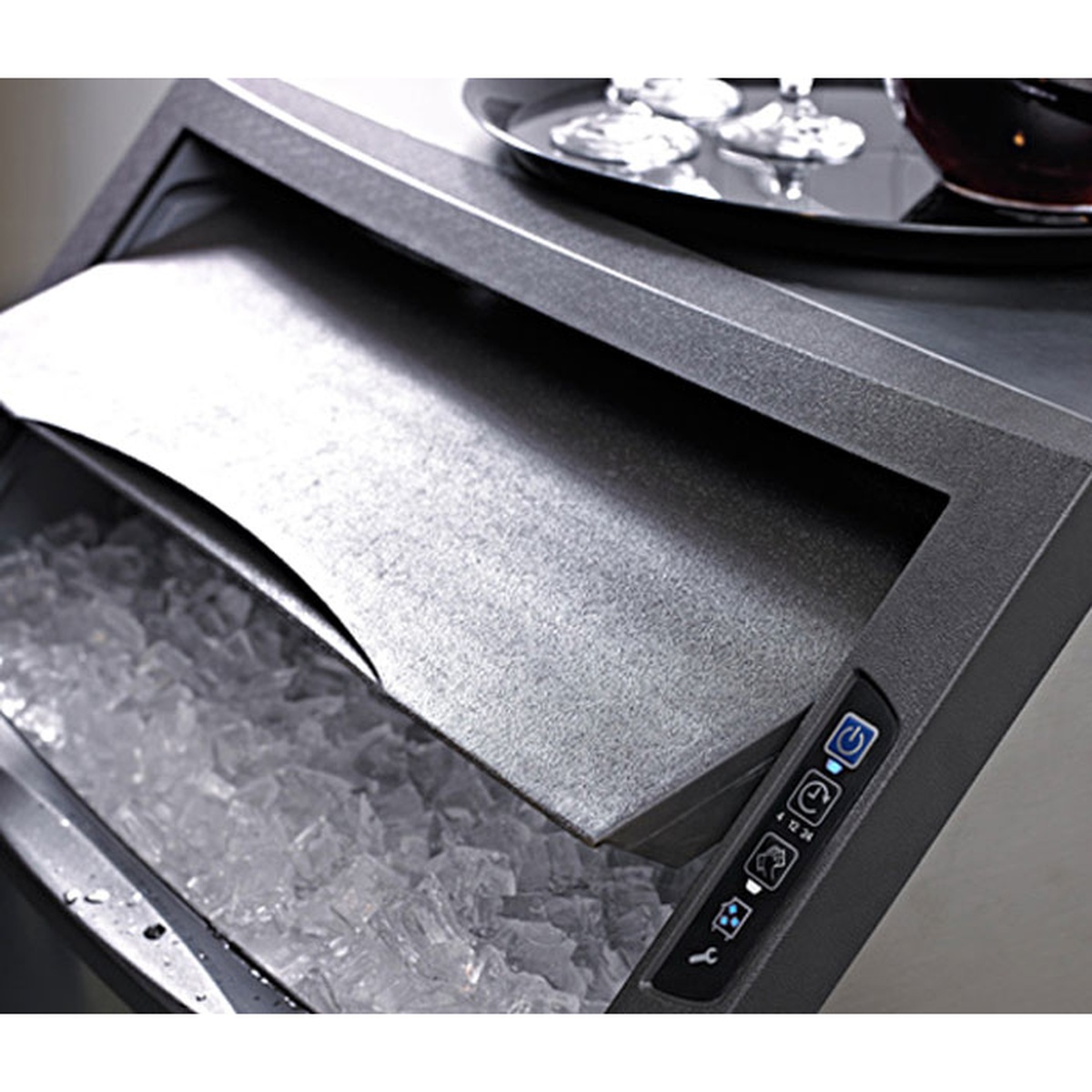

Close up of NEO ice machine control panel and bin door

Intuitive Intelligence

Stay informed with easy-to-read icons that provide instant feedback on the machine status and performance.

Bin full and service indicators for hassle-free operation
Delay function allows you to pause production during slow periods
One-touch power and cleaning cycles

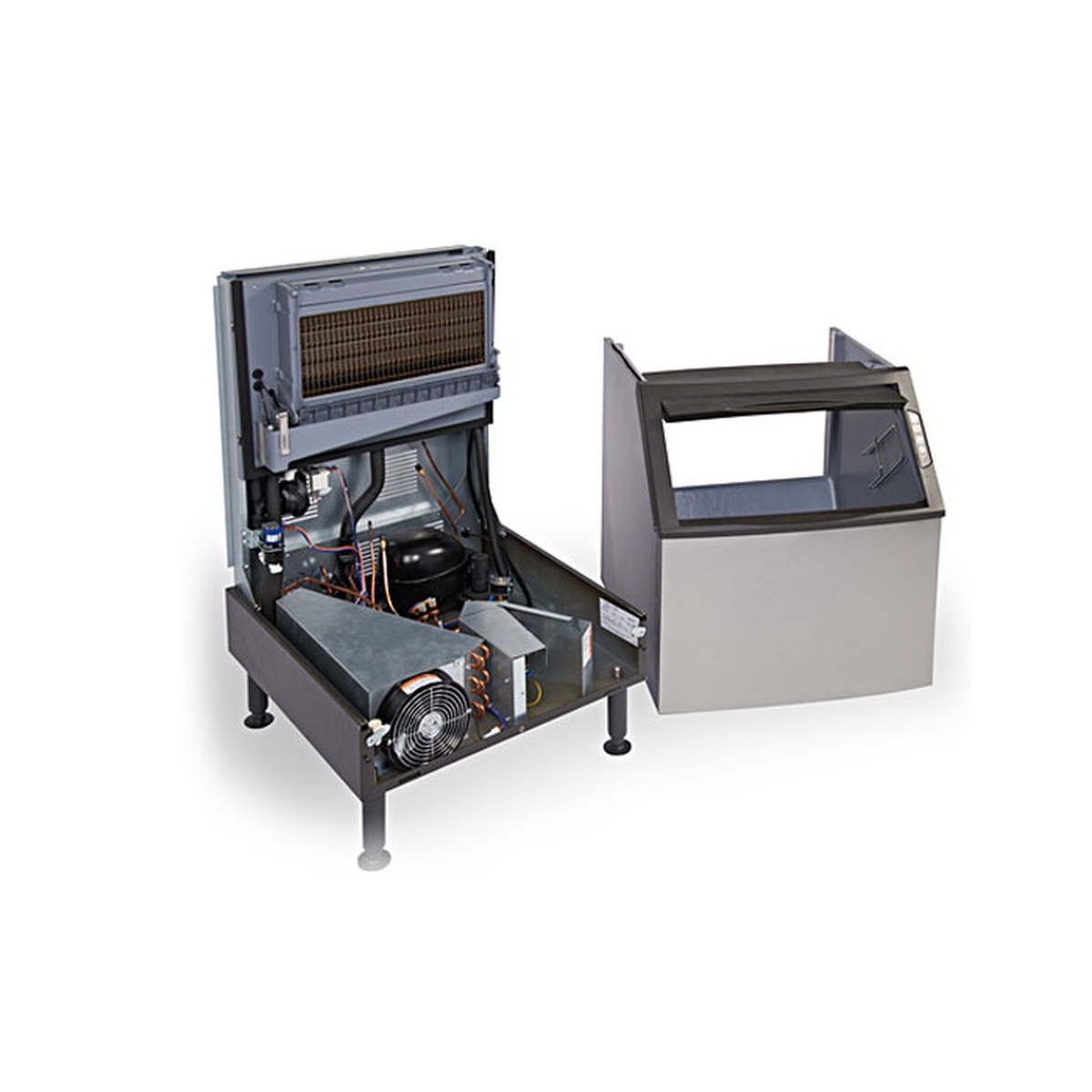

Manitowoc ice machine with bin removed showing internal components

Engineered for Cleanliness

Maintenance is simplified with a design that allows for tool-free access to critical components, ensuring food safety and longevity.

Forward-sliding storage bin for easy access to the refrigeration system
Removable water trough, distribution tube, and damper door
Pop-out air filter protects the condenser from lint and grease

Half dice ice cubes in a glass with fruit garnish

Perfect Half Dice Ice

Produces crystal-clear half dice cubes that are ideal for a wide variety of beverage applications, from sodas to cocktails.

Consistent 3/8 x 1-1/8 x 7/8 inch dimensions
High displacement for better cooling and slower melt rates
Reliable ice shape for easy scooping and dispensing

From the Cresco Resco Team

Why You'll Love It

The Manitowoc NEO 310 is the ultimate solution for businesses needing reliable, high-volume ice right at the point of service.

Great for medium-volume restaurants, bars, or as a supplemental unit.
Features a unique removable bin for superior sanitation and service access.
Energy-efficient design helps reduce daily operating costs and water waste.

Specifications

Model	UYF0310A
Ice Type	Half Dice
Ice Cube Dimensions	3/8" x 1-1/8" x 7/8"
Ice Production (per 24 hrs)	290 lb
Bin Capacity	119 lb (54 kg)
Cabinet Volume	3.99 sq. ft.
Condenser Type	Air-Cooled Self-Contained
Width	30"
Depth	28 1/2"
Height (with legs)	38 1/2"
Weight	209 lb (95 kg)
Voltage	115-120V
Frequency	60 Hz
Phase	1 PH
Plug Type	5-15P
Energy Use	7.0 kWh / 100 lb of ice
BTU/Hour	4,600 (average) / 5,450 (peak)
NSF Approved	Yes
UL Approved	Yes
Warranty	3 Year Parts & Labor (Ice Maker) / 5 Year Parts & Labor (Evaporator) / 5 Year Parts + 3 Year Labor (Compressor)
