T&S Brass

T&S Brass B-1225 Glass and Pitcher Filler with 6" Swing Nozzle and Push-Back Design

$294.53 ~~Sale price$535.50you save $240.97~~

Key Features:

Dual-Purpose Glass and Pitcher Filler: Serves double duty as both a push-back glass filler and a 6" swing nozzle pitcher filler, maximizing versatility at a single deck-mounted station.
Push-Back Actuation Arm: Hands-free push-back design activates water flow for glass filling, allowing fast, efficient service without manual handle operation.
6" Swing Nozzle with Laminar Flow Device: Pivoting nozzle extends reach for filling pitchers and larger vessels, with a stream regulator outlet that delivers a smooth, splash-free laminar flow.
1/4-Turn Compression Cartridge with Spring Check: Delivers reliable, precise flow control with a built-in spring check to prevent backflow and ensure sanitary operation.
Polished Chrome-Plated Brass Construction: Durable all-brass body with a polished chrome finish resists corrosion and maintains a professional appearance in demanding commercial environments.
Adjustable Deck Flange and 4-Arm Cross Handle: Pedestal features an adjustable deck flange for flexible installation on varying deck thicknesses, while the 4-arm cross handle provides easy manual control of the pitcher nozzle.
Wide Pressure and Temperature Range: Rated for 20-125 psi and 40-140°F (4.44-60°C), making it suitable for a broad range of commercial plumbing systems.
Reach Dimensions for Precise Placement: Measures 8" from base of flange to glass filler outlet and 14" to pitcher filler outlet, accommodating both standard glasses and taller pitchers with ease.
1/2" NPT Male Inlet: Standard 1/2" IPS male inlet ensures compatibility with common commercial plumbing configurations for straightforward installation.
Multi-Standard Certified: Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 (lead-free), and meets ADA ANSI/ICC A117.1 accessibility requirements for compliant installations.

T&S Brass B-1225 Glass and Pitcher Filler with 6" Swing Nozzle and Push-Back Design

$294.53~~$535.50~~

Detailed Description

The T&S Brass B-1225 is a dual-purpose glass and pitcher filler engineered for demanding commercial bar and beverage service environments. Featuring a push-back actuation arm for quick, hands-free glass filling alongside a 6 swing nozzle for pitcher filling, this deck-mounted unit consolidates two dispensing functions into one compact fixture. The polished chrome-plated brass body is paired with a 1/4-turn compression cartridge with spring check and a laminar flow device for smooth, splash-free water delivery. An adjustable deck flange and 1/2 NPT male inlet offer flexible installation compatibility across a variety of counter setups. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and ADA compliant, the B-1225 meets the rigorous standards required in professional foodservice operations.

Product Details

Dual-Purpose Filling

Push-back actuation for glasses plus a 6" swing nozzle for pitchers in one compact unit.

Adjustable Flow Control

Volume regulator outlet and adjustable deck flange allow precise, customizable water delivery.

Certified for Safety

Meets ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and ADA ANSI/ICC A117.1 requirements.

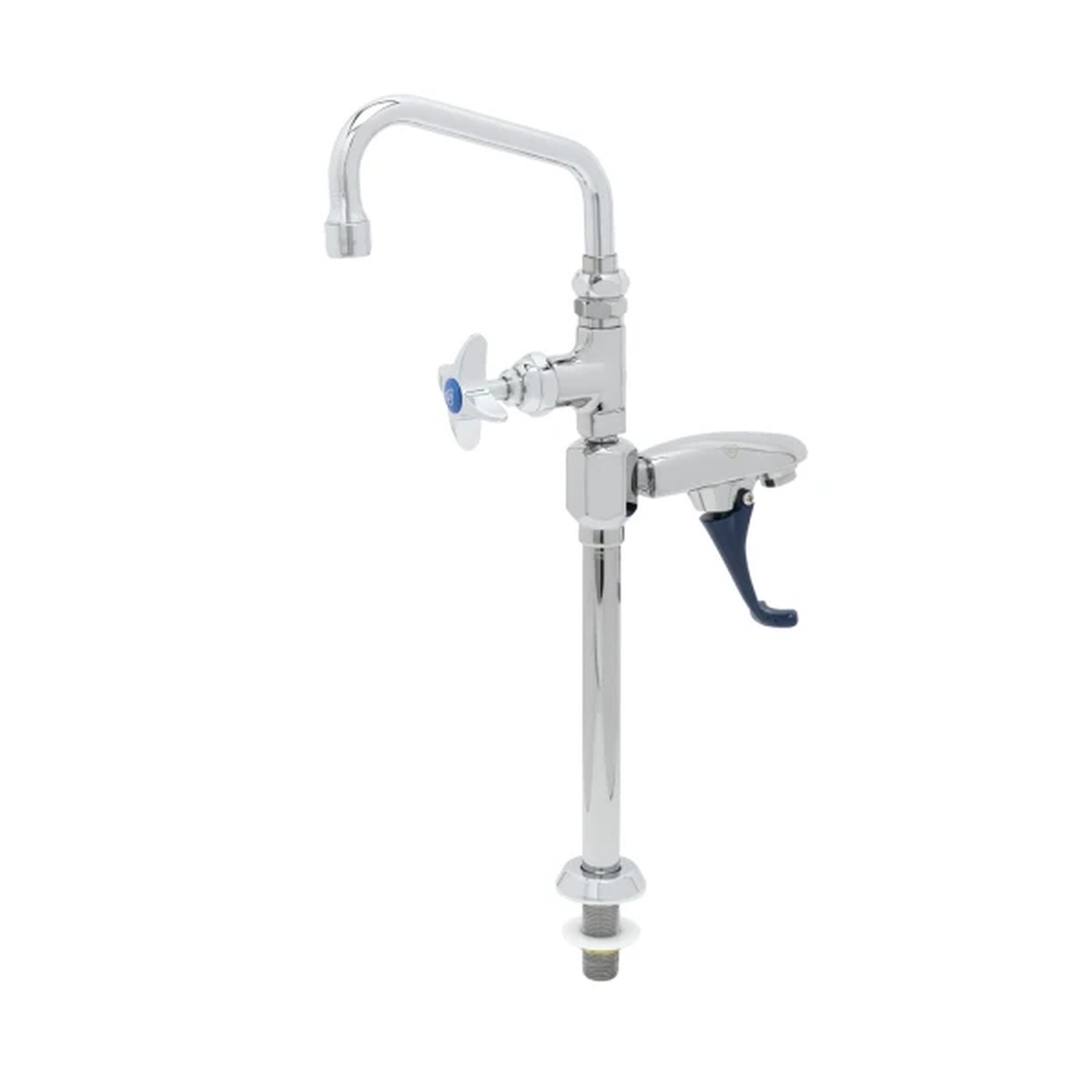

T&S Brass B-1225 glass and pitcher filler with chrome-plated brass body, 4-arm cross handle, push-back actuation arm, and 6-inch swing nozzle on pedestal base

Glass and Pitcher Filler Built for Commercial Kitchens

The T&S Brass B-1225 is an 8 11/16" high deck-mount filler with a polished chrome-plated brass body, designed to handle both glass and pitcher filling with ease. A push-back actuation arm activates the glass filler while the 6" swing nozzle with laminar flow device serves pitchers.

Polished chrome-plated brass body for lasting durability
1/4-turn compression cartridge with spring check valve
4-arm (cross) handle for smooth, ergonomic operation
Pedestal with adjustable deck flange and 1/2" NPT male inlet

Key Specifications

Nozzle Length6 in (152.4 mm) Swing

Pressure Range20 - 125 psi (1.38 - 8.62 bar)

Temperature Range40°F - 140°F (4.44°C - 60°C)

MaterialPolished Chrome-Plated Brass

Inlet Connection1/2" NPT Male

Warranty1-Year Limited

Ideal For

Restaurants and Bars Cafeterias and Buffets Hotel Beverage Stations Commercial Food Service Kitchens High-Volume Drink Stations

From the Cresco Resco Team

Why You'll Love It

The T&S Brass B-1225 delivers commercial-grade versatility and reliability for any busy beverage station.

Perfect for high-volume restaurants, bars, or cafeterias that need fast, precise glass and pitcher filling.
The push-back actuation arm and adjustable volume regulator enable hands-free speed and consistent flow control.
Full ASME, NSF, and ADA certification ensures compliance and peace of mind in demanding professional environments.

Specifications

Product Type	Glass and Pitcher Filler
Mounting	Deck Mount
Material	Polished Chrome Plated Brass Body
Inlet Connection	1/2 inch NPT Male
Nozzle Type	6 inch Swing Nozzle
Handle Type	4-Arm (Cross)
Cartridge Type	1/4 Turn Compression with Spring Check
Pressure Range	20 to 125 psi (1.38 to 8.62 bar)
Temperature Range	40 to 140 degrees Fahrenheit (4.44 to 60 degrees Celsius)
Nozzle Outlet	Laminar Flow Device / Stream Regulator
Actuation	Push-back Arm
Compliance	ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, ADA ANSI/ICC A117.1
Features	Adjustable Deck Flange, Volume Regulator
