Thunderbird Food Machinery

Thunderbird Food Machinery ARM-40 40 Qt Floor Planetary Mixer

$5,071.00 ~~Sale price$9,560.00you save $4,489.00~~

Key Features:

40-quart heavy-duty planetary mixer designed to blend, mix, and aerate with consistent results.
Powerful 1.5 HP motor with 3-speed gearbox; gear-driven transmission uses wide-faced hardened alloy steel helical gears sealed in lubricant with heavy-duty bearings and clutch for quiet, dependable operation.
1 to 15 minute timer supports continuous or timed operation.
115V/60/1, 30A standard electrical; 220V/60/1 and 220V/50/1 options available.
Manual bowl lift with self-locking position and #12 taper attachment hub for accessories.
Safety and reliability features include moisture-resistant switches, motor thermal protector, motor cooling system, and no-volt release to prevent restart after power interruption; safety guard available.
Durable cast base with silver metallic epoxy powder coat finish for easier cleaning; NSF approved coating.
Includes attached 6-foot flexible 3-wire cord and plug for grounded receptacle.

Thunderbird Food Machinery ARM-40 40 Qt Floor Planetary Mixer

$5,071.00~~$9,560.00~~

Detailed Description

The Thunderbird ARM-40 is a heavy-duty, floor-model planetary mixer built for consistent mixing, blending, and aeration in professional kitchens and bakeries. Its 40-quart capacity, gear-driven 3-speed transmission, and powerful 1.5 HP motor support a wide range of batch work. A 1 to 15 minute timer enables timed or continuous operation, while moisture-resistant controls and motor protection features help support reliable daily use. The #12 taper attachment hub adds versatility for compatible accessories.

Product Details

40-Quart Capacity

Floor model planetary action for consistent mixing in higher-volume prep.

1.5 HP, 3-Speed Performance

Gear-driven power for mixing, whipping, and dough work across three speeds.

Built-In Operational Protection

No-volt release and motor thermal protection help support safer, dependable use.

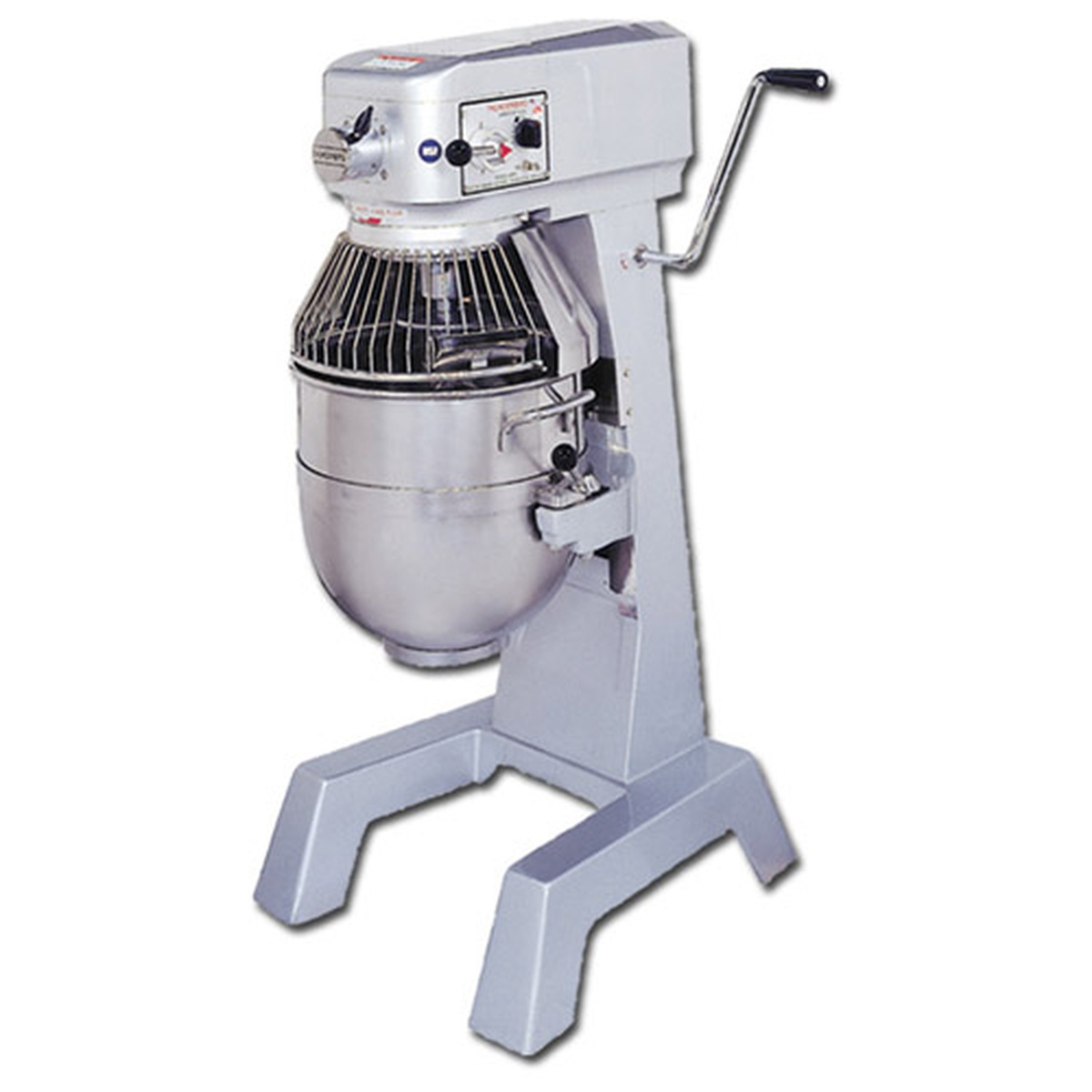

Thunderbird ARM-40 floor model planetary mixer with bowl guard and stainless steel bowl

Planetary Mixing for Even, Predictable Results

The Thunderbird ARM-40 is a heavy-duty, all-purpose planetary mixer designed to blend, mix, and aerate ingredients thoroughly for consistent batch-to-batch output.

40-quart bowl capacity
Manual bowl lift with self-locking position
#12 taper hub for compatible attachments

Why Choose This Model

40 qt

Bowl Capacity

1.5 HP

Motor Power

Speeds

Key Operating Features

1 to 15 minute timer for continuous or timed operation
Moisture-resistant switches
Motor cooling system and thermal protector
No-volt release to help prevent activation after a power interruption
NSF approved coating; epoxy powder coat enamel finish for easier cleaning
Electrical: 115/60/1, 30 amps (220v/60/1 and 220v/50/1 available)

From the Cresco Resco Team

Why You'll Love It

A dependable 40-quart, gear-driven floor mixer built for consistent results across a wide range of prep tasks.

Great for bakeries, restaurants, and commissaries that need a reliable daily-use mixer.
Planetary action plus 3 speeds helps match the mix to the job.
#12 hub supports attachment-driven prep for more flexibility in one footprint.

Specifications

Manufacturer	Thunderbird Food Machinery
Model	ARM-40
Mixer type	Planetary mixer
Mount / style	Floor model
Bowl capacity	40 qt
Speeds	3-speed gearbox
Speed range	Beater: 46-150 RPM; Hub: 105-338 RPM
Motor	1.5 HP
Electrical	115V/60Hz/1ph, 30A (220V/60Hz/1ph and 220V/50Hz/1ph available)
Timer	1-15 minutes (continuous or timed operation)
Attachment hub	#12 taper hub
Bowl lift	Manual bowl lift (self-locking)
Overall dimensions (H x W x D)	46 in x 28 in x 28 in
Weight	Net: 415 lb; Shipping: 490 lb
Finish	Silver metallic epoxy powder coat enamel
Certifications / compliance notes	NSF approved coating; no-volt release; motor thermal protector
Power cord	6 ft flexible 3-wire cord and plug
