Thunderbird Food Machinery ARM-40 40 Qt Planetary Floor Mixer (220V Available)

$6,595.00 ~~Sale price$10,994.00you save $4,399.00~~

Key Features:

40-quart planetary floor mixer for consistent blending, mixing, and aeration.
Powerful 1.5 HP motor with 3-speed gearbox; beater speed range 46 to 150 RPM and hub speed range 105 to 338 RPM.
1 to 15 minute timer supports continuous or timed operation.
Heavy-duty transmission with wide-faced, hardened alloy steel helical gears sealed in lubricant; designed for quiet, dependable operation.
Manual, self-locking bowl lift plus #12 taper attachment hub for accessory-driven prep.
Operator safety and protection features including no-volt release, motor thermal protector, moisture-resistant switches, and motor cooling system; safety guard available.
NSF-approved coating with epoxy powder coat enamel finish on cast base for durability and easy cleaning.
Electrical: 115V/60/1, 30A standard with 220V/60/1 and 220V/50/1 options available.
Includes attached 6-foot flexible 3-wire cord and plug for grounded receptacle.
Overall dimensions: 28 in W x 28 in D x 46 in H; ship weight 490 lb.

Detailed Description

The Thunderbird ARM-40 is a heavy-duty 40-quart planetary mixer built for consistent, repeatable results in high-volume kitchens. A 3-speed gearbox and 1.5 HP motor provide the torque and control needed for doughs, batters, and general mixing. It features a 1 to 15 minute timer for continuous or timed operation and a manual, self-locking bowl lift. A #12 taper attachment hub expands versatility for common prep attachments.

Product Details

40-Quart Planetary Capacity

Built for consistent mixing, blending, and aeration in higher-volume prep.

1.5 HP, 3-Speed Power

Heavy-duty motor and gearbox for dependable performance across recipes.

Designed for Safe Operation

Includes no-volt release and moisture-resistant switches for added protection.

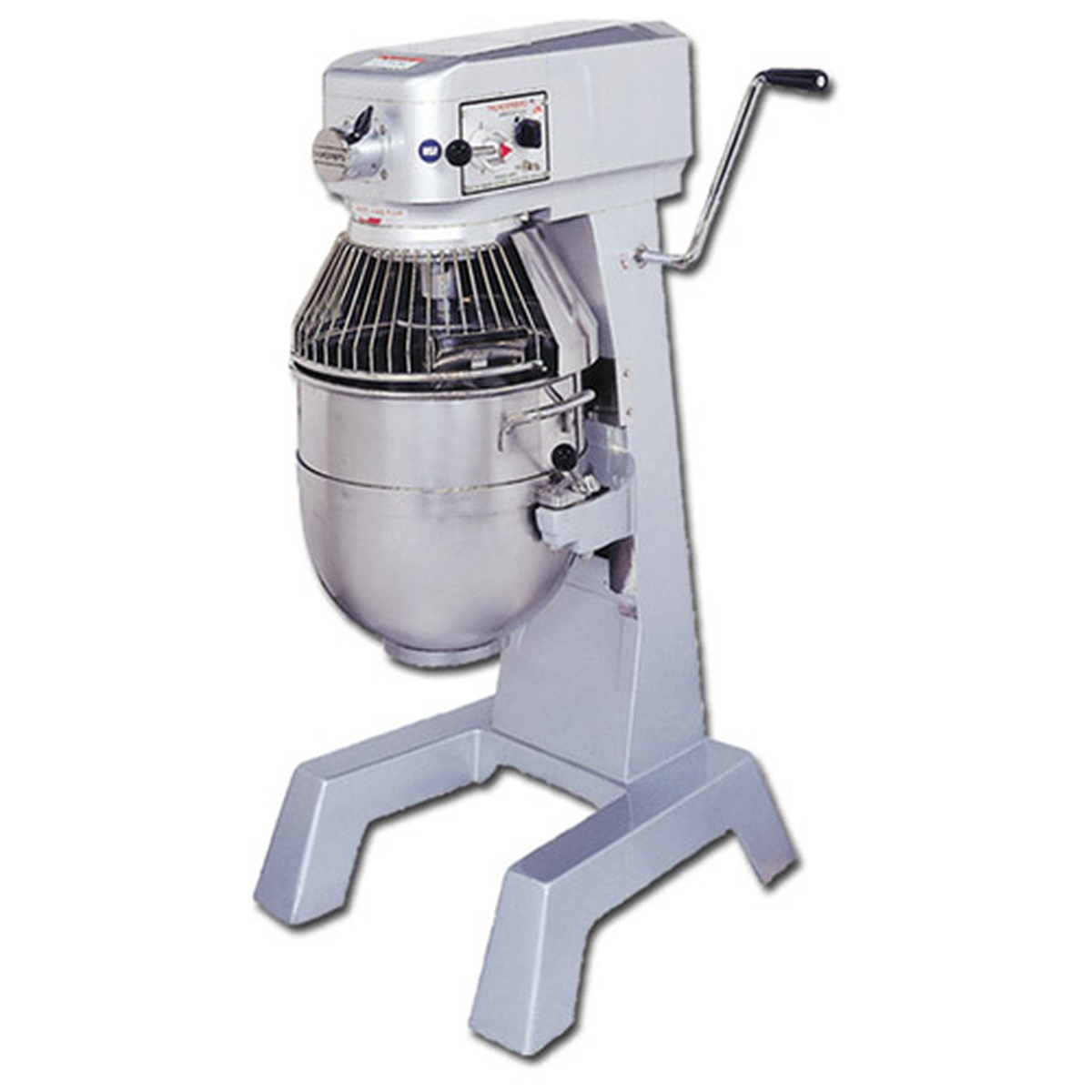

Thunderbird ARM-40 floor planetary mixer with bowl and safety guard

Thunderbird ARM-40 Planetary Mixer

Heavy-duty, all-purpose planetary mixing action helps deliver consistent and predictable results batch after batch.

1 to 15 minute timer for continuous or timed operation
Manual bowl lift with self-locking position
#12 taper hub for compatible attachments

Key Specifications

Speeds3-speed gearbox

Timer1 to 15 minutes

Motor1.5 HP continuous

Speed RangeBeater: 46 to 150, Hub: 105 to 338

WeightNet: 415 lb, Ship: 490 lb

Electrical Options115/60/1 or 220V/60/1 or 220V/50/1

Note: Electrical configurations may vary by model option.

Ideal For

Bakeries and dough prep Catering kitchens High-volume mixing tasks

From the Cresco Resco Team

Why You'll Love It

A robust 40-quart planetary mixer built for consistent results, dependable drive components, and day-to-day commercial prep.

Great fit for operations that need more bowl capacity without stepping up to full industrial batching.
3-speed control plus a timed or continuous run option for flexible workflows.
Attachment hub support helps expand what one mixer can do in your kitchen.

Specifications

Manufacturer	Thunderbird Food Machinery
Model	ARM-40
Type	Planetary floor mixer
Capacity	40 qt
Motor	1.5 HP, 3-speed, continuous duty (30 amps)
Electrical	115V/60/1 (30A) standard; 220V/60/1 and 220V/50/1 available
Speed range	Beater: 46-150 RPM; Hub: 105-338 RPM
Timer	1-15 minutes (continuous or timed operation)
Attachment hub	#12 taper hub
Bowl lift	Manual bowl lift, self-locking
Transmission	Hardened alloy steel helical gears; sealed, lubricated transmission; heavy-duty ball bearings and clutch
Overall dimensions (W x D x H)	28 in x 28 in x 46 in
Net weight	415 lb (189 kg)
Shipping weight	490 lb (223 kg)
Finish	Silver metallic epoxy powder coat enamel
Safety / controls	No-volt release; motor thermal protector; moisture-resistant switches; safety guard available
Certifications	NSF approved coating
Power cord	6 ft flexible, 3-wire cord and plug
