Vulcan FEG

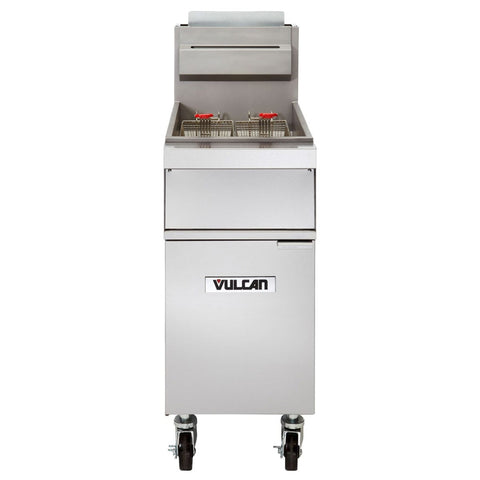

Vulcan 1GR45M Floor Model Natural Gas Fryer, Single 50 lb Vat

$4,987.00 ~~Sale price$12,802.00you save $7,815.00~~

Key Features:

120,000 BTU Natural Gas Output: High-output tube-type burner system delivers rapid heat recovery to maintain consistent frying temperatures during peak service.
45-50 lb Oil Capacity Stainless Steel Fry Tank: Generously sized 14" x 14" tank maximizes production volume for high-demand frying operations, with a full stainless steel construction for durability and easy cleaning.
4 Heat Exchanger Tubes: Tube-type frypot design promotes efficient heat transfer and simplifies routine cleaning access.
Twin Fry Baskets with Plastic-Coated Handles: Two included fry baskets allow simultaneous batch cooking, boosting throughput during busy service periods.
Millivolt Thermostat Control (200°F to 400°F): Precise temperature regulation across a wide range accommodates diverse menu items from delicate pastries to hearty proteins.
Hi-Limit Safety Shut-Off: Automatically cuts gas flow and extinguishes the pilot if shortening overheats, providing critical protection for staff and equipment.
Combination Gas Shut-Off Valve and Pilot Safety System: Integrated safety controls with a 3/4" rear gas connection and combination gas pressure regulator and safety solenoid system ensure reliable, code-compliant operation.
1-1/4" Full Port Ball-Type Drain Valve: Oversized drain valve speeds oil changes and simplifies tank cleaning, reducing downtime between service periods.
All-Stainless Steel Cabinet Construction: Heavy-duty stainless steel front, sides, top, and door resist corrosion and withstand the demands of a commercial kitchen environment.
Four 6" Adjustable Casters (2 Locking): Casters are included and allow easy repositioning; two locking casters keep the unit securely in place during operation.
Includes Cleaning Accessories: Comes with a tank brush, stainless steel crumb scoop, and clean-out rod to support proper maintenance routines.
CSA and NSF Certified: Meets rigorous safety and sanitation standards required for commercial foodservice installations.
1-Year Limited Parts and Labor Warranty / 10-Year Fry Tank Warranty: Industry-leading fry tank warranty reflects the long-term durability engineered into this unit.
Compact Footprint: At 15-1/2" W x 30-1/4" D x 47-1/8" H, this floor model delivers serious production capacity without consuming excessive floor space.

Detailed Description

The Vulcan 1GR45M is a heavy-duty floor model natural gas fryer engineered for high-volume commercial kitchens that demand consistent frying performance throughout the day. Its 14 x 14 stainless steel fry tank holds 45-50 lbs of oil and is powered by 120,000 BTU through a tube-type heat exchanger that promotes efficient oil recovery and easy cleaning. A millivolt thermostat system provides precise temperature control from 200°F to 400°F, while a hi-limit shut-off and combination gas shut-off valve with pilot safety system deliver reliable, built-in protection. The corrosion-resistant stainless steel cabinet rides on four 6-inch adjustable casters, two of which lock, making placement and repositioning convenient in any kitchen layout. Backed by a 1-year limited parts and labor warranty plus a 10-year fry tank warranty, the 1GR45M is a long-term investment in frying reliability.

Product Details

Precise Temperature Control

Millivolt thermostat adjusts from 200 to 400 degrees F for consistent, accurate frying results.

120,000 BTU Output

High-output natural gas burners deliver rapid heat recovery to keep up with demanding kitchen volume.

Easy-Clean Tube-Type Frypot

Four heat exchanger tubes and a 1-1/4 in. full port ball valve drain make cleaning and oil changes simple.

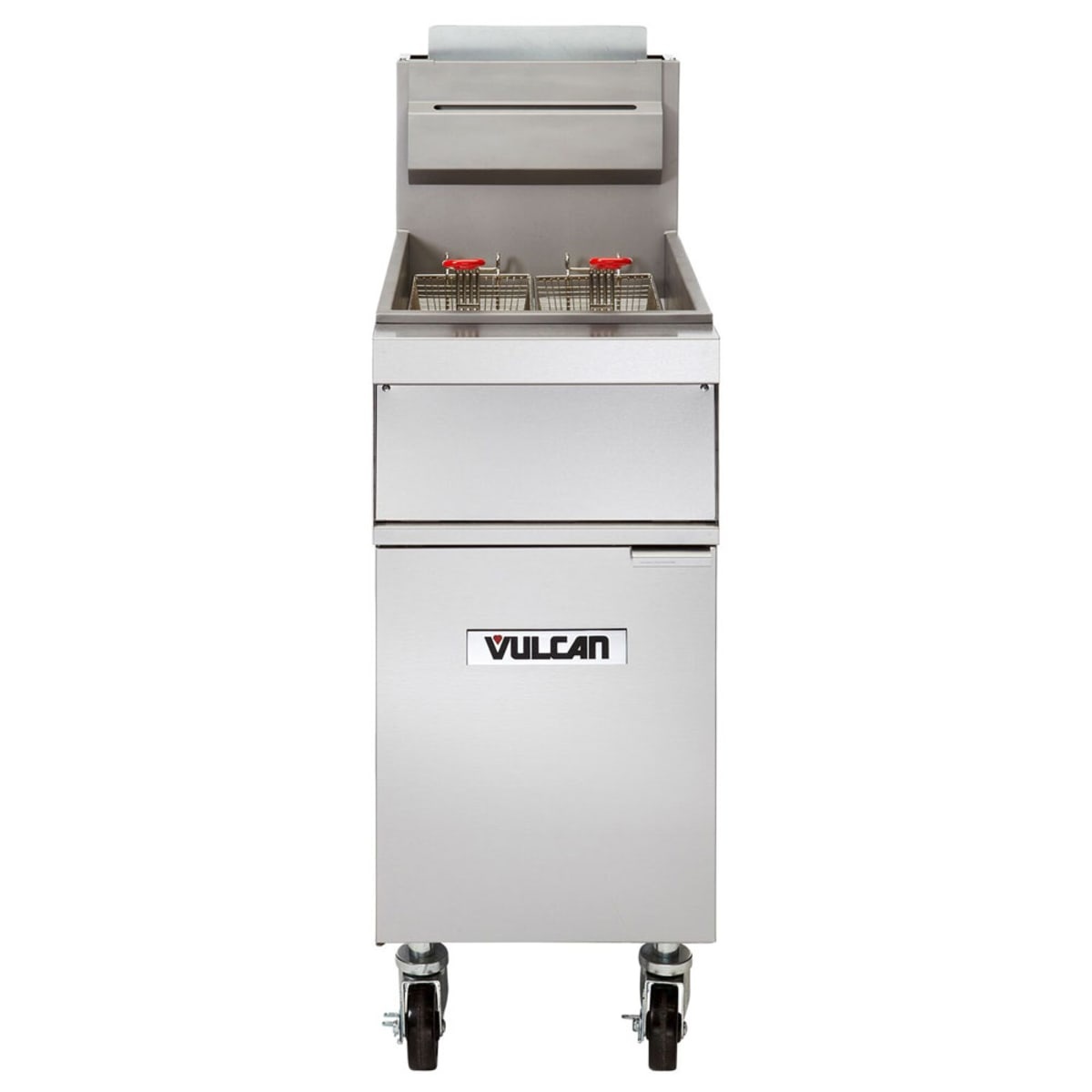

Vulcan 1GR45M floor model gas fryer with stainless steel cabinet, twin baskets, and four casters

Commercial-Grade Stainless Steel Construction

The Vulcan 1GR45M is built for the demands of high-volume commercial kitchens. Its heavy-duty stainless steel cabinet, front, sides, top, and door resist corrosion and deliver lasting durability shift after shift.

14 in. x 14 in. stainless steel fry tank with 45 to 50 lb. oil capacity
Two fry baskets with plastic-coated handles for simultaneous batch cooking
Four 6 in. adjustable casters, two of which lock for stability during service

Key Specifications

BTU Output120,000 BTU/hr

Oil Capacity45 to 50 lb.

Temperature Range200 to 400 degrees F

Dimensions (W x D x H)15.5 in. x 30.25 in. x 47.125 in.

Warranty1-Year Parts & Labor; 10-Year Fry Tank

CertificationsCSA and NSF Approved

Built-In Safety at Every Step

The 1GR45M includes multiple safety systems engineered to protect both your staff and your kitchen investment.

Hi-Limit

Shut-off extinguishes the pilot if shortening overheats

Combo Valve

Gas shut-off with integrated pilot safety system

Ball Valve

1-1/4 in. full port drain for controlled oil removal

Ideal For

High-volume restaurants Fast-casual kitchens Breaded food production Food service operations Natural gas kitchens

From the Cresco Resco Team

Why You'll Love It

The Vulcan 1GR45M delivers reliable, high-output gas frying in a durable stainless steel package designed to handle the pace of busy commercial kitchens.

Perfect for restaurants and food service operations that need consistent, high-volume frying with natural gas efficiency.
The 10-year fry tank warranty and NSF/CSA certifications reflect Vulcan's commitment to long-term commercial performance.
Includes twin baskets for simultaneous batch cooking, plus casters for easy repositioning and cleaning access.

Specifications

Brand	Vulcan
Model	1GR45M-1
Type	Floor Model Gas Fryer
Fuel Type	Natural Gas
BTU Rating	120,000 BTU/hr
Oil Capacity	45-50 lbs
Fry Tank Size	14" x 14"
Frypot Style	Tube Type
Number of Fry Pots	1
Number of Baskets	2
Temperature Range	200°F - 400°F
Control System	Millivolt
Drain Valve	1 1/4" Full Port Ball Type
Gas Connection	3/4" Rear
Casters	(4) 6" Adjustable, 2 Locking
Cabinet Material	Stainless Steel
Overall Dimensions (W x D x H)	15 1/2" x 30 1/4" x 47 1/8"
Weight	195 lbs
NEMA Configuration	5-15P
Certifications	NSF, CSA
Warranty	1-Year Limited Parts & Labor; 10-Year Fry Tank
