One Range, Multiple Stations
Designed for busy lines that need sauté power, griddle space, and convection baking in one continuous footprint.
- Six open burners with standing pilots
- 36 inch manual griddle section
- Two convection ovens in the base
Open-Burner Performance
Cast iron grates and open-burner design support pots and pans with the responsive heat control cooks rely on.
- Open burners with low simmer capability
- Cast iron grates for long service life
- Removable crumb tray under burners for easier cleanup

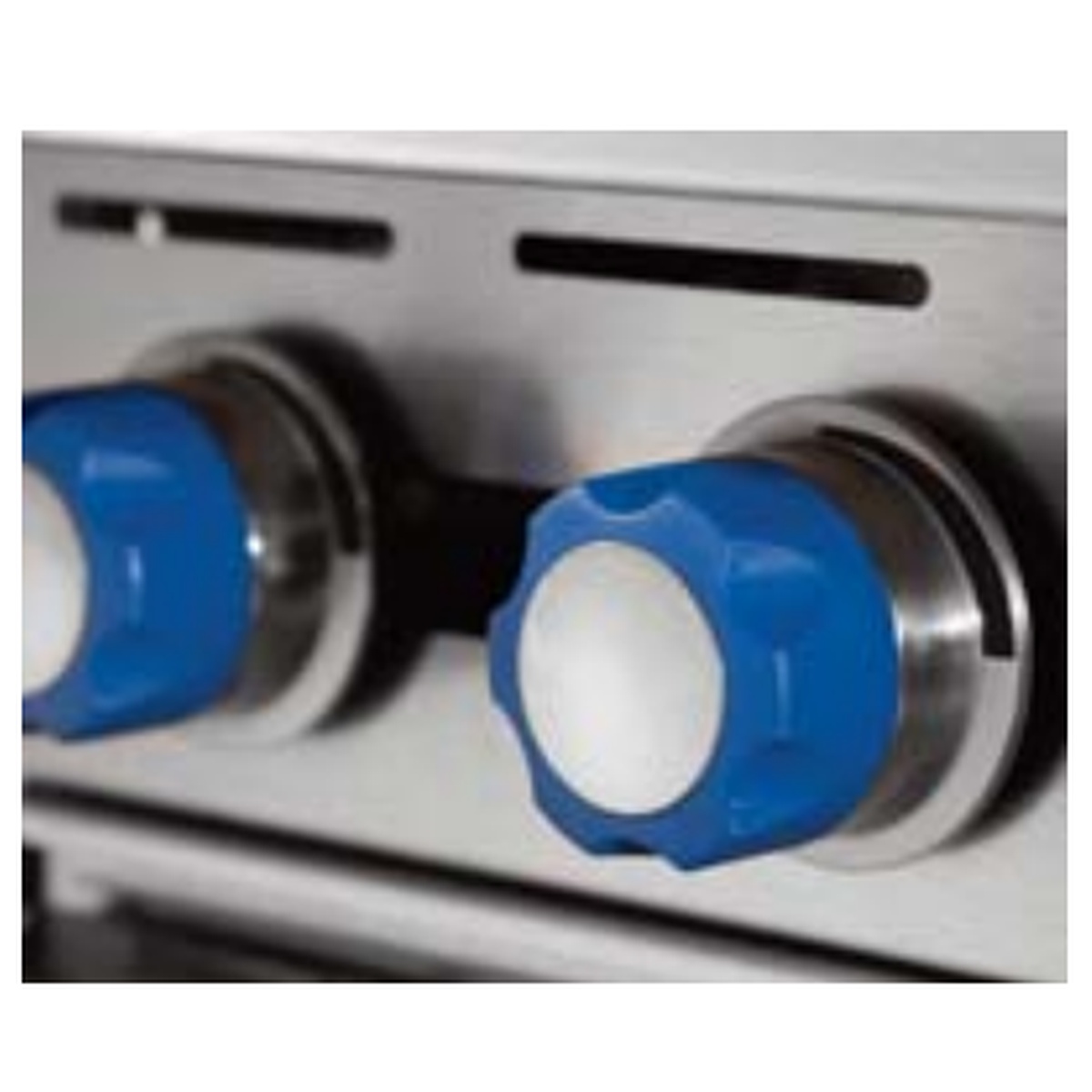

Simple, Manual Controls
Keep operation straightforward with durable front controls for burners, griddle, and ovens.
- Manual control operation
- Durable control knobs (cast aluminum per spec)
- Designed for quick adjustments during service
Key Highlights
- 36 inch griddle with 3/4 inch polished steel plate and grease trough
- Convection ovens with blower motors; fan shuts off automatically when door is open (per spec)
- Porcelain oven interiors and multiple chrome racks per oven cavity (per spec)
- Stainless steel front and sides with shelf, landing ledge, and kick plate (per spec)
- 6 inch legs with adjustable feet
Why You'll Love It
A production-ready restaurant range that combines open-burner cooking, a wide griddle, and dual convection ovens to keep tickets moving.
- Great for high-volume lines that need multiple cooking zones in one unit.
- Griddle and convection ovens add capacity without adding more equipment footprints.
- Easy-clean details like porcelain oven interiors and removable trays help simplify end-of-shift breakdown.

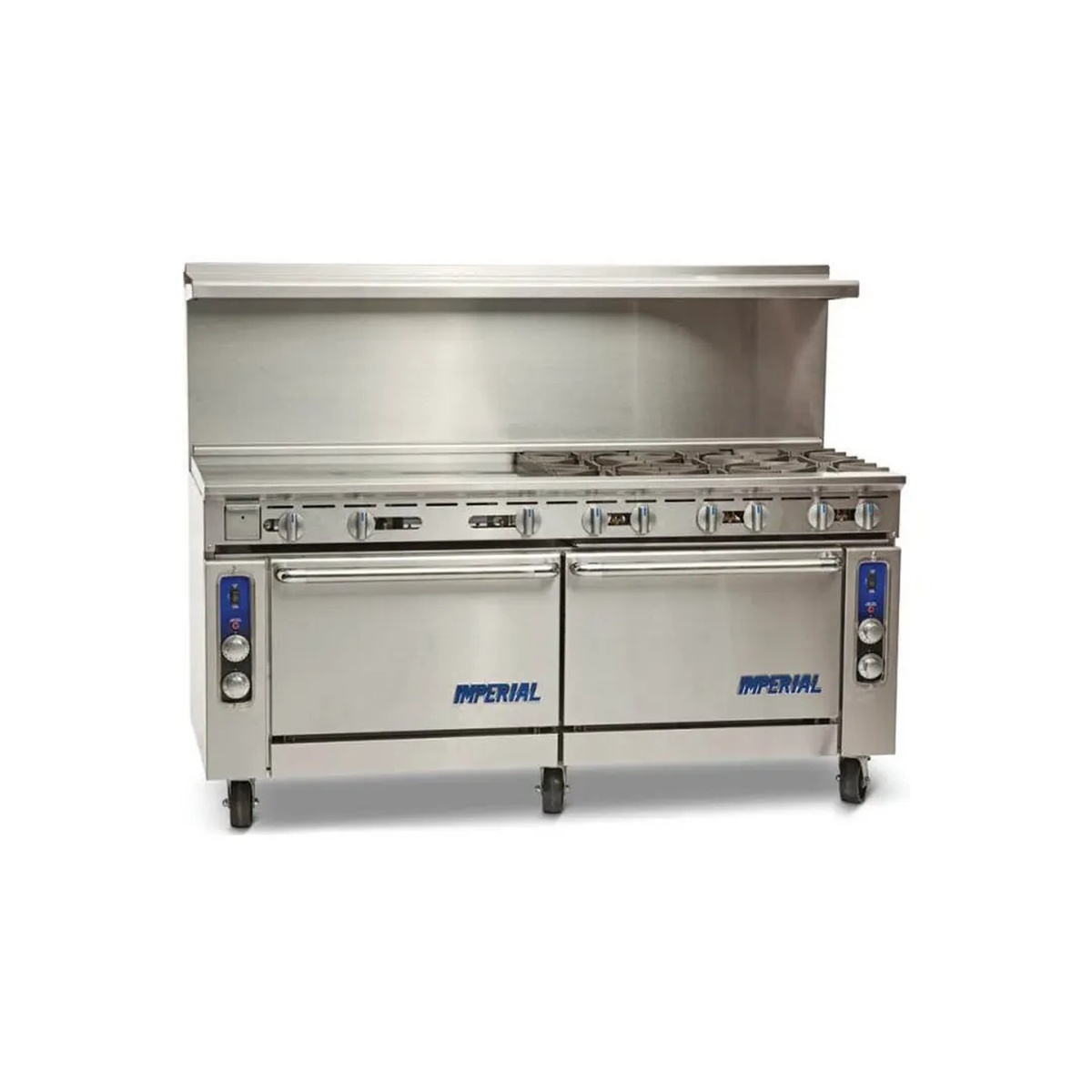

| Brand | Imperial |
| Model | IR-6-G36-CC |
| Equipment Type | Commercial gas range with griddle and (2) convection ovens |
| Overall Dimensions (W x D x H) | 72 in x 31.5 in x 56.5 in |
| Installation Type | Freestanding |
| Top Configuration | (6) open burners + (1) 36 in griddle |
| Number of Burners | 6 |
| Burner BTU (each) | 32,000 BTU |
| Low Simmer | Yes (7,000 BTU/hr low simmer feature) |
| Griddle Size | 36 in |
| Griddle Plate Thickness | 3/4 in polished steel |
| Griddle Plate Depth | 21 in |
| Griddle Burner BTU | 20,000 BTU/hr |
| Grease Trough | 3 in wide |
| Number of Ovens | 2 |
| Oven Type | Convection |
| Convection Oven BTU (each) | 30,000 BTU/hr |
| Convection Oven Blower Motor (each) | 1/2 HP |
| Convection Oven Interior Dimensions (each) | 26-1/2 in W x 22-1/2 in D x 14 in H |
| Oven Interior Finish | Porcelain |
| Oven Racks | (3) chrome racks per oven |
| Control Type | Manual |
| Exterior Finish | Stainless steel front & sides (stainless steel front, sides, backguard, shelf, landing ledge, and kick plate noted) |
| Vent/Backguard | Backriser with hi-shelf |
| Legs | 6 in adjustable legs |
| Ship Weight | 1315 lb |
| Total Connected BTU | 312,000 to 356,000 BTU (varies by source) |
| Fuel Type | Natural gas (LP/propane variant also listed by one source) |
