ADVANCE TABCO

Advance Tabco DI-1-5-1X 1-Compartment Drop-In Hand Sink with Faucet

$431.00 ~~Sale price$866.00you save $435.00~~

Key Features:

1-Compartment Drop-In Design: Single bowl drop-in sink with a self-rim design for clean, flush counter integration, ideal for bar, hand wash, or prep station applications.
10" x 14" x 5" Deep Bowl: Compact yet functional bowl dimensions (10"W x 14" front-to-back x 5" deep) with overall unit footprint of 13"W x 19"D; cutout size is 12-1/4"W x 18-1/4"D.
One-Piece Seamless Deep Drawn Bowl: Constructed from a single piece of 20-gauge type 304 stainless steel, eliminating seams and welds in the bowl for improved sanitation and durability.
Large Liberal Radii Bowl Corners: Rectangular bowl features a minimum 2" radius on interior corners, maximizing usable capacity while making cleaning easier in high-volume environments.
Includes K-52 Deck Mounted Gooseneck Faucet: 4" O.C. deck mounted gooseneck faucet with aerator is furnished with the unit; faucet supply is 1/2" IPS male thread for straightforward plumbing connection.
1-1/2" IPS Basket Drain Included: 3-1/2" basket drain ships with the sink, providing a complete, ready-to-install package right out of the box.
Mounting Hardware Provided: Includes Model K-28 mounting clips compatible with counters up to 7/8" thick; Thick-Counter option available for counters up to 1-1/2" thick.
NSF Certified: Meets NSF sanitation standards, making it compliant for use in commercial foodservice and regulated kitchen environments.
Special Value Series Pricing: Designed to deliver professional-grade performance and NSF compliance at an accessible price point for operators and contractors.

Detailed Description

The Advance Tabco DI-1-5-1X is a single-compartment drop-in hand sink built for commercial bar and kitchen countertop installations. Fabricated from 20-gauge Type 304 stainless steel with a one-piece seamless deep-drawn bowl, it delivers long-lasting durability and easy sanitation in high-volume foodservice environments. The self-rim design fits standard counters and ships complete with mounting hardware, a K-52 deck-mounted gooseneck faucet with 4 O.C. centers, and a 1-1/2 IPS basket drain for a ready-to-install experience. Large liberal radii of at least 2 on the rectangular bowl maximize interior capacity while simplifying cleaning. NSF listed for commercial use.

Product Details

Heavy-Duty Stainless Steel

Crafted from 20-gauge Type 304 stainless steel for lasting durability in commercial environments.

Seamless Deep-Drawn Bowl

One-piece seamless construction with large 2" radii for easy cleaning and maximum hygiene.

Ready-to-Install Kit

Includes a K-52 deck-mounted gooseneck faucet, 3-1/2" basket drain, and all mounting hardware.

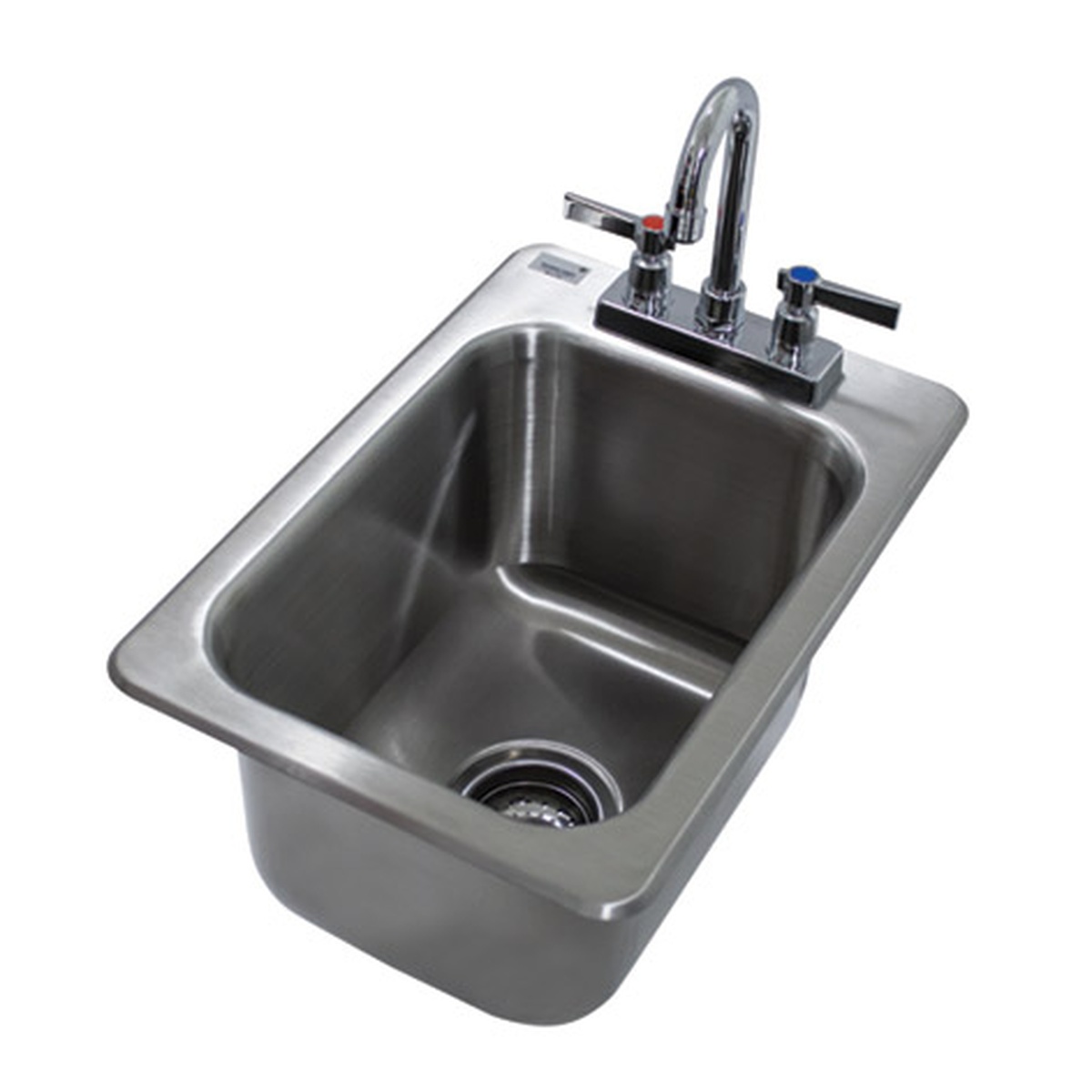

Advance Tabco DI-1-5-1X stainless steel one-compartment drop-in sink with gooseneck faucet and basket drain, shown from above at an angle

Compact 1-Compartment Drop-In Design

The Advance Tabco DI-1-5-1X is purpose-built for bar and hand-washing stations where space is limited but performance cannot be compromised. Its self-rim drop-in design integrates cleanly into any countertop cutout.

10" W x 14" D x 5" deep bowl -- ideal for hand and bar use
Overall dimensions: 13" W x 19" D
Cutout size: 12-1/4" W x 18-1/4" D for straightforward installation
Self-rim design ensures a flush, professional countertop finish

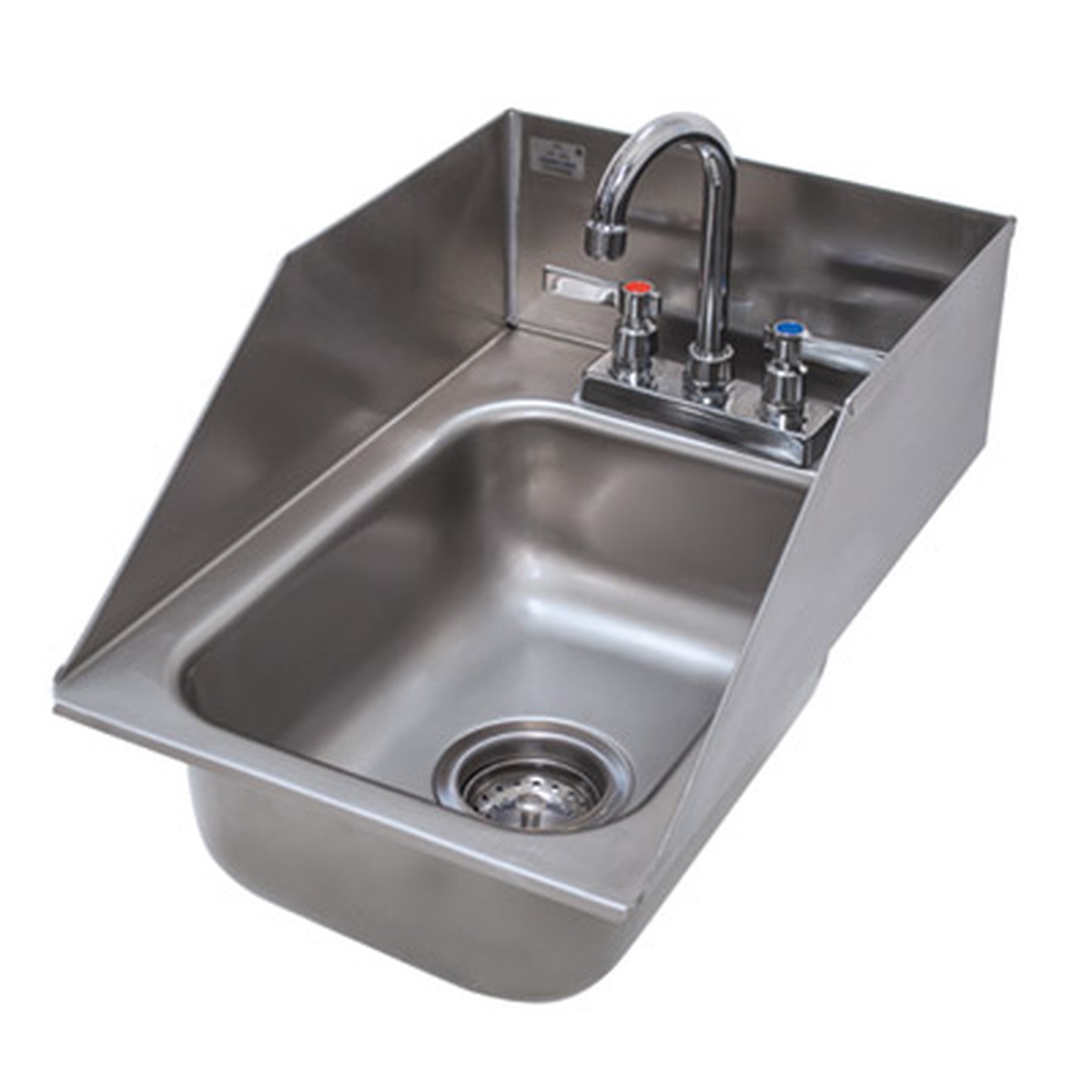

Advance Tabco drop-in sink with tapered side splashes and deck-mounted gooseneck faucet, stainless steel finish

Optional Side-Splash Configurations Available

The DI-1-5-1X series can be configured with tapered side splashes for added protection and a more complete installation. The rectangular bowl design maximizes usable basin volume within a compact footprint.

Rectangular bowl with large 2" minimum radii for thorough cleaning
Faucet supply: 1/2" IPS male thread connection
Deck-mounted faucet furnished with aerator and 4" O.C. spacing
Mounting hardware included; supports counters up to 1-1/2" thick

Key Specifications

Material20-gauge Type 304 stainless steel

Bowl Size10" W x 14" D x 5" deep

CertificationsNSF Listed

Drain1-1/2" IPS basket drain included

Overall Dimensions13" W x 19" D

Compartments1 compartment, no drainboard

Ideal For

Bar stations Hand-washing stations Concession stands Food trucks Compact commercial kitchens Catering setups

From the Cresco Resco Team

Why You'll Love It

The Advance Tabco DI-1-5-1X delivers a complete, NSF-certified drop-in sink solution in a compact and durable package built for commercial use.

Perfect for bar and hand stations where counter space is limited and hygiene compliance is required.
Ships as a complete, ready-to-install kit with gooseneck faucet, basket drain, and mounting hardware included.
304 stainless steel construction and seamless bowl design ensure long-term durability and easy daily maintenance.

Specifications

Model	DI-1-5-1X
Series	Special Value Series
Type	Drop-In Sink
Number of Compartments	1
Overall Dimensions	13" W x 19" D
Bowl Dimensions	10" W x 14" D x 5" Deep
Cutout Size	12-1/4" W x 18-1/4" D
Material	20 Gauge Type 304 Stainless Steel
Bowl Design	One-piece seamless deep drawn; rectangular with minimum 2" radii
Mounting Style	Self-rim drop-in
Mounting Hardware	Included; Model K-28 mounting clips (for counters up to 7/8"; Thick-Counter option for 7/8" to 1-1/2")
Faucet Included	K-52 Deck Mounted Gooseneck Faucet, 4" O.C., with aerator
Faucet Supply Connection	1/2" IPS Male Thread
Drain Included	3-1/2" Basket Drain, 1-1/2" IPS
Drainboards	None
Shipping Weight	12 lbs
Certifications	NSF Listed
