Vulcan FEG

Vulcan C24EO5AF 5-Pan Electric Boilerless Countertop Convection Steamer

$17,825.00 ~~Sale price$37,218.00you save $19,393.00~~

Key Features:

Boilerless electric convection steamer accommodates up to (5) full-size 12" x 20" steam pans simultaneously, maximizing high-volume output from a compact countertop footprint
Proprietary steam sensing technology delivers rapid, even cooking with no fans or moving parts, reducing mechanical wear and maintenance requirements
Auto-fill system connects to a single water line and continuously fills the reservoir to the correct level, reaching operating steam in as little as 2 minutes after startup
No boiler means no de-liming, no water treatment, and no water filtration required, dramatically lowering ongoing maintenance costs and downtime
Embedded heating elements are never directly exposed to water, extending element life and improving long-term reliability
Steamer cavity and exterior are constructed from 304 Series stainless steel for lasting durability and corrosion resistance
Interlocked door can be opened at any point during the cooking cycle; heavy-duty two-panel door features an exclusive Vulcan pan guard to protect the long-life door gasket from pan-edge wear
Load compensation automatically adjusts the timer when the unit is loaded or unloaded, ensuring consistent cook results
Intuitive water-resistant manual controls include a 60-minute timer with audible buzzer, cook/ready indicator light, and power switch
Front-vented design minimizes required side clearance, making installation easier in tight kitchen configurations
Front-mounted pull-to-drain lever and flexible drain hose simplify daily cleanout
Dishwasher-safe one-piece wire pan racks and steam panel reduce cleaning labor
Removable side panels allow quick service access to internal components, minimizing technician time
Generator pan is stamped with low-water and over-fill indicator lines for at-a-glance water level monitoring
ENERGY STAR certified, reducing energy consumption and operating costs
Ships configured for 208V/60Hz/3-phase electrical service; field-convertible to 208V/60Hz/1-phase for installation flexibility
12 kW input, 240V/3-phase operation; rated at 28.9 A

Detailed Description

The Vulcan C24EO5AF is a 5-pan electric boilerless countertop convection steamer built for high-volume commercial kitchens that demand consistent output with minimal maintenance. Unlike traditional boiler-based units, it connects directly to a single plumbed water line and fills its reservoir automatically in just 2 minutes, with no water filtration, treatment, or de-liming required. Proprietary steam sensing technology delivers rapid, even cooking results without fans or moving parts, while embedded heating elements stay protected from direct water contact for long-term reliability. The stainless steel interior and exterior resist corrosion, and dishwasher-safe wire pan racks, a removable steam panel, and accessible side panels make cleaning and servicing straightforward. Energy Star certified, this unit offers an efficient, low-maintenance steaming solution in a compact countertop format.

Product Details

60-Minute Manual Timer

Water-resistant mechanical controls with 60-min. timer, audible buzzer, and cook/ready indicator light.

Boilerless, No De-Liming

Auto-fill reservoir eliminates the need for water filtration, treatment, or de-liming for effortless upkeep.

All-Stainless Construction

304 Series stainless steel cavity and stainless exterior resist corrosion and stand up to demanding kitchen use.

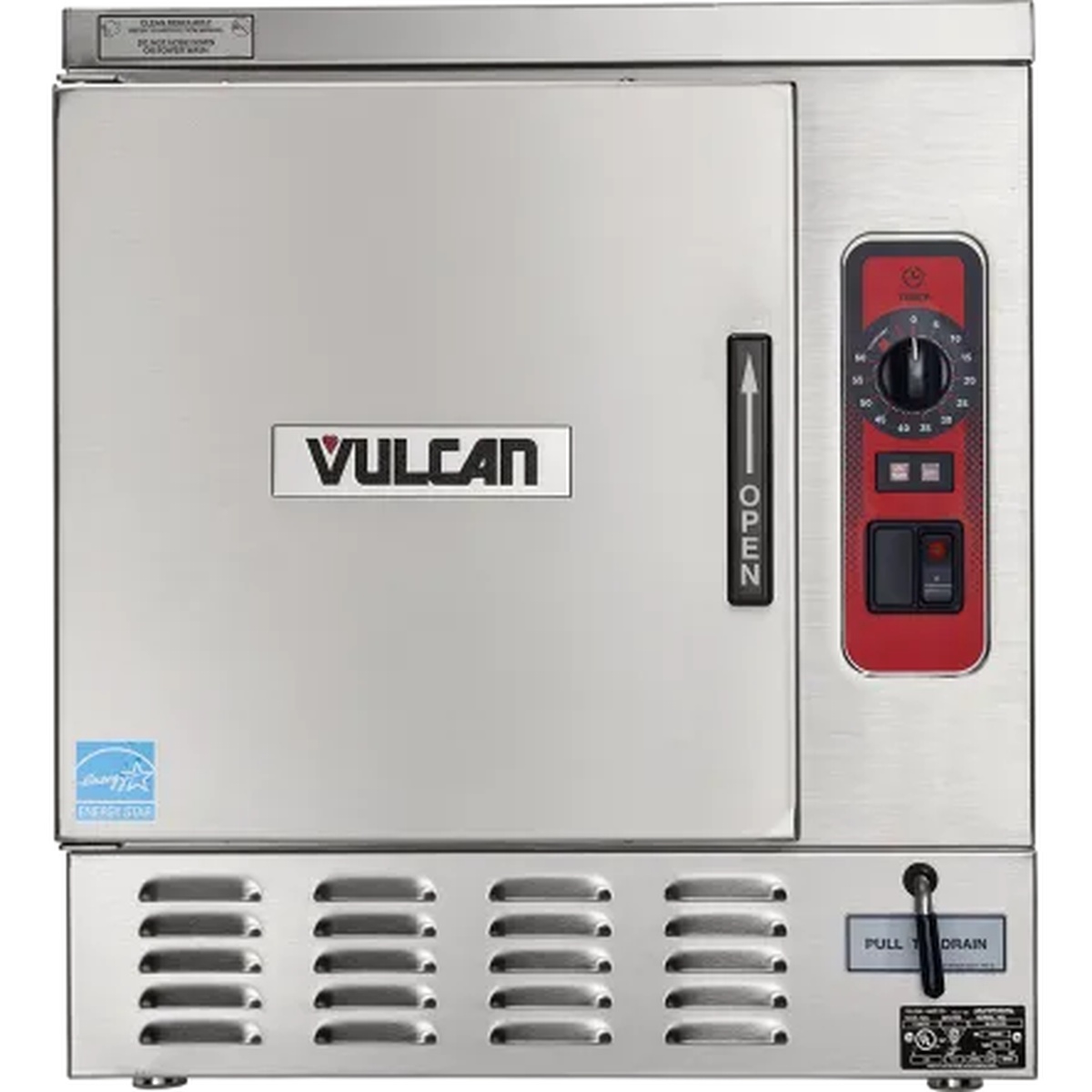

Vulcan C24EO5AF countertop convection steamer front view with manual controls and drain lever

5-Pan Convection Performance Built for High-Volume Kitchens

The Vulcan C24EO5AF delivers rapid, consistent cooking for up to five 12-in. x 20-in. full-size steam pans simultaneously. Proprietary steam sensing technology drives quick heat recovery with no fans or moving parts, making it reliable under heavy daily demand.

Accommodates up to (5) 2½" full-size pans in a single compartment
Fills reservoir in just 2 minutes after startup
Front-vented panel minimizes required side clearance
Drain lever conveniently located at the front of the unit
ENERGY STAR certified for energy efficiency

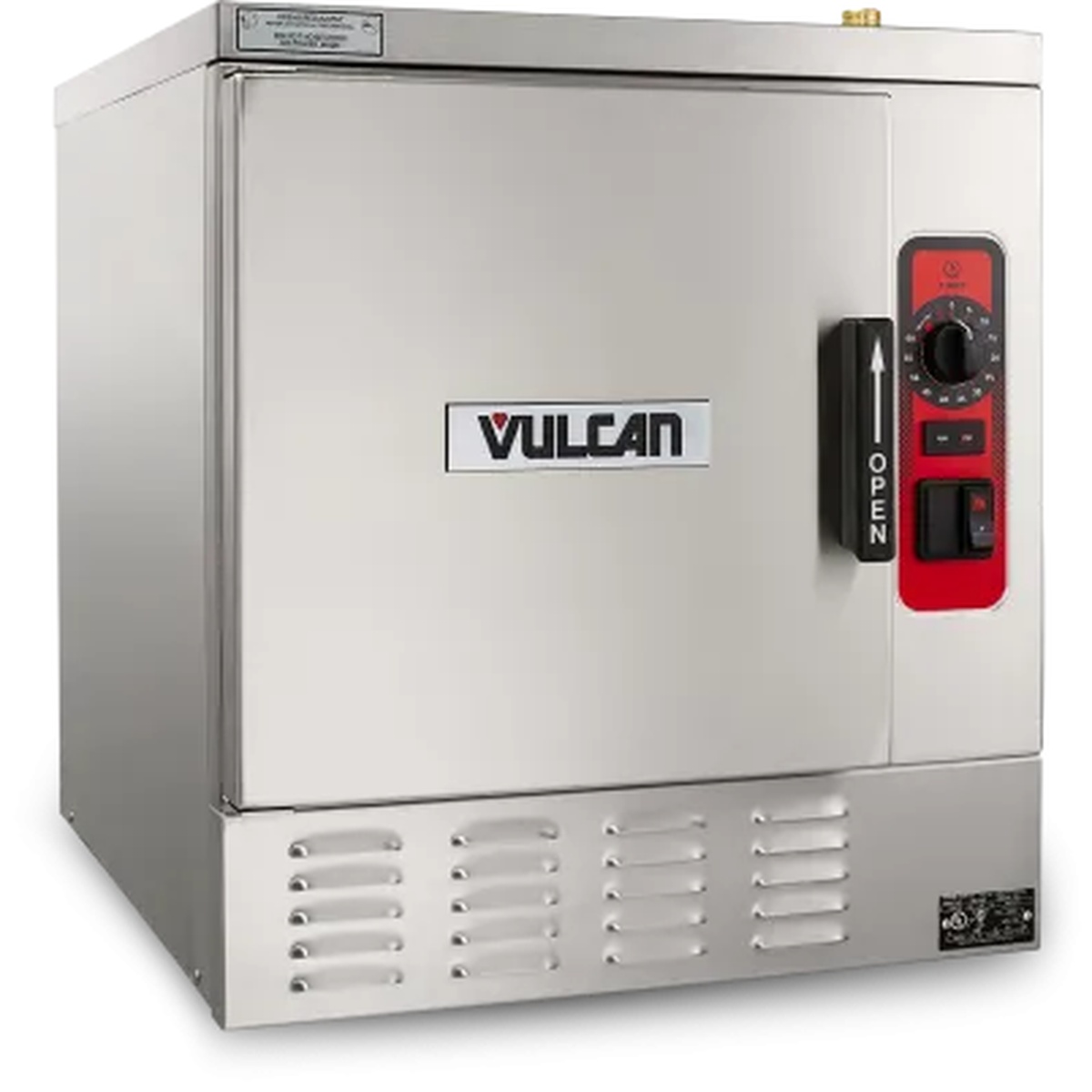

Vulcan C24EO5AF countertop convection steamer angled three-quarter view showing stainless steel exterior and control panel

Easy Cleaning and Straightforward Service Access

Designed with the operator in mind, the C24EO5AF keeps routine maintenance simple. Dishwasher-safe wire pan racks and steam panel save time at the end of service, while removable side panels provide direct access to interior components for quick servicing.

One-piece wire pan racks and steam panel are dishwasher-safe
Removable side panels for fast, straightforward service access
Heavy-duty two-panel door with integrated pan guard protects the gasket
Door can be opened during the cooking cycle without stopping operation
Load compensation automatically adjusts the timer during loading and unloading

Key Specifications

Pan Capacity5 full-size (12" x 20") steam pans

Power Input12 kW / 240V / 60Hz / 3-phase

Dimensions24"W x 33.1"D x 26"H

Warranty1-year limited parts and labor

Steam GeneratorBoilerless / Convection

Water SupplyPlumbed, single water line connection

Ideal For

High-volume restaurants Cafeterias and institutional kitchens Hotels and banquet operations Healthcare foodservice Countertop-constrained kitchens

From the Cresco Resco Team

Why You'll Love It

The Vulcan C24EO5AF is a compact, high-output countertop steamer engineered to simplify both cooking and maintenance in demanding commercial kitchens.

Perfect for operators who need reliable five-pan steaming capacity without the complexity of a boiler-based system.
The boilerless auto-fill design eliminates costly de-liming and filtration while ENERGY STAR certification keeps operating costs in check.
Pair with an open-leg stand or stacking kit to maximize footprint flexibility across any kitchen layout.

Specifications

Brand	Vulcan
Model	C24EO5AF
Series	C24 Series
Type	Countertop Convection Steamer
Steam Generator	Boilerless
Pan Capacity	5 Full Size (12" x 20") Pans
Number of Compartments	1
Pan Type	Full Size Steam Pans
Power Source	Electric
Voltage	240V
Phase	3
Frequency	60 Hz
Amperage	28.9 A
Power (kW)	12 kW
Water Source	Plumbed (Single Water Line Connection)
Controls	Manual; 60-Minute Timer with Buzzer, Cook/Ready Light, Power Switch, and Constant Steam Feature
Width	24 in
Depth	33 1/8 in
Height	26 in
Weight	175 lbs
Interior Material	304 Series Stainless Steel
Exterior Material	Stainless Steel
Certification	ENERGY STAR®
Warranty	1-Year Limited Parts & Labor
